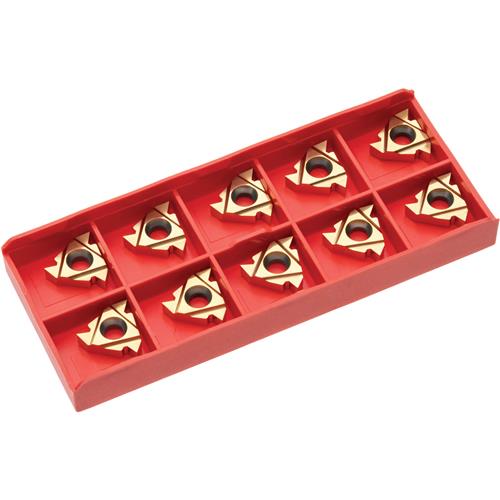

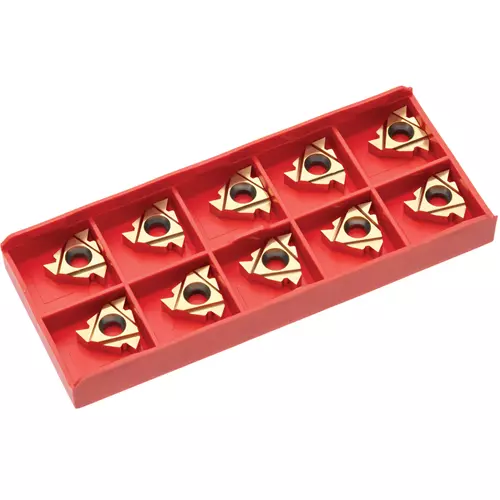

T34471 Harlingen® 16ER AG60 Carbide Inserts, 10-Pack

Precision-ground external threading inserts with an extended pitch range for maximum shop versatility.

These 16ER AG60 carbide inserts are the ultimate multi-purpose solution for external threading. The "AG" extended-range partial profile streamlines the threading process and allow for cutting an exceptionally wide variety of thread pitches with a single insert style, ensuring superior surface finishes across diverse workloads.

FEATURES and BENEFITS:

• Universal 60° Thread Profile: The AG60 designation provides a broader pitch range than standard A60 inserts. This versatile geometry cuts thread pitches from approximately 0.5mm to 3.0mm (48 to 8 TPI), creating the ideal "all-in-one" insert for metric (M) and unified national standards (UN/UNC/UNF).
• Advanced TiAlN Coating: The titanium aluminum nitride (TiAlN) coating provides exceptional hardness and superior wear resistance. This enables the cutting edge to maintain integrity at high temperatures, greatly extending tool life.
• Multi-Material Performance: Optimized for high-performance cutting in stainless steel, steel, and cast iron. The rugged carbide substrate withstands the interrupted cuts often encountered during threading.
• Universal External Threading: Designed for use with standard 16ER external right-hand threading holders (3/4" or 1" shanks), providing rigid support for high-accuracy threading on shafts, bolts, and custom fasteners.
• Economical Refill: Sold in a convenient 10-piece storage case, providing an efficient and cost-effective way to maintain production continuity in professional shop environments.

FITS:

• T34450 Multi-Purpose Indexable Tool Set
• T34451 Multi-Purpose Indexable Tool Set
• T34452 Multi-Purpose Indexable Tool Set
• T34453 Multi-Purpose Indexable Tool Set

SPECIFICATIONS:

• Designation: 16ER AG60
• Thread Profile: Partial, 60°
• Application: External threading (right-hand)
• Pitch range: 0.5–3.0mm, 48–8 TPI
• Insert size: 9.525mm I.C. (3/8")
• Insert thickness: 3.47mm (9/64")
• Insert material: Carbide
• Insert coating: TiAlN
• Insert quantity: 10
• Target materials: Steel, stainless steel, cast iron

Upgrade your machining operations with these 16ER carbide inserts.
