T34453 Harlingen® Multi-Purpose Indexable Tool Set, 3/4" Shank

Upgrade your metal lathe operations with this all-in-one indexable tool bit set.

This indexable carbide tool set makes lathe setup and tool changes faster than with traditional tools, giving you more time for cutting with less time for adjustments. The versatile turning assortment allows for precise grooving, parting, and threading, while the standard 3/4" shank offers flexible mounting, fitting most medium-to-large metal lathes and series 200 quick-change tool post holders.

FEATURES and BENEFITS:

Seven Tool Holders: This comprehensive set includes a variety of right-hand, left-hand, and center-cutting tool holders to handle a full range of lathe work. Each tool is made from high-strength steel with a durable satin chrome finish that inhibits rust and corrosion.

• SCLCR-3, for right-hand turning.
• SCLCL-3, for left-hand turning.
• SDJCR-3, for profiling and cornering.
• SDNCN-3, for neutral turning and chamfering.
• SWGCR-06, for grooving and profiling.
• MGEHR-3, for parting and grooving.
• SER-16, for external threading.

Assorted Inserts: The set comes with seven total inserts, one for each tool holder, so you can begin cutting immediately. The general-purpose inserts feature an advanced TiAN (Titanium Aluminum Nitride) coating, which provides exceptional hardness, superior thermal stability, and greater wear resistance for extended tool life.

Wrench Assortment: The set includes a Torx® T-15 key, as well as a 3mm hex wrench, to ensure you have the right tool for securing and changing every insert.

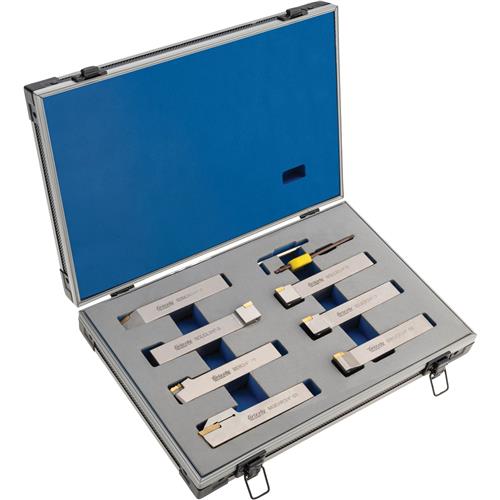

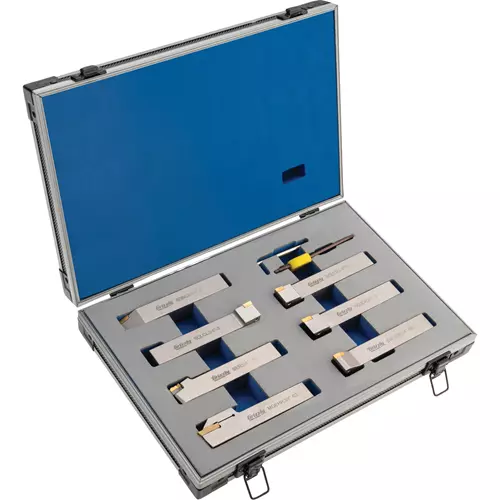

Protective Storage Case: The set comes in a durable metal case with a convenient handle. The custom-cut foam interior securely holds all seven tool holders and their corresponding wrenches in place for easy transport and protection.

SPECIFICATIONS:

• Shank size: 3/4" Square
• Insert types:
  • CCMT09T304 (T34476, T34574)
  • DCMT11T304 (T34422, T34424, T34478)
  • WCMT06T304 (T34487)
  • MGMN300 (T34482)
  • 16ER AG60 (T34471)
• Insert dimensions:
  • CCMT09T304: 3/8" (9.525mm ) I.C., 5/32" (3.97mm) thickness, 0.4mm nose radius
  • DCMT11T304: 3/8" (9.525mm ) I.C., 5/32" (3.97mm) thickness, 0.4mm nose radius
  • WCMT06T304: 3/8" (9.525mm ) I.C., 5/32" (3.97mm) thickness, 0.4mm nose radius
  • MGMN300: 3mm Width
  • 16ER AG60: 3/8" (9.525mm ) I.C., 60° thread angle
• Insert coating: TiAN (Titanium Aluminum Nitride)
• Quantity: 7 Tool holders, 7 inserts, Torx® T-15 key, hex wrench
