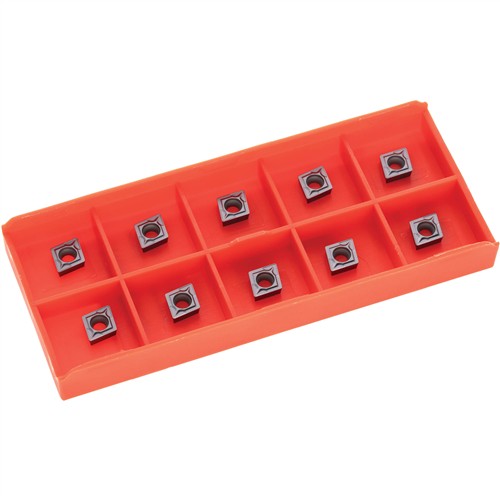

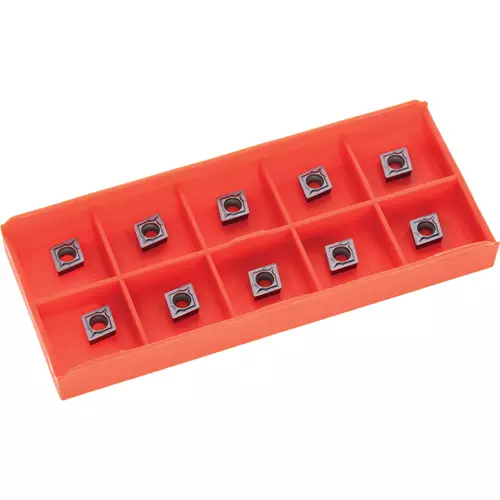

T34415 Harlingen® All-Purpose CCMT060204-SL1 Carbide Inserts, 10-Pk.

Specifically designed for the H5680 and H5681 7-pc. Insert Turning Tool Sets and H5689 Indexable End Mill Set, these all-purpose carbide inserts offer exceptional cutting across a broad range of materials, including steel, stainless steel, and cast iron.

Each insert features a cutting-edge aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates to maximum productivity and extended tool life, particularly when machining very hard or heat-intensive materials.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on in a variety of machining applications.

SPECIFICATIONS:

• Designation: CCMT060204-SL1
• Manufacturer grade: HPC349-1A
• Insert shape: Diamond (Rhombic)
• Insert angle: 80°
• Clearance angle: 7° Positive
• Tolerance class: M
• Insert size: 6.35mm (1/4") I.C.
• Insert thickness: 2.38mm (3/32")
• Nose radius: 0.4mm
• Chipbreaker: SL12
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Steel, stainless steel, cast iron
• Quantity: 10

Upgrade your machining operations with these CCMT060204 carbide inserts.
