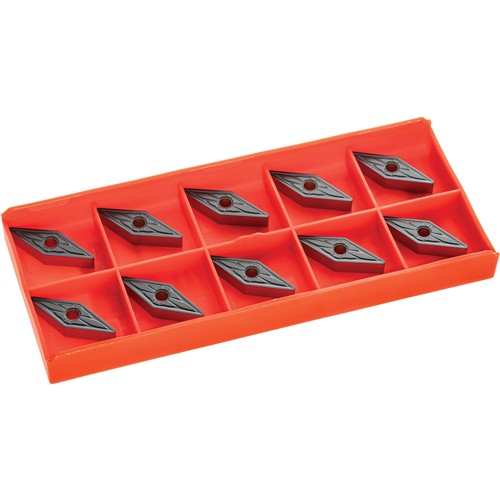

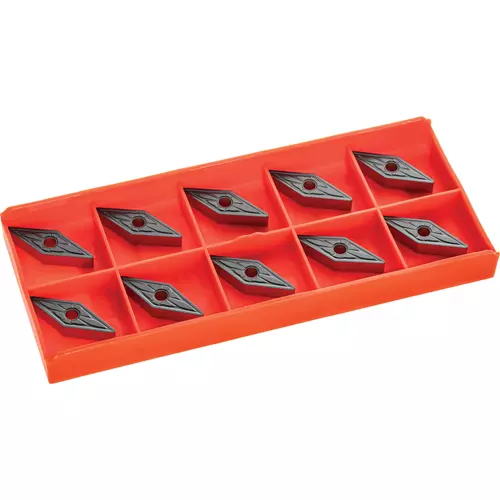

T34437 Harlingen® VNMG160404-MSL Carbide Inserts for Stainless Steel, 10-Pk.

These VNMG 35° diamond carbide inserts are specifically engineered for turning and facing operations on stainless steel, delivering exceptional performance in demanding applications. Their strong, negative geometry makes them highly durable and provides four usable cutting edges per insert (two on each side), maximizing tool life and efficiency. They are perfectly compatible with our H8297 through H8299 Lathe Tool Holders.

Each insert features a high-performance aluminum titanium nitride (AlTiN) coating. With its high aluminum content, this advanced coating offers exceptional hardness and superior thermal stability, allowing for incredibly high cutting speeds and feeds. This translates directly into increased productivity and a significantly extended tool life, particularly when machining the challenging and heat-intensive material that is stainless steel.

These inserts provide a reliable and cost-effective solution, ensuring performance you can depend on.

SPECIFICATIONS:

• Designation: VNMG160404-MSL
• Manufacturer grade: HPC349.1B
• Insert shape: Diamond (Rhombic)
• Insert angle: 35°
• Clearance angle: 0° Negative
• Tolerance class: M
• Insert size: 9.525mm (3/8") I.C.
• Insert thickness: 4.76mm (3/16")
• Nose radius: 0.4mm
• Chipbreaker: MSL
• Insert material: Carbide
• Insert coating: AlTiN
• Target materials: Stainless steel
• Quantity: 10

Upgrade your machining operations with these VNMG160404 carbide inserts.
