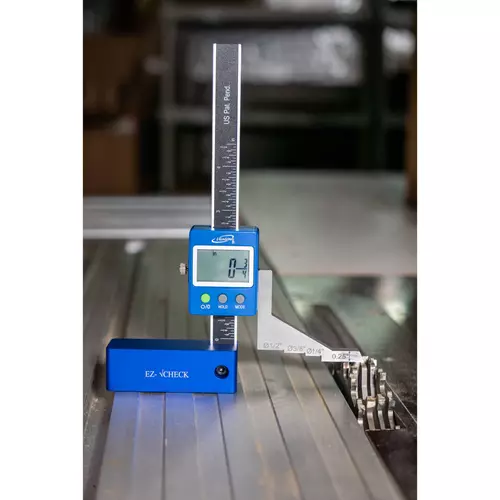

T33238 iGaging Digital Router Depth and Center Gauge

This three-in-one router gauge has three separate functions as depth gauge, center gauge, and height gauge.

Use it to set the bit height, the fence, and the blade height on your router.

This digital gauge has a lightweight aluminum body with a magnetic base and a protective anodized finish.

The height gauge has a 1/4" hardened stainless steel scriber.

SPECIFICATIONS:

• Range: 0–5" / 0–125mm
• Reading: 0.0005" / 0.01mm / 1/64" inch
• Accuracy: .0015" / 0.03mm

FEATURES:

• Adjust depth of cut
• Measure to bit centerline
• 1/4", 3/8", and 1/2" shank center step
• 1/4" Hardened scriber
• Indicator bar for travel
• Single stainless steel beam
• Anodized aluminum base with strong magnets
