Item# T32271 Model# 35-608-i

iGaging T32271 - IP54 Digital Quill Kit

$62.95
+$0.00  Shipping
+$0.00  Oversize

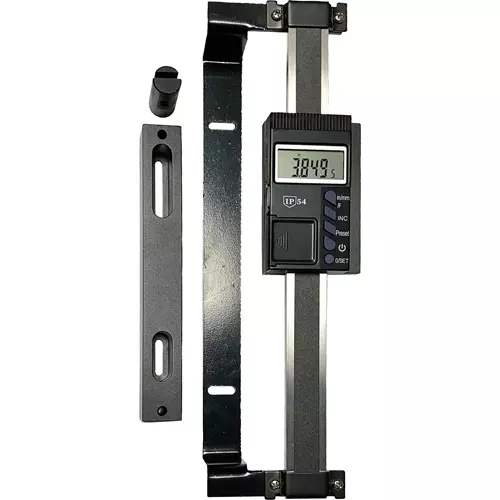

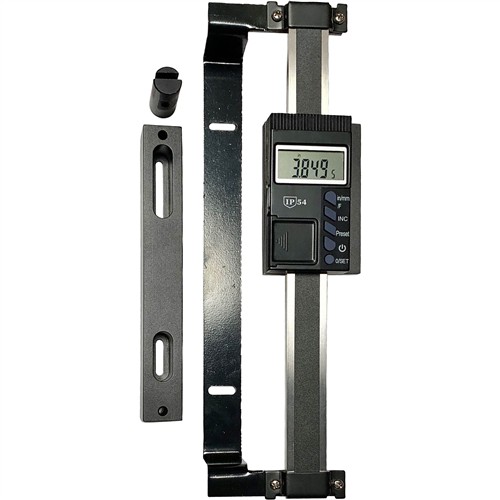

iGaging Digital Readout (DRO) and Quill Kit Mounting Bracket for Bridgeport Type Mills 6 Travel Inch/mm/Fractions. This Quill Kit comes complete with brackets and scale for Bridgeport type machines. The digital readout scale provide precise vertical linear measurement and positioning for work pieces and machine tables.
Features:
Inch/metric/fractions increments<
  • Measurements shown on the LCD screen
  • Mounting brackets included.
  • Travel range: 0-6'' (150mm)
  • Resolution: 0.0005" (0.01mm)
  • Accuracy +/-0.001" (+/-0.03mm)
  • Repeatability: 0.0005" (0.01mm)
  • Large LCD Display
  • Powered by a single CR2032 battery which lasts about 1 year with normal use ( a second spare battery is included)
  • Controls: Zero reset, On/Off, inch/mm/fraction conversion, Hold, Absolute.
  • Stainless steel beam
  • Water / Oil Resistant - Protection Classification IP54 (light splashes)
  • View More Details
    Add to Cart
    Ready to Ship!
    View Showroom Availability
    Showroom Pickup Availability

    Recommended For You

    Overview
    iGaging Digital Readout (DRO) and Quill Kit Mounting Bracket for Bridgeport Type Mills 6 Travel Inch/mm/Fractions. This Quill Kit comes complete with brackets and scale for Bridgeport type machines. The digital readout scale provide precise vertical linear measurement and positioning for work pieces and machine tables.
    Features:
    Inch/metric/fractions increments<
  • Measurements shown on the LCD screen
  • Mounting brackets included.
  • Travel range: 0-6'' (150mm)
  • Resolution: 0.0005" (0.01mm)
  • Accuracy +/-0.001" (+/-0.03mm)
  • Repeatability: 0.0005" (0.01mm)
  • Large LCD Display
  • Powered by a single CR2032 battery which lasts about 1 year with normal use ( a second spare battery is included)
  • Controls: Zero reset, On/Off, inch/mm/fraction conversion, Hold, Absolute.
  • Stainless steel beam
  • Water / Oil Resistant - Protection Classification IP54 (light splashes)
