Kreg H9399 - R3 Jig Kit
H9399 Kreg R3 Jig Kit
The home improver's solution for building with wood.
With the Kreg Jig® R3, you can build bookcases, shelves, and storage projects for your home. It's also great for creating custom built-ins, and countless other home improvement projects. Plus, the R3 can be used portably to make lasting repairs around your home.

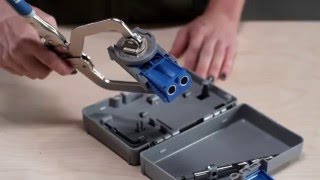

Clamp Pad Adapter: The Kreg Jig® R3 includes a clamp pad adapter, which allows the R3 to be easily secured to your workpiece using any standard bar clamp, C-clamp, or Kreg Face Clamp. For faster and more repeatable pocket holes, choose a Kreg Face Clamp.
Material Thickness Setting: Handle just about anything from thin drawer boxes and craft projects to stout 2x4s. Independent positioning sliders feature nine depth settings, allowing you to easily join materials from 1/2" to 1-1/2" thick in 1/8" increments.
Organized Carrying Case: A compact, yet durable carrying case is included so that you'll always have a safe place to store your Kreg Jig® R3 and organize all of the accessories it comes with. A depth collar gauge has been molded into the case for handy reference.
Dual Positioning Sliders: Properly set your jig based on the thickness of the material you are working with. Simply depress the button on the side of the jig and move the sliders so your material thickness is aligned with the arrow on the jig body.
Glass-Reinforced Nylon Body: The blue body of every Kreg Jig® is made from a heavy-duty, glass-reinforced nylon. This composite material offers the resiliency you need without sacrificing the strength and durability Kreg customers have come to expect.
Superior Angle: The Kreg Jig® R3 features an optimized drilling angle specifically designed to increase driving efficiency and minimize the overall size of the pocket hole. The result is a compact pocket hole, less than 1-1/2" in size.
Wood Chip Relief: The Kreg Jig® R3 includes one wood-chip relief hole for every drill guide hole, designed to keep the drill bit clear of excess wood chips, minimizing drill-torque, increasing the longevity of your drill bits, and allows the completion of a perfect pocket hole in just one plunge.
Hardened-Steel Core: The core of every drill guide features hardened-steel, which carries a lifetime guarantee. The core shrouds the bit and supports the workpiece through 100% of the drill-stroke. The end result is minimal bit deflection, reduced tear-out, and a clean, pluggable pocket hole fit for finish work.
Contact Kreg regarding warranties on their products and technical support.

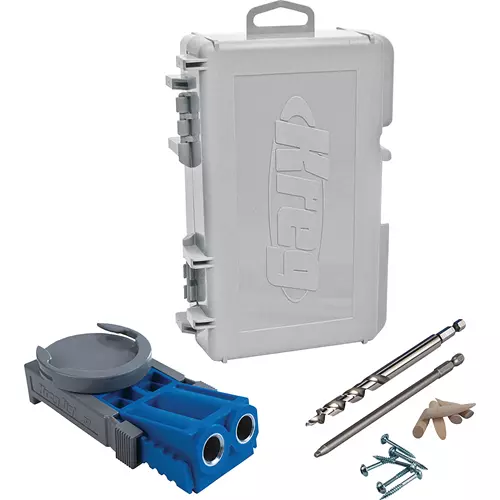

- (1) Pocket-Hole Jig R3
- (1) Stepped drill bit
- (1) 6" Square-drive bit
- (1) Depth collar
- (1) Clamp adapter pad
- (1) Allen wrench
- (1) Screw and plug sample pack
- (1) Carrying case
- Owner's Manual
