Parts for M1013 - 5" x 6" 1/2 HP Metal-Cutting Bandsaw
If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
| Ref # | Part # | Description | Price | Qty | |
|---|---|---|---|---|---|

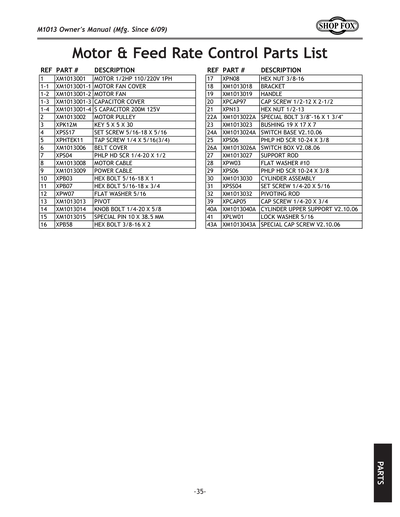

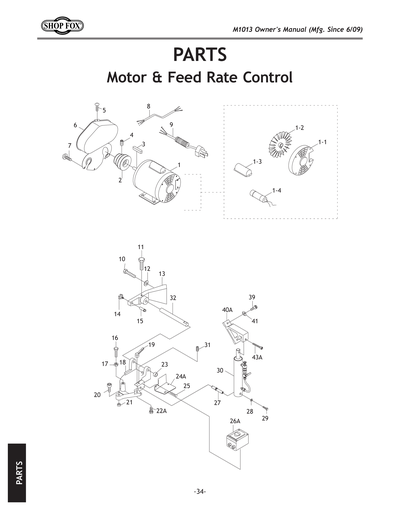

| PXM1013001 | XM1013001 | MOTOR 1/2HP 110/220V 1PH | $281.95 | ||
| PXM1013001-1 | XM1013001-1 | MOTOR FAN COVER | $18.05 | ||
| PXM1013001-2 | XM1013001-2 | MOTOR FAN | $10.80 | ||
| PXM1013001-3 | XM1013001-3 | CAPACITOR COVER | $15.30 | ||
| PXM1013001-4 |
XM1013001-4
Replaced By PC200
|
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
|
N/A | View Replacement | |
| PXM1013002 | XM1013002 | MOTOR PULLEY | $14.60 | ||
| PXM1013003 |
XM1013003
Replaced By PK12M
|
KEY 5 X 5 X 30
|
N/A | View Replacement | |
| PXM1013004 |
XM1013004
Replaced By PSS17
|
SET SCREW 5/16-18 X 5/16
|
N/A | View Replacement | |
| PXM1013005 |
XM1013005
Replaced By PHTEK11
|
TAP SCREW #8 X 3/4
|
N/A | View Replacement | |
| PXM1013005-1 |
XM1013005-1
Replaced By PW06
|
FLAT WASHER 1/4
|
N/A | View Replacement | |
| PXM1013006 | XM1013006 | BELT COVER | $20.05 | ||
| PXM1013007 |
XM1013007
Replaced By PB19
|
HEX BOLT 1/4-20 X 1/2
|
N/A | View Replacement | |
| PXM1013008 | XM1013008 | MOTOR CABLE | $6.55 | ||
| PXM1013009 | XM1013009 | POWER CABLE | $12.95 | ||
| PXM1013010 |
XM1013010
Replaced By PB03
|
HEX BOLT 5/16-18 X 1
|
N/A | View Replacement | |
| PXM1013011 |
XM1013011
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| PXM1013012 |
XM1013012
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013013 | XM1013013 | PIVOT | $25.45 | ||
| PXM1013014 | XM1013014 | KNOB BOLT 1/4-20 x 5/8 | $0.95 | ||
| PXM1013015 | XM1013015 | Pivot Pin 10 X 38.5mm | $3.05 | ||
| PXM1013016 |
XM1013016
Replaced By PB58
|
HEX BOLT 3/8-16 X 2
|
N/A | View Replacement | |
| PXM1013017 |
XM1013017
Replaced By PN08
|
HEX NUT 3/8-16
|
N/A | View Replacement | |
| PXM1013018 | XM1013018 | BRACKET | $100.55 | ||
| PXM1013019 | XM1013019 | HANDLE | $24.35 | ||
| PXM1013020 |
XM1013020
Replaced By PCAP97
|
CAP SCREW 1/2-12 X 2-1/2
|
N/A | View Replacement | |
| PXM1013021 |
XM1013021
Replaced By PN13
|
HEX NUT 1/2-13
|
N/A | View Replacement | |
| PXM1013022 | XM1013022 | FEED RATE CARRIAGE BOLT 3/8-16 X 1-3/4 | $15.30 | ||
| PXM1013022A | XM1013022A | FEED RATE CONTROL BOLT 3/8"-16 X 1 3/4" | $9.10 | ||
| PXM1013023 | XM1013023 | BUSHING 19 X 17 X 7 | $1.00 | ||
| PXM1013024 | XM1013024 | SWITCH BASE V1.03.05 | $7.30 | ||
| PXM1013024A | XM1013024A | SWITCH BASE V2.10.06 | $12.45 | ||
| PXM1013025 |
XM1013025
Replaced By PS06
|
PHLP HD SCR 10-24 X 3/8
|
N/A | View Replacement | |
| PXM1013026 | XM1013026 | SWITCH BOX V1.03.05 | $43.90 | ||
| PXM1013026A | XM1013026A | SWITCH BOX V2.08.06 | $76.35 | ||

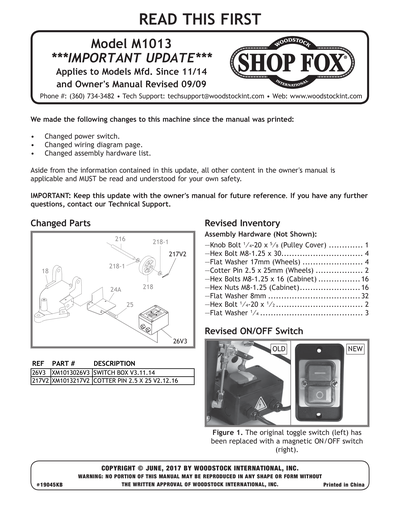

| PXM1013026V3 | XM1013026V3 | SWITCH BOX ASSY V3.11.14 | $80.55 | ||
| PXM1013026V3-1 | XM1013026V3-1 | ON/OFF BUTTON SWITCH KEDU KJD12 120V | $49.40 | ||
| PXM1013027 | XM1013027 | SUPPORT ROD | $8.15 | ||
| PXM1013028 |
XM1013028
Replaced By PW03
|
FLAT WASHER #10
|
N/A | View Replacement | |
| PXM1013029 |
XM1013029
Replaced By PS06
|
PHLP HD SCR 10-24 X 3/8
|
N/A | View Replacement | |
| PXM1013030 | XM1013030 | CYLINDER ASSEMBLY | $228.05 | ||
| PXM1013031 |
XM1013031
Replaced By PSS04
|
SET SCREW 1/4-20 X 5/16
|
N/A | View Replacement | |
| PXM1013032 | XM1013032 | PIVOTING ROD | $7.90 | ||
| PXM1013033 | XM1013033 | ADJUSTMENT LUG | $9.20 | ||
| PXM1013034 | XM1013034 | SCREW ROD | $6.65 | ||
| PXM1013035 | XM1013035 | COMPRESSION SPRING | $4.60 | ||
| PXM1013036 | XM1013036 | BALANCING BRACKET | $23.90 | ||
| PXM1013037 |
XM1013037
Replaced By PLW04
|
LOCK WASHER 3/8
|
N/A | View Replacement | |
| PXM1013038 |
XM1013038
Replaced By PB18
|
HEX BOLT 3/8-16 X 1
|
N/A | View Replacement | |
| PXM1013039 |
XM1013039
Replaced By PCAP05
|
CAP SCREW 1/4-20 X 3/4
|
N/A | View Replacement | |
| PXM1013040 | XM1013040 | CYLINDER UPPER SUPPORT V1.03.05 | $23.55 | ||
| PXM1013040A | XM1013040A | CYLINDER UPPER SUPPORT V2.10.06 | $20.35 | ||
| PXM1013041 |
XM1013041
Replaced By PLW01
|
LOCK WASHER 5/16
|
N/A | View Replacement | |
| PXM1013043 | XM1013043 | UPPER SUPPORT PIN 1/4-20 X 1/2 V1 | $4.05 | ||
| PXM1013043A | XM1013043A | UPPER SUPPORT CAP SCREW V2.10.06 | $4.05 | ||
| PXM1013045 |
XM1013045
Replaced By ps23
|
PHLP HD SCR 8-32 X 1/4
|
N/A | View Replacement | |
| PXM1013046 | XM1013046 | STRAIN RELIEF PG11 TYPE-3 | $5.05 | ||
| PXM1013047 | XM1013047 | SWITCH CORD 18GA 3W 24" | $16.55 | ||

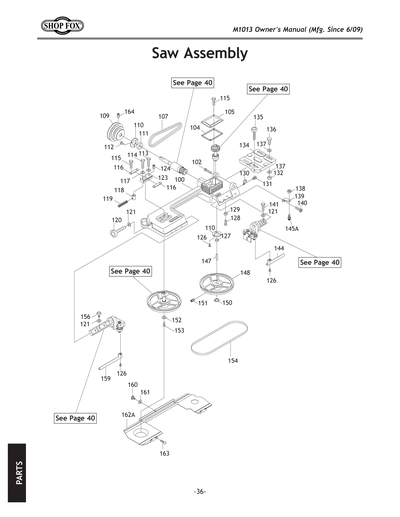

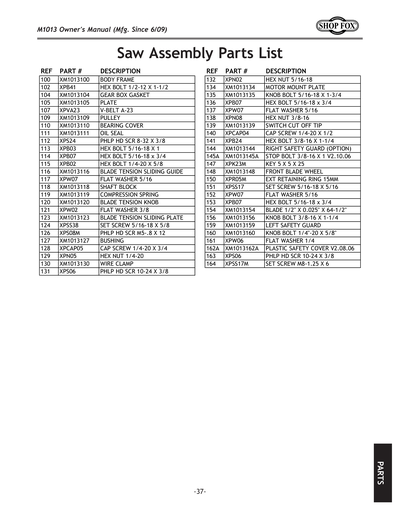

| PXM1013100 | XM1013100 | BODY FRAME | $182.10 | ||
| PXM1013101 | XM1013101 | WORM GEAR SHAFT | $19.90 | ||
| PXM1013102 |
XM1013102
Replaced By PB41
|
HEX BOLT 1/2-12 X 1-1/2
|
N/A | View Replacement | |
| PXM1013104 | XM1013104 | GEAR BOX GASKET | $1.15 | ||
| PXM1013105 | XM1013105 | PLATE | $5.15 | ||
| PXM1013107 |
XM1013107
Replaced By PVAX23
|
V-BELT AX23, COGGED
|
N/A | View Replacement | |
| PXM1013108 |
XM1013108
Replaced By PB32
|
HEX BOLT 5/16-18 X 5/8
|
N/A | View Replacement | |
| PXM1013109 | XM1013109 | PULLEY | $20.20 | ||
| PXM1013110 | XM1013110 | BEARING COVER | $1.45 | ||
| PXM1013111 | XM1013111 | OIL SEAL | $1.80 | ||
| PXM1013112 |
XM1013112
Replaced By PS24
|
PHLP HD SCR 8-32 X 3/8
|
N/A | View Replacement | |
| PXM1013113 |
XM1013113
Replaced By PB03
|
HEX BOLT 5/16-18 X 1
|
N/A | View Replacement | |
| PXM1013114 |
XM1013114
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| PXM1013115 |
XM1013115
Replaced By PB02
|
HEX BOLT 1/4-20 X 5/8
|
N/A | View Replacement | |
| PXM1013116 | XM1013116 | BLADE TENSION SLIDING GUIDE | $3.40 | ||
| PXM1013117 |
XM1013117
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013118 | XM1013118 | SHAFT BLOCK | $3.90 | ||
| PXM1013119 | XM1013119 | COMPRESSION SPRING | $0.90 | ||
| PXM1013120 | XM1013120 | BLADE TENSION KNOB | $4.10 | ||
| PXM1013121 |
XM1013121
Replaced By PW02
|
FLAT WASHER 3/8
|
N/A | View Replacement | |
| PXM1013123 | XM1013123 | BLADE TENSION SLIDING PLATE | $26.25 | ||
| PXM1013123-1 | XM1013123-1 | BLADE TENSION LABEL | $2.60 | ||
| PXM1013124 |
XM1013124
Replaced By PSS38
|
SET SCREW 5/16-18 X 5/8
|
N/A | View Replacement | |
| PXM1013126 |
XM1013126
Replaced By PS08M
|
PHLP HD SCR M5-.8 X 12
|
N/A | View Replacement | |
| PXM1013127 | XM1013127 | BUSHING | $0.90 | ||
| PXM1013128 |
XM1013128
Replaced By PCAP05
|
CAP SCREW 1/4-20 X 3/4
|
N/A | View Replacement | |
| PXM1013129 |
XM1013129
Replaced By PN05
|
HEX NUT 1/4-20
|
N/A | View Replacement | |
| PXM1013130 | XM1013130 | WIRE CLAMP | $0.90 | ||
| PXM1013131 |
XM1013131
Replaced By PS06
|
PHLP HD SCR 10-24 X 3/8
|
N/A | View Replacement | |
| PXM1013132 |
XM1013132
Replaced By PN02
|
HEX NUT 5/16-18
|
N/A | View Replacement | |
| PXM1013134 | XM1013134 | MOTOR MOUNT PLATE | $10.40 | ||
| PXM1013135 | XM1013135 | KNOB BOLT 5/16-18 X 1-3/4 | $1.30 | ||
| PXM1013136 |
XM1013136
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| PXM1013137 |
XM1013137
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013138 |
XM1013138
Replaced By PN08
|
HEX NUT 3/8-16
|
N/A | View Replacement | |
| PXM1013139 | XM1013139 | SWITCH CUT OFF TIP | $11.10 | ||
| PXM1013140 |
XM1013140
Replaced By PCAP04
|
CAP SCREW 1/4-20 X 1/2
|
N/A | View Replacement | |
| PXM1013141 |
XM1013141
Replaced By PB24
|
HEX BOLT 3/8-16 X 1-1/4
|
N/A | View Replacement | |
| PXM1013144 | XM1013144 | Right Safety Guard | $5.35 | ||
| PXM1013145 |
XM1013145
Replaced By PB18
|
HEX BOLT 3/8-16 X 1
|
N/A | View Replacement | |
| PXM1013145A | XM1013145A | STOP BOLT 3/8-16 X 1 V2.10.06 | $0.90 | ||
| PXM1013147 |
XM1013147
Replaced By PK23M
|
KEY 5 X 5 X 25
|
N/A | View Replacement | |
| PXM1013148 | XM1013148 | BLADE WHEEL FRONT | $23.05 | ||
| PXM1013150 |
XM1013150
Replaced By PR05M
|
EXT RETAINING RING 15MM
|
N/A | View Replacement | |
| PXM1013151 |
XM1013151
Replaced By PSS17
|
SET SCREW 5/16-18 X 5/16
|
N/A | View Replacement | |
| PXM1013152 |
XM1013152
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013153 |
XM1013153
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| PXM1013154 | XM1013154 | BLADE 1/2" X 0.025" X 64-1/2" | $39.75 | ||
| PXM1013156 | XM1013156 | KNOB BOLT 3/8-16 X 1-1/4 | $3.50 | ||
| PXM1013159 | XM1013159 | SAFETY GUARD LEFT | $5.35 | ||
| PXM1013160 | XM1013160 | KNOB BOLT 1/4"-20 X 5/8" | $1.90 | ||
| PXM1013161 |
XM1013161
Replaced By PW06
|
FLAT WASHER 1/4
|
N/A | View Replacement | |
| PXM1013162 | XM1013162 | BLADE BACK SAFETY COVER V1.03.05 | $28.45 | ||
| PXM1013162A | XM1013162A | PLASTIC SAFETY COVER V2.08.06 | $30.10 | ||
| PXM1013163 |
XM1013163
Replaced By PS06
|
PHLP HD SCR 10-24 X 3/8
|
N/A | View Replacement | |
| PXM1013164 |
XM1013164
Replaced By PSS17M
|
SET SCREW M8-1.25 X 6
|
N/A | View Replacement | |

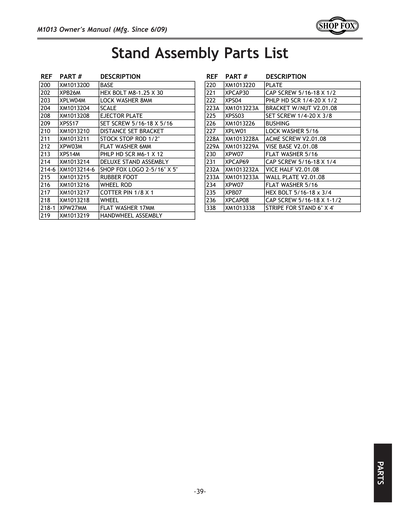

| PXM1013200 | XM1013200 | BASE | $147.30 | ||
| PXM1013202 |
XM1013202
Replaced By PB26M
|
HEX BOLT M8-1.25 X 30
|
N/A | View Replacement | |
| PXM1013203 |
XM1013203
Replaced By PLW04M
|
LOCK WASHER 8MM
|
N/A | View Replacement | |
| PXM1013204 | XM1013204 | SCALE | $7.65 | ||
| PXM1013205 | XM1013205 | SCREW PLATE | $6.20 | ||
| PXM1013206 | XM1013206 | HANDLE AND SHAFT | $21.40 | ||
| PXM1013207 | XM1013207 | RUBBER SLEEVE | $2.90 | ||
| PXM1013208 | XM1013208 | EJECTOR PLATE | $11.90 | ||
| PXM1013209 |
XM1013209
Replaced By PSS17
|
SET SCREW 5/16-18 X 5/16
|
N/A | View Replacement | |
| PXM1013210 | XM1013210 | DISTANCE SET BRACKET | $6.50 | ||
| PXM1013211 | XM1013211 | STOCK STOP ROD 1/2" | $5.70 | ||
| PXM1013212 |
XM1013212
Replaced By PW01M
|
FLAT WASHER 8MM
|
N/A | View Replacement | |
| PXM1013213 |
XM1013213
Replaced By PB03M
|
HEX BOLT M8-1.25 X 16
|
N/A | View Replacement | |

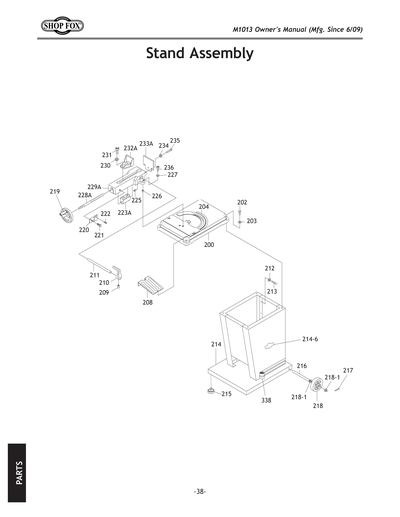

| PXM1013214 | XM1013214 | DELUXE STAND ASSEMBLY | $182.15 | ||
| PXM1013214-5 | XM1013214-5 | *DISCD*STRIPE TAPE | $3.75 | ||
| PXM1013214-6 |
XM1013214-6
Replaced By D3375
|
Shop Fox Nameplate - Small
|
N/A | View Replacement | |
| PXM1013215 | XM1013215 | RUBBER FOOT | $3.80 | ||
| PXM1013216 | XM1013216 | WHEEL ROD | $16.80 | ||
| PXM1013217 | XM1013217 | COTTER PIN 1/8 X 1 V1 | $0.90 | ||
| PXM1013217V2 | XM1013217V2 | COTTER PIN 2.5 X 25 V2.12.16 | $2.95 | ||
| PXM1013218 | XM1013218 | WHEEL | $7.75 | ||
| PXM1013218-1 |
XM1013218-1
Replaced By PW27MM
|
FLAT WASHER 17MM
|
N/A | View Replacement | |
| PXM1013219 | XM1013219 | HANDWHEEL ASSEMBLY | $19.00 | ||
| PXM1013219-1 |
XM1013219-1
Replaced By PXM1013219
|
HANDWHEEL ASSEMBLY
|
N/A | View Replacement | |
| PXM1013219-2 |
XM1013219-2
Replaced By PXM1013219
|
HANDWHEEL ASSEMBLY
|
N/A | View Replacement | |
| PXM1013220 | XM1013220 | PLATE | $4.90 | ||
| PXM1013221 |
XM1013221
Replaced By PCAP30
|
CAP SCREW 5/16-18 X 1/2
|
N/A | View Replacement | |
| PXM1013222 |
XM1013222
Replaced By PS04
|
PHLP HD SCR 1/4-20 X 1/2
|
N/A | View Replacement | |
| PXM1013223A | XM1013223A | BRACKET W/NUT V2.01.08 | $15.45 | ||
| PXM1013224 | XM1013224 | ACME NUT V1.07.04 | $20.15 | ||
| PXM1013224A | XM1013224A | ACME NUT V2.08.06 | $18.35 | ||
| PXM1013225 |
XM1013225
Replaced By PSS03
|
SET SCREW 1/4-20 X 3/8
|
N/A | View Replacement | |
| PXM1013226 | XM1013226 | BUSHING | $2.90 | ||
| PXM1013227 |
XM1013227
Replaced By PLW01
|
LOCK WASHER 5/16
|
N/A | View Replacement | |
| PXM1013228A | XM1013228A | ACME SCREW V2.01.08 | $18.50 | ||
| PXM1013229A | XM1013229A | VISE BASE V2.01.08 | $96.15 | ||
| PXM1013230 |
XM1013230
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013231 |
XM1013231
Replaced By PCAP69
|
CAP SCREW 5/16-18 X 1/4
|
N/A | View Replacement | |
| PXM1013232A | XM1013232A | VICE HALF V2.01.08 | $17.70 | ||
| PXM1013233A | XM1013233A | WALL PLATE V2.01.08 | $15.95 | ||
| PXM1013234 |
XM1013234
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013235 |
XM1013235
Replaced By PB07
|
HEX BOLT 5/16-18 X 3/4
|
N/A | View Replacement | |
| PXM1013236 |
XM1013236
Replaced By PCAP08
|
CAP SCREW 5/16-18 X 1-1/2
|
N/A | View Replacement | |

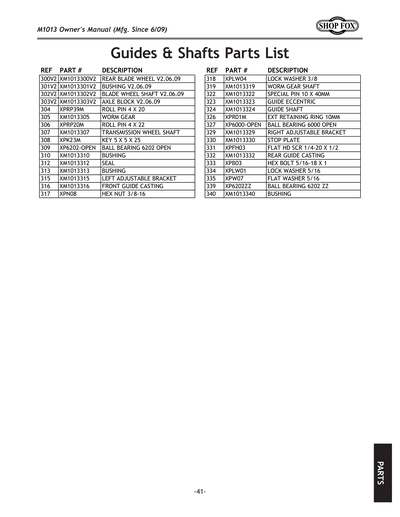

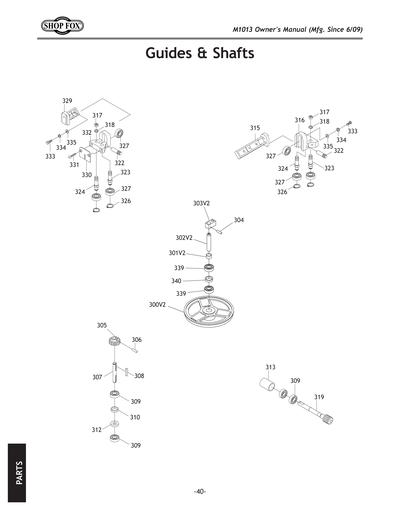

| PXM1013300 | XM1013300 | BLADE WHEEL REAR V1.03.05 | $29.55 | ||
| PXM1013300V2 | XM1013300V2 | BLADE WHEEL REAR V2.06.09 | $35.45 | ||
| PXM1013301 | XM1013301 | BUSHING V1.03.05 | $0.90 | ||
| PXM1013301V2 | XM1013301V2 | BUSHING V2.06.09 | $0.90 | ||
| PXM1013302 | XM1013302 | BLADE WHEEL SHAFT V1.03.05 | $12.75 | ||
| PXM1013302A | XM1013302A | BLADE WHEEL SHAFT ASSY | $14.80 | ||
| PXM1013302V2 |
XM1013302V2
Replaced By PXM1013302A
|
BLADE WHEEL SHAFT ASSY
|
N/A | View Replacement | |
| PXM1013303 | XM1013303 | AXLE BLOCK V1.03.05 | $9.70 | ||
| PXM1013303A | XM1013303A | AXLE BLOCK ASSEMBLY | $11.65 | ||
| PXM1013303V2 |
XM1013303V2
Replaced By PXM1013302A
|
BLADE WHEEL SHAFT ASSY
|
N/A | View Replacement | |
| PXM1013304 |
XM1013304
Replaced By PXM1013302A
|
BLADE WHEEL SHAFT ASSY
|
N/A | View Replacement | |
| PXM1013305 | XM1013305 | WORM GEAR | $53.60 | ||
| PXM1013306 |
XM1013306
Replaced By PRP20M
|
ROLL PIN 4 X 22
|
N/A | View Replacement | |
| PXM1013307 | XM1013307 | TRANSMISSION WHEEL SHAFT | $10.55 | ||
| PXM1013308 |
XM1013308
Replaced By PK23M
|
KEY 5 X 5 X 25
|
N/A | View Replacement | |
| PXM1013309 |
XM1013309
Replaced By P6202-OPEN
|
BALL BEARING 6202-OPEN
|
N/A | View Replacement | |
| PXM1013310 | XM1013310 | BUSHING | $2.10 | ||
| PXM1013312 | XM1013312 | SEAL | $2.85 | ||
| PXM1013313 | XM1013313 | BUSHING | $3.15 | ||
| PXM1013315 | XM1013315 | ADJUSTABLE BRACKET LEFT | $25.05 | ||
| PXM1013316 | XM1013316 | GUIDE CASTING FRONT | $12.95 | ||
| PXM1013317 |
XM1013317
Replaced By PN08
|
HEX NUT 3/8-16
|
N/A | View Replacement | |
| PXM1013318 |
XM1013318
Replaced By PLW04
|
LOCK WASHER 3/8
|
N/A | View Replacement | |
| PXM1013319 | XM1013319 | WORM GEAR SHAFT | $33.80 | ||
| PXM1013322 | XM1013322 | REAR GUIDE CASTING PIN 10 X 40MM | $2.35 | ||
| PXM1013323 | XM1013323 | GUIDE ECCENTRIC | $3.45 | ||
| PXM1013324 | XM1013324 | GUIDE SHAFT | $3.45 | ||
| PXM1013326 |
XM1013326
Replaced By PR01M
|
EXT RETAINING RING 10MM
|
N/A | View Replacement | |
| PXM1013327 |
XM1013327
Replaced By P6000-OPEN
|
BALL BEARING 6000-OPEN
|
N/A | View Replacement | |
| PXM1013329 | XM1013329 | ADJUSTABLE BRACKET RIGHT | $11.90 | ||
| PXM1013330 | XM1013330 | STOP PLATE | $2.10 | ||
| PXM1013331 |
XM1013331
Replaced By PFH03
|
FLAT HD SCR 1/4-20 X 1/2
|
N/A | View Replacement | |
| PXM1013332 | XM1013332 | GUIDE CASTING REAR | $12.95 | ||
| PXM1013333 |
XM1013333
Replaced By PB03
|
HEX BOLT 5/16-18 X 1
|
N/A | View Replacement | |
| PXM1013334 |
XM1013334
Replaced By PLW01
|
LOCK WASHER 5/16
|
N/A | View Replacement | |
| PXM1013335 |
XM1013335
Replaced By PW07
|
FLAT WASHER 5/16
|
N/A | View Replacement | |
| PXM1013336 | XM1013336 | CARTON FOR M1013 | $16.70 | ||
| PXM1013337 | XM1013337 | STYROFOAM | $30.35 | ||
| PXM1013338 | XM1013338 | STRIPE FOR STAND 6" X 4' | $8.60 | ||
| PXM1013339 |
XM1013339
Replaced By P6202ZZ
|
BALL BEARING 6202ZZ
|
N/A | View Replacement | |
| PXM1013340 | XM1013340 | BUSHING | $0.90 | ||

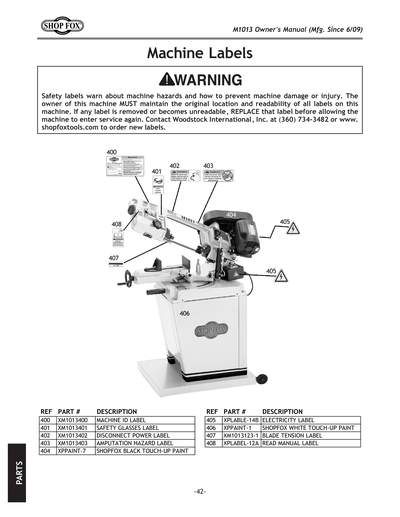

| PXM1013400 | XM1013400 | MACHINE ID LABEL | $13.60 | ||
| PXM1013401 | XM1013401 | SAFETY GLASSES LABEL | $1.05 | ||
| PXM1013402 | XM1013402 | DISCONNECT POWER LABEL | $1.05 | ||
| PXM1013403 | XM1013403 | AMPUTATION HAZARD LABEL | $1.05 | ||
| PXM1013404 |
XM1013404
Replaced By PPAINT-7
|
GLOSSY BLACK
|
N/A | View Replacement | |
| PXM1013405 |
XM1013405
Replaced By PLABEL-14
|
ELECTRICITY 1.4W X 1.2H
|
N/A | View Replacement | |
| PXM1013406 |
XM1013406
Replaced By PXPPAINT-1
|
SHOP FOX WHITE M1006
|
N/A | View Replacement | |
| PXM1013407 |
XM1013407
Replaced By PXM1013123-1
|
BLADE TENSION LABEL
|
N/A | View Replacement | |
| PXM1013408 |
XM1013408
Replaced By PLABEL-12A
|
READ MANUAL 2W X 3.3H V2.07.05
|
N/A | View Replacement | |
| PXM1013MANUAL | XM1013MANUAL | MANUAL FOR M1013 08/06 | $17.20 |
