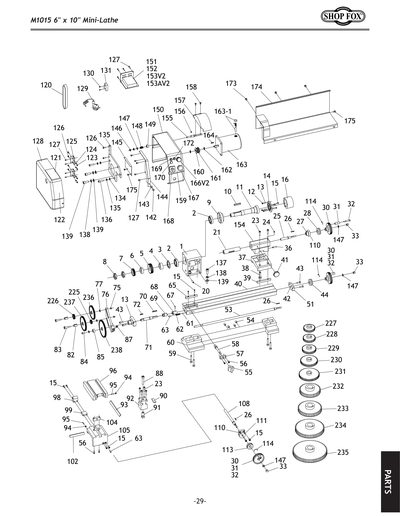

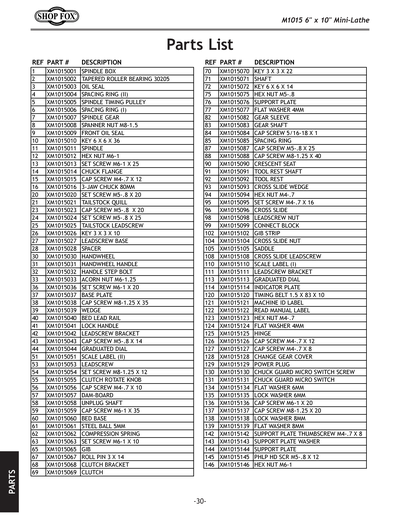

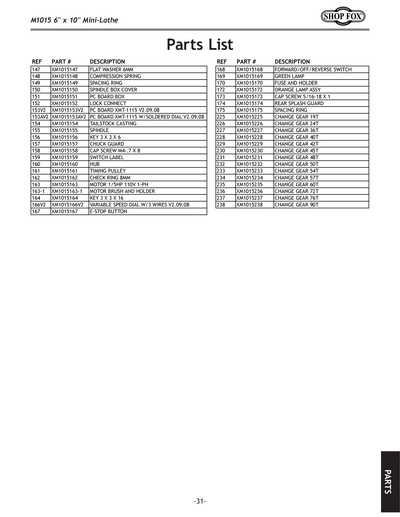

Parts for M1015 6" x 10" Mini Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
SPINDLE BOX
PXM1015002
TAPERED ROLLER BEARING 30205
Price
N/A
P
OIL SEAL
P
SPACING RING (II)
P
SPINDLE TIMING PULLEY
P
SPACING RING (I)
P
SPINDLE GEAR
P
SPANNER NUT M8-1.5
P
FRONT OIL SEAL
PXM1015010
KEY 6 X 6 X 36
Price
N/A
P
SPINDLE
PXM1015012
Now: PN01M
HEX NUT M6-1
Price
N/A
PXM1015013
SET SCREW M6-1 X 25
Price
N/A
PXM1015014
CHUCK FLANGE
Price
N/A
PXM1015015
CAP SCREW M4-.7 X 12
Price
N/A
PXM1015016
3-JAW CHUCK 80MM
Price
N/A
PXM1015020
SET SCREW M5-.8 X 20
Price
N/A
P
TAILSTOCK QUILL
PXM1015023
CAP SCREW M5-.8 X 20
Price
N/A
PXM1015024
SET SCREW M5-.8 X 25
Price
N/A
P
TAILSTOCK LEADSCREW
PXM1015026
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
P
LEADSCREW BASE
P
SPACER
P
HANDWHEEL
P
HANDWHEEL HANDLE
P
HANDLE STEP BOLT
PXM1015033
Now: PN52M
ACORN NUT M6-1.25
Price
N/A
PXM1015036
SET SCREW M6-1 X 20
Price
N/A
P
BASE PLATE
PXM1015038
CAP SCREW M8-1.25 X 35
Price
N/A
P
WEDGE
P
BED LEAD RAIL
P
LOCK HANDLE
P
***USE P0937065***
PXM1015043
CAP SCREW M5-.8 X 14
Price
N/A
P
GRADUATED DIAL
P
SCALE LABEL (II)
PXM1015053
LEADSCREW
Price
N/A
PXM1015054
SET SCREW M8-1.25 X 12
Price
N/A
P
CLUTCH ROTATE KNOB
PXM1015056
CAP SCREW M4-.7 X 10
Price
N/A
P
DAM-BOARD
P
UNPLUG SHAFT
PXM1015059
CAP SCREW M6-1 X 35
Price
N/A
P
BED BASE
PXM1015061
STEEL BALL 5MM
Price
N/A
P
COMPRESSION SPRING
PXM1015063
SET SCREW M6-1 X 10
Price
N/A
P
GIB
PXM1015067
ROLL PIN 3 X 14
Price
N/A
PXM1015068
CLUTCH BRACKET
Price
N/A
PXM1015069
CLUTCH
Price
N/A
PXM1015070
KEY 3 X 3 X 22
Price
N/A
P
SHAFT
PXM1015072
KEY 6 X 6 X 14
Price
N/A
P
GEAR SHAFT BRACKET
PXM1015075
Now: PN06M
HEX NUT M5-.8
Price
N/A
P
SUPPORT PLATE
PXM1015077
Now: PW05M
FLAT WASHER 4MM
Price
N/A
P
GEAR SLEEVE
P
GEAR SHAFT
PXM1015084
CAP SCREW 5/16-18 X 1
Price
N/A
P
SPACING RING
PXM1015087
CAP SCREW M5-.8 X 25
Price
N/A
PXM1015088
CAP SCREW M8-1.25 X 40
Price
N/A
P
CRESCENT SEAT
P
TOOL REST SHAFT
P
TOOL REST
P
CROSS SLIDE WEDGE
PXM1015094
Now: PN04M
HEX NUT M4-.7
Price
N/A
PXM1015095
SET SCREW M4-.7 X 16
Price
N/A
P
CROSS SLIDE
P
LEADSCREW NUT
PXM1015099
CONNECT BLOCK
Price
N/A
P
GIB STRIP
P
CROSS SLIDE NUT
P
SADDLE
P
CROSS SLIDE LEADSCREW
P
SCALE LABEL (I)
P
LEADSCREW BRACKET
P
GRADUATED DIAL
P
INDICATOR PLATE
P
TIMING BELT 1.5 X 83 X 10
P
MACHINE ID LABEL
PXM1015122
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
PXM1015123
Now: PN04M
HEX NUT M4-.7
Price
N/A
PXM1015124
Now: PW05M
FLAT WASHER 4MM
Price
N/A
P
HINGE
PXM1015126
CAP SCREW M4-.7 X 12
Price
N/A
PXM1015127
CAP SCREW M4-.7 X 8
Price
N/A
P
CHANGE GEAR COVER
P
POWER PLUG
P
CHUCK GUARD MICRO SWITCH SCREW
P
CHUCK GUARD MICRO SWITCH
P
CANTILEVER
PXM1015134
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1015135
LOCK WASHER 6MM
Price
N/A
PXM1015136
CAP SCREW M6-1 X 20
Price
N/A
PXM1015137
CAP SCREW M8-1.25 X 20
Price
N/A
PXM1015138
LOCK WASHER 8MM
Price
N/A
PXM1015139
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
SUPPORT PLATE THUMBSCREW M4-.7 X 8
P
SUPPORT PLATE WASHER
P
SUPPORT PLATE
PXM1015145
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
PXM1015146
Now: PN01M
HEX NUT M6-1
Price
N/A
PXM1015147
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
COMPRESSION SPRING
P
SPACING RING
P
SPINDLE BOX COVER
P
PC BOARD BOX
P
LOCK CONNECT
PXM1015153
*DISCD*PC BOARD FC150BJ/110V V1
Item is no longer available
Price
N/A
P
PC BOARD XMT-1115 W/ DIAL V2.09.08
P
PC BOARD XMT-1115 V2.09.08
P
TAILSTOCK CASTING
P
SPINDLE
PXM1015156
KEY 3 X 3 X 6
Price
N/A
PXM1015157
CHUCK GUARD
Price
N/A
PXM1015158
CAP SCREW M4-.7 X 8
Price
N/A
P
SWITCH LABEL
P
HUB
P
TIMING PULLEY
P
CHECK RING 8MM
P
MOTOR 1/5HP 110V 1-PH
P
MOTOR BRUSH AND HOLDER
PXM1015164
Now: PK98M
KEY 3 X 3 X 16
Price
N/A
P
*DISCD*MOTOR SPEED CONTROL
P
VARIABLE SPEED DIAL W/ 3 WIRES V2.09.08
P
E-STOP BUTTON
P
FORWARD/OFF/REVERSE SWITCH
P
GREEN LAMP
P
FUSE AND HOLDER
P
FUSE 2A F2AL250V 5 X 20MM, GLASS
P
ORANGE LAMP ASSY
PXM1015173
CAP SCREW 5/16-18 X 1
Price
N/A
P
REAR SPLASH GUARD
P
SPACING RING
P
BEARING SLEEVE
PXM1015225
CHANGE GEAR 19T
Price
N/A
PXM1015226
CHANGE GEAR 24T
Price
N/A
P
CHANGE GEAR 36T
P
CHANGE GEAR 40T
P
CHANGE GEAR 42T
P
CHANGE GEAR 45T
P
COMPLETE GEAR KIT W/ 9 GEARS
P
CHANGE GEAR 48T
P
CHANGE GEAR 50T
P
CHANGE GEAR 54T
P
CHANGE GEAR 57T
P
CHANGE GEAR 60T
PXM1015236
CHANGE GEAR 72T
Price
N/A
PXM1015237
CHANGE GEAR 76T
Price
N/A
P
***USE P0937089***
P
ENTANGLEMENT HAZARD LABEL
P
COMPLETE ACCESSORY BOX
P
SPANNER WRENCH 28-32MM
P
MANUAL FOR M1015 02/05
PXPK187M
KEY 6 X 6 X 36
Price
N/A
PXPN52M
Now: PN52M
ACORN NUT M6-1.25
Price
N/A
