Parts for M1018 Small Combo Lathe / Mill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PXM1018001
MOTOR 3/4 HP 110V 1-PH V3.11.18
Price
N/A
P
MOTOR FAN COVER
P
MOTOR FAN
P
CAPACITOR COVER
P
CAPACITOR COVER
PXM1018001-6
Now: PC250
S CAPACITOR 250M 125V 1-1/2 X 2-5/8
Price
N/A
P
WIRING BOX
PXM1018002
SET SCREW M8-1.25 X 8
Price
N/A
PXM1018003
PULLEY
Price
N/A
PXM1018004
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PXM1018005
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
PXM1018006
LOCK WASHER 8MM
Price
N/A
PXM1018007
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1018008
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXM1018009
BALL FACE WASHER 10
Item is no longer available
Price
N/A
PXM1018010
CONE FACE WASHER 10
Item is no longer available
Price
N/A
PXM1018011
***USE P4015Z111***
Item is no longer available
Price
N/A
PXM1018012
CAP SCREW M8-1.25 X 16
Price
N/A
P
MOTOR BRACKET
PXM1018014
COTTER PIN 3 X 16
Item is no longer available
Price
N/A
PXM1018015
***USE P4015Z115***
Item is no longer available
Price
N/A
P
MOVABLE JOINT
PXM1018017
***USE P4015Z117***
Item is no longer available
Price
N/A
P
MOTOR PEDESTAL BOLT M10-1.5 X 100
P
T-KEY 8 X 12
P
GEAR BRACKET
PXM1018021
Now: PW04M
FLAT WASHER 10MM
Price
N/A
P
T-COLLAR
PXM1018023
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1018024
CAP SCREW M6-1 X 40
Price
N/A
PXM1018025
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1018026
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1018027
CAP SCREW M6-1 X 30
Price
N/A
PXM1018028
CHANGE GEAR 24T
Price
N/A
PXM1018029
***USE P4015Z612***
Item is no longer available
Price
N/A
P
CHANGE GEAR 27T
PXM1018031
CHANGE GEAR 30T
Price
N/A
P
CHANGE GEAR 33T
PXM1018033
CHANGE GEAR 36T
Price
N/A
PXM1018034
CHANGE GEAR 42T
Price
N/A
PXM1018035
CHANGE GEAR 48T
Price
N/A
PXM1018036
CHANGE GEAR 60T
Price
N/A
PXM1018037
***USE P4015Z620***
Item is no longer available
Price
N/A
PXM1018038
***USE P4015Z621***
Item is no longer available
Price
N/A
PXM1018039
***USE P4015Z622***
Item is no longer available
Price
N/A
PXM1018040
***USE P4015Z623***
Item is no longer available
Price
N/A
PXM1018041
***USE P4015Z801***
Item is no longer available
Price
N/A
P
PLASTIC HOUSING
PXM1018043

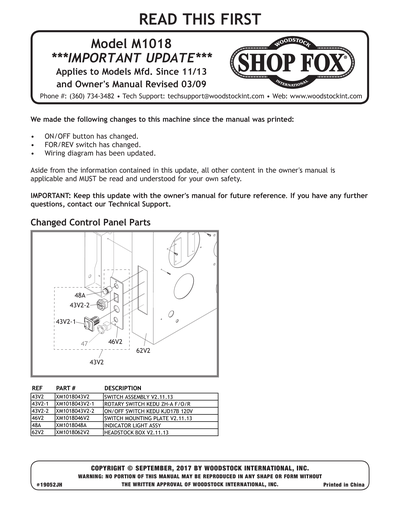

SWITCH ASSEMBLY V2.01.12
Price
N/A
P
SWITCH ASSEMBLY V2.11.13
P
ROTARY SWITCH KEDU ZH-A F/O/R V2.11.13
P
ON/OFF SWITCH DEDU KJD17B 120V V2.11.13
P
SAFETY SWITCH
PXM1018045
***USE P4015Z805***
Item is no longer available
Price
N/A
PXM1018046
GEAR BOX HOUSING
Price
N/A
P
SWITCH MOUNTING PLATE V2.11.13
PXM1018047
E-STOP BUTTON SCHN XK06-201
Price
N/A
PXM1018048
INDICATOR LIGHT ASSY
Price
N/A
PXM1018048-1
INDICATOR LIGHT ASSY
Price
N/A
P
INDICATOR LIGHT ASSY
PXM1018049
Now: PS25M
PHLP HD SCR M4-.7 X 35
Price
N/A
PXM1018050
INDICATOR LIGHT ASSY
Price
N/A
PXM1018051
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
P
CONNECTION BUS
PXM1018053
***USE P4015Z801***
Price
N/A
PXM1018054
MOUNTING BRACKET
Price
N/A
PXM1018055
COVER
Price
N/A
PXM1018056
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
PXM1018057
***USE P4015Z817***
Item is no longer available
Price
N/A
PXM1018058
POWER CORD 16G X 3W 73"L
Price
N/A
PXM1018059
***USE P4015Z819***
Item is no longer available
Price
N/A
PXM1018060
***USE P4015Z820***
Item is no longer available
Price
N/A
PXM1018061
TAP SCREW M4 X 12
Price
N/A
PXM1018062
Headstock Box V1
Item is no longer available
Price
N/A
PXM1018062V2
HEADSTOCK BOX V2.11.13
Item is no longer available
Price
N/A
PXM1018063
STRAIN RELIEF 13MM
Item is no longer available
Price
N/A
P
PIN 8 X 30
PXM1018102
***USE P4015Z002***
Item is no longer available
Price
N/A
PXM1018103
ROLL PIN 5 X 20
Price
N/A
P
PIN 12 X 40
P
COMPRESSION SPRING 0.8 X 5 X 1.5
P
STEEL BALL 5MM
PXM1018107
***USE P4015Z010***
Item is no longer available
Price
N/A
PXM1018108
ROLL PIN 5 X 20
Price
N/A
PXM1018109
SET SCREW M8-1.25 X 12
Price
N/A
PXM1018110
***USE P4015Z013***
Item is no longer available
Price
N/A
PXM1018111
HANDLE KNOB M10-1.5
Item is no longer available
Price
N/A
PXM1018112
ROLL PIN 3 X 10
Price
N/A
PXM1018113
***USE P4015Z016***
Item is no longer available
Price
N/A
PXM1018114
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXM1018115
***USE P4015Z018***
Item is no longer available
Price
N/A
P
OIL SEAL BOARD GASKET
P
OIL SEAL
PXM1018118
***USE P4015Z021***
Item is no longer available
Price
N/A
PXM1018119
CAP SCREW M5-.8 X 20
Price
N/A
PXM1018120
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
PXM1018121
***USE P4015Z024***
Item is no longer available
Price
N/A
PXM1018122
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
PXM1018123
***USE P4015Z033***
Item is no longer available
Price
N/A
PXM1018124
***USE P4015Z034***
Item is no longer available
Price
N/A
PXM1018125
***USE P4015Z035***
Item is no longer available
Price
N/A
PXM1018126
CAP SCREW M5-.8 X 10
Price
N/A
PXM1018127
Now: PN08M
HEX NUT M10-1.25
Price
N/A
PXM1018128
LOCK WASHER 10MM
Price
N/A
PXM1018129
Now: PW03
FLAT WASHER #10
Price
N/A
PXM1018130
***USE P4015Z057***
Item is no longer available
Price
N/A
P
SEAL RING
P
COVER
PXM1018133
FLAT HD SCR M5-.8 X 8
Price
N/A
PXM1018134
Now: PVM29
V-BELT M29 3L290
Price
N/A
PXM1018135
***USE P4015Z062***
Item is no longer available
Price
N/A
PXM1018136
***USE P4015Z063***
Item is no longer available
Price
N/A
PXM1018137
***USE P4015Z064***
Item is no longer available
Price
N/A
PXM1018138
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
PXM1018139
Now: PW05M
FLAT WASHER 4MM
Price
N/A
PXM1018140
BEARING 1000900
Item is no longer available
Price
N/A
PXM1018141
***USE P4015Z068***
Item is no longer available
Price
N/A
PXM1018142
CAP SCREW M6-1 X 12
Price
N/A
PXM1018143
OIL FILL PLUG
Item is no longer available
Price
N/A
PXM1018144
PAPER WASHER 100 X 150
Price
N/A
PXM1018145
***USE P4015Z072***
Item is no longer available
Price
N/A
PXM1018146
***USE P4015Z081***
Item is no longer available
Price
N/A
PXM1018147
***USE P4015Z082***
Item is no longer available
Price
N/A
PXM1018148
***USE P4015Z083***
Item is no longer available
Price
N/A
PXM1018149
***USE P4015Z084***
Item is no longer available
Price
N/A
P
KEYED GEAR
PXM1018151
***USE P4015Z086***
Item is no longer available
Price
N/A
PXM1018152
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
PXM1018153
***USE P4015Z090***
Item is no longer available
Price
N/A
PXM1018154
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
P
SIGHT GLASS
PXM1018156
OILER 6MM
Item is no longer available
Price
N/A
PXM1018157
***USE P4015Z852***
Item is no longer available
Price
N/A
PXM1018158
***USE P4015Z853***
Item is no longer available
Price
N/A
PXM1018159
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXM1018160
SET SCREW M5-.8 X 10
Price
N/A
PXM1018161
***USE P4015Z856***
Item is no longer available
Price
N/A
PXM1018162
E-CLIP 12MM
Price
N/A
PXM1018163
FLAT HD SCR M5-.8 X 10
Price
N/A
PXM1018164
***USE P4015Z883***
Item is no longer available
Price
N/A
PXM1018201
***USE P4015Z026***
Item is no longer available
Price
N/A
PXM1018202
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
PXM1018203
***USE P4015Z028***
Item is no longer available
Price
N/A
PXM1018204
***USE P4015Z029***
Item is no longer available
Price
N/A
PXM1018205
***USE P4015Z030***
Item is no longer available
Price
N/A
PXM1018206
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
PXM1018207
***USE P4015Z032***
Item is no longer available
Price
N/A
P
BEARING D2007107
P
COMP WASHER 30
PXM1018210
***USE P4015Z039***
Item is no longer available
Price
N/A
PXM1018211
***USE P4015Z040***
Item is no longer available
Price
N/A
P
BEARING 80
PXM1018213
BEARING PEDESTAL
Item is no longer available
Price
N/A
PXM1018214
CAP SCREW M5-.8 X 30
Price
N/A
PXM1018215
STEEL BALL 5MM
Price
N/A
PXM1018216
COMPRESSION SPRING 0.8 X 5 X 1.5
Price
N/A
PXM1018217
Now: PVM26
V-BELT M26 3L260
Price
N/A
PXM1018218
***USE P4015Z047***
Item is no longer available
Price
N/A
PXM1018219
CAP SCREW M6-1 X 8
Price
N/A
PXM1018220
T-KEY 8 X 12
Price
N/A
PXM1018221
Now: PR13M
EXT RETAINING RING 65MM
Price
N/A
PXM1018222
BALL BEARING 6013 OPEN
Price
N/A
PXM1018223
BEARING PEDESTAL
Item is no longer available
Price
N/A
PXM1018224
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
PXM1018225
SET SCREW M5-.8 X 10
Price
N/A
P
SPINDLE GEAR
PXM1018227
***USE P4015Z075***
Item is no longer available
Price
N/A
PXM1018228
***USE P4015Z076***
Item is no longer available
Price
N/A
PXM1018229
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
PXM1018230
Now: PK91M
KEY 8 X 8 X 22
Price
N/A
PXM1018231
CAP SCREW M6-1 X 12
Price
N/A
PXM1018232
***USE P4015Z080***
Item is no longer available
Price
N/A
PXM1018233
***USE P4015Z601***
Item is no longer available
Price
N/A
PXM1018234
***USE P4015Z606***
Item is no longer available
Price
N/A
P
CHUCK JAWS INT 3PC
P
CHUCK JAWS EXT 3PC
PXM1018237
SET SCREW M8-1.25 X 8
Price
N/A
PXM1018301
***USE P4015Z130***
Item is no longer available
Price
N/A
P
CLUTCH B
P
CLUTCH A
PXM1018304
ROLL PIN 5 X 20
Price
N/A
P
Left Sleeve
P
SHAFT
PXM1018307
Now: PK69M
KEY 4 X 4 X 12
Price
N/A
P
ECCENTRIC PIN
PXM1018309
LONGITUDINAL FEED BOX V2.09.16
Price
N/A
P
LEVER
PXM1018311
SET SCREW M6-1 X 12
Price
N/A
PXM1018312
CAP SCREW M8-1.25 X 40
Price
N/A
P
STEEL BALL 6.5MM
P
SPRING 0.8 X 5 X 14
P
LEVER BASE
PXM1018316
SET SCREW M6-1 X 16
Price
N/A
P
OILER
P
LONGITUDINAL FEED BOX V1
PXM1018318V2
LONGITUDINAL FEED BOX V2.09.16
Item is no longer available
Price
N/A
PXM1018319
E-CLIP 12MM
Price
N/A
PXM1018320
***USE P4015Z149***
Item is no longer available
Price
N/A
PXM1018321
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
P
PIN V1
PXM1018322V2
ROLL PIN 5 X 40
Price
N/A
PXM1018323
CAP SCREW M6-1 X 50
Price
N/A
PXM1018323V2
CAP SCREW M6-1 X 70
Price
N/A
PXM1018324
***USE P4015Z153***
Item is no longer available
Price
N/A
P
LEVER
P
LEVER BASE
PXM1018327
SPRING PIN
Item is no longer available
Price
N/A
PXM1018329
SET SCREW M8-1.25 X 6
Price
N/A
PXM1018330
LIFTING PIN
Price
N/A
P
COTTER PIN 5 X 36
PXM1018332
CAP SCREW M5-.8 X 12
Price
N/A
PXM1018333
COVER
Price
N/A
P
PIN BASE
P
PIN
PXM1018336
HALF NUT 6 TPI
Price
N/A
PXM1018337
HALF NUT BASE
Item is no longer available
Price
N/A
PXM1018338
HALF NUT BRACKET
Item is no longer available
Price
N/A
PXM1018339
SET SCREW M8-1.25 X 12
Price
N/A
P
LONGITUDINAL LEADSCREW 6 TPI
P
STEEL PIN
PXM1018342
Now: P8103
THRUST BEARING 8103
Price
N/A
PXM1018343
***USE P4015Z172***
Item is no longer available
Price
N/A
P
LEAD SCREW BRACKET
P
SCALE RING
PXM1018345-1
DIAL HUB
Item is no longer available
Price
N/A
PXM1018345-2
DIAL HUB KEY
Item is no longer available
Price
N/A
PXM1018346
***USE P4015Z175***
Item is no longer available
Price
N/A
P
BALL CRANK HANDLE
P
TAPER PIN
PXM1018349
LEVER
Price
N/A
PXM1018350
Now: pn43m
ACORN NUT M10-1.5
Price
N/A
PXM1018351
HANDWHEEL
Price
N/A
P
SCALE RING
PXM1018353
ROLL PIN 5 X 24
Price
N/A
P
LEAD SCREW BRACKET
P
HANDLE SCREW M5
P
DOG POINT SET SCREW M8-1.25 X 10
P
LOCKING PIN
PXM1018358
***USE P4015Z187***
Item is no longer available
Price
N/A
PXM1018359
***USE P4015Z188***
Item is no longer available
Price
N/A
PXM1018360
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
P
CROSS LEAD SCREW 15 X 100
PXM1018362
CROSS SLIDE NUT 15 X 20
Item is no longer available
Price
N/A
PXM1018363
***USE P4015Z197***
Item is no longer available
Price
N/A
PXM1018364
***USE P4015Z198***
Item is no longer available
Price
N/A
P
RIVET
PXM1018366
Now: PW04M
FLAT WASHER 10MM
Price
N/A
P
INDEX PLATE
PXM1018368
CAP SCREW M8-1.25 X 16
Price
N/A
PXM1018369
***USE P4015Z882***
Item is no longer available
Price
N/A
PXM1018370
***USE P4015Z200***
Item is no longer available
Price
N/A
PXM1018371
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXM1018372
Now: PS75M
PHLP HD SCR M5-.8 X 35
Price
N/A
P
DRAW BAR
PXM1018403
CAP SCREW M5-.8 X 16
Price
N/A
PXM1018404
LOCK WASHER 5MM
Price
N/A
PXM1018405
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PXM1018406
BEVEL GEAR
Item is no longer available
Price
N/A
PXM1018407
***USE P4015Z205***
Item is no longer available
Price
N/A
PXM1018408
KEY 6 X 6 X 14
Price
N/A
PXM1018409
***USE P4015Z207***
Item is no longer available
Price
N/A
PXM1018410
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
PXM1018411
FLAT HD SCR M5-.8 X 10
Price
N/A
PXM1018412
SET SCREW M16-2 X 20
Price
N/A
P
LOCK BOLT SEAL
P
LOCKING PIN
PXM1018415
***USE P4015Z213***
Item is no longer available
Price
N/A
PXM1018416
FLAT HD SCR M5-.8 X 10
Price
N/A
PXM1018417
***USE P4015Z215***
Item is no longer available
Price
N/A
PXM1018418
BALL BEARING 6007-2RS
Price
N/A
PXM1018419
BALL BEARING 6008-2RS
Price
N/A
PXM1018420
CAP SCREW M6-1 X 10
Price
N/A
PXM1018421
***USE P4015Z219***
Item is no longer available
Price
N/A
PXM1018422
***USE P4015Z221***
Item is no longer available
Price
N/A
PXM1018423
***USE P4015Z222***
Item is no longer available
Price
N/A
PXM1018424
***USE P4015Z223***
Item is no longer available
Price
N/A
PXM1018425
CAP SCREW M8-1.25 X 30
Price
N/A
PXM1018426
STEEL BALL
Item is no longer available
Price
N/A
P
BEARING 2007107
P
HOLLOW SHAFT
P
BEARING 2007106
P
BEARING WASHER 30MM
PXM1018431
***USE P4015Z231***
Item is no longer available
Price
N/A
PXM1018433
SET SCREW M4-.7 X 5
Price
N/A
PXM1018434
***USE P4015Z235***
Item is no longer available
Price
N/A
PXM1018435
KEY 6 X 6 X 14
Price
N/A
PXM1018436
SET SCREW M6-1 X 8
Price
N/A
PXM1018437
***USE P4015Z238***
Item is no longer available
Price
N/A
PXM1018438
***USE P4015Z239***
Item is no longer available
Price
N/A
PXM1018439
WORM GEAR
Item is no longer available
Price
N/A
PXM1018440
ROLL PIN 5 X 28
Price
N/A
PXM1018441
***USE P4015Z242***
Item is no longer available
Price
N/A
PXM1018442
***USE P4015Z243***
Item is no longer available
Price
N/A
PXM1018443
***USE P4015Z244***
Item is no longer available
Price
N/A
P
DRILL/MILL SHAFT
P
SEAL
PXM1018446
MILL/DRILL SHAFT GLAND
Price
N/A
PXM1018447
SET SCREW M5-.8 X 10
Price
N/A
PXM1018448
LEVER
Price
N/A
PXM1018449
SET SCREW M6-1 X 18
Price
N/A
P
COLLAR
PXM1018451
***USE P4015Z253***
Item is no longer available
Price
N/A
P
LEVER
PXM1018453
KNOB
Price
N/A
PXM1018454
ROLL PIN 3 X 25
Price
N/A
PXM1018455
***USE P4015Z257V2***
Item is no longer available
Price
N/A
PXM1018456
***USE P4015Z258***
Item is no longer available
Price
N/A
PXM1018457
***USE P4015Z259***
Item is no longer available
Price
N/A
PXM1018458
***USE P4015Z261***
Item is no longer available
Price
N/A
PXM1018459
***USE P4015Z262***
Item is no longer available
Price
N/A
PXM1018460
SET SCREW M8-1.25 X 16
Price
N/A
PXM1018461
***USE P4015Z264***
Item is no longer available
Price
N/A
PXM1018462
***USE P4015Z265A***
Item is no longer available
Price
N/A
PXM1018463
***USE P4015Z265B***
Item is no longer available
Price
N/A
PXM1018465
SET SCREW M5-.8 X 25
Price
N/A
PXM1018466
FLAT COILED SPRING 0.6 X 19 X 1000
Item is no longer available
Price
N/A
P
SPRING HOUSING COVER
PXM1018468
PULLEY SHELF BOTTOM
Price
N/A
PXM1018469
Now: PW08
FLAT WASHER #8
Price
N/A
PXM1018470
Now: PS76M
PHLP HD SCR M8-1.25 X 12
Price
N/A
PXM1018471
***USE P4015Z275***
Item is no longer available
Price
N/A
PXM1018472
***USE P4015Z276***
Item is no longer available
Price
N/A
PXM1018473
***USE P4015Z277***
Item is no longer available
Price
N/A
PXM1018474
***USE P4015Z278***
Item is no longer available
Price
N/A
PXM1018475
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1018476
LOCK WASHER 8MM
Price
N/A
P
SHELL BOLT 10 X 100
PXM1018478
Now: PB16M
HEX BOLT M5-.8 X 24
Price
N/A
PXM1018479
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PXM1018480
***USE P4015Z284***
Item is no longer available
Price
N/A
PXM1018481
***USE P4015Z285***
Item is no longer available
Price
N/A
PXM1018482
Now: PR24M
INT RETAINING RING 42MM
Price
N/A
PXM1018483
BALL BEARING 6104ZZ
Price
N/A
PXM1018484
***USE P4015Z288***
Item is no longer available
Price
N/A
PXM1018485
CAP SCREW M5-.8 X 16
Price
N/A
PXM1018486
***USE P4015Z290***
Item is no longer available
Price
N/A
PXM1018487
BALL BEARING 6108ZZ
Price
N/A
PXM1018488
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
PXM1018489
Now: pr23m
INT RETAINING RING 40MM
Price
N/A
PXM1018490
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1018491
***USE P4015Z295***
Item is no longer available
Price
N/A
P
COVER
PXM1018493
COVER
Price
N/A
PXM1018494
PULLEY SHELF TOP W/ PIPE
Price
N/A
PXM1018495
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1018496
KNOB
Price
N/A
PXM1018497
Now: PVM29
V-BELT M29 3L290
Price
N/A
PXM1018498
***USE P4015Z302***
Item is no longer available
Price
N/A
PXM1018499
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PXM1018500
LOCK WASHER 5MM
Price
N/A
PXM1018501
CAP SCREW M5-.8 X 20
Price
N/A
PXM1018502
DRILL CHUCK B-16 1/16-1/2"
Item is no longer available
Price
N/A
PXM1018503
ARBOR MT#3 X B-16
Item is no longer available
Price
N/A
PXM1018504
RIVET
Item is no longer available
Price
N/A
PXM1018505
GRADUATED DIAL SCALE
Item is no longer available
Price
N/A
PXM1018601
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1018602
***USE P4015Z402***
Item is no longer available
Price
N/A
PXM1018603
LEVER
Item is no longer available
Price
N/A
PXM1018604
HANDLE KNOB M10-1.5
Item is no longer available
Price
N/A
PXM1018605
***USE P4015Z405***
Item is no longer available
Price
N/A
PXM1018606
***USE P4015Z406***
Item is no longer available
Price
N/A
PXM1018607
***USE P4015Z407***
Item is no longer available
Price
N/A
PXM1018608
***USE P4015Z408***
Item is no longer available
Price
N/A
PXM1018609
***USE P4015Z409***
Item is no longer available
Price
N/A
PXM1018610
***USE P4015Z410***
Item is no longer available
Price
N/A
PXM1018611
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
PXM1018612
MOUNTING BOLT M10 X 100
Item is no longer available
Price
N/A
PXM1018613
***USE P4015Z413***
Item is no longer available
Price
N/A
PXM1018614
CAP SCREW M6-1 X 12
Price
N/A
PXM1018615
***USE P4015Z415***
Item is no longer available
Price
N/A
PXM1018616
SET SCREW M5-.8 X 25
Price
N/A
PXM1018617
***USE P4015Z418***
Item is no longer available
Price
N/A
PXM1018618
CAP SCREW M5-.8 X 17
Price
N/A
P
UPSLIDE
PXM1018620
***USE P4015Z421***
Item is no longer available
Price
N/A
P
LEAD SCREW NUT 15 X 15
P
LEAD SCREW 15 X 200
P
LEAD SCREW BRACKET
PXM1018624
***USE P4015Z425***
Item is no longer available
Price
N/A
PXM1018625
ROLL PIN 3 X 16
Price
N/A
PXM1018626
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXM1018627
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1018628
SET SCREW M5-.8 X 8
Price
N/A
PXM1018629
DOWN SLIDE
Price
N/A
PXM1018630
***USE P4015Z431***
Item is no longer available
Price
N/A
P
T-BOLT M8-1.25 X 25
PXM1018632
***USE P4015Z433***
Item is no longer available
Price
N/A
P
SCALE
PXM1018634
T-BOLT M10-1.5
Price
N/A
PXM1018635
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1018636
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXM1018637
***USE P4015Z451***
Item is no longer available
Price
N/A
PXM1018638
***USE P4015Z605***
Item is no longer available
Price
N/A
PXM1018701
HANDLE KNOB M6-1
Item is no longer available
Price
N/A
P
LEVER
PXM1018703
LOCK HUB
Item is no longer available
Price
N/A
PXM1018704
Now: pn43m
ACORN NUT M10-1.5
Price
N/A
PXM1018705
***USE P4015Z189***
Item is no longer available
Price
N/A
PXM1018706
SET SCREW M8-1.25 X 16
Price
N/A
PXM1018707
SET SCREW M8-1.25 X 25
Price
N/A
PXM1018708

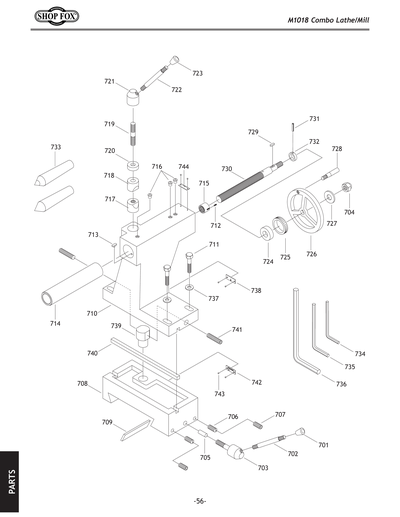

TAILSTOCK BASE
Item is no longer available
Price
N/A
PXM1018709
***USE P4015Z193***
Item is no longer available
Price
N/A
PXM1018710
***USE P4015Z541***
Item is no longer available
Price
N/A
PXM1018711
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
PXM1018712
SET SCREW M4-.7 X 8
Price
N/A
PXM1018713
***USE P4015Z545***
Item is no longer available
Price
N/A
PXM1018714
TAILSTOCK BARREL
Price
N/A
P
TAILSTOCK QUILL ASSY
PXM1018715
FEED NUT 15 X 15
Item is no longer available
Price
N/A
PXM1018716
OIL CUP
Item is no longer available
Price
N/A
PXM1018717
Bottom Lock Bushing
Item is no longer available
Price
N/A
PXM1018718
***USE P4015Z550A***
Item is no longer available
Price
N/A
PXM1018719
DOUBLE SCREW BOLT M10 X 100
Item is no longer available
Price
N/A
PXM1018720
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1018721
***USE P4015Z553***
Item is no longer available
Price
N/A
PXM1018722
***USE P4015Z554***
Item is no longer available
Price
N/A
PXM1018723
***USE P4015Z555***
Item is no longer available
Price
N/A
PXM1018724
***USE P4015Z556***
Item is no longer available
Price
N/A
PXM1018725
***USE P4015Z557***
Item is no longer available
Price
N/A
PXM1018726
***USE P4015Z558***
Item is no longer available
Price
N/A
PXM1018727
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1018728
***USE P4015Z561***
Item is no longer available
Price
N/A
PXM1018729
KEY 4 X 4 X 18
Price
N/A
PXM1018730
***USE P4015Z564A***
Item is no longer available
Price
N/A
PXM1018731
ROLL PIN 5 X 25
Price
N/A
PXM1018732
***USE P4015Z566***
Item is no longer available
Price
N/A
P
CENTER
PXM1018734
HEX WRENCH 4MM
Price
N/A
PXM1018735
HEX WRENCH 5MM
Price
N/A
PXM1018736
HEX WRENCH 8MM
Price
N/A
PXM1018737
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1018738
***USE P4015Z652***
Item is no longer available
Price
N/A
PXM1018739
***USE P4015Z653***
Item is no longer available
Price
N/A
PXM1018740
***USE P4015Z654***
Item is no longer available
Price
N/A
PXM1018741
***USE P4015Z655***
Item is no longer available
Price
N/A
PXM1018742
***USE P4015Z656***
Item is no longer available
Price
N/A
PXM1018743
***USE P4015Z657***
Item is no longer available
Price
N/A
PXM1018744
***USE P4015Z658***
Item is no longer available
Price
N/A
P
STUBBY HEX WRENCH 6MM
P
GEAR 39T
P
KNOCK-OUT WEDGE
PXM1018748
CHUCK PLATE 5"
Item is no longer available
Price
N/A
PXM1018749
GEAR 72T
Item is no longer available
Price
N/A
PXM1018750
DUPLEX GEAR 120/127T
Price
N/A
PXM1018801
WRENCH 13 X 16MM OPEN-ENDS
Price
N/A
P
MANUAL FOR M1018 12/04
