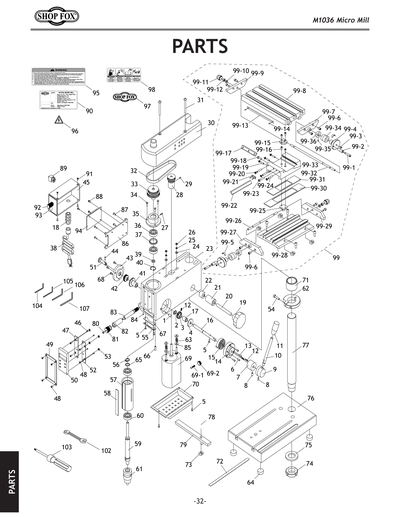

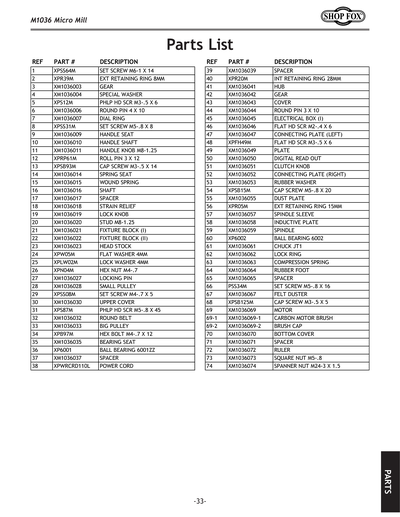

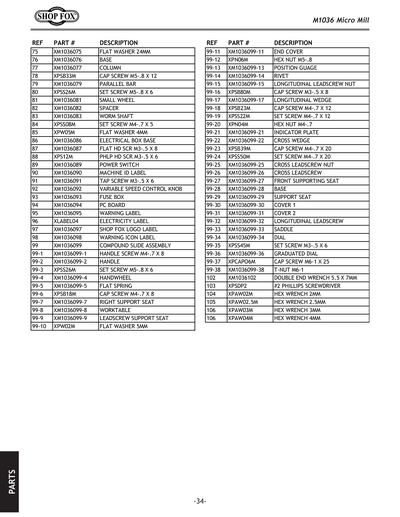

Parts for M1036 4" x 8" Micro Milling Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PXM1036001
SET SCREW M6-1 X 16
Price
N/A
PXM1036002
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
P
GEAR
P
Shaft Washer
PXM1036005
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
P
ROUND PIN 4 X 10
P
DIAL RING
PXM1036008
SET SCREW M5-.8 X 8
Price
N/A
P
HANDLE SEAT
P
HANDLE SHAFT
PXM1036011
KNOB
Price
N/A
PXM1036012
ROLL PIN 3 X 12
Price
N/A
PXM1036013
CAP SCREW M3-.5 X 14
Price
N/A
P
SPRING SEAT
P
WOUND SPRING
P
SHAFT
P
SPACER
P
STRAIN RELIEF
P
LOCK KNOB M8-1.25
P
STUD-DE M8-1.25 X 70 25/25
P
FIXTURE BLOCK
P
FIXTURE BLOCK
P
HEAD STOCK
PXM1036024
Now: PW05M
FLAT WASHER 4MM
Price
N/A
PXM1036025
LOCK WASHER 4MM
Price
N/A
PXM1036026
Now: PN04M
HEX NUT M4-.7
Price
N/A
P
LOCKING PIN
P
SMALL PULLEY
P
MOTOR PULLEY 16MM V2.05.19
PXM1036029
SET SCREW M4-.7 X 5
Price
N/A
P
UPPER COVER
PXM1036031
Now: ps54m
PHLP HD SCR M5-.8 X 45
Price
N/A
P
ROUND BELT
P
POLY V-BELT 3V X 28.5L V2.05.19
P
BIG PULLEY
PXM1036034
Now: PB97M
HEX BOLT M4-.7 X 12
Price
N/A
P
BEARING SEAT
PXM1036036
BALL BEARING 6001ZZ
Price
N/A
P
SPACER
PXM1036038
POWER CORD 16G X 3W 73"L
Price
N/A
P
SPACER
PXM1036040
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
P
HUB
P
GEAR
P
COVER
P
ROUND PIN 3 X 10
P
Electrical Box
P
FLAT HD SCR M2-.4 X 6
P
Left Connecting Plate
PXM1036048
FLAT HD SCR M3-.5 X 6
Price
N/A
P
PLATE
P
DIGITAL READ OUT
P
CLUTCH KNOB
P
Right Connecting Plate
P
RUBBER WASHER
PXM1036054
CAP SCREW M5-.8 X 20
Price
N/A
P
DUST PLATE
PXM1036056
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
P
SPINDLE SLEEVE
P
INDUCTIVE PLATE
P
SPINDLE
PXM1036060
BALL BEARING 6002Z
Price
N/A
P
CHUCK JT1
P
CHUCK KEY
P
CHUCK REMOVAL WEDGE
P
LOCK RING
P
COMPRESSION SPRING 1.4 x 8 x 10
P
RUBBER FOOT
P
SPACER
PXM1036066
SET SCREW M5-.8 X 16
Price
N/A
P
FELT DUSTER
PXM1036068
CAP SCREW M3-.5 X 5
Price
N/A
P
MOTOR 110V PJ
P
CARBON BRUSH (SET OF 2)
P
BRUSH CAP
P
BOTTOM COVER
P
SPACER
P
RULER
PXM1036073
SQUARE NUT M5-.8
Price
N/A
P
SPANNER NUT M24-3 X 1.5
PXM1036075
FLAT WASHER 24MM
Price
N/A
P
BASE
P
COLUMN
PXM1036078
CAP SCREW M5-.8 X 12
Price
N/A
P
PARALLEL BAR
PXM1036080
SET SCREW M5-.8 X 6
Price
N/A
P
SMALL WHEEL
P
SPACER
P
WORM SHAFT
PXM1036084
SET SCREW M4-.7 X 5
Price
N/A
PXM1036085
Now: PW05M
FLAT WASHER 4MM
Price
N/A
P
ELECTRICAL BOX BASE
P
FLAT HD SCR M3-.5 X 8
PXM1036088
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
P
Power Switch 110v Jc
P
MACHINE ID LABEL
PXM1036091
TAP SCREW M3 X 6
Price
N/A
P
VARIABLE SPEED CONTROL KNOB
P
FUSE BOX
P
PC BOARD
P
WARNING LABEL
PXM1036096
ELECTRICITY 1.4W X 1.2H
Price
N/A
P
SHOP FOX LOGO LABEL
P
WARNING ICON LABEL
P
COMPOUND SLIDE ASSEMBLY
P
HANDLE SCREW M4-.7 X 8
PXM1036099-10
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
END COVER
PXM1036099-12
Now: PN06M
HEX NUT M5-.8
Price
N/A
P
POSITION GAUGE TF
P
RIVET
P
LONGITUDINAL LEADSCREW NUT
PXM1036099-16
CAP SCREW M3-.5 X 8
Price
N/A
P
LONGITUDINAL WEDGE
PXM1036099-18
CAP SCREW M4-.7 X 12
Price
N/A
PXM1036099-19
SET SCREW M4-.7 X 12
Price
N/A
P
HANDLE
PXM1036099-20
Now: PN04M
HEX NUT M4-.7
Price
N/A
P
INDICATOR PLATE
P
CROSS WEDGE
PXM1036099-23
CAP SCREW M4-.7 X 20
Price
N/A
PXM1036099-24
SET SCREW M4-.7 X 20
Price
N/A
P
CROSS LEADSCREW NUT 1/4 -20 LEFT
P
CROSS LEADSCREW 1/4 -20 LEFT
P
FRONT SUPPORTING SEAT
P
BASE
P
SUPPORT SEAT
PXM1036099-3
SET SCREW M5-.8 X 6
Price
N/A
P
COVER 1
P
COVER 2
P
LONGITUDINAL LEADSCREW
P
SADDLE
P
DIAL
PXM1036099-35
SET SCREW M3-.5 X 6
Price
N/A
P
GRADUATED DIAL
P
HANDWHEEL
P
Flat Spring 5 R12
PXM1036099-6
CAP SCREW M4-.7 X 8
Price
N/A
P
RIGHT SUPPORT SEAT
P
WORKTABLE
P
LEADSCREW SUPPORT SEAT
P
DOUBLE END WRENCH 5.5 X 7MM
PXM1036103
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
PXM1036104
HEX WRENCH 2MM
Price
N/A
PXM1036105
HEX WRENCH 2.5MM
Price
N/A
PXM1036106
HEX WRENCH 3MM
Price
N/A
PXM1036107
HEX WRENCH 4MM
Price
N/A
P
T-BOLT M6-1 X 22
P
T-NUT M6-1
PXM1036110
Now: PN01M
HEX NUT M6-1
Price
N/A
PXM1036111
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
CARTON FOR M1036
P
STYROFOAM FOR M1036 6PC
P
MANUAL FOR M1036
