Parts for M1039 - 20" Floor Drill Press

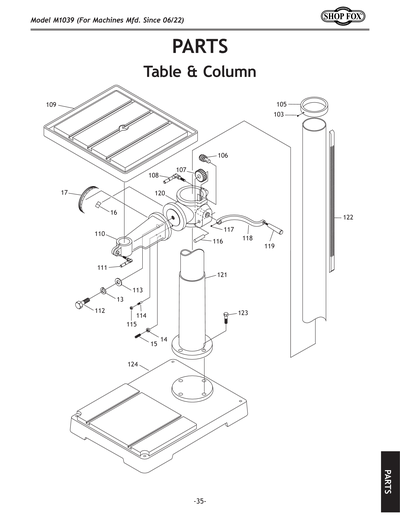

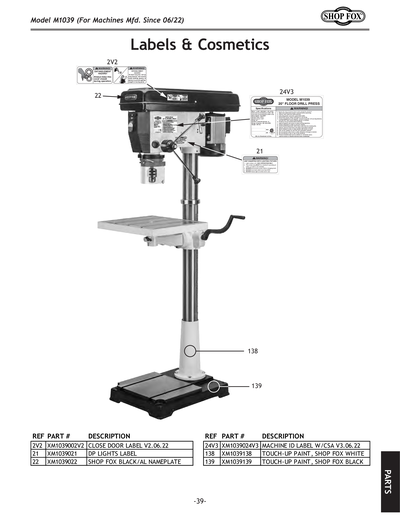

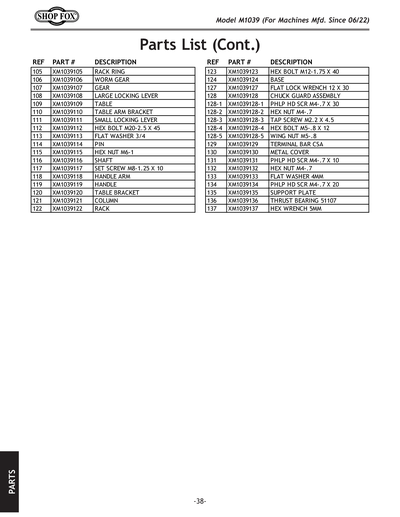

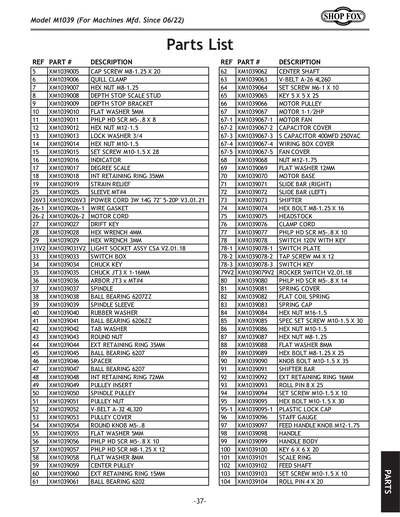

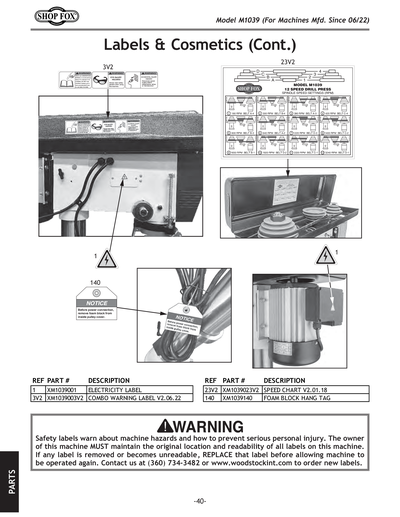

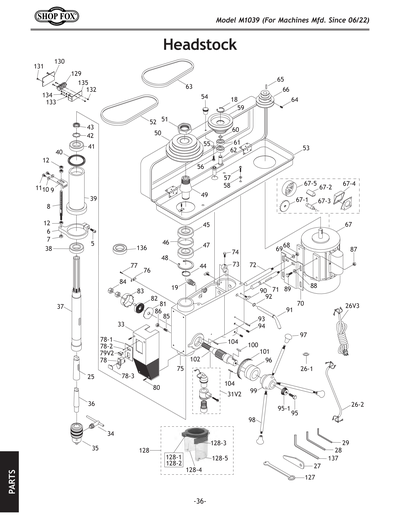

Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039
Part Diagram for M1039

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PXM1039001
ELECTRICITY 1.4W X 1.2H
Price
N/A
P
CLOSE DOOR HORIZ LABEL V1
Price
$1.90
P
CLOSE DOOR LABEL V2.06.22
Price
$2.20
PXM1039003
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
PXM1039003V2
COMBO WARNING LABEL V3.04.24
Price
N/A
P
COMBO WARNING LABEL V3.04.24
Price
$4.40
PXM1039004
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
PXM1039005
CAP SCREW M8-1.25 X 20
Price
N/A
PXM1039006
QUILL CLAMP
Price
N/A
PXM1039007
HEX NUT M8-1.25
Price
N/A
P
DEPTH STOP SCALE POST
Price
$5.10
PXM1039009
DEPTH STOP BRACKET
Price
N/A
PXM1039010
FLAT WASHER 5MM
Price
N/A
PXM1039011
PHLP HD SCR M5-.8 X 8
Price
N/A
PXM1039012
HEX NUT M12-1.5
Price
N/A
PXM1039013
LOCK WASHER 3/4
Price
N/A
PXM1039014
HEX NUT M8-1.25
Price
N/A
PXM1039015
SET SCREW M10-1.5 X 28
Price
N/A
P
INDICATOR
Price
$2.60
P
DEGREE SCALE
Price
$1.90
PXM1039018
INT RETAINING RING 35MM
Price
N/A
P
STRAIN RELIEF
Price
$2.50
P
UNPLUG LABEL
Price
$1.25
P
DP LIGHTS LABEL
Price
$1.25
P
SHOP FOX BLACK/AL NAMEPLATE
Price
$5.75
P
SPEED CHART V1
Price
$2.60
PXM1039023V2
SPEED CHART V3.04.24
Price
N/A
P
SPEED CHART V3.04.24
Price
$2.70
P
MACHINE ID LABEL V1
Price
$16.40
P
MACHINE ID LABEL W/CSA V2.09.17
Price
$16.40
P
MACHINE ID LABEL W/CSA V3.06.22
Price
$18.45
P
MACHINE ID LABEL W/ETL V4.05.24
Price
$16.95
P
SLEEVE MT#4
Price
$14.75
PXM1039026
POWER CORD 16G X 3W 73"L
Price
N/A
PXM1039026-1
WIRE GASKET
Price
N/A
PXM1039026-2
MOTOR CORD
Price
N/A
P
POWER CORD 3W 14G 72" 5-20P V2.01.18
Price
$44.25
PXM1039026V3
POWER CORD 14G 3W 72" 5-20P V3.01.21
Price
N/A
P
DRIFT KEY
Price
$5.20
PXM1039028
HEX WRENCH 4MM
Price
N/A
PXM1039029
HEX WRENCH 3MM
Price
N/A
PXM1039030
LIGHT SOCKET V1
Price
N/A
P
LIGHT SOCKET V1
Price
$12.25
P
LIGHT SOCKET CSA V2.01.18
Price
$10.85
PXM1039032
LIGHT SOCKET V1
Price
N/A
PXM1039033
SWITCH BOX
Price
N/A
P
CHUCK KEY
Price
$2.60
P
CHUCK JT3 X 1-16MM
Price
$41.40
PXM1039036
DRILL CHUCK ARBOR MT4 X JT3, 170MM L V2.
Price
N/A
PXM1039037
SPINDLE
Price
N/A
PXM1039038
BALL BEARING 6206ZZ
Price
N/A
P
SPINDLE SLEEVE
Price
$48.90
P
RUBBER WASHER
Price
$1.90
PXM1039041
BALL BEARING 6205ZZ
Price
N/A
PXM1039042
***USE P4015Z029***
Price
N/A
P
ROUND NUT
Price
$2.15
PXM1039044
EXT RETAINING RING 32MM
Price
N/A
PXM1039045
BALL BEARING 6207-2RS
Price
N/A
PXM1039046
SPACER
Price
N/A
PXM1039047
BALL BEARING 6207-2RS
Price
N/A
PXM1039048
INT RETAINING RING 52MM
Price
N/A
P
PULLEY INSERT
Price
$33.45
P
SPINDLE PULLEY
Price
$97.65
P
PULLEY NUT
Price
$3.20
PXM1039052
V-BELT A32
Price
N/A
P
PULLEY COVER
Price
$127.45
PXM1039054
KNOB
Price
N/A
PXM1039055
FLAT WASHER 5MM
Price
N/A
PXM1039056
PHLP HD SCR M5-.8 X 10
Price
N/A
PXM1039057
PHLP HD SCR M6-1 X 12
Price
N/A
PXM1039058
FLAT WASHER 6MM
Price
N/A
P
CENTER PULLEY
Price
$39.40
PXM1039060
EXT RETAINING RING 14MM
Price
N/A
PXM1039061
BALL BEARING 6202-2RS
Price
N/A
P
CENTER SHAFT
Price
$16.10
PXM1039063
V-BELT A26
Price
N/A
PXM1039064
SET SCREW M6-1 X 10
Price
N/A
PXM1039065
KEY 5 X 5 X 25
Price
N/A
P
MOTOR PULLEY
Price
$34.00
P
MOTOR 1-1/2HP
Price
$610.95
PXM1039067-1
MOTOR FAN
Price
N/A
P
CAPACITOR COVER
Price
$10.25
P
S CAPACITOR 300MFD 250VAC
Price
$18.65
P
WIRING BOX COVER
Price
$5.65
P
FAN COVER
Price
$7.60
PXM1039068
HEX NUT M10-1.5
Price
N/A
PXM1039069
FLAT WASHER 10MM
Price
N/A
P
MOTOR BASE
Price
$15.85
P
SLIDE BAR RIGHT
Price
$10.65
P
SLIDE BAR LEFT
Price
$10.65
P
SHIFTER
Price
$4.35
PXM1039074
HEX BOLT M8-1.25 X 16
Price
N/A
P
HEADSTOCK
Price
$200.20
P
CLAMP CORD
Price
$8.65
PXM1039077
PHLP HD SCR M6-1 X 12
Price
N/A
PXM1039078
Paddle Switch 125V/250V
Price
N/A
P
SWITCH PLATE
Price
$3.20
PXM1039078-2
TAP SCREW M4 X 16
Price
N/A
P
SWITCH KEY
Price
$2.70
P
ROCKER SWITCH V1
Price
$9.75
P
ROCKER SWITCH V2.01.18
Price
$9.00
PXM1039080
PHLP HD SCR M5-.8 X 12
Price
N/A
PXM1039081
SPRING COVER
Price
N/A
PXM1039082
TORSION SPRING
Price
N/A
P
SPRING CAP
Price
$3.45
PXM1039084
HEX NUT M12-1.5
Price
N/A
PXM1039085
SET SCREW M10-1.5 X 30
Price
N/A
PXM1039086
HEX NUT M10-1.5
Price
N/A
PXM1039087
HEX NUT M8-1.25
Price
N/A
PXM1039088
FLAT WASHER 8MM
Price
N/A
PXM1039089
HEX BOLT M8-1.25 X 25
Price
N/A
P
KNOB BOLT M10-1.5 X 35
Price
$2.05
P
SHIFTER BAR
Price
$6.05
PXM1039092
EXT RETAINING RING 15MM
Price
N/A
P
ROLL PIN 8 X 105
Price
$1.90
PXM1039094
SET SCREW M10-1.5 X 30
Price
N/A
PXM1039095
HEX BOLT M10-1.5 X 30
Price
N/A
P
PLASTIC LOCK CAP
Price
$2.15
P
STAFF GAUGE
Price
$9.80
P
FEED HANDLE KNOB M12-1.75
Price
$4.35
P
HANDLE
Price
$3.65
P
HANDLE BODY
Price
$9.80
PXM1039100
KEY 6 X 6 X 20
Price
N/A
P
SCALE RING
Price
$2.10
P
FEED SHAFT
Price
$37.40
PXM1039103
SET SCREW M10-1.5 X 10
Price
N/A
PXM1039104
ROLL PIN 4 X 24
Price
N/A
P
RACK RING
Price
$12.80
P
WORM GEAR
Price
$16.10
P
GEAR
Price
$10.85
P
LARGE LOCKING LEVER
Price
$5.45
P
TABLE
Price
$433.45
P
TABLE ARM BRACKET
Price
$82.35
PXM1039111
TABLE BOLT M10 X 30
Price
N/A
P
HEX BOLT M20-2.5 x 45
Price
$2.90
PXM1039113
FLAT WASHER 3/4
Price
N/A
P
PIN
Price
$1.49
PXM1039115
HEX NUT M6-1
Price
N/A
P
SHAFT
Price
$1.90
PXM1039117
SET SCREW M8-1.25 X 10
Price
N/A
PXM1039118
HANDLE ARM
Price
N/A
P
HANDLE
Price
$5.30
P
TABLE BRACKET
Price
$63.35
P
TABLE BRACKET W/GEAR
Price
$84.00
P
COLUMN
Price
$318.10
P
RACK
Price
$74.45
PXM1039123
HEX BOLT M12-1.75 X 30
Price
N/A
PXM1039124
BASE
Price
N/A
P
CARTON FOR M1039
Price
$47.15
P
STYROFOAM FOR M1039
Price
$79.10
P
FLAT LOCK WRENCH 12 X 30MM
Price
$6.05
PXM1039128
Chuck Guard for 20" Floor Model Drill Press
Price
N/A
PXM1039128-1
PHLP HD SCR M4-.7 X 30
Price
N/A
PXM1039128-2
HEX NUT M4-.7
Price
N/A
PXM1039128-3
TAP SCREW M2.2 X 4.5
Price
N/A
PXM1039128-4
HEX BOLT M5-.8 X 12
Price
N/A
PXM1039128-5
WING NUT M5-.8
Price
N/A
PXM1039138
SHOP FOX WHITE M1006
Price
N/A
PXM1039139
GLOSSY BLACK
Price
N/A
P
FOAM BLOCK HANG TAG
Price
$1.90
P
MANUAL M1039 MFD-02.06-08.17 V1.07.08
Price
$17.00
P
MANUAL M1039 MFD-09.17-12.20 V2.07.18
Price
$10.25
P
MANUAL M1039 MFD-01.21-05.22 V3.01.21
Price
$10.25
P
MANUAL M1039 MFD-06.22-04.24 V4.06.22
Price
$7.00
P
MANUAL M1039 MFD-05.24+ V5.04.24
Price
$23.55
