Parts for M1099 10" x 26" Bench Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

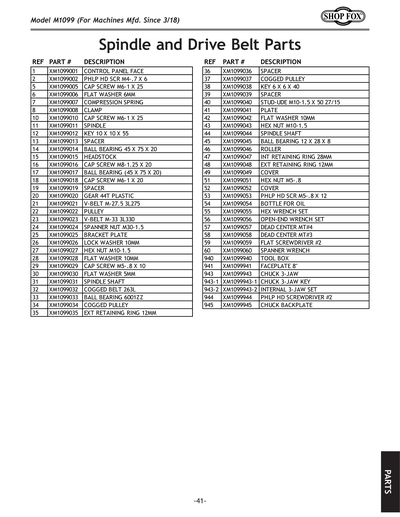

P

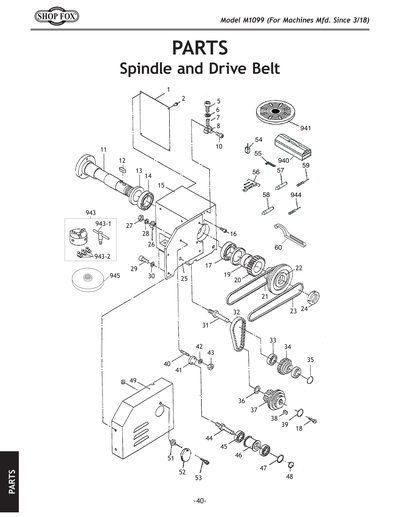

CONTROL PANEL FACE
PXM1099002
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
PXM1099005
CAP SCREW M6-1 X 25
Price
N/A
PXM1099006
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
COMPRESSION SPRING
PXM1099008
CLAMP
Item is no longer available
Price
N/A
PXM1099010
CAP SCREW M6-1 X 25
Price
N/A
PXM1099011
SPINDLE
Price
N/A
PXM1099012
KEY 10 X 10 X 55
Price
N/A
PXM1099013
SPACER
Item is no longer available
Price
N/A
PXM1099014
TAPERED ROLLER BEARING 32009
Price
N/A
PXM1099015
HEADSTOCK
Item is no longer available
Price
N/A
PXM1099016
CAP SCREW M8-1.25 X 20
Price
N/A
PXM1099017
*** USE P32009***
Price
N/A
PXM1099018
CAP SCREW M6-1 X 20
Price
N/A
PXM1099019
SPACER
Item is no longer available
Price
N/A
P
GEAR 44T PLASTIC
PXM1099021
V-BELT M27.5 3L275
Price
N/A
PXM1099022
PULLEY
Item is no longer available
Price
N/A
PXM1099023
Now: PVM33
V-BELT M33 3L330
Price
N/A
PXM1099024
***USE P4015Z231***
Price
N/A
PXM1099025
BRACKET PLATE
Item is no longer available
Price
N/A
PXM1099026
LOCK WASHER 10MM
Price
N/A
PXM1099027
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXM1099028
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1099029
CAP SCREW M5-.8 X 10
Price
N/A
PXM1099030
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PXM1099031
SPINDLE SHAFT
Item is no longer available
Price
N/A
PXM1099032
TIMING BELT 263L
Price
N/A
PXM1099033
BALL BEARING 6001ZZ
Price
N/A
PXM1099034
COGGED PULLEY
Item is no longer available
Price
N/A
PXM1099035
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXM1099036
SPACER
Item is no longer available
Price
N/A
P
COGGED PULLEY
PXM1099038
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
PXM1099039
SPACER
Item is no longer available
Price
N/A
PXM1099040
STUD-UDE M10-1.5 X 50 27/15
Item is no longer available
Price
N/A
PXM1099041
PLATE
Item is no longer available
Price
N/A
PXM1099042
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1099043
Now: PN02M
HEX NUT M10-1.5
Price
N/A
P
SPINDLE SHAFT
P
BALL BEARING 12 X 28 X 8
P
ROLLER
PXM1099047
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
PXM1099048
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
P
COVER
PXM1099051
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXM1099052
COVER
Item is no longer available
Price
N/A
PXM1099053
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
PXM1099054
BOTTLE FOR OIL
Item is no longer available
Price
N/A
PXM1099055
HEX WRENCH SET
Item is no longer available
Price
N/A
PXM1099056
OPEN-END WRENCH SET
Item is no longer available
Price
N/A
PXM1099057
DEAD CENTER MT#4
Item is no longer available
Price
N/A
PXM1099058
DEAD CENTER MT#3
Item is no longer available
Price
N/A
PXM1099059
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
P
SPANNER WRENCH
PXM10991000

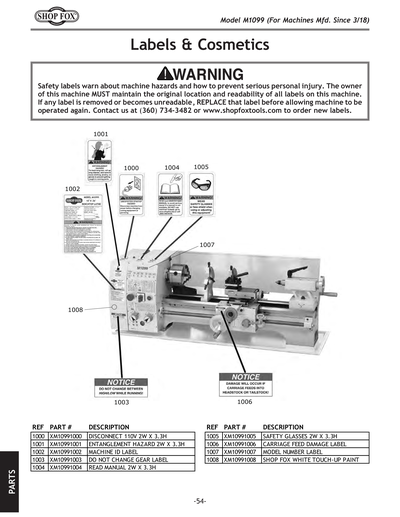

DISCONNECT 110V 2W X 3.3H
Price
N/A
PXM10991001
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
P
MACHINE ID LABEL
P
DO NOT CHANGE GEAR LABEL
PXM10991004
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
PXM10991005
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
PXM10991006
CARRIAGE FEED DAMAGE LABEL
Item is no longer available
Price
N/A
PXM10991007
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PXM10991008
SHOP FOX WHITE M1006
Price
N/A
PXM1099101
ROLL PIN 4 X 14
Price
N/A

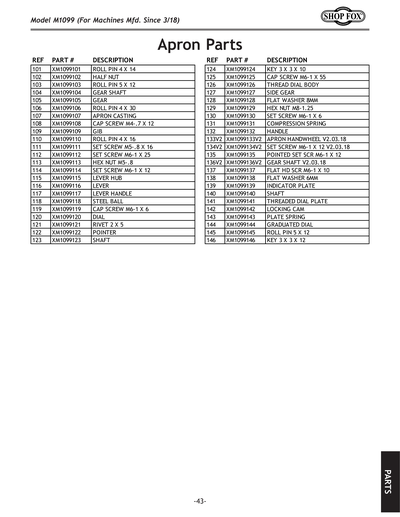

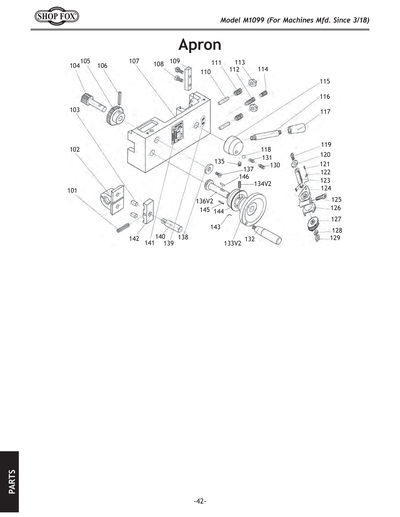

PXM1099102
HALF NUT
Item is no longer available
Price
N/A
PXM1099103
ROLL PIN 5 X 12
Price
N/A
P
GEAR SHAFT
PXM1099105
GEAR
Item is no longer available
Price
N/A
PXM1099106
ROLL PIN 4 X 30
Price
N/A
PXM1099107
APRON CASTING
Item is no longer available
Price
N/A
PXM1099108
CAP SCREW M4-.7 X 12
Price
N/A
PXM1099109
GIB
Item is no longer available
Price
N/A
PXM1099110
ROLL PIN 4 X 16
Price
N/A
PXM1099111
SET SCREW M5-.8 X 16
Price
N/A
PXM1099112
SET SCREW M6-1 X 25
Price
N/A
PXM1099113
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXM1099114
SET SCREW M6-1 X 12
Price
N/A
PXM1099115
LEVER HUB
Item is no longer available
Price
N/A
P
LEVER
P
LEVER HANDLE
PXM1099118
STEEL BALL
Item is no longer available
Price
N/A
PXM1099119
CAP SCREW M6-1 X 6
Price
N/A
PXM1099120
DIAL
Item is no longer available
Price
N/A
PXM1099121
RIVET 2 X 5
Price
N/A
PXM1099122
POINTER
Item is no longer available
Price
N/A
PXM1099123
SHAFT
Item is no longer available
Price
N/A
PXM1099124
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
PXM1099125
CAP SCREW M6-1 X 55
Price
N/A
P
THREAD DIAL BODY
PXM1099127
SIDE GEAR
Item is no longer available
Price
N/A
PXM1099128
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1099129
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXM1099130
SET SCREW M6-1 X 6
Price
N/A
PXM1099131
COMPRESSION SPRING
Item is no longer available
Price
N/A
P
HANDLE
P
HANDWHEEL V1
P
APRON HANDWHEEL V2.03.18
PXM1099134
ROLL PIN 4 X 24
Price
N/A
PXM1099134V2
SET SCREW M6-1 X 12
Price
N/A
PXM1099135
POINTED SET SCR M6-1 X 12
Item is no longer available
Price
N/A
PXM1099136
GEAR SHAFT V1
Item is no longer available
Price
N/A
PXM1099136V2
GEAR SHAFT V2.03.18
Item is no longer available
Price
N/A
PXM1099137
FLAT HD SCR M6-1 X 10
Price
N/A
PXM1099138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1099139
INDICATOR PLATE
Item is no longer available
Price
N/A
PXM1099140
SHAFT
Item is no longer available
Price
N/A
PXM1099141
THREADED DIAL PLATE
Item is no longer available
Price
N/A
PXM1099142
LOCKING CAM
Item is no longer available
Price
N/A
P
PLATE SPRING
PXM1099144
GRADUATED DIAL
Item is no longer available
Price
N/A
PXM1099145
ROLL PIN 5 X 12
Price
N/A
PXM1099146
KEY 3 X 3 X 12
Price
N/A

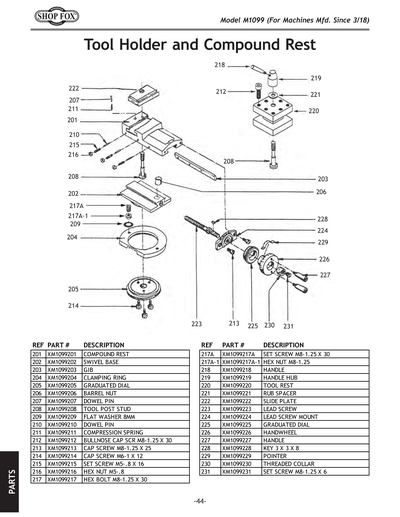

P

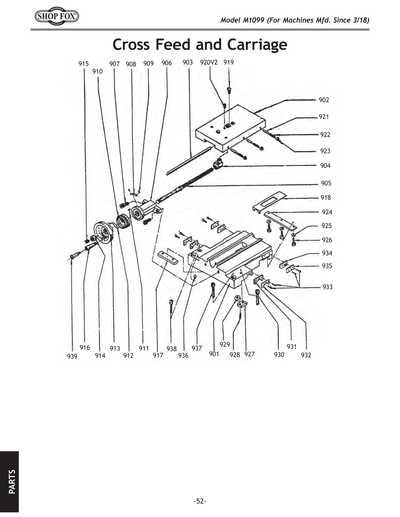

COMPOUND REST
P
SWIVEL BASE
PXM1099203
GIB
Item is no longer available
Price
N/A
PXM1099204
CLAMPING RING
Item is no longer available
Price
N/A
P
GRADUATED DIAL
P
BARREL NUT
PXM1099207
DOWEL PIN
Item is no longer available
Price
N/A
P
TOOL POST STUD
PXM1099209
Now: PW01M
FLAT WASHER 8MM
Price
N/A
P
DOWEL PIN
PXM1099211
COMPRESSION SPRING
Item is no longer available
Price
N/A
PXM1099212
BULLNOSE CAP SCR M8-1.25 X 30
Item is no longer available
Price
N/A
PXM1099213
CAP SCREW M8-1.25 X 25
Price
N/A
PXM1099214
CAP SCREW M6-1 X 12
Price
N/A
PXM1099215
SET SCREW M5-.8 X 16
Price
N/A
PXM1099216
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXM1099217
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
PXM1099217A
SET SCREW M8-1.25 X 30
Price
N/A
PXM1099217A-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
HANDLE
P
HANDLE HUB
PXM1099220
TOOL REST
Item is no longer available
Price
N/A
PXM1099221
RUB SPACER
Item is no longer available
Price
N/A
P
SLIDE PLATE
P
LEAD SCREW
PXM1099224
LEAD SCREW MOUNT
Item is no longer available
Price
N/A
PXM1099225
GRADUATED DIAL
Item is no longer available
Price
N/A
PXM1099226
HANDWHEEL
Item is no longer available
Price
N/A
P
HANDLE
PXM1099228
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
PXM1099229
POINTER
Item is no longer available
Price
N/A
PXM1099230
THREADED COLLAR
Item is no longer available
Price
N/A
PXM1099231
SET SCREW M8-1.25 X 6
Price
N/A

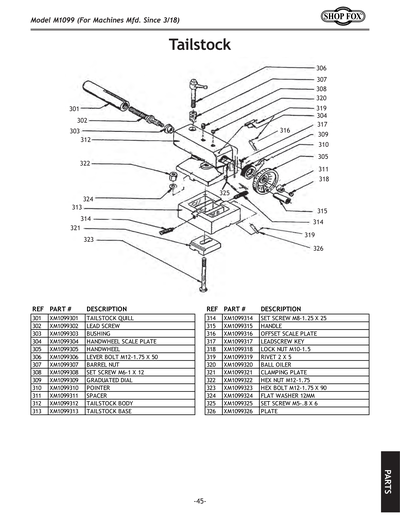

P
TAILSTOCK QUILL
P
LEAD SCREW
PXM1099303
BUSHING
Price
N/A
PXM1099304
HANDWHEEL SCALE PLATE
Item is no longer available
Price
N/A
PXM1099305
HANDWHEEL
Item is no longer available
Price
N/A
P
LEVER BOLT M12-1.75 X 50
PXM1099307
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXM1099308
SET SCREW M6-1 X 12
Price
N/A
PXM1099309
GRADUATED DIAL
Price
N/A
P
POINTER
P
SPACER
PXM1099312
TAILSTOCK BODY
Price
N/A
P
TAILSTOCK BASE
PXM1099314
SET SCREW M8-1.25 X 25
Price
N/A
P
HANDLE
PXM1099316
OFFSET SCALE PLATE
Item is no longer available
Price
N/A
PXM1099317
LEADSCREW KEY
Item is no longer available
Price
N/A
PXM1099318
LOCK NUT M10-1.5
Price
N/A
PXM1099319
RIVET 2 X 5
Price
N/A
P
BALL OILER
PXM1099321
CLAMPING PLATE
Item is no longer available
Price
N/A
PXM1099322
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PXM1099323
HEX BOLT M12-1.75 X 90
Price
N/A
PXM1099324
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PXM1099325
SET SCREW M5-.8 X 6
Price
N/A
PXM1099326
PLATE
Item is no longer available
Price
N/A

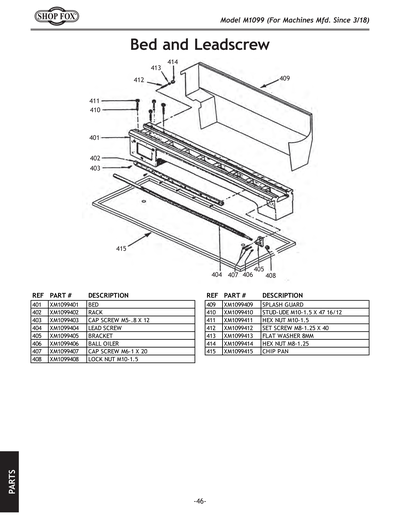

PXM1099401
BED
Item is no longer available
Price
N/A
PXM1099402
RACK V2.01.22
Price
N/A
PXM1099403
CAP SCREW M5-.8 X 12
Price
N/A
P
LEAD SCREW
PXM1099405
BRACKET
Item is no longer available
Price
N/A
PXM1099406
BALL OILER
Item is no longer available
Price
N/A
PXM1099407
CAP SCREW M6-1 X 20
Price
N/A
PXM1099408
LOCK NUT M10-1.5
Price
N/A
P
SPLASH GUARD
PXM1099410
STUD-UDE M10-1.5 X 47 16/12
Item is no longer available
Price
N/A
PXM1099411
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PXM1099412
SET SCREW M8-1.25 X 40
Price
N/A
PXM1099413
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PXM1099414
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXM1099415
CHIP PAN
Item is no longer available
Price
N/A

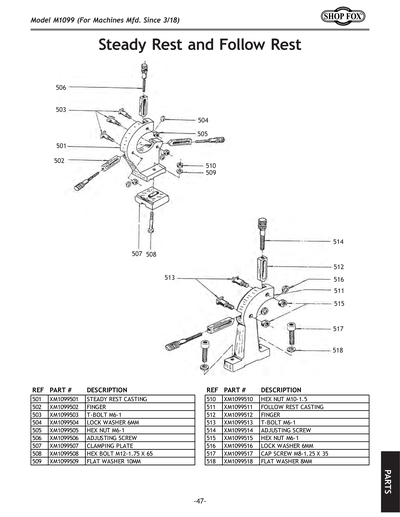

P
STEADY REST CASTING
P
FINGER
P
T-BOLT M6-1
PXM1099504
LOCK WASHER 6MM
Price
N/A
PXM1099505
Now: PN01M
HEX NUT M6-1
Price
N/A
P
ADJUSTING SCREW
PXM1099507
CLAMPING PLATE
Item is no longer available
Price
N/A
PXM1099508
HEX BOLT M12-1.75 X 65
Price
N/A
PXM1099509
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PXM1099510
Now: PN02M
HEX NUT M10-1.5
Price
N/A
P
FOLLOW REST CASTING
P
***USE P0602502***
PXM1099513
T-BOLT M6-1
Price
N/A
PXM1099514
ADJUSTING SCREW
Item is no longer available
Price
N/A
PXM1099515
Now: PN01M
HEX NUT M6-1
Price
N/A
PXM1099516
LOCK WASHER 6MM
Price
N/A
PXM1099517
CAP SCREW M8-1.25 X 35
Price
N/A
PXM1099518
Now: PW01M
FLAT WASHER 8MM
Price
N/A

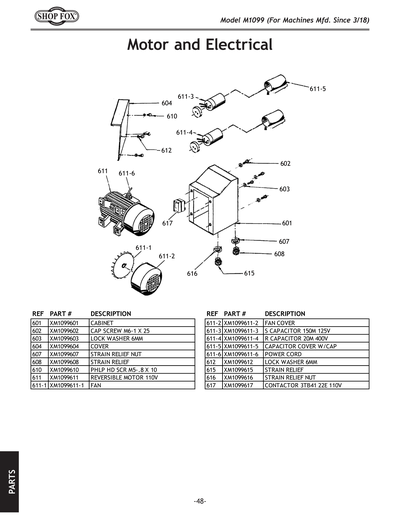

PXM1099601
CABINET
Item is no longer available
Price
N/A
PXM1099602
CAP SCREW M6-1 X 25
Price
N/A
PXM1099603
LOCK WASHER 6MM
Price
N/A
PXM1099604
COVER
Item is no longer available
Price
N/A
PXM1099607
STRAIN RELIEF NUT
Item is no longer available
Price
N/A
PXM1099608
STRAIN RELIEF
Item is no longer available
Price
N/A
PXM1099610
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P
REVERSIBLE MOTOR 110V
PXM1099611-1
FAN
Item is no longer available
Price
N/A
PXM1099611-2
FAN COVER
Item is no longer available
Price
N/A
P
S CAPACITOR 150M 125V
PXM1099611-4
R CAPACITOR 20M 400V
Item is no longer available
Price
N/A
PXM1099611-5
CAPACITOR COVER W/CAP
Item is no longer available
Price
N/A
PXM1099611-6
POWER CORD
Item is no longer available
Price
N/A
PXM1099612
LOCK WASHER 6MM
Price
N/A
PXM1099615
STRAIN RELIEF
Item is no longer available
Price
N/A
PXM1099616
STRAIN RELIEF NUT
Item is no longer available
Price
N/A
PXM1099617
CONTACTOR 3TB41 22E 110V
Item is no longer available
Price
N/A

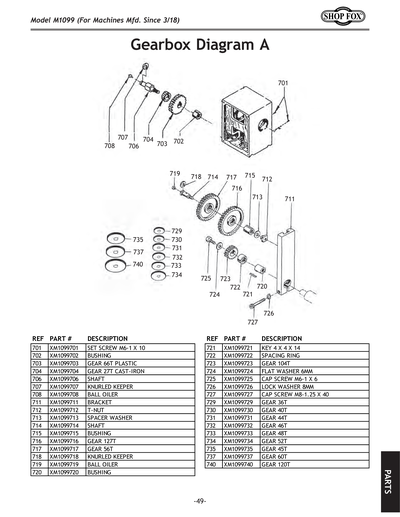

PXM1099701
SET SCREW M6-1 X 10
Price
N/A
P
BUSHING
P
GEAR 66T PLASTIC
PXM1099704
GEAR 27T CAST IRON
Item is no longer available
Price
N/A
P
SHAFT
P
KNURLED KEEPER
P
BALL OILER
PXM1099711
BRACKET
Item is no longer available
Price
N/A
PXM1099712
T-NUT
Price
N/A
PXM1099713
SPACER WASHER
Item is no longer available
Price
N/A
P
SHAFT
P
BUSHING
P
GEAR 127T
PXM1099717
GEAR 56T
Item is no longer available
Price
N/A
P
KNURLED KEEPER
P
BALL OILER
P
BUSHING
PXM1099721
Now: PK97M
KEY 4 X 4 X 14
Price
N/A
PXM1099722
SPACING RING
Item is no longer available
Price
N/A
PXM1099723
GEAR 104T
Item is no longer available
Price
N/A
PXM1099724
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1099725
CAP SCREW M6-1 X 6
Price
N/A
PXM1099726
LOCK WASHER 8MM
Price
N/A
PXM1099727
CAP SCREW M8-1.25 X 40
Price
N/A
PXM1099728
GEAR 36T
Item is no longer available
Price
N/A
P
GEAR 36T
P
GEAR 40T
PXM1099731
GEAR 44T
Item is no longer available
Price
N/A
PXM1099732
GEAR 46T
Item is no longer available
Price
N/A
PXM1099733
GEAR 48T
Item is no longer available
Price
N/A
PXM1099734
GEAR 52T
Item is no longer available
Price
N/A
PXM1099735
GEAR 45T
Item is no longer available
Price
N/A
PXM1099736
GEAR 56T
Price
N/A
P
GEAR 60T
PXM1099738
GEAR 66T PLASTIC
Price
N/A
PXM1099739
GEAR 104T
Price
N/A
P
GEAR 120T
PXM1099741
GEAR 127T
Price
N/A

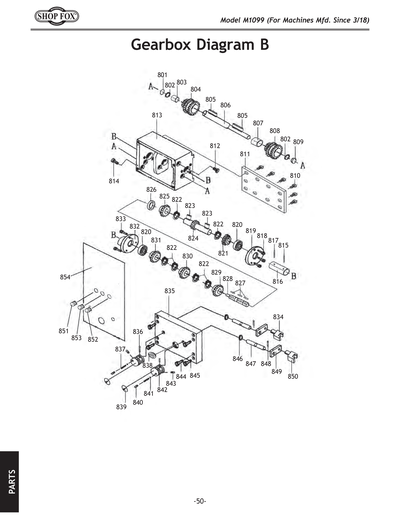

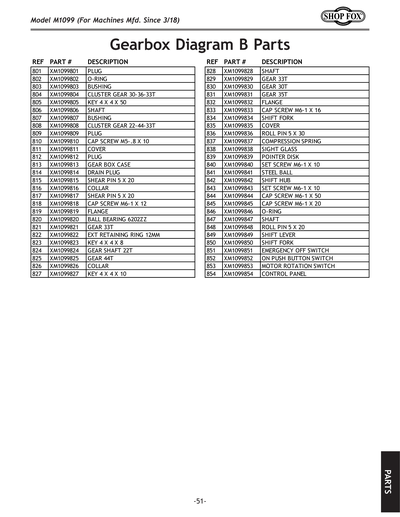

PXM1099801
PLUG
Item is no longer available
Price
N/A
P
O-RING
PXM1099803
BUSHING
Item is no longer available
Price
N/A
PXM1099804
CLUSTER GEAR 30-36-33T
Item is no longer available
Price
N/A
PXM1099805
KEY 4 X 4 X 50
Price
N/A
PXM1099806
SHAFT
Item is no longer available
Price
N/A
PXM1099807
BUSHING
Item is no longer available
Price
N/A
PXM1099808
CLUSTER GEAR 22-44-33T
Item is no longer available
Price
N/A
PXM1099809
PLUG
Item is no longer available
Price
N/A
PXM1099810
CAP SCREW M5-.8 X 10
Price
N/A
PXM1099811
COVER
Item is no longer available
Price
N/A
PXM1099812
PLUG
Item is no longer available
Price
N/A
PXM1099813
GEAR BOX CASE
Item is no longer available
Price
N/A
PXM1099814
DRAIN PLUG
Item is no longer available
Price
N/A
PXM1099815
SHEAR PIN 5 X 20
Price
N/A
PXM1099816
COLLAR
Item is no longer available
Price
N/A
PXM1099817
SHEAR PIN 5 X 20
Price
N/A
PXM1099818
CAP SCREW M6-1 X 12
Price
N/A
PXM1099819
FLANGE
Item is no longer available
Price
N/A
PXM1099820
BALL BEARING 6202ZZ
Price
N/A
PXM1099821
GEAR 33T
Item is no longer available
Price
N/A
PXM1099822
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PXM1099823
Now: pk65m
KEY 4 X 4 X 8
Price
N/A
PXM1099824
GEAR SHAFT 22T
Item is no longer available
Price
N/A
PXM1099825
GEAR 44T
Item is no longer available
Price
N/A
PXM1099826
COLLAR
Item is no longer available
Price
N/A
PXM1099827
Now: PK05M
KEY 4 X 4 X 10
Price
N/A
PXM1099828
SHAFT
Item is no longer available
Price
N/A
PXM1099829
GEAR 33T
Item is no longer available
Price
N/A
PXM1099830
GEAR 30T
Item is no longer available
Price
N/A
PXM1099831
GEAR 35T
Item is no longer available
Price
N/A
PXM1099832
FLANGE
Item is no longer available
Price
N/A
PXM1099833
CAP SCREW M6-1 X 16
Price
N/A
PXM1099834
SHIFT FORK
Item is no longer available
Price
N/A
PXM1099835
COVER
Item is no longer available
Price
N/A
PXM1099836
ROLL PIN 5 X 30
Price
N/A
PXM1099837
COMPRESSION SPRING
Item is no longer available
Price
N/A
P
SIGHT GLASS
P
POINTER DISK
PXM1099840
SET SCREW M6-1 X 10
Price
N/A
PXM1099841
STEEL BALL
Item is no longer available
Price
N/A
PXM1099842
SHIFT HUB
Item is no longer available
Price
N/A
PXM1099843
SET SCREW M6-1 X 10
Price
N/A
PXM1099844
CAP SCREW M6-1 X 50
Price
N/A
PXM1099845
CAP SCREW M6-1 X 20
Price
N/A
P
O-RING
PXM1099847
SHAFT
Item is no longer available
Price
N/A
PXM1099848
ROLL PIN 5 X 20
Price
N/A
PXM1099849
SHIFT LEVER
Item is no longer available
Price
N/A
PXM1099850
SHIFT FORK
Item is no longer available
Price
N/A
PXM1099851
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
PXM1099852
ON PUSH BUTTON SWITCH
Item is no longer available
Price
N/A
P
MOTOR ROTATION SWITCH
P
CONTROL PANEL

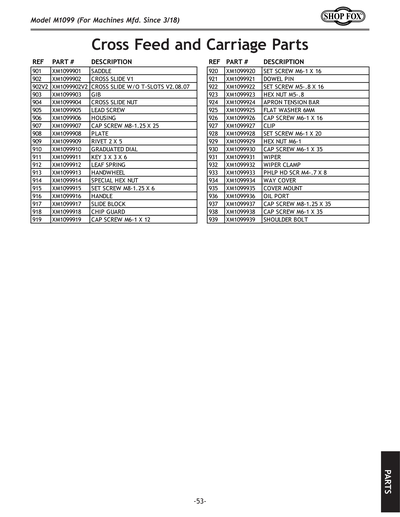

PXM1099901
SADDLE
Item is no longer available
Price
N/A
PXM1099902V2
CROSS SLIDE W/O T-SLOTS V2.08.07
Item is no longer available
Price
N/A
PXM1099903
GIB
Item is no longer available
Price
N/A
P
CROSS SLIDE NUT
P
LEAD SCREW
P
HOUSING
PXM1099907
CAP SCREW M8-1.25 X 25
Price
N/A
P
PLATE
PXM1099909
RIVET 2 X 5
Price
N/A
PXM1099910
GRADUATED DIAL
Item is no longer available
Price
N/A
PXM1099911
KEY 3 X 3 X 6
Price
N/A
PXM1099912
LEAF SPRING
Item is no longer available
Price
N/A
PXM1099913
HANDWHEEL
Item is no longer available
Price
N/A
PXM1099914
Handwheel Hex Nut
Item is no longer available
Price
N/A
PXM1099915
SET SCREW M8-1.25 X 6
Price
N/A
P
HANDLE
PXM1099917
SLIDE BLOCK
Item is no longer available
Price
N/A
PXM1099918
CHIP GUARD
Item is no longer available
Price
N/A
PXM1099919
CAP SCREW M6-1 X 12
Price
N/A
PXM1099920
SET SCREW M6-1 X 16
Price
N/A
PXM1099921
DOWEL PIN
Item is no longer available
Price
N/A
PXM1099922
SET SCREW M5-.8 X 16
Price
N/A
PXM1099923
Now: PN06M
HEX NUT M5-.8
Price
N/A
PXM1099924
APRON TENSION BAR
Item is no longer available
Price
N/A
PXM1099925
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PXM1099926
CAP SCREW M6-1 X 16
Price
N/A
PXM1099927
CLIP
Item is no longer available
Price
N/A
PXM1099928
SET SCREW M6-1 X 20
Price
N/A
PXM1099929
Now: PN01M
HEX NUT M6-1
Price
N/A
PXM1099930
CAP SCREW M6-1 X 35
Price
N/A
PXM1099931
WIPER
Item is no longer available
Price
N/A
PXM1099932
WIPER CLAMP
Item is no longer available
Price
N/A
PXM1099933
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
PXM1099934
WAY COVER
Item is no longer available
Price
N/A
PXM1099935
COVER MOUNT
Item is no longer available
Price
N/A
P
OIL PORT
PXM1099937
CAP SCREW M8-1.25 X 35
Price
N/A
PXM1099938
CAP SCREW M6-1 X 35
Price
N/A
P
SHOULDER BOLT
P
TOOL BOX
PXM1099941
FACEPLATE 8"
Price
N/A
PXM1099942
CHUCK UNIVERSAL 4-JAW 6-1/2"
Item is no longer available
Price
N/A
P
CHUCK 4-JAW BACKPLATE 6-1/2"
PXM1099943
3-JAW CHUCK 5"
Price
N/A
PXM1099943-1
CHUCK 3-JAW KEY
Item is no longer available
Price
N/A
PXM1099943-2
INTERNAL 3-JAW SET
Item is no longer available
Price
N/A
PXM1099944
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
PXM1099945
CHUCK BACKPLATE
Price
N/A
P
MANUAL FOR M1099 04/11
P
MANUAL M1099 MFG 10.07 V2.05.12
