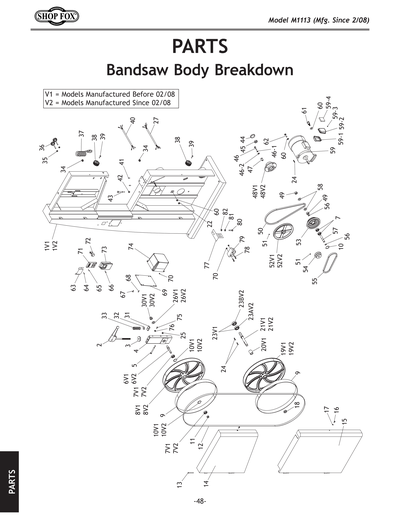

Parts for M1113 18" 1-1/2 HP Variable-Speed Wood/Metal-Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
INVERTER PROGRAMMER FOR M1113 (NOT FOR S
P
INVERTER PROGRAMMER FOR M1113(NO RESALE)
P

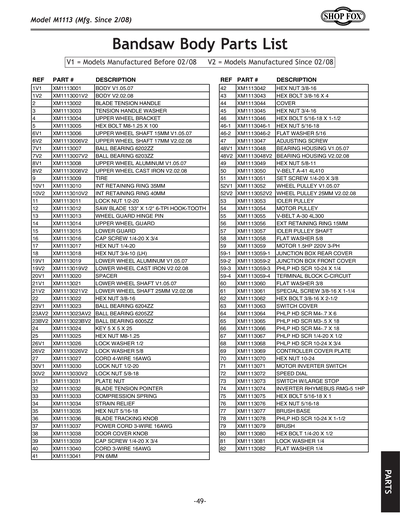

BODY V1.05.07
P
BODY V2.02.08
P
BLADE TENSION HANDLE
P
TENSION HANDLE WASHER
P
UPPER WHEEL BRACKET
PXM1113005
Now: PB45M
HEX BOLT M8-1.25 X 100
Price
N/A
P
UPPER WHEEL SHAFT 15MM V1.05.07
P
UPPER WHEEL SHAFT 17MM V2.02.08
PXM1113007
BALL BEARING 6202ZZ
Price
N/A
PXM1113007V2
BALL BEARING 6203ZZ
Price
N/A
P
UPPER WHEEL ALUMINUM V1.05.07
P
UPPER WHEEL CAST IRON V2.02.08
PXM1113009
WHEEL PROTECTOR
Price
N/A
PXM1113010
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
PXM1113010V2
Now: PR23M
INT RETAINING RING 40MM
Price
N/A
PXM1113011
Now: PLN08
LOCK NUT 1/2-20
Price
N/A
P
SAW BLADE 133" X 1/2" 6-TPI HOOK
PXM1113013
HINGE PIN
Price
N/A
P
UPPER WHEEL GUARD
P
LOWER GUARD
PXM1113016
CAP SCREW 1/4-20 X 3/4
Price
N/A
PXM1113017
Now: PN05
HEX NUT 1/4-20
Price
N/A
PXM1113018
Now: PN42
HEX NUT 3/4-10 (LH)
Price
N/A
P
LOWER WHEEL ALUMINUM V1.05.07
P
LOWER WHEEL CAST IRON V2.02.08
P
*DISCD*SPACER
P
LOWER WHEEL SHAFT 20MM V1.05.07
PXM1113021V2
SHAFT
Price
N/A
PXM1113022
Now: PN08
HEX NUT 3/8-16
Price
N/A
PXM1113023
BALL BEARING 6204ZZ
Price
N/A
PXM1113023AV2
BALL BEARING 6205ZZ
Price
N/A
PXM1113023BV2
BALL BEARING 6005ZZ
Price
N/A
PXM1113024
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
PXM1113025
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PXM1113026
Now: PLW07
LOCK WASHER 1/2
Price
N/A
PXM1113026V2
Now: PLW06
LOCK WASHER 5/8
Price
N/A
P
CORD 4-WIRE 16AWG
PXM1113030
Now: PLN08
LOCK NUT 1/2-20
Price
N/A
PXM1113030V2
Now: PLN15
LOCK NUT 5/8-18
Price
N/A
P
PLATE NUT
PXM1113032
BLADE TENSION POINTER
Price
N/A
PXM1113033
*DISCD*HEL SPRING 28 X 76 V2.04.06
Price
N/A
P
STRAIN RELIEF
PXM1113035
Now: PN02
HEX NUT 5/16-18
Price
N/A
PXM1113036
LOCK SCREW 5/16-18 X 2
Price
N/A
P
POWER CORD 3-WIRE 16AWG
PXM1113038
KNOB
Price
N/A
PXM1113039
CAP SCREW 1/4-20 X 3/4
Price
N/A
P
CORD 3-WIRE 16AWG
P
PIN 6MM
PXM1113042
Now: PN08
HEX NUT 3/8-16
Price
N/A
P
HEX BOLT 3/8-16 X 4
P
COVER
PXM1113045
Now: PN03
HEX NUT 3/4-16
Price
N/A
PXM1113046
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
PXM1113046-1
Now: PN02
HEX NUT 5/16-18
Price
N/A
PXM1113046-2
Now: PW07
FLAT WASHER 5/16
Price
N/A
P
ADJUSTING SCREW
P
BEARING HOUSING V1.05.07
P
BEARING HOUSING V2.02.08
PXM1113049
Now: PN04
HEX NUT 5/8-11
Price
N/A
PXM1113050
Now: PVA41
V-BELT A41
Price
N/A
PXM1113051
Now: PSS03
SET SCREW 1/4-20 X 3/8
Price
N/A
P
WHEEL PULLEY 20MM V1.05.07
P
WHEEL PULLEY 25MM V2.02.08
P
IDLER PULLEY
P
MOTOR PULLEY
PXM1113055
Now: PVA30
V-BELT A30
Price
N/A
PXM1113056
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
P
IDLER PULLEY SHAFT
PXM1113058
Now: PW14
FLAT WASHER 5/8
Price
N/A
P
MOTOR 1.5HP 220V 3-PH
P
JUNCTION BOX REAR COVER
P
JUNCTION BOX FRONT COVER
PXM1113059-3
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
P
TERMINAL BLOCK 3-CIRCUIT
PXM1113060
Now: PW02
FLAT WASHER 3/8
Price
N/A
P
Motor Screw 3/8-16 X 1-1/4
PXM1113062
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
P
SWITCH COVER V1
PXM1113063V2
SWITCH COVER V2.12.20
Price
N/A
PXM1113064
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
PXM1113065
PHLP HD SCR M3-.5 X 18
Price
N/A
PXM1113066
Now: PS01M
PHLP HD SCR M4-.7 X 18
Price
N/A
PXM1113067
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
PXM1113068
Now: PS08
PHLP HD SCR 10-24 X 3/4
Price
N/A
P
CONTROLLER COVER PLATE V1
PXM1113069V2
CONTROLLER COVER PLATE V2.12.20
Price
N/A
PXM1113070
Now: PN07
HEX NUT 10-24
Price
N/A
PXM1113071
*DISCD*MOTOR INVERTER SWITCH V1
Item is no longer available
Price
N/A
PXM1113071V2
INVERTER/CONTROLLER BOX V2.12.20
Price
N/A
PXM1113072
POTENTIOMETER COSMOS RV24YN B102
Price
N/A
PXM1113073
SWITCH W/LARGE STOP
Price
N/A
P
SWITCH DISABLING PIN
PXM1113074V2
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
P
INVERTER RHYMEBUS RM6S2 1-PH V3.05.20
PXM1113075
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
PXM1113076
Now: PN02
HEX NUT 5/16-18
Price
N/A
P
BRUSH BASE
PXM1113078
Now: PS10
PHLP HD SCR 10-24 X 1-1/2
Price
N/A
P
BRUSH
PXM1113080
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
PXM1113081
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PXM1113082
Now: PW06
FLAT WASHER 1/4
Price
N/A

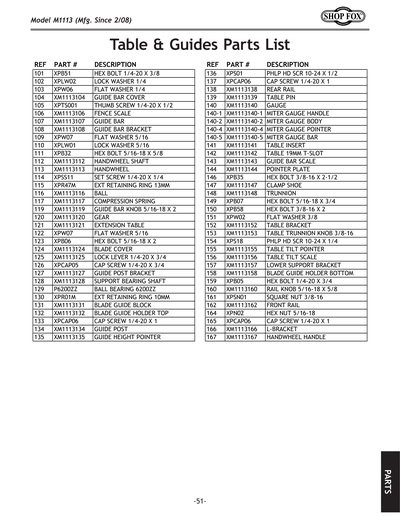

PXM1113101
Now: PB51
HEX BOLT 1/4-20 X 3/8
Price
N/A
PXM1113102
Now: PLW02
LOCK WASHER 1/4
Price
N/A
PXM1113103
Now: PW06
FLAT WASHER 1/4
Price
N/A

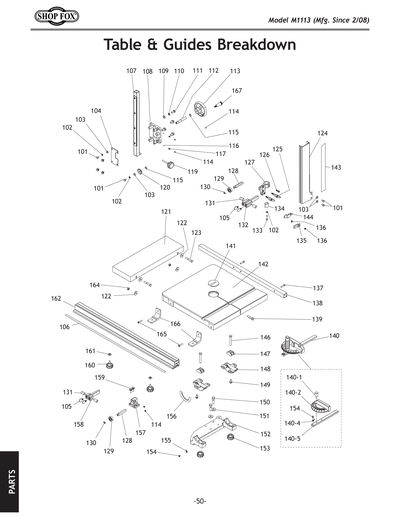

P
GUIDE BAR COVER
PXM1113105
THUMBSCREW 1/4-20 X 1/2
Price
N/A
PXM1113106
FENCE SCALE
Price
N/A
P
GUIDE BAR
P
GUIDE BAR BRACKET
PXM1113109
Now: PW07
FLAT WASHER 5/16
Price
N/A
PXM1113110
Now: PLW01
LOCK WASHER 5/16
Price
N/A
PXM1113111
Now: PB32
HEX BOLT 5/16-18 X 5/8
Price
N/A
P
HANDWHEEL SHAFT
P
HANDWHEEL
PXM1113114
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
PXM1113115
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
PXM1113116
BALL
Price
N/A
PXM1113117
COMPRESSION SPRING
Price
N/A
PXM1113119
LOCK SCREW 5/16-18 X 2
Price
N/A
P
GEAR
P
EXTENSION TABLE
PXM1113122
Now: PW07
FLAT WASHER 5/16
Price
N/A
PXM1113123
Now: PB06
HEX BOLT 5/16-18 X 2
Price
N/A
P
BLADE COVER
P
LOCK LEVER 1/4-20 X 3/4
PXM1113126
CAP SCREW 1/4-20 X 3/4
Price
N/A
PXM1113127
SUPPORT BRACKET CAST IRON 7/8"ID V2.12.1
Price
N/A
PXM1113128
HEX SHAFT V2.10.09
Price
N/A
PXM1113129
BALL BEARING 6200ZZ
Price
N/A
PXM1113130
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
PXM1113131
BLADE GUIDE BLOCK ROUND
Price
N/A
PXM1113132
GUIDE BLOCK HOLDER CAST IRON V2.04.00
Price
N/A
PXM1113133
CAP SCREW 1/4-20 X 1
Price
N/A
PXM1113134
GUIDE POST
Price
N/A
PXM1113135
GUIDE POST POINTER
Price
N/A
PXM1113136
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
PXM1113137
CAP SCREW 1/4-20 X 5/8
Price
N/A
PXM1113137V2
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
PXM1113138
FENCE RAIL REAR
Price
N/A
P
REAR RAIL V2.05.22
PXM1113139
TAPERED PIN
Price
N/A
PXM1113140
MITER GAUGE ASSY
Price
N/A
P
MITER GAUGE HANDLE
P
MITER GAUGE BODY
P
MITER GAUGE POINTER
P
MITER GAUGE BAR
PXM1113141
TABLE INSERT ALUMINUM
Price
N/A
P
TABLE 19MM T-SLOT V1
P
TABLE 19MM T-SLOT V2.05.22
P
GUIDE BAR SCALE
P
POINTER PLATE
PXM1113146
Now: PB35
HEX BOLT 3/8-16 X 2-1/2
Price
N/A
P
CLAMP SHOE
PXM1113148
TRUNNION
Price
N/A
PXM1113149
Now: PB07
HEX BOLT 5/16-18 X 3/4
Price
N/A
PXM1113150
Now: PB58
HEX BOLT 3/8-16 X 2
Price
N/A
PXM1113151
Now: PW02
FLAT WASHER 3/8
Price
N/A
PXM1113152
TRUNNION SUPPORT BRACKET
Price
N/A
PXM1113153
LOCK KNOB FOR TABLE
Price
N/A
P
***USE P1012052***
PXM1113154
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
PXM1113155
POINTER
Price
N/A
P
TABLE TILT SCALE
PXM1113157
SUPPORT BRACKET LOWER
Price
N/A
PXM1113158
GUIDE BLOCK HOLDER ROUND
Price
N/A
PXM1113159
Now: PB05
HEX BOLT 1/4-20 X 3/4
Price
N/A
PXM1113160
KNOB 5/16-18 X 5/8
Price
N/A
PXM1113161
Now: PSN01
SQUARE NUT 3/8-16
Price
N/A
PXM1113162
FENCE RAIL FRONT
Price
N/A
PXM1113164
Now: PN02
HEX NUT 5/16-18
Price
N/A
PXM1113165
CAP SCREW 1/4-20 X 5/8
Price
N/A
PXM1113165V2
Now: PB02
HEX BOLT 1/4-20 X 5/8
Price
N/A
PXM1113166
RAIL BRACKET
Price
N/A
P
HANDWHEEL HANDLE
P
KNOB BOLT 3/8-16 X 1-1/4, 6-LOBE, D2-1/2
PXM1113171
Now: PB03
HEX BOLT 5/16-18 X 1
Price
N/A
P
TABLE SUPPORT PLATE
PXM1113173
Now: PB19
HEX BOLT 1/4-20 X 1/2
Price
N/A
P
BUSHING 7/16 X 9/16
PXM1113175
Now: PLN03
LOCK NUT 5/16-18
Price
N/A
P
SUPPORT PLATE BRACKET
P
REAR RAIL L-BRACKET
PXM1113179
SET SCREW M4-.7 X 6
Price
N/A

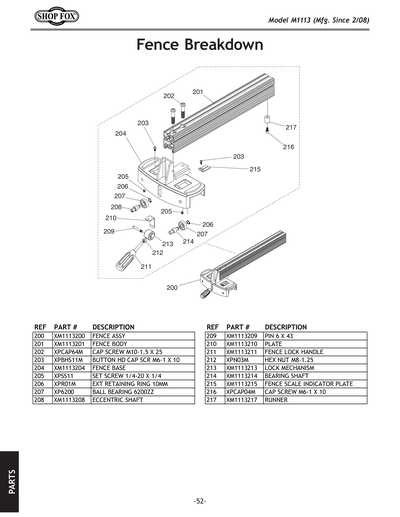

PXM1113200
*DISCD*FENCE ASSY V1
Item is no longer available
Price
N/A
P
FENCE ASSY V2.03.17
P
FENCE ASSY V3.05.22
PXM1113201
FENCE BODY 635MM BLACK V2.03.17
Price
N/A
P
FENCE BODY 635MM BLACK V2.03.17
PXM1113202
CAP SCREW M10-1.5 X 25
Price
N/A
PXM1113203
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
P
FENCE BASE
PXM1113205
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
PXM1113206
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
PXM1113207
BALL BEARING 6200ZZ
Price
N/A
P
ECCENTRIC SHAFT
P
PIN 6 X 43
P
PLATE
P
FENCE LOCK HANDLE
PXM1113212
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
LOCK MECHANISM
P
BEARING SHAFT
PXM1113215
GUIDE POST POINTER
Price
N/A
PXM1113216
CAP SCREW M6-1 X 10
Price
N/A
PXM1113216V2
CAP SCREW M6-1 X 25
Price
N/A
PXM1113217
RUNNER
Price
N/A
PXM1113218
Now: PW06
FLAT WASHER 1/4
Price
N/A
PXM1113219
Now: PN01M
HEX NUT M6-1
Price
N/A

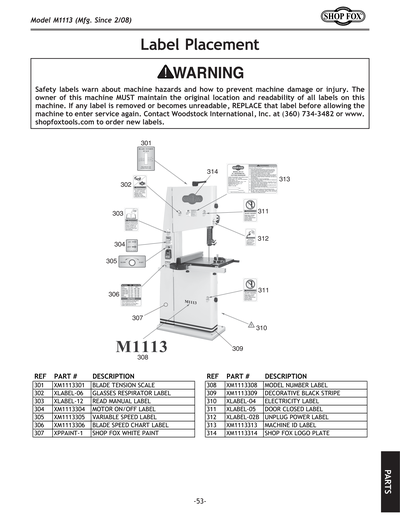

P
BLADE TENSION SCALE
PXM1113302
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
PXM1113303
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
P
MOTOR ON/OFF LABEL
P
VARIABLE SPEED LABEL
P
BLADE SPEED CHART LABEL
PXM1113307
SHOP FOX WHITE M1006
Price
N/A
P
MODEL NUMBER LABEL
P
DECORATIVE BLACK STRIPE
PXM1113310
ELECTRICITY 1.4W X 1.2H
Price
N/A
PXM1113311
DOOR CLOSED BLADE 2W X 3.3H
Price
N/A
PXM1113312
DISCONNECT 220V 2W X 3.3H
Price
N/A
P
MACHINE ID LABEL
PXM1113314
Now: D3377
Nameplate - Large
Price
N/A
P
MANUAL FOR M1113 10/07
P
CARTON FOR M1113
