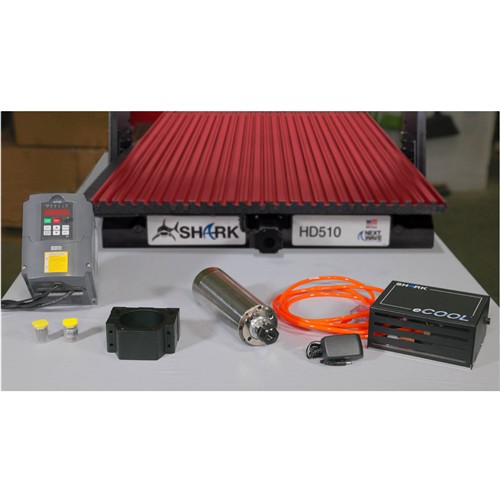

T33375 Next Wave 3HP Water Cooled Spindle Kit

This 3HP spindle has a digital interface.

The T33375 Next Wave CNC 3-HP spindle is built to take on the toughest challenges.

Featuring Next Waves new e-cool enclosed water-cooling system that is an entirely enclosed cooling system eliminating the need for a bucket.

The digital control interface allows remote control of spindle power and speed via G-Code.

An ER20 collet allows for use of both 1/4" and 1/2” shanked bits.

The 3HP spindle also features long-life German engineered bearings, operates on standard 110V shop current, and is 75% quieter than a standard router.

Well suited for commercial applications, the kit includes everything needed and pre-programmed to work on your CNC Shark HD500, HD510, or HD520 machines.

FEATURES:

• 3HP (2.2KW) Liquid-cooled brushless spindle
• 24,000 RPM max, 110V 13-amp inverter
• Remote control of spindle power and speed via G-Code
• ER20 Collet system including 1/4" and 1/2" shank collets
• 21mm & 30mm wrenches
• An entirely enclosed cooling system eliminating the need for a bucket
• Flow Meter – for ease of monitoring fluid flow

Note: This kit only fits the HD5 series machines.
