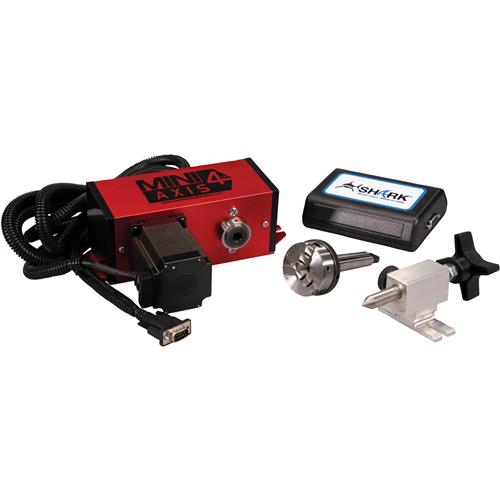

T30510 Next Wave CNC Mini 4th Axis Kit

The Mini 4th Axis Kit from Next Wave CNC gives you the ability to create precision turned spindles, pens or game pieces with intricate carvings and designs that will astonish your clients.

With virtually a plug and play design, the mini 4th axis kit easily bolts to your CNC Piranha or CNC Shark bed.

The kit includes a removable mini 3-jaw chuck and features a standard #2 Morse taper shaft to allow you to use just about any of your standard lathe accessories.

Produced from extruded aluminum stock, the mini 4th axis is built to give years of service.

FEATURES:

• Precision machined aluminum parts
• Self-Centering 3-Jaw Micro Chuck with 2” diameter
• Lower profile to allow work on smaller CNC Piranha machines
• Plug and play design on Next Wave Machines equipped with data port
• Mounting hardware included
• Compatible with VCarve Desktop 9.5 or higher – Or any version of VCarve Pro
• Standard #2 morse taper
• Can be positioned anywhere on the machine bed
• Compatible with any Pendant style NWA machine
• 2-7/8” diameter stock capacity

Contact Next Wave CNC regarding warranties on their products and lifetime technical support.

Note: If using the 4th axis with a water cooled spindle kit at the same time, an upgraded control board will need to be purchased.
