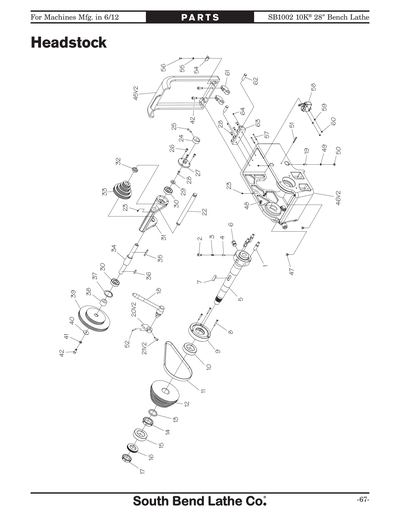

Parts for SB1002 - 10K - 28" Bench Lathe

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
PSB10020001 PSB10020001
*DISCD*CAMLOCK SHAFT
Item is no longer available
N/A
PSB10020002 PSB10020002
Replaced By PCAP199M
CAP SCREW M8-1.25 X 8
N/A View Replacement
PSB10020003 PSB10020003 COMPRESSION SPRING $1.25
PSB10020004 PSB10020004 PLUNGER $1.75
PSB10020005 PSB10020005 SPINDLE D1-3 MT#3 $333.05
PSB10020006 PSB10020006 CAMLOCK $10.25
PSB10020007 PSB10020007 KEY 10 X 8 X 38 $2.00
PSB10020008 PSB10020008
Replaced By PCAP79M
CAP SCREW M5-.8 X 35
N/A View Replacement
PSB10020009 PSB10020009 FRONT SPINDLE BEARING COVER $47.75
PSB10020010 PSB10020010 TAPERED BEARING E32009J $74.50
PSB10020011 PSB10020011 RIBBED V-BELT 5MS-730A $76.50
PSB10020012 PSB10020012 SPINDLE PULLEY $123.50
PSB10020013 PSB10020013 SPACER $14.00
PSB10020014 PSB10020014 SPANNER NUT M40-1.5 $47.75
PSB10020015 PSB10020015 TAPERED BEARING E32007J $47.75
PSB10020016 PSB10020016 FLAT WASHER 34MM $17.50
PSB10020017 PSB10020017 SPANNER NUT M35-1.5 $50.50
PSB10020018 PSB10020018 BELT TENSION LEVER $27.75
PSB10020019 PSB10020019
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
PSB10020020V2 PSB10020020V2 CAM PLATE V2.06.12 $11.50
PSB10020021 PSB10020021
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020021V2 PSB10020021V2
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10020022 PSB10020022 PIVOT SHAFT $9.75
PSB10020023 PSB10020023
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10020024 PSB10020024 CAM $13.25
PSB10020025 PSB10020025
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
PSB10020026 PSB10020026
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10020027 PSB10020027 BEARING END COVER $23.25
PSB10020028 PSB10020028
Replaced By PFH73M
FLAT HD CAP SCR M6-1 X 16
N/A View Replacement
PSB10020029 PSB10020029 FLAT WASHER 6MM $2.00
PSB10020030 PSB10020030
Replaced By P6204-2NSE
BALL BEARING 6204-2NSE
N/A View Replacement
PSB10020031 PSB10020031 TENSION PIVOT BRACKET $58.25
PSB10020032 PSB10020032 SPACER $3.00
PSB10020033 PSB10020033 INTERNAL IDLER PULLEY $52.75
PSB10020034 PSB10020034 PULLEY SHAFT $32.00
PSB10020035 PSB10020035
Replaced By PK33M
KEY 5 X 5 X 45
N/A View Replacement
PSB10020036 PSB10020036
Replaced By PK23M
KEY 5 X 5 X 25
N/A View Replacement
PSB10020037 PSB10020037
Replaced By PR25M
INT RETAINING RING 47MM
N/A View Replacement
PSB10020038 PSB10020038 BUSHING $4.00
PSB10020039 PSB10020039 EXTERNAL IDLER PULLEY $76.50
PSB10020040 PSB10020040 PULLEY FLAT WASHER 8MM $1.25
PSB10020041 PSB10020041
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
PSB10020042 PSB10020042
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
PSB10020044 PSB10020044
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020045 PSB10020045
*DISCD*HEADSTOCK TOP COVER V1
Item is no longer available
N/A
PSB10020045V2 PSB10020045V2 HEADSTOCK TOP COVER V2.06.12 $78.75
PSB10020046 PSB10020046 HEADSTOCK CASTING V1 $708.00
PSB10020046V2 PSB10020046V2 HEADSTOCK CASTING V2.06.12 $444.00
PSB10020047 PSB10020047 RUBBER PAD $2.00
PSB10020048 PSB10020048 GREASE FITTING M6-1 90 DEG $1.50
PSB10020049 PSB10020049
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
PSB10020050 PSB10020050
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
PSB10020051 PSB10020051
Replaced By PRP28M
ROLL PIN 5 X 40
N/A View Replacement
PSB10020052 PSB10020052
Replaced By PRP73M
ROLL PIN 4 X 30
N/A View Replacement
PSB10020054 PSB10020054 LIMIT SWITCH BRACKET $1.25
PSB10020055 PSB10020055
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
PSB10020056 PSB10020056
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
PSB10020057 PSB10020057
Replaced By PS65M
PHLP HD SCR M4-.7 X 40
N/A View Replacement
PSB10020058 PSB10020058 LIMIT SWITCH MJ2-1308R $18.50
PSB10020059 PSB10020059
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
PSB10020060 PSB10020060
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
PSB10020061 PSB10020061 COVER HINGE ARM $6.50
PSB10020062 PSB10020062 HINGE PIN $3.00
PSB10020063 PSB10020063 HINGE BRACKET $34.00
PSB10020064 PSB10020064
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement

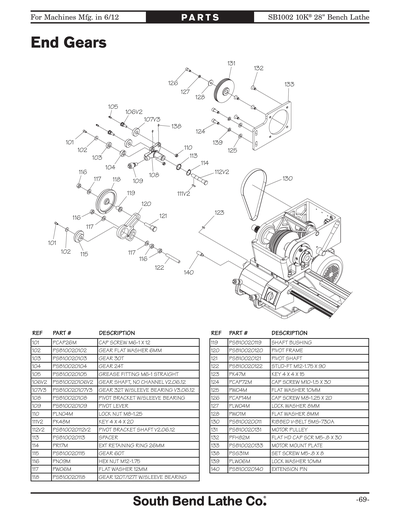

PSB10020101 PSB10020101
Replaced By PCAP26M
CAP SCREW M6-1 X 12
N/A View Replacement
PSB10020102 PSB10020102 GEAR FLAT WASHER 6MM $1.25
PSB10020103 PSB10020103 GEAR 30T $16.00
PSB10020104 PSB10020104 GEAR 24T $16.00
PSB10020105 PSB10020105 GREASE FITTING M6-1 STRAIGHT $2.00
PSB10020106V2 PSB10020106V2 GEAR SHAFT, NO CHANNEL V2.06.12 $6.75
PSB10020107 PSB10020107
Replaced By PSB10020107V3
GEAR 32T W/SLEEVE BEARING V3.06.12
N/A View Replacement
PSB10020107V2 PSB10020107V2
Replaced By PSB10020107V3
GEAR 32T W/SLEEVE BEARING V3.06.12
N/A View Replacement
PSB10020107V3 PSB10020107V3 GEAR 32T W/SLEEVE BEARING V3.06.12 $20.00
PSB10020108 PSB10020108 PIVOT BRACKET W/PTFE MB1520DU SLVE BEARING $46.00
PSB10020109 PSB10020109 PIVOT LEVER $25.00
PSB10020110 PSB10020110
Replaced By PLN04M
LOCK NUT M8-1.25
N/A View Replacement
PSB10020111 PSB10020111
Replaced By PK38M
KEY 4 X 4 X 22
N/A View Replacement
PSB10020111V2 PSB10020111V2
Replaced By PK48M
KEY 4 X 4 X 20
N/A View Replacement
PSB10020112 PSB10020112
Replaced By PSB10020112V2
PIVOT BRACKET SHAFT V2.06.12
N/A View Replacement
PSB10020112V2 PSB10020112V2 PIVOT BRACKET SHAFT V2.06.12 $11.25
PSB10020113 PSB10020113 SPACER $2.75
PSB10020114 PSB10020114
Replaced By PR17M
EXT RETAINING RING 26MM
N/A View Replacement
PSB10020115 PSB10020115 GEAR 60T $32.00
PSB10020116 PSB10020116
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
PSB10020117 PSB10020117
Replaced By PW06M
FLAT WASHER 12MM
N/A View Replacement
PSB10020118 PSB10020118 GEAR 120T/127T W/SLEEVE BEARING $48.00
PSB10020119 PSB10020119 SHAFT BUSHING $4.00
PSB10020120 PSB10020120 PIVOT FRAME $32.75
PSB10020121 PSB10020121 PIVOT SHAFT $9.25
PSB10020122 PSB10020122 STUD-FT M12-1.75 X 90 $2.75
PSB10020123 PSB10020123
Replaced By PK47M
KEY 4 X 4 X 15
N/A View Replacement
PSB10020124 PSB10020124
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
PSB10020125 PSB10020125
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
PSB10020126 PSB10020126
Replaced By PCAP14M
CAP SCREW M8-1.25 X 20
N/A View Replacement
PSB10020127 PSB10020127
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
PSB10020128 PSB10020128
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
PSB10020130 PSB10020130
Replaced By PSB10020011
RIBBED V-BELT 5MS-730A
N/A View Replacement
PSB10020131 PSB10020131 MOTOR PULLEY $42.00
PSB10020132 PSB10020132
Replaced By PFH82M
FLAT HD CAP SCR M5-.8 X 30
N/A View Replacement
PSB10020133 PSB10020133 MOTOR MOUNT PLATE $74.75
PSB10020134 PSB10020134 MOTOR 1HP 110/220V 1-PH 60HZ V1 $366.00
PSB10020134-5 PSB10020134-5 MOTOR JUNCTION BOX V1 $20.25
PSB10020134-6 PSB10020134-6
Replaced By PCP001
CONTACT PLT-TUNGSTEN 5HP OR LESS
N/A View Replacement
PSB10020134V2 PSB10020134V2 MOTOR 1HP 110/220V 1-PH V2.06.12 $258.87
PSB10020134V2-1 PSB10020134V2-1 MOTOR FAN COVER $7.75
PSB10020134V2-2 PSB10020134V2-2 MOTOR FAN $7.75
PSB10020134V2-3 PSB10020134V2-3 S CAPACITOR 300M 125V 1-3/4 X 4 $36.75
PSB10020134V2-4 PSB10020134V2-4 R CAPACITOR 25M 250V 1-3/8 X 2-3/8 $22.25
PSB10020134V2-5 PSB10020134V2-5 MOTOR JUNCTION BOX $11.25
PSB10020134V2-6 PSB10020134V2-6 CONTACT PLATE 16MM $4.50
PSB10020134V2-7 PSB10020134V2-7 CENTRIFUGAL SWITCH 16MM-1175 $12.00
PSB10020134V2-8 PSB10020134V2-8
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
PSB10020134V2-9 PSB10020134V2-9
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
PSB10020135 PSB10020135
Replaced By PSB10020058
LIMIT SWITCH MJ2-1308R
N/A View Replacement
PSB10020136 PSB10020136
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
PSB10020137 PSB10020137
Replaced By PCAP22M
CAP SCREW M4-.7 X 35
N/A View Replacement
PSB10020138 PSB10020138
Replaced By PSS31M
SET SCREW M5-.8 X 8
N/A View Replacement
PSB10020139 PSB10020139
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
PSB10020140 PSB10020140 EXTENSION PIN $2.75

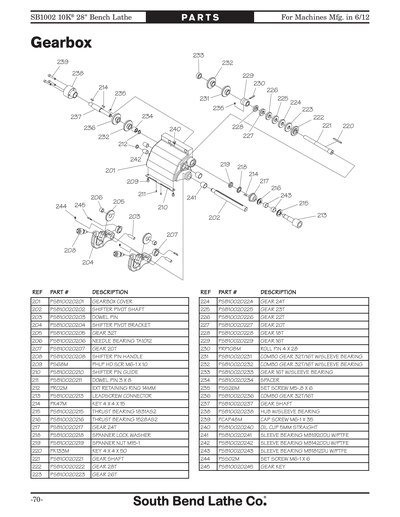

PSB10020200 PSB10020200 GEARBOX ASSEMBLY $1,002.25
PSB10020201 PSB10020201 GEARBOX COVER $225.00
PSB10020202 PSB10020202 SHIFTER PIVOT SHAFT $28.75
PSB10020203 PSB10020203 DOWEL PIN $2.75
PSB10020204 PSB10020204 SHIFTER PIVOT BRACKET $104.25
PSB10020205 PSB10020205 GEAR 32T $34.50
PSB10020206 PSB10020206 NEEDLE BEARING TA1012 $15.25
PSB10020207 PSB10020207 GEAR 20T $22.50
PSB10020208 PSB10020208 SHIFTER PIN HANDLE $25.50
PSB10020209 PSB10020209
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
PSB10020210 PSB10020210 SHIFTER PIN GUIDE $30.00
PSB10020211 PSB10020211 DOWEL PIN 3 X 8 $1.25
PSB10020212 PSB10020212
Replaced By PR02M
EXT RETAINING RING 14MM
N/A View Replacement
PSB10020213 PSB10020213 LEADSCREW CONNECTOR $19.25
PSB10020214 PSB10020214
Replaced By PK47M
KEY 4 X 4 X 15
N/A View Replacement
PSB10020215 PSB10020215 THRUST BEARING 1831AS2 $5.50
PSB10020216 PSB10020216 THRUST BEARING 1528AS2 $5.50
PSB10020217 PSB10020217 GEAR 24T $19.25
PSB10020218 PSB10020218 EXT TOOTH WASHER 14MM $2.75
PSB10020219 PSB10020219 SPANNER NUT M15-1 $7.00
PSB10020220 PSB10020220
Replaced By PK133M
KEY 4 X 4 X 50
N/A View Replacement
PSB10020221 PSB10020221 GEAR SHAFT $24.00
PSB10020222 PSB10020222 GEAR 28T $21.00
PSB10020223 PSB10020223 GEAR 26T $15.50
PSB10020224 PSB10020224 GEAR 24T $14.75
PSB10020225 PSB10020225 GEAR 23T $14.25
PSB10020226 PSB10020226 GEAR 22T $14.25
PSB10020227 PSB10020227 GEAR 20T $13.00
PSB10020228 PSB10020228 GEAR 18T $12.25
PSB10020229 PSB10020229 GEAR 16T $17.75
PSB10020230 PSB10020230
Replaced By PRP108M
ROLL PIN 4 X 28
N/A View Replacement
PSB10020231 PSB10020231 COMBO GEAR 32T/16T W/SLEEVE BEARING $38.25
PSB10020232 PSB10020232 COMBO GEAR 32T/16T W/SLEEVE BEARING $63.50
PSB10020233 PSB10020233 GEAR 16T W/SLEEVE BEARING $11.50
PSB10020234 PSB10020234 SPACER $16.50
PSB10020235 PSB10020235
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020236 PSB10020236 COMBO GEAR 32T/16T $35.00
PSB10020237 PSB10020237 GEAR SHAFT $26.25
PSB10020238 PSB10020238 HUB W/SLEEVE BEARING $28.00
PSB10020239 PSB10020239
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
PSB10020240 PSB10020240 OIL CUP 5MM STRAIGHT $1.75
PSB10020241 PSB10020241 SLEEVE BEARING MB1920DU W/PTFE $2.50
PSB10020242 PSB10020242 SLEEVE BEARING MB1420DU W/PTFE $2.00
PSB10020243 PSB10020243 SLEEVE BEARING MB1812DU W/PTFE $2.00
PSB10020244 PSB10020244
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10020245 PSB10020245 GEAR KEY $1.25
PSB100203 PSB100203
*DISCD*HANDWHEEL
Item is no longer available
N/A
PSB10020301V2 PSB10020301V2 BED V2.06.12 $1,628.75
PSB10020302 PSB10020302
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
PSB10020303 PSB10020303
Replaced By PFH46M
FLAT HD SCR M4-.7 X 16
N/A View Replacement
PSB10020304 PSB10020304
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
PSB10020305 PSB10020305
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
PSB10020307 PSB10020307 RACK $100.50
PSB10020308 PSB10020308 LONGITUDINAL LEADSCREW 8TPI $117.50
PSB10020309 PSB10020309 SPINDLE SWITCH KEDU 3-CH-HZ $28.50
PSB10020310 PSB10020310
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
PSB10020311V2 PSB10020311V2 SWITCH COVER V2.06.12 $30.25
PSB10020312 PSB10020312
Replaced By PCAP13M
CAP SCREW M8-1.25 X 30
N/A View Replacement
PSB10020313 PSB10020313
Replaced By PLW06M
LOCK WASHER 10MM
N/A View Replacement
PSB10020314 PSB10020314
Replaced By PCAP84M
CAP SCREW M10-1.5 X 35
N/A View Replacement
PSB10020315 PSB10020315 END GEAR COVER V1 $333.00
PSB10020315V2 PSB10020315V2 END GEAR COVER V2.06.12 $161.50
PSB10020316V2 PSB10020316V2 HINGE BLOCK V2.06.12 $6.00
PSB10020317 PSB10020317
Replaced By PCAP02M
CAP SCREW M6-1 X 20
N/A View Replacement
PSB10020318 PSB10020318 HINGE PIN $2.75
PSB10020319V2 PSB10020319V2 CAST IRON HINGE BRACKET V2.06.12 $30.00
PSB10020320 PSB10020320
Replaced By PFH72M
FLAT HD CAP SCR M5-.8 X 12
N/A View Replacement
PSB10020320V2 PSB10020320V2
Replaced By PFH74M
FLAT HD CAP SCR M5-.8 X 16
N/A View Replacement
PSB10020321 PSB10020321
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020322 PSB10020322 MAGNETIC SWITCH BOX 110V $36.00
PSB10020323 PSB10020323 STOP BUTTON $9.75
PSB10020324 PSB10020324 CONTACTOR SDE MA-15 110V $41.75
PSB10020324A PSB10020324A MAGNETIC SWITCH ASSY MP-09 110V $74.50
PSB10020325 PSB10020325 OL RELAY SDE RA-20 12-18A $33.75
PSB10020326 PSB10020326 CONTACTOR SDE MA-09 220V $41.75
PSB10020326A PSB10020326A MAGNETIC SWITCH ASSY MP-09 220V $93.00
PSB10020327 PSB10020327 CONTACTOR START SWITCH $25.00
PSB10020328 PSB10020328 MAGNETIC SWITCH BOX 220V $36.00
PSB10020329 PSB10020329 MAG SWITCH BRACKET V1 $6.00
PSB10020329A PSB10020329A MAGNETIC SWITCH MOUNTING BRACKET ASSY $5.75
PSB10020329V2 PSB10020329V2 MAG SWITCH BRACKET V2.06.12 $5.25
PSB10020330 PSB10020330
Replaced By PCAP15M
CAP SCREW M5-.8 X 20
N/A View Replacement
PSB10020331 PSB10020331
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
PSB10020332 PSB10020332
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
PSB10020334 PSB10020334 END COVER KNOB BOLT M10-1.5 $9.00
PSB10020335 PSB10020335
Replaced By PW04M
FLAT WASHER 10MM
N/A View Replacement
PSB10020336 PSB10020336
Replaced By PR01M
EXT RETAINING RING 10MM
N/A View Replacement
PSB10020337 PSB10020337
Replaced By PRP24M
ROLL PIN 5 X 16
N/A View Replacement
PSB10020338 PSB10020338
Replaced By PS51M
PHLP HD SCR M4-.7 X 30
N/A View Replacement
PSB10020339 PSB10020339
Replaced By PSB10020058
LIMIT SWITCH MJ2-1308R
N/A View Replacement
PSB10020340 PSB10020340 LIMIT SWITCH BRACKET $2.00
PSB10020341 PSB10020341
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
PSB10020342 PSB10020342
Replaced By PN04M
HEX NUT M4-.7
N/A View Replacement
PSB10020343 PSB10020343
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
PSB10020344 PSB10020344
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
PSB10020345 PSB10020345 E-STOP BUTTON AUSPICIOUS ES16G $10.50
PSB10020346 PSB10020346 STOP BUTTON LABEL $1.25
PSB10020347 PSB10020347
Replaced By PSS09M
SET SCREW M8-1.25 X 20
N/A View Replacement
PSB10020348 PSB10020348
Replaced By PCAP04M
CAP SCREW M6-1 X 10
N/A View Replacement
PSB10020349 PSB10020349
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
PSB10020350 PSB10020350 OL RELAY SDE RA-20 5-8A $33.75
PSB10020351 PSB10020351 STRAIN RELIEF 3/8" STRAIGHT LT $1.25
PSB10020352 PSB10020352 POWER CORD 12AWG 3W 60" $32.00
PSB10020353 PSB10020353 MOTOR CORD 12AWG 5W 36" $24.25
PSB10020354 PSB10020354 CONTROL PANEL CORD 12AWG 5W 75" $50.50
PSB10020401 PSB10020401
Replaced By PSS01M
SET SCREW M6-1 X 10
N/A View Replacement
PSB10020402 PSB10020402 HANDWHEEL HUB $11.75
PSB10020403 PSB10020403
Replaced By PCAP48M
CAP SCREW M6-1 X 35
N/A View Replacement
PSB10020404 PSB10020404 HANDWHEEL HANDLE $13.75
PSB10020405 PSB10020405
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10020406 PSB10020406 CROSS HANDWHEEL $20.25
PSB10020407 PSB10020407 CROSS HANDWHEEL GRADUATED DIAL $30.75
PSB10020408 PSB10020408
Replaced By PSS23M
SET SCREW M4-.7 X 10
N/A View Replacement
PSB10020409 PSB10020409
Replaced By P51100
THRUST BEARING 51100
N/A View Replacement
PSB10020410 PSB10020410
Replaced By PFH84M
FLAT HD CAP SCR M3-.5 X 10
N/A View Replacement
PSB10020410V2 PSB10020410V2
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
PSB10020411V2 PSB10020411V2 BEARING CAP V2.06.12 $7.00
PSB10020412V2 PSB10020412V2 BEARING SEAT W/SLEEVE BEARING V2.06.12 $35.75
PSB10020413 PSB10020413
Replaced By PK39M
KEY 3 X 3 X 10
N/A View Replacement
PSB10020414 PSB10020414
*DISCD*CROSS LEADSCREW W/NUT
Item is no longer available
N/A
PSB10020415 PSB10020415 SADDLE $230.75
PSB10020416 PSB10020416 FRONT V-WAY WIPER $1.25
PSB10020417 PSB10020417 V-WAY WIPER PLATE $1.25
PSB10020418 PSB10020418
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
PSB10020419 PSB10020419 REAR V-WAY WIPER $1.25
PSB10020420 PSB10020420
Replaced By PCAP72M
CAP SCREW M10-1.5 X 30
N/A View Replacement
PSB10020421 PSB10020421
Replaced By PCAP29M
CAP SCREW M6-1 X 40
N/A View Replacement
PSB10020422 PSB10020422 CARRIAGE LOCK PLATE $8.25
PSB10020423 PSB10020423
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
PSB10020424 PSB10020424 REAR CLAMP BAR $54.75
PSB10020425 PSB10020425
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
PSB10020426 PSB10020426 CROSS SLIDE GIB $39.50
PSB10020427 PSB10020427 CROSS SLIDE $93.75
PSB10020428 PSB10020428 *DISCD*LOCK PIN $3.50
PSB10020429 PSB10020429
Replaced By PSS30M
SET SCREW M10-1.5 X 10
N/A View Replacement
PSB10020430 PSB10020430
Replaced By PSS28M
SET SCREW M6-1 X 30
N/A View Replacement
PSB10020431 PSB10020431 LOCKING SLEEVE $2.25
PSB10020432 PSB10020432
Replaced By PCAP01M
CAP SCREW M6-1 X 16
N/A View Replacement
PSB10020433 PSB10020433
Replaced By PSS24M
SET SCREW M5-.8 X 25
N/A View Replacement
PSB10020439 PSB10020439 COMPOUND REST $70.50
PSB10020440 PSB10020440
Replaced By PSS57M
SET SCREW M5-.8 X 20
N/A View Replacement
PSB10020441 PSB10020441
Replaced By PSS79M
SET SCREW M4-.7 X 6
N/A View Replacement
PSB10020442 PSB10020442 COMPOUND REST LEADSCREW W/NUT $29.75
PSB10020443 PSB10020443 COMPOUND REST HANDWHEEL HUB $12.75
PSB10020444 PSB10020444 COMPOUND REST GRADUATED DIAL $35.00
PSB10020445 PSB10020445
*DISCD*COMPOUND REST BALL HANDLE
Item is no longer available
N/A
PSB10020446 PSB10020446 COMPOUND REST SWIVEL BASE $68.00
PSB10020447 PSB10020447 COMPOUND REST GIB $38.50
PSB10020448 PSB10020448 TOOL POST LEVER $12.75
PSB10020449 PSB10020449 TOOL POST NUT $15.25
PSB10020450 PSB10020450 FLAT WASHER 12MM $2.75
PSB10020451 PSB10020451 TOOL POST HOLD-DOWN CAP SCREW $1.75
PSB10020452 PSB10020452 TOOL POST TURRET BODY $142.00
PSB10020453 PSB10020453 TOOL POST SHAFT $5.25
PSB10020454 PSB10020454 DETENT PIN $5.75
PSB10020455 PSB10020455 COMPRESSION SPRING $1.25
PSB10020456 PSB10020456 TOOL POST BASE $35.00
PSB10020459 PSB10020459
Replaced By PN01M
HEX NUT M6-1
N/A View Replacement
PSB10020460 PSB10020460
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
N/A View Replacement
PSB10020461 PSB10020461
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020462 PSB10020462
Replaced By PN06M
HEX NUT M5-.8
N/A View Replacement
PSB10020463 PSB10020463 INDICATOR PLATE $1.75
PSB10020464 PSB10020464
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement
PSB10020465 PSB10020465
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
PSB10020466 PSB10020466
Replaced By PCAP33M
CAP SCREW M5-.8 X 12
N/A View Replacement
PSB10020467 PSB10020467 SADDLE GIB $38.50
PSB10020468 PSB10020468
Replaced By PSS25M
SET SCREW M6-1 X 20
N/A View Replacement
PSB10020469 PSB10020469
Replaced By PSS53M
SET SCREW M5-.8 X 12
N/A View Replacement
PSB10020500 PSB10020500 APRON ASSEMBLY $871.50
PSB10020501 PSB10020501
Replaced By PCAP29M
CAP SCREW M6-1 X 40
N/A View Replacement
PSB10020502 PSB10020502 CARRIAGE HANDWHEEL HANDLE $13.75
PSB10020503 PSB10020503
Replaced By PFH83M
FLAT HD CAP SCR M5-.8 X 10
N/A View Replacement
PSB10020503V2 PSB10020503V2
Replaced By PFH73M
FLAT HD CAP SCR M6-1 X 16
N/A View Replacement
PSB10020504V2 PSB10020504V2
Replaced By PSB10020029
FLAT WASHER 6MM
N/A View Replacement
PSB10020505 PSB10020505
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10020506 PSB10020506 CARRIAGE HANDWHEEL $25.25
PSB10020507 PSB10020507 CARRIAGE GRADUATED DIAL $35.00
PSB10020508 PSB10020508 DIAL COLLAR $12.25
PSB10020509 PSB10020509 SLEEVE BEARING MB1415DU W/PTFE $1.75
PSB10020510 PSB10020510 APRON CASTING $283.50
PSB10020511 PSB10020511 GEAR SHAFT $7.75
PSB10020512 PSB10020512 GEAR SHAFT $5.50
PSB10020513 PSB10020513 FEED SELECTION PIN HANDLE $26.25
PSB10020514 PSB10020514 FEED SELECTION PIVOT ARM $16.00
PSB10020515 PSB10020515
Replaced By PRP04M
ROLL PIN 4 X 24
N/A View Replacement
PSB10020516 PSB10020516
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
PSB10020516V2 PSB10020516V2 FLAT HD SCR M6-1 X 12 LH V2.10.11 $1.25
PSB10020517 PSB10020517 FEED CLUTCH KNOB $17.25
PSB10020518 PSB10020518 SLEEVE BEARING MB1812DU W/PTFE $1.75
PSB10020519 PSB10020519 HALF NUT LEVER $21.50
PSB10020520 PSB10020520
Replaced By PSS16M
SET SCREW M8-1.25 X 10
N/A View Replacement
PSB10020521 PSB10020521 COMPRESSION SPRING $1.25
PSB10020522 PSB10020522
Replaced By PSTB001
STEEL BALL 1/4
N/A View Replacement
PSB10020523 PSB10020523
Replaced By PCAP31M
CAP SCREW M8-1.25 X 25
N/A View Replacement
PSB10020524 PSB10020524
Replaced By PSS12M
SET SCREW M6-1 X 25
N/A View Replacement
PSB10020525 PSB10020525 THREAD DIAL PIVOT ROD $2.00
PSB10020526V2 PSB10020526V2 WORM GEAR V2.06.12 $49.75
PSB10020527 PSB10020527
*DISCD*SLEEVE BEARING MB2510-36FDU
Item is no longer available
N/A
PSB10020528 PSB10020528 SHAFT $1.75
PSB10020529 PSB10020529 HALF NUT 2-PC $86.50
PSB10020530 PSB10020530 HALF NUT PIVOT BUSHING $3.25
PSB10020531 PSB10020531 HALF NUT PIN 8 X 22MM $2.50
PSB10020532 PSB10020532
Replaced By PR02M
EXT RETAINING RING 14MM
N/A View Replacement

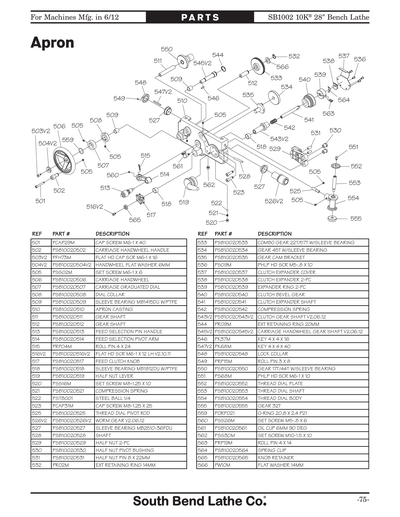

PSB10020533 PSB10020533 COMBO GEAR 22T/57T W/SLEEVE BEARING $45.50
PSB10020534 PSB10020534 GEAR 45T W/SLEEVE BEARING $22.00
PSB10020535 PSB10020535 GEAR CAM BRACKET $33.25
PSB10020536 PSB10020536
Replaced By PS09M
PHLP HD SCR M5-.8 X 10
N/A View Replacement
PSB10020537 PSB10020537 CLUTCH EXPANDER COVER $1.75
PSB10020538 PSB10020538 CLUTCH EXPANDER 2-PC $1.75
PSB10020539 PSB10020539 EXPANDER RING 2-PC $13.00
PSB10020540 PSB10020540 CLUTCH BEVEL GEAR $30.50
PSB10020541 PSB10020541 CLUTCH EXPANDER SHAFT $7.75
PSB10020542 PSB10020542 COMPRESSION SPRING $1.25
PSB10020543V2 PSB10020543V2 CLUTCH GEAR SHAFT V2.06.12 $33.00
PSB10020544 PSB10020544
Replaced By PR09M
EXT RETAINING RING 20MM
N/A View Replacement
PSB10020545V2 PSB10020545V2 CARRIAGE HANDWHEEL GEAR SHAFT V2.06.12 $16.75
PSB10020546 PSB10020546
Replaced By PK37M
KEY 4 X 4 X 16
N/A View Replacement
PSB10020547 PSB10020547
Replaced By PK172M
KEY 4 X 4 X 70
N/A View Replacement
PSB10020547V2 PSB10020547V2
Replaced By PK68M
KEY 4 X 4 X 40
N/A View Replacement
PSB10020548 PSB10020548 LOCK COLLAR $4.00
PSB10020549 PSB10020549
Replaced By PRP15M
ROLL PIN 3 X 8
N/A View Replacement
PSB10020550 PSB10020550 GEAR 17T/44T W/SLEEVE BEARING $49.50
PSB10020551 PSB10020551
Replaced By PS68M
PHLP HD SCR M6-1 X 10
N/A View Replacement
PSB10020552 PSB10020552
*DISCD*THREAD DIAL PLATE
Item is no longer available
N/A
PSB10020553 PSB10020553
*DISCD*THREAD DIAL SHAFT
Item is no longer available
N/A
PSB10020554 PSB10020554
*DISCD*THREAD DIAL BODY
Item is no longer available
N/A
PSB10020554A PSB10020554A
*DISCD*THREAD DIAL ASSEMBLY
Item is no longer available
N/A
PSB10020555 PSB10020555
*DISCD*GEAR 32T
Item is no longer available
N/A
PSB10020556 PSB10020556
Replaced By PN03M
HEX NUT M8-1.25
N/A View Replacement
PSB10020557 PSB10020557
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10020559 PSB10020559
Replaced By PORP021
O-RING 20.8 X 2.4 P21
N/A View Replacement
PSB10020560 PSB10020560
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020561 PSB10020561 OIL CUP 6MM 90 DEG $5.00
PSB10020562 PSB10020562
Replaced By PSS30M
SET SCREW M10-1.5 X 10
N/A View Replacement
PSB10020563 PSB10020563
Replaced By PRP19M
ROLL PIN 4 X 14
N/A View Replacement
PSB10020564 PSB10020564 SPRING CLIP $1.25
PSB10020565 PSB10020565 KNOB RETAINER $2.25
PSB10020566 PSB10020566
Replaced By PW10M
FLAT WASHER 14MM
N/A View Replacement

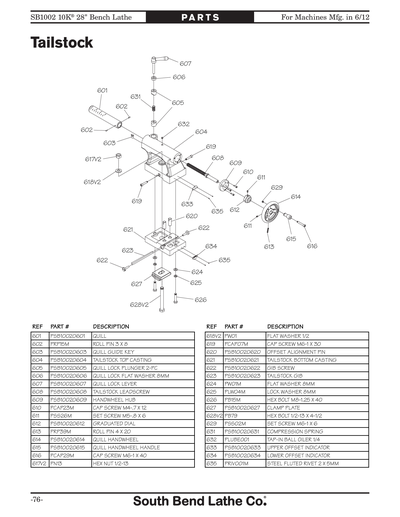

PSB10020601 PSB10020601 QUILL $33.00
PSB10020602 PSB10020602
Replaced By PRP15M
ROLL PIN 3 X 8
N/A View Replacement
PSB10020603 PSB10020603 QUILL GUIDE KEY $2.75
PSB10020604 PSB10020604 TAILSTOCK TOP CASTING $170.25
PSB10020605 PSB10020605 QUILL LOCK PLUNGER 2-PC $10.25
PSB10020606 PSB10020606 FLAT WASHER 8MM $4.00
PSB10020607 PSB10020607 QUILL LOCK LEVER $16.50
PSB10020608 PSB10020608 TAILSTOCK LEADSCREW $54.75
PSB10020609 PSB10020609 HANDWHEEL HUB $25.00
PSB10020610 PSB10020610
Replaced By PCAP23M
CAP SCREW M4-.7 X 12
N/A View Replacement
PSB10020611 PSB10020611
Replaced By PSS26M
SET SCREW M5-.8 X 6
N/A View Replacement
PSB10020612 PSB10020612 GRADUATED DIAL $20.00
PSB10020613 PSB10020613
Replaced By PRP39M
ROLL PIN 4 X 20
N/A View Replacement
PSB10020614 PSB10020614 QUILL HANDWHEEL $30.00
PSB10020615 PSB10020615 QUILL HANDWHEEL HANDLE $13.75
PSB10020616 PSB10020616
Replaced By PCAP29M
CAP SCREW M6-1 X 40
N/A View Replacement
PSB10020617 PSB10020617
Replaced By PN09M
HEX NUT M12-1.75
N/A View Replacement
PSB10020617V2 PSB10020617V2
Replaced By PN13
HEX NUT 1/2-13
N/A View Replacement
PSB10020618V2 PSB10020618V2
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
PSB10020619 PSB10020619
Replaced By PCAP07M
CAP SCREW M6-1 X 30
N/A View Replacement
PSB10020620 PSB10020620 OFFSET ALIGNMENT PIN $2.00
PSB10020621 PSB10020621 TAILSTOCK BOTTOM CASTING $79.00
PSB10020622 PSB10020622 GIB SCREW $2.50
PSB10020623 PSB10020623 TAILSTOCK GIB $25.00
PSB10020624 PSB10020624
Replaced By PW01M
FLAT WASHER 8MM
N/A View Replacement
PSB10020625 PSB10020625
Replaced By PLW04M
LOCK WASHER 8MM
N/A View Replacement
PSB10020626 PSB10020626
Replaced By PB15M
HEX BOLT M8-1.25 X 40
N/A View Replacement
PSB10020627 PSB10020627 CLAMP PLATE $10.50
PSB10020628V2 PSB10020628V2
Replaced By PB79
HEX BOLT 1/2-13 X 4-1/2
N/A View Replacement
PSB10020629 PSB10020629
Replaced By PSS02M
SET SCREW M6-1 X 6
N/A View Replacement
PSB10020631 PSB10020631 COMPRESSION SPRING $1.25
PSB10020632 PSB10020632
Replaced By PLUBE001
BALL OILER 1/4 PRESS-IN
N/A View Replacement
PSB10020633 PSB10020633 UPPER OFFSET INDICATOR $1.50
PSB10020634 PSB10020634 LOWER OFFSET INDICATOR $1.50
PSB10020635 PSB10020635
Replaced By PRIV001M
RIVET 2 X 5MM NAMEPLATE, STEEL
N/A View Replacement

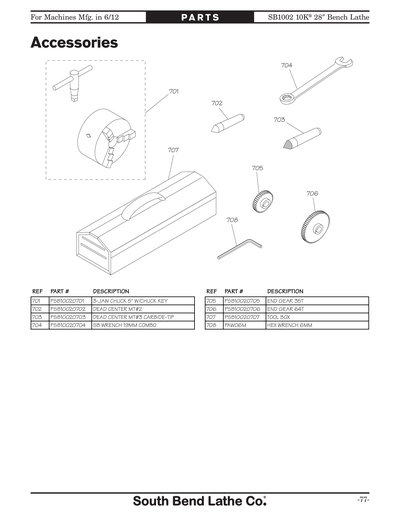

PSB10020701 PSB10020701
Replaced By SB1352
5" 3 Jaw Chuck D1-3
N/A View Replacement
PSB10020705 PSB10020705 END GEAR 35T $17.50
PSB10020706 PSB10020706 END GEAR 64T $37.50
PSB10020707 PSB10020707 TOOL BOX $31.50
PSB10020708 PSB10020708
Replaced By PAW06M
HEX WRENCH 6MM
N/A View Replacement

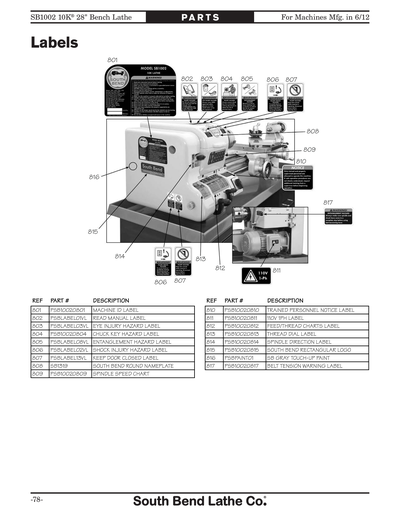

PSB10020801 PSB10020801 MACHINE ID LABEL $9.50
PSB10020802 PSB10020802
Replaced By PSBLABEL01VL
READ MANUAL LABEL 2 X 3.25
N/A View Replacement
PSB10020803 PSB10020803
Replaced By PSBLABEL03VL
FACESHLD/GLASSES LBL 2 X 3.25
N/A View Replacement
PSB10020804 PSB10020804 CHUCK KEY HAZARD LABEL $1.75
PSB10020805 PSB10020805
Replaced By PSBLABEL08VL
ENTANGLEMENT LABEL 2 X 3.25
N/A View Replacement
PSB10020806 PSB10020806
Replaced By PSBLABEL02VL
DISC POWER LABEL 2 X 3.25
N/A View Replacement
PSB10020807 PSB10020807
Replaced By PSBLABEL13VL
DOOR CLOSED LABEL 2 X 3.25
N/A View Replacement
PSB10020808 PSB10020808
Replaced By SB1319
Nameplate 90mm
N/A View Replacement
PSB10020809 PSB10020809 SPINDLE SPEED CHART $4.00
PSB10020810 PSB10020810 TRAINED PERSONNEL NOTICE LABEL $1.25
PSB10020811 PSB10020811 110V 1PH LABEL $1.25
PSB10020812 PSB10020812 FEED/THREAD CHARTS LABEL $5.75
PSB10020813 PSB10020813 THREAD DIAL LABEL $2.75
PSB10020814 PSB10020814 SPINDLE DIRECTION LABEL $1.75
PSB10020815 PSB10020815 SOUTH BEND RECTANGULAR LOGO $3.50
PSB10020816 PSB10020816
Replaced By PSBPAINT01
***USE PSBPAINT09A***
N/A View Replacement
PSB10020817 PSB10020817 BELT TENSION WARNING LABEL $1.25
PSB100209 PSB100209
*DISCD*PLATE,INDEX
Item is no longer available
N/A
PSB100212 PSB100212
*DISCD*GEAR,BEVEL NYLON
Item is no longer available
N/A
PSB1002MAN PSB1002MAN MANUAL SB1002 MFG 11/10 08/11 $20.75
PSB1002MANV2 PSB1002MANV2 MANUAL SB1002 MFG 6/12 V2.09.12 $22.75
