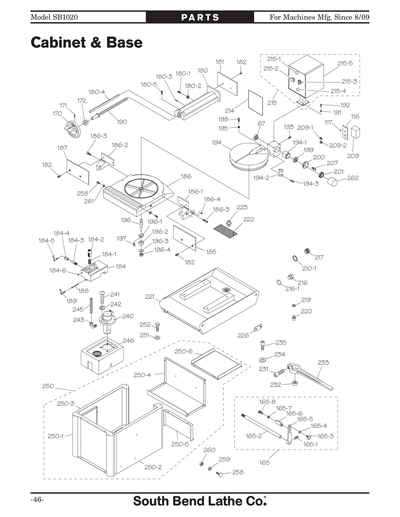

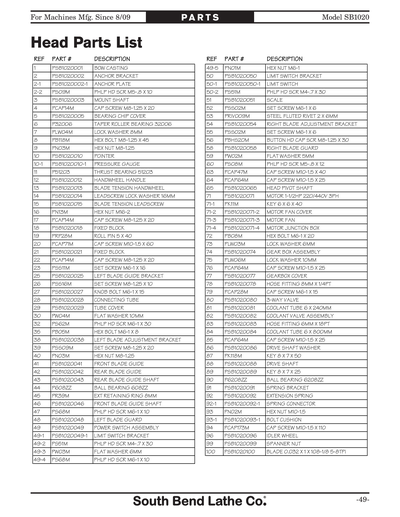

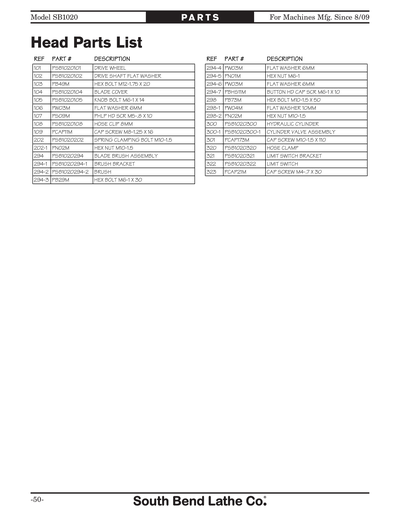

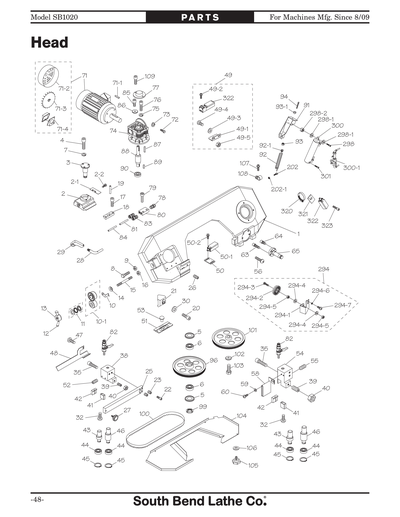

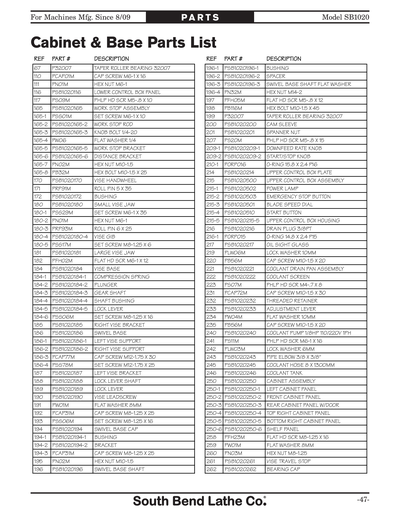

Parts for SB1020 9" x 12" Horizontal, Variable-Speed Metal-cutting Bandsaw with Sliding Vise!

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PSB1020001
BOW CASTING
Item is no longer available
Price
N/A
PSB1020002
ANCHOR BRACKET
Item is no longer available
Price
N/A
PSB1020002-1
ANCHOR PLATE
Item is no longer available
Price
N/A
PSB1020002-2
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1020003
MOUNT SHAFT
Item is no longer available
Price
N/A
PSB1020004
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1020005
BEARING CHIP COVER
Item is no longer available
Price
N/A
PSB1020006
TAPER ROLLER BEARING 32006
Price
N/A
PSB1020007
LOCK WASHER 8MM
Price
N/A
PSB1020008
HEX BOLT M8-1.25 X 45
Price
N/A
PSB1020009
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PSB1020010
POINTER
Item is no longer available
Price
N/A
P
PRESSURE GAUGE
PSB1020011
THRUST BEARING 51203
Price
N/A
P
HANDWHEEL HANDLE
PSB1020013
BLADE TENSION HANDWHEEL
Item is no longer available
Price
N/A
PSB1020014
LEADSCREW LOCK WASHER 16MM
Item is no longer available
Price
N/A
PSB1020015
BLADE TENSION LEADSCREW
Item is no longer available
Price
N/A
PSB1020016
Now: PN13M
HEX NUT M16-2
Price
N/A
PSB1020017
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1020018
FIXED BLOCK
Item is no longer available
Price
N/A
PSB1020019
ROLL PIN 5 X 40
Price
N/A
PSB1020020
CAP SCREW M10-1.5 X 60
Price
N/A
PSB1020021
FIXED BLOCK
Item is no longer available
Price
N/A
PSB1020022
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1020023
SET SCREW M6-1 X 16
Price
N/A
PSB1020025
LEFT BLADE GUIDE BRACKET
Item is no longer available
Price
N/A
PSB1020026
SET SCREW M8-1.25 X 10
Price
N/A
PSB1020027
KNOB BOLT M6-1 X 15
Item is no longer available
Price
N/A
PSB1020028
CONNECTING TUBE
Item is no longer available
Price
N/A
PSB1020029
TUBE COVER
Item is no longer available
Price
N/A
PSB1020030
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1020032
Now: PS62M
PHLP HD SCR M6-1 X 30
Price
N/A
PSB1020035
Now: PB05M
HEX BOLT M6-1 X 8
Price
N/A
PSB1020038
LEFT BLADE ADJUSTMENT BRACKET
Item is no longer available
Price
N/A
PSB1020039
SET SCREW M8-1.25 X 20
Price
N/A
PSB1020040
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
FRONT BLADE GUIDE
PSB1020042
REAR BLADE GUIDE
Item is no longer available
Price
N/A
PSB1020043
REAR BLADE GUIDE SHAFT
Item is no longer available
Price
N/A
PSB1020044
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
PSB1020045
Now: PR39M
EXT RETAINING RING 8MM
Price
N/A
PSB1020046
FRONT BLADE GUIDE SHAFT
Item is no longer available
Price
N/A
PSB1020047
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1020048
LEFT BLADE GUARD
Item is no longer available
Price
N/A
PSB1020049
POWER SWITCH ASSEMBLY
Item is no longer available
Price
N/A
PSB1020049-1
LIMIT SWITCH BRACKET
Item is no longer available
Price
N/A
PSB1020049-2
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
PSB1020049-3
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1020049-4
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1020049-5
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB1020050
LIMIT SWITCH ASSEMBLY
Price
N/A
PSB1020050-1
LIMIT SWITCH ASSEMBLY
Price
N/A
PSB1020050-2
Now: PS51M
PHLP HD SCR M4-.7 X 30
Price
N/A
P
LIMIT SWITCH ASSEMBLY
PSB1020051
SCALE
Item is no longer available
Price
N/A
PSB1020052
SET SCREW M6-1 X 6
Price
N/A
PSB1020053
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A
PSB1020054
RIGHT BLADE ADJUSTMENT BRACKET
Item is no longer available
Price
N/A
PSB1020055
SET SCREW M6-1 X 6
Price
N/A
PSB1020056
BUTTON HD CAP SCR M8-1.25 X 30
Price
N/A
PSB1020058
RIGHT BLADE GUARD
Item is no longer available
Price
N/A
PSB1020059
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB1020060
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
PSB1020063
CAP SCREW M10-1.5 X 40
Price
N/A
PSB1020064
CAP SCREW M10-1.5 X 25
Price
N/A
PSB1020065
HEAD PIVOT SHAFT
Item is no longer available
Price
N/A
PSB1020067
TAPER ROLLER BEARING 32007
Price
N/A
P
MOTOR 1-1/2HP 220/440V 3PH
PSB1020071-1
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
PSB1020071-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
PSB1020071-3
MOTOR FAN
Item is no longer available
Price
N/A
PSB1020071-4
*DISCD*MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
PSB1020072
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
PSB1020073
LOCK WASHER 6MM
Price
N/A
PSB1020074
GEAR BOX ASSEMBLY
Item is no longer available
Price
N/A
PSB1020074-1
GEAR BOX 1/40
Item is no longer available
Price
N/A
PSB1020074-10
BALL BEARING 6006ZZ
Price
N/A
PSB1020074-11
BALL BEARING 6204ZZ
Price
N/A
PSB1020074-12
MOTOR BRACKET
Item is no longer available
Price
N/A
PSB1020074-13
OIL SEAL 30 X 47 X 7B
Item is no longer available
Price
N/A
PSB1020074-14
OIL SEAL 50 X 2B
Item is no longer available
Price
N/A
PSB1020074-16
CAP SCREW M6-1 X 16
Price
N/A
PSB1020074-17
PVC WASHER
Item is no longer available
Price
N/A
PSB1020074-18
EXT RETAINING RING 47MM
Item is no longer available
Price
N/A
PSB1020074-19
OIL SEAL 47 X 7B
Item is no longer available
Price
N/A
PSB1020074-2
WORM GEAR 1/40
Item is no longer available
Price
N/A
PSB1020074-28
MOUNTING BRACKET
Item is no longer available
Price
N/A
PSB1020074-3
BALL BEARING 6008ZZ
Price
N/A
PSB1020074-30
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1020074-32
PLUG 1/4" NPT
Item is no longer available
Price
N/A
P
GEAR BOX COVER
P
OIL SEAL 40 X 62 X 7B
P
OIL SEAL 80 X 2B
PSB1020074-8
CAP SCREW M6-1 X 16
Price
N/A
PSB1020074-9
WORM SHAFT 1/40
Item is no longer available
Price
N/A
PSB1020075
LOCK WASHER 10MM
Price
N/A
PSB1020076
CAP SCREW M10-1.5 X 25
Price
N/A
PSB1020077
GEARBOX COVER
Item is no longer available
Price
N/A
PSB1020078
HOSE FITTING 8MM X 1/4PT
Item is no longer available
Price
N/A
PSB1020079
CAP SCREW M6-1 X 15
Price
N/A
PSB1020080
3-WAY VALVE
Item is no longer available
Price
N/A
PSB1020081
COOLANT TUBE 6 X 240MM
Item is no longer available
Price
N/A
PSB1020082
COOLANT VALVE ASSEMBLY
Item is no longer available
Price
N/A
P
HOSE FITTING 6MM X 18PT
PSB1020084
COOLANT TUBE 6 X 800MM
Item is no longer available
Price
N/A
PSB1020085
CAP SCREW M10-1.5 X 25
Price
N/A
PSB1020086
DRIVE SHAFT WASHER
Item is no longer available
Price
N/A
PSB1020087
KEY 8 X 7 X 50
Price
N/A
PSB1020088
DRIVE SHAFT
Item is no longer available
Price
N/A
PSB1020089
KEY 8 X 7 X 25
Item is no longer available
Price
N/A
PSB1020090
BALL BEARING 6208ZZ
Price
N/A
PSB1020091
SPRING BRACKET
Item is no longer available
Price
N/A
PSB1020092
EXTENSION SPRING 30 X 41 X 196MM
Item is no longer available
Price
N/A
PSB1020092-1
SPRING CONNECTOR
Item is no longer available
Price
N/A
PSB1020093
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1020093-1
BOLT CUSHION
Item is no longer available
Price
N/A
PSB1020094
CAP SCREW M10-1.5 X 80 BLK C12.9
Price
N/A
PSB1020096
IDLER WHEEL
Item is no longer available
Price
N/A
PSB1020099
SPANNER NUT
Item is no longer available
Price
N/A
PSB1020100
BLADE 0.032 X 1 X 108-1/8 5-8TPI
Item is no longer available
Price
N/A
PSB1020101
DRIVE WHEEL
Item is no longer available
Price
N/A
P
DRIVE SHAFT FLAT WASHER 12.2MM
PSB1020103
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
PSB1020104
BLADE COVER
Item is no longer available
Price
N/A
PSB1020105
KNOB BOLT M6-1 X 14
Item is no longer available
Price
N/A
PSB1020106
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1020107
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1020108
HOSE CLIP 8MM
Item is no longer available
Price
N/A
PSB1020109
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1020110
CAP SCREW M6-1 X 16
Price
N/A
PSB1020111
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB1020116

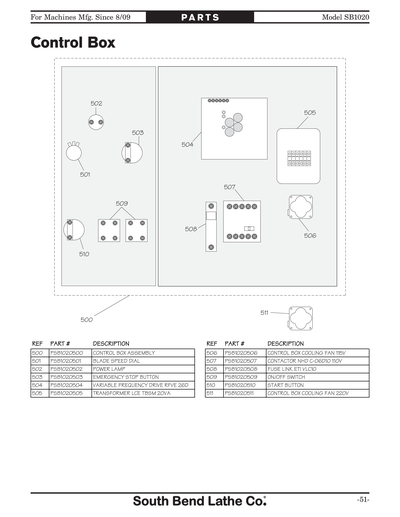

LOWER CONTROL BOX PANEL
Item is no longer available
Price
N/A
PSB1020117
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1020165
*DISCD*WORK STOP ASSEMBLY
Item is no longer available
Price
N/A
PSB1020165-1
SET SCREW M6-1 X 10
Price
N/A
PSB1020165-2
WORK STOP ROD
Item is no longer available
Price
N/A
PSB1020165-3
KNOB BOLT 1/4-20
Item is no longer available
Price
N/A
PSB1020165-4
Now: PW06
FLAT WASHER 1/4
Price
N/A
PSB1020165-5
WORK STOP BRACKET
Item is no longer available
Price
N/A
PSB1020165-6
DISTANCE BRACKET
Item is no longer available
Price
N/A
PSB1020165-7
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1020165-8
Now: PB32M
HEX BOLT M10-1.5 X 25
Price
N/A
PSB1020170
*DISCD* VISE HANDWHEEL
Item is no longer available
Price
N/A
PSB1020171
ROLL PIN 5 X 35
Price
N/A
PSB1020172
*DISCD*BUSHING
Item is no longer available
Price
N/A
PSB1020180
SMALL VISE JAW
Item is no longer available
Price
N/A
PSB1020180-1
SET SCREW M6-1 X 35
Price
N/A
PSB1020180-2
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB1020180-3
ROLL PIN 6 X 25
Price
N/A
PSB1020180-4
VISE GIB
Item is no longer available
Price
N/A
PSB1020180-5
SET SCREW M8-1.25 X 6
Price
N/A
PSB1020181
LARGE VISE JAW
Item is no longer available
Price
N/A
PSB1020182
FLAT HD SCR M6-1 X 12
Price
N/A
PSB1020184
VISE BASE
Item is no longer available
Price
N/A
PSB1020184-1
COMPRESSION SPRING 25 X 32 X 40MM
Item is no longer available
Price
N/A
PSB1020184-2
PLUNGER
Item is no longer available
Price
N/A
PSB1020184-3
GEAR SHAFT
Item is no longer available
Price
N/A
PSB1020184-4
SHAFT BUSHING
Item is no longer available
Price
N/A
PSB1020184-5
LOCK LEVER
Item is no longer available
Price
N/A
PSB1020184-6
SET SCREW M8-1.25 X 16
Price
N/A
PSB1020185
RIGHT VISE BRACKET
Item is no longer available
Price
N/A
PSB1020186
SWIVEL BASE
Item is no longer available
Price
N/A
PSB1020186-1
LEFT VISE SUPPORT
Item is no longer available
Price
N/A
PSB1020186-2
RIGHT VISE SUPPORT
Item is no longer available
Price
N/A
PSB1020186-3
CAP SCREW M12-1.75 X 30
Price
N/A
PSB1020186-4
SET SCREW M12-1.75 X 25
Price
N/A
PSB1020187
LEFT VISE BRACKET
Item is no longer available
Price
N/A
PSB1020188
LOCK LEVER SHAFT
Item is no longer available
Price
N/A
PSB1020189
LOCK LEVER
Item is no longer available
Price
N/A
PSB1020190
*DISCD*VISE LEADSCREW
Item is no longer available
Price
N/A
PSB1020191
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1020192
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1020193
SET SCREW M8-1.25 X 16
Price
N/A
PSB1020194
SWIVEL BASE CAP
Item is no longer available
Price
N/A
PSB1020194-1
BUSHING
Item is no longer available
Price
N/A
PSB1020194-2
BRACKET
Item is no longer available
Price
N/A
PSB1020194-3
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1020195
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1020196
SWIVEL BASE SHAFT
Item is no longer available
Price
N/A
PSB1020196-1
BUSHING
Item is no longer available
Price
N/A
PSB1020196-2
SPACER
Item is no longer available
Price
N/A
PSB1020196-3
SWIVEL BASE SHAFT FLAT WASHER 20MM
Item is no longer available
Price
N/A
PSB1020196-4
Now: PN32M
HEX NUT M14-2
Price
N/A
PSB1020197
FLAT HD SCR M5-.8 X 12
Price
N/A
PSB1020198
HEX BOLT M10-1.5 X 45
Price
N/A
PSB1020199
TAPER ROLLER BEARING 32007
Price
N/A
PSB1020200
CAM SLEEVE
Item is no longer available
Price
N/A
PSB1020201
SPANNER NUT
Item is no longer available
Price
N/A
PSB1020202
SPRING CLAMPING BOLT M10-1.5
Item is no longer available
Price
N/A
PSB1020202-1
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1020207
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
PSB1020209-1
DOWNFEED RATE KNOB
Item is no longer available
Price
N/A
PSB1020209-2
START/STOP KNOB
Item is no longer available
Price
N/A
PSB1020210-1
O-RING 15.8 X 2.4 P16
Price
N/A
PSB1020214
UPPER CONTROL BOX PLATE
Item is no longer available
Price
N/A
PSB1020215
CONTROL BOX ASSEMBLY
Price
N/A
PSB1020215-1
POWER INDICATOR LIGHT NHD NLD22 22MM WHT
Price
N/A
PSB1020215-2
EMERGENCY STOP BUTTOM
Price
N/A
PSB1020215-3
BLADE SPEED DIAL
Price
N/A
PSB1020215-4
START BUTTON
Price
N/A
PSB1020215-5
UPPER CONTROL BOX
Item is no longer available
Price
N/A
PSB1020216
DRAIN PLUG 3/8PT
Item is no longer available
Price
N/A
PSB1020216-1
O-RING 14.8 X 2.4 P15
Price
N/A
P
OIL SIGHT GLASS
PSB1020219
LOCK WASHER 10MM
Price
N/A
PSB1020220
CAP SCREW M3-.5 X 10
Price
N/A
PSB1020221
COOLANT DRAIN PAN ASSEMBLY
Item is no longer available
Price
N/A
PSB1020222
*DISCD*COOLANT SCREEN
Item is no longer available
Price
N/A
PSB1020223
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
PSB1020226
BRACKET
Item is no longer available
Price
N/A
PSB1020231
CAP SCREW M10-1.5 X 30
Price
N/A
PSB1020232
THREADED RETAINER
Item is no longer available
Price
N/A
PSB1020233
ADJUSTMENT LEVER
Item is no longer available
Price
N/A
PSB1020234
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1020235
CAP SCREW M3-.5 X 10
Price
N/A
PSB1020240
*DISCD*COOLANT PUMP 1/8HP 110/220V 1PH
Item is no longer available
Price
N/A
PSB1020241
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
PSB1020242
LOCK WASHER 6MM
Price
N/A
P
PIPE ELBOW 3/8 X 3/8"
P
COOLANT HOSE 8 X 1300MM
P
COOLANT TANK
PSB1020250
*DISCD*CABINET ASSEMBLY
Item is no longer available
Price
N/A
PSB1020250-1
LEFT CABINET PANEL
Item is no longer available
Price
N/A
PSB1020250-2
FRONT CABINET PANEL
Item is no longer available
Price
N/A
PSB1020250-3
REAR CABINET PANEL W/DOOR
Item is no longer available
Price
N/A
PSB1020250-4
TOP RIGHT CABINET PANEL
Item is no longer available
Price
N/A
PSB1020250-5
BOTTOM RIGHT CABINET PANEL
Item is no longer available
Price
N/A
PSB1020250-6
SHELF PANEL
Item is no longer available
Price
N/A
PSB1020258
FLAT HD SCR M8-1.25 X 16
Price
N/A
PSB1020259
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1020260
Now: PN03M
HEX NUT M8-1.25
Price
N/A
PSB1020261
*DISCD*VISE TRAVEL STOP
Item is no longer available
Price
N/A
PSB1020262
BEARING CAP
Item is no longer available
Price
N/A
PSB1020294
BLADE BRUSH ASSEMBLY
Item is no longer available
Price
N/A
PSB1020294-1
BRUSH BRACKET
Item is no longer available
Price
N/A
P
BRUSH
PSB1020294-3
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
PSB1020294-4
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1020294-5
Now: PN01M
HEX NUT M6-1
Price
N/A
PSB1020294-6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB1020294-7
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
PSB1020298
Now: PB73M
HEX BOLT M10-1.5 X 50
Price
N/A
PSB1020298-1
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1020298-2
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1020300
HYDRAULIC CYLINDER
Item is no longer available
Price
N/A
P
CYLINDER VALVE ASSEMBLY
PSB1020301
CAP SCREW M10-1.5 X 80 BLK C12.9
Price
N/A
PSB1020320
HOSE CLAMP
Item is no longer available
Price
N/A
PSB1020321
LIMIT SWITCH BRACKET
Item is no longer available
Price
N/A
PSB1020322
LIMIT SWITCH
Item is no longer available
Price
N/A
PSB1020323
CAP SCREW M4-.7 X 30
Price
N/A
PSB1020401

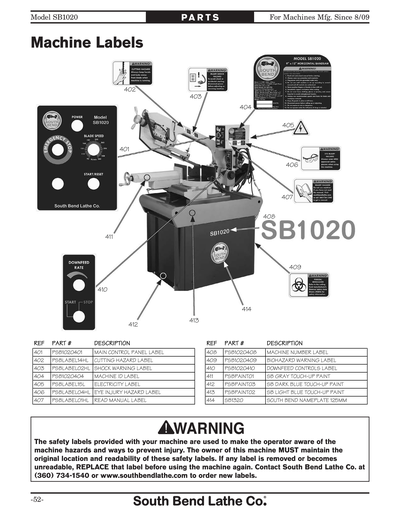

MAIN CONTROL PANEL LABEL
Item is no longer available
Price
N/A
PSB1020402
BANDSAW BLADE LABEL 3.25 X 2
Price
N/A
PSB1020403
DISCONNECT POWER LABEL 3.25 X 2
Price
N/A
P
MACHINE ID LABEL
PSB1020405
ELECTRICITY LABEL 1.4
Price
N/A
PSB1020406
SAFETY GLASSES LABEL 3.25 X 2
Price
N/A
PSB1020407
READ MANUAL LABEL 3.25 X 2
Price
N/A
PSB1020408
MACHINE NUMBER LABEL
Item is no longer available
Price
N/A
PSB1020409
BIOHAZARD WARNING LABEL
Item is no longer available
Price
N/A
PSB1020410
DOWNFEED CONTROLS LABEL
Item is no longer available
Price
N/A
PSB1020411
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1020412
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1020413
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1020414
Nameplate 125mm
Price
N/A
P
CONTROL BOX ASSEMBLY
P
BLADE SPEED DIAL
P
POWER INDICATOR LIGHT NHD NLD22 22MM WHT
P
EMERGENCY STOP BUTTOM
P
INVERTER RFVE 26D
PSB1020505
TRANSFORMER 20VA 230/400-24V
Item is no longer available
Price
N/A
PSB1020506
CONTROL BOX COOLING FAM 115V
Item is no longer available
Price
N/A
P
CONTACTOR NHD C-06D10 110V
PSB1020508
FUSE LINK ETI VLC10
Item is no longer available
Price
N/A
PSB1020509
ON/OFF SWITCH
Item is no longer available
Price
N/A
P
START BUTTON
PSB1020511
CONTROL BOX COOLING FAN 220V
Item is no longer available
Price
N/A
P
MANUAL FOR SB1020 04/10
