Parts for SB1028 10" X 54" Chipmaster 430 EVS Variable-Speed

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

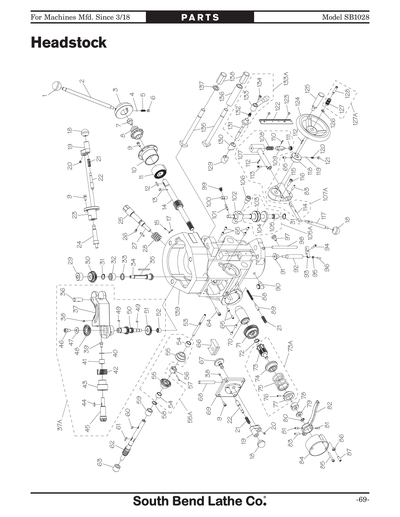

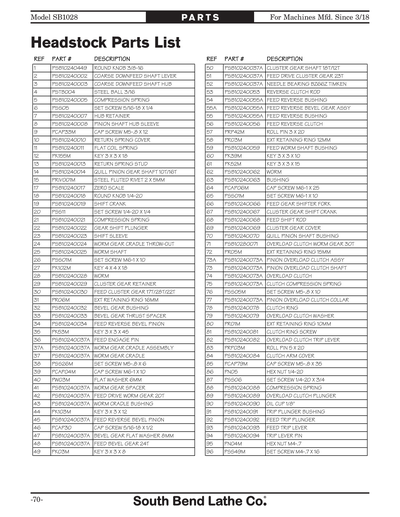

PSB10280001
SET SCREW M6-1 X 8
Price
N/A
PSB10280002
PINION SHAFT LEVER
Price
N/A
PSB10280003
PINION SHAFT HUB
Price
N/A
PSB10280004
STEEL BALL 3/16
Price
N/A
PSB10280005
COMPRESSION SPRING
Price
N/A
PSB10280006
Now: PSS05
SET SCREW 5/16-18 X 1/4
Price
N/A
PSB10280007
HUB RETAINER
Price
N/A
PSB10280008
PINION SHAFT HUB SLEEVE
Price
N/A
PSB10280009
CAP SCREW M5-.8 X 12
Price
N/A
PSB10280010
RETURN SPRING COVER
Price
N/A
PSB10280011
FLAT COIL SPRING
Price
N/A
PSB10280012
KEY 3 X 3 X 18
Price
N/A
PSB10280013
RETURN SPRING STUD
Price
N/A
PSB10280014
QUILL PINION SHAFT 10T/16T
Price
N/A
PSB10280015
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
PSB10280017
ZERO SCALE
Price
N/A
PSB10280018
ROUND KNOB 1/4-20
Price
N/A
PSB10280019
SHIFT CRANK
Price
N/A
PSB10280020
Now: PSS11
SET SCREW 1/4-20 X 1/4
Price
N/A
PSB10280021
COMPRESSION SPRING 9 X 1 X 24MM
Price
N/A
PSB10280022
GEAR SHIFT PLUNGER
Price
N/A
PSB10280023
SHIFT SLEEVE
Price
N/A
PSB10280024
WORM GEAR CRADLE THROW-OUT
Price
N/A
PSB10280025
WORM SHAFT
Price
N/A
PSB10280026
SET SCREW M6-1 X 10
Price
N/A
PSB10280027
KEY 4 X 4 X 18
Price
N/A
PSB10280028
WORM GEAR
Price
N/A
PSB10280029
CLUSTER GEAR RETAINER
Price
N/A
PSB10280030
FEED CLUSTER GEAR 17T/28T/22T
Price
N/A
PSB10280031
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
PSB10280032
BEVEL GEAR BUSHING
Price
N/A
PSB10280033
BEVEL GEAR THRUST SPACER
Price
N/A
PSB10280034
FEED REVERSE BEVEL PINION
Price
N/A
PSB10280035
Now: PK53M
KEY 3 X 3 X 45
Price
N/A
PSB10280036
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280037
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280038
SET SCREW M5-.8 X 6
Price
N/A
PSB10280039
CAP SCREW M6-1 X 10
Price
N/A
PSB10280040
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10280041
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280042
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280043
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280044
KEY 3 X 3 X 12
Price
N/A
PSB10280045
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280046
CAP SCREW 5/16-18 X 1/2
Price
N/A
PSB10280047
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280048
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280049
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
PSB10280050
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280051
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280052
WORM GEAR CRADLE ASSEMBLY
Price
N/A
PSB10280053
REVERSE CLUTCH ROD
Price
N/A
PSB10280054
FEED REVERSE BEVEL GEAR ASSY
Price
N/A
PSB10280055
FEED REVERSE BEVEL GEAR ASSY
Price
N/A
PSB10280055A
FEED REVERSE BEVEL GEAR ASSY
Price
N/A
PSB10280056
FEED REVERSE CLUTCH
Price
N/A
PSB10280057
ROLL PIN 3 X 20
Price
N/A
PSB10280058
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
PSB10280059
FEED WORM SHAFT BUSHING
Price
N/A
PSB10280060
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
PSB10280061
Now: PK52M
KEY 3 X 3 X 15
Price
N/A
PSB10280062
WORM
Price
N/A
PSB10280063
BUSHING
Price
N/A
PSB10280064
CAP SCREW M6-1 X 25
Price
N/A
PSB10280065
SET SCREW M6-1 X 10
Price
N/A
PSB10280066
FEED GEAR SHIFTER FORK
Price
N/A
PSB10280067
CLUSTER GEAR SHIFT CRANK
Price
N/A
PSB10280068
FEED SHIFT ROD
Price
N/A
PSB10280069
CLUSTER GEAR COVER
Price
N/A
PSB10280070
QUILL PINION SHAFT BUSHING
Price
N/A
PSB10280071
OVERLOAD CLUTCH WORM GEAR 30T
Item is no longer available
Price
N/A
PSB10280072
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
PSB10280073
PINION OVERLOAD CLUTCH ASSY
Price
N/A
PSB10280073A
PINION OVERLOAD CLUTCH ASSY
Price
N/A
PSB10280074
PINION OVERLOAD CLUTCH ASSY
Price
N/A
PSB10280075
PINION OVERLOAD CLUTCH ASSY
Price
N/A
PSB10280076
SET SCREW M5-.8 X 10
Price
N/A
PSB10280077
PINION OVERLOAD CLUTCH ASSY
Price
N/A
PSB10280078
CLUTCH RING
Price
N/A
PSB10280079
FLAT WASHER 10 X 22 X 3MM
Price
N/A
PSB10280080
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
PSB10280081
CLUTCH RING SCREW M5-.8 X 16
Price
N/A
PSB10280082
OVERLOAD CLUTCH TRIP LEVER
Price
N/A
PSB10280083
ROLL PIN 5 X 20
Price
N/A
PSB10280084
CLUTCH ARM COVER
Price
N/A
PSB10280085
CAP SCREW M5-.8 X 35
Price
N/A
PSB10280086
Now: PN05
HEX NUT 1/4-20
Price
N/A
PSB10280087
Now: PSS06
SET SCREW 1/4-20 X 3/4
Price
N/A
PSB10280088
COMPRESSION SPRING 1.2 X 6.6 X 42MM
Price
N/A
PSB10280089
OVERLOAD CLUTCH PLUNGER
Price
N/A
PSB10280090
OIL CUP 1/8"
Price
N/A
PSB10280091
TRIP PLUNGER BUSHING
Price
N/A
PSB10280092
FEED TRIP PLUNGER
Price
N/A
PSB10280093
FEED TRIP LEVER
Price
N/A

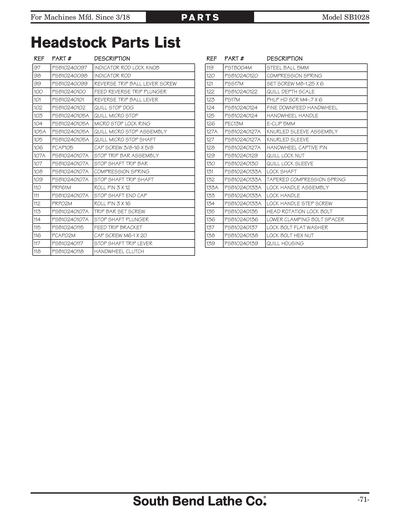

PSB10280094
TRIP LEVER SCREW M6-1 X 22.5
Price
N/A
PSB10280095
Now: PN04M
HEX NUT M4-.7
Price
N/A
PSB10280096
SET SCREW M4-.7 X 16
Price
N/A
PSB10280097
KNURLED KNOB SCREW M6-1 X 15
Price
N/A
PSB10280098
SCRIBING LEVER
Price
N/A
PSB10280099
REVERSE TRIP BALL LEVER SCREW
Price
N/A
PSB10280100
FEED REVERSE TRIP PLUNGER
Price
N/A
PSB10280101
REVERSE TRIP BALL LEVER
Price
N/A
PSB10280102
QUILL STOP KNOB
Price
N/A
PSB10280103
QUILL MICRO STOP ASSEMBLY
Price
N/A
PSB10280104
QUILL MICRO STOP ASSEMBLY
Price
N/A
PSB10280105
QUILL MICRO STOP ASSEMBLY
Price
N/A
PSB10280105A
QUILL MICRO STOP ASSEMBLY
Price
N/A
PSB10280106
CAP SCREW 3/8-16 X 5/8
Price
N/A
PSB10280107
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280107A
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280108
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280109
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280110
ROLL PIN 3 X 12
Price
N/A
PSB10280111
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280112
ROLL PIN 3 X 16
Price
N/A
PSB10280113
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280114
STOP TRIP BAR ASSEMBLY
Price
N/A
PSB10280115
FEED TRIP BRACKET
Price
N/A
PSB10280116
CAP SCREW M6-1 X 20
Price
N/A
PSB10280117
STOP SHAFT TRIP LEVER
Price
N/A
PSB10280118
HANDWHEEL CLUTCH
Price
N/A
PSB10280119
STEEL BALL 5MM
Price
N/A
PSB10280120
COMPRESSION SPRING
Price
N/A
PSB10280121
SET SCREW M8-1.25 X 6
Price
N/A
PSB10280122
QUILL DEPTH SCALE
Price
N/A
PSB10280123
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB10280124
FINE DOWNFEED HANDWHEEL
Price
N/A
PSB10280125
FINE DOWNFEED HANDWHEEL
Price
N/A
PSB10280126
E-CLIP 5MM
Price
N/A
PSB10280127
KNURLED SLEEVE ASSEMBLY
Price
N/A
PSB10280127A
KNURLED SLEEVE ASSEMBLY
Price
N/A
PSB10280128
KNURLED SLEEVE ASSEMBLY
Price
N/A
PSB10280129
QUILL LOCK NUT M18-2.5
Price
N/A
PSB10280130
QUILL LOCK SLEEVE
Price
N/A
PSB10280131
LOCK HANDLE ASSEMBLY
Price
N/A
PSB10280132
LOCK HANDLE ASSEMBLY
Price
N/A
PSB10280133
LOCK HANDLE ASSEMBLY
Price
N/A
PSB10280133A
LOCK HANDLE ASSEMBLY
Price
N/A
PSB10280134
LOCK HANDLE ASSEMBLY
Price
N/A
PSB10280135
HEAD ROTATION LOCK BOLT 1/2-13 X 6-1/4
Price
N/A
PSB10280136
LOWER CLAMPING BOLT SPACER
Price
N/A
PSB10280137
LOCK BOLT FLAT WASHER
Price
N/A
PSB10280138
LOCK BOLT HEX NUT 1/2-13
Price
N/A

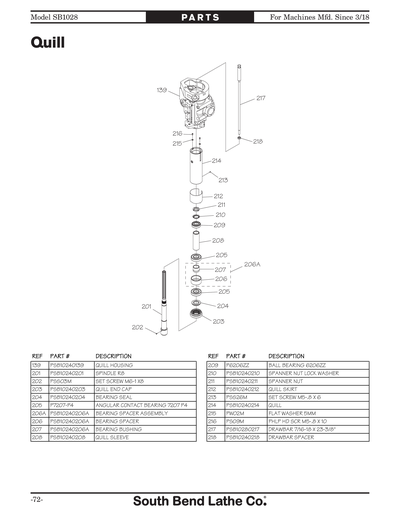

PSB10280139
QUILL HOUSING
Price
N/A
PSB10280201
SPINDLE R8 W/ SPANNER NUT
Price
N/A
PSB10280202
SET SCREW M6-1 X 8
Price
N/A
PSB10280203
QUILL END CAP
Price
N/A
PSB10280204
QUILL SEAL
Price
N/A
PSB10280205
ANGULAR CONTACT BEARING 7207 P4
Price
N/A
PSB10280206
BEARING SPACER ASSEMBLY
Price
N/A
PSB10280206A
BEARING SPACER ASSEMBLY
Price
N/A
PSB10280207
BEARING SPACER ASSEMBLY
Price
N/A
PSB10280208
SLEEVE
Price
N/A
PSB10280209
BALL BEARING 6206ZZ
Price
N/A
PSB10280210
SPANNER LOCK WASHER
Price
N/A
PSB10280211
SPANNER NUT
Price
N/A
PSB10280212
QUILL SKIRT
Price
N/A
PSB10280213
SET SCREW M5-.8 X 6
Price
N/A
PSB10280214
QUILL
Price
N/A
PSB10280215
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB10280216
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
P
DRAWBAR 7/16-20 X 23-3/8"
PSB10280218
DRAWBAR WASHER
Price
N/A

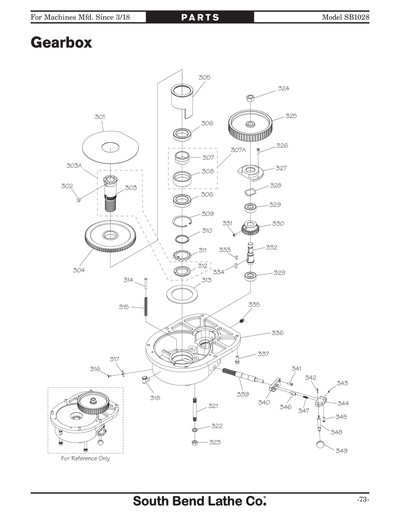

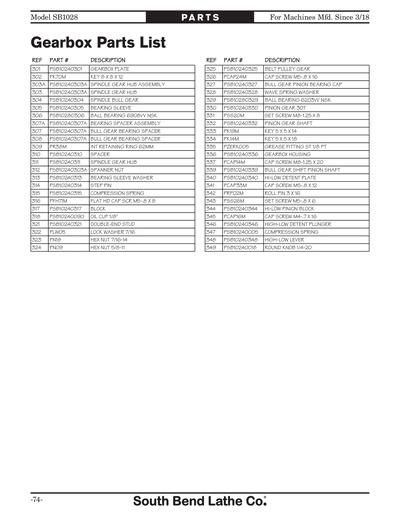

PSB10280301
GEARBOX PLATE
Price
N/A
PSB10280302
Now: PK70M
KEY 8 X 8 X 12
Price
N/A
PSB10280303
SPINDLE GEAR HUB ASSEMBLY
Price
N/A
PSB10280303A
SPINDLE GEAR HUB ASSEMBLY
Price
N/A
PSB10280304
SPINDLE BULL GEAR
Price
N/A
PSB10280305
BEARING SLEAVE
Price
N/A
PSB10280306
BALL BEARING 6908VV NSK
Price
N/A
PSB10280307
BEARING SPACER ASSEMBLY
Price
N/A
PSB10280307A
BEARING SPACER ASSEMBLY
Price
N/A
PSB10280308
BEARING SPACER ASSEMBLY
Price
N/A
PSB10280309
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
PSB10280310
WAVY SPRING WASHER
Price
N/A
PSB10280311
SPANNER LOCK WASHER
Price
N/A
PSB10280312
SPINDLE GEAR HUB ASSEMBLY
Price
N/A
PSB10280313
BEARING SLEEVE WASHER
Price
N/A
PSB10280314
STEP PIN
Price
N/A
PSB10280315
COMPRESSION SPRING
Price
N/A
PSB10280316
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
PSB10280317
INSERT
Price
N/A
PSB10280318
OIL CUP 1/8"
Price
N/A
PSB10280321
DOUBLE END HOUSING STUD
Price
N/A
PSB10280322
Now: PLW05
LOCK WASHER 7/16
Price
N/A
PSB10280323
Now: PN19
HEX NUT 7/16-14
Price
N/A
PSB10280324
Now: PN09
HEX NUT 5/8-18
Price
N/A
PSB10280325
BELT PULLEY GEAR
Price
N/A
PSB10280326
CAP SCREW M5-.8 X 16
Price
N/A
PSB10280327
BULL GEAR PINION BEARING CAP
Price
N/A
PSB10280328
WAVY SPRING WASHER
Price
N/A
PSB10280329
BALL BEARING 6203VV NSK
Price
N/A
PSB10280330
PINION GEAR 30T
Price
N/A
PSB10280331
SET SCREW M8-1.25 X 8
Price
N/A
PSB10280332
PINION GEAR SHAFT
Price
N/A
PSB10280333
Now: PK19M
KEY 5 X 5 X 14
Price
N/A
PSB10280334
Now: PK14M
KEY 5 X 5 X 18
Price
N/A
PSB10280335
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
PSB10280336
GEARBOX HOUSING
Price
N/A
PSB10280337
CAP SCREW M8-1.25 X 20
Price
N/A
PSB10280339
BULL GEAR SHIFT PINION
Price
N/A
PSB10280340
HI-LOW DETENT PLATE
Price
N/A
PSB10280341
CAP SCREW M5-.8 X 12
Price
N/A
PSB10280342
ROLL PIN 3 X 16
Price
N/A
PSB10280343
SET SCREW M5-.8 X 6
Price
N/A
PSB10280344
HI-LOW PINION BLOCK
Price
N/A
PSB10280345
CAP SCREW M4-.7 X 16
Price
N/A
PSB10280346
HI-LOW DETENT PLUNGER
Price
N/A
PSB10280347
COMPRESSION SPRING
Price
N/A
PSB10280348
HI-LOW DETENT PLUNGER
Price
N/A
PSB10280349
ROUND KNOB 1/4-20
Price
N/A
P

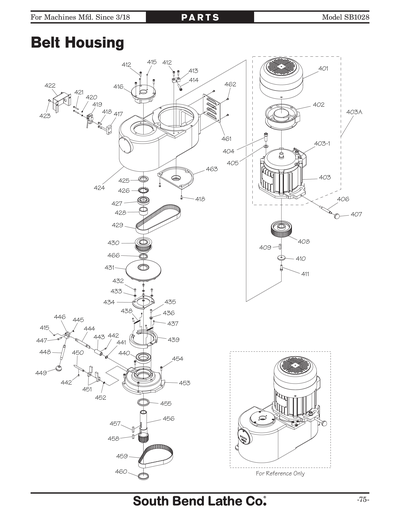

MOTOR FAN
PSB10280403
***SEE EXT. DESCRIPTION***
Price
N/A
PSB10280403-1
***SEE EXT. DESCRIPTION***
Price
N/A
PSB10280403A
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
P
MOTOR ASSEMBLY V2.11.11
PSB10280403V2
MOTOR ASSEMBLY V2.11.11
Price
N/A
PSB10280404
CAP SCREW M12-1.75 X 35
Price
N/A
PSB10280405
Now: PW06M
FLAT WASHER 12MM
Price
N/A
PSB10280406
BELT TENSION ADJUSTMENT LEVER
Price
N/A
PSB10280407
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB10280408
MOTOR PULLEY
Price
N/A
PSB10280409
KEY 8 X 7 X 30
Price
N/A
PSB10280410
MOTOR PULLEY FLAT WASHER
Price
N/A
PSB10280411
CAP SCREW M8-1.25 X 25
Price
N/A
PSB10280412
CAP SCREW M6-1 X 20
Price
N/A
PSB10280413
MOTOR ADJUSTMENT BLOCK
Price
N/A
PSB10280414
CAP SCREW M8-1.25 X 40
Price
N/A
PSB10280415
SET SCREW M5-.8 X 6
Price
N/A
PSB10280416
TOP BEARING COVER
Price
N/A
PSB10280417
BRAKE SWITCH MOUNTING BLOCK
Price
N/A
PSB10280418
CAP SCREW M5-.8 X 16
Price
N/A
PSB10280419
BRAKE SWITCH
Item is no longer available
Price
N/A
PSB10280420
Now: PW05M
FLAT WASHER 4MM
Price
N/A
PSB10280421
CAP SCREW M4-.7 X 30
Price
N/A
PSB10280422
BRAKE SWITCH COVER
Price
N/A
PSB10280423
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB10280424
GEAR BOX AND BELT HOUSING
Price
N/A
PSB10280425
SPANNER NUT
Price
N/A
PSB10280426
TABBED SPANNER LOCK WASHER
Price
N/A
PSB10280427
BALL BEARING 6007VV NSK
Price
N/A
PSB10280428
BEARING SPACER
Price
N/A
PSB10280429
TIMING BELT 800-8YU-25
Price
N/A
PSB10280430
SPINDLE PULLEY
Price
N/A
PSB10280431
LOWER SPINDLE PULLEY PLATE
Price
N/A
PSB10280432
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
PSB10280433
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10280434
BRAKE BEARING CAP
Price
N/A
PSB10280435
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
PSB10280436
BRAKE SHOE PIVOT SLEEVE
Price
N/A
PSB10280437
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
PSB10280438
BRAKE SHOE SPRING
Price
N/A
PSB10280439
BRAKE SHOE SET
Price
N/A
PSB10280440
BALL BEARING 6010VV NSK
Price
N/A
PSB10280441
Now: PR47M
EXT RETAINING RING 13MM
Price
N/A
PSB10280442
SET SCREW M6-1 X 8
Price
N/A
PSB10280443
BRAKE SHAFT SLEEVE
Item is no longer available
Price
N/A
PSB10280444
BRAKE SHAFT
Price
N/A
PSB10280445
E-CLIP 4MM
Price
N/A
PSB10280446
BRAKE LEVER BRACKET
Price
N/A
PSB10280447
CAPTIVE PIN
Item is no longer available
Price
N/A
PSB10280448
BRAKE LEVER
Price
N/A
PSB10280449
SET SCREW M6-1 X 8
Price
N/A
PSB10280450
BRAKE OPERATING FINGER
Price
N/A
PSB10280451
BRAKE FINGER PIVOT STUD
Price
N/A
PSB10280452
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
PSB10280453
BRAKE SEAT
Price
N/A
PSB10280454
CAP SCREW M6-1 X 16
Price
N/A
PSB10280455
SPINDLE PULLEY SPACER
Price
N/A
PSB10280456
SPINDLE PULLEY HUB
Price
N/A
PSB10280457
KEY 7 X 7 X 35
Price
N/A
PSB10280458
Now: PK27M
KEY 7 X 7 X 25
Price
N/A
PSB10280459
TIMING BELT 225L-100
Price
N/A
PSB10280460
SPINDLE PULLEY HUB COLLAR
Price
N/A
PSB10280461
REAR VENT COVER
Price
N/A
PSB10280462
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB10280463
BELT HOUSING BOTTOM COVER
Price
N/A
PSB10280466
PULLEY COLLAR
Item is no longer available
Price
N/A
PSB10280501
CAP SCREW M8-1.25 X 25
Price
N/A
PSB10280502
ROLL PIN 8 X 30
Price
N/A
PSB10280503
GEAR 33T
Price
N/A
PSB10280504
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
PSB10280505
HEAD ROTATION SCALE
Price
N/A
PSB10280506

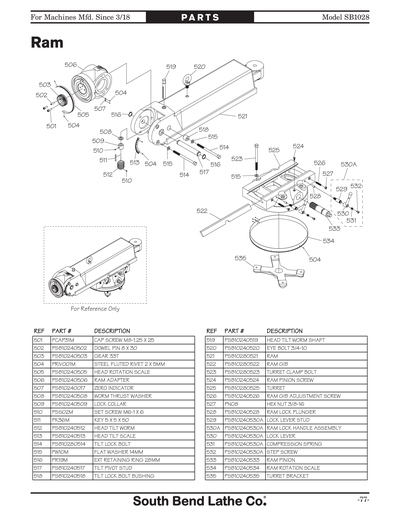

RAM ADAPTER
Price
N/A
PSB10280507
ZERO SCALE
Price
N/A
PSB10280508
WORM THRUST WASHER
Price
N/A
PSB10280509
LOCK COLLAR
Price
N/A
PSB10280510
SET SCREW M6-1 X 6
Price
N/A
PSB10280511
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
PSB10280512
HEAD TILT WORM
Price
N/A
PSB10280513
HEAD TILT SCALE
Price
N/A
PSB10280514
TILT LOCK BOLT
Item is no longer available
Price
N/A
PSB10280515
Now: PW10M
FLAT WASHER 14MM
Price
N/A
PSB10280516
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A
PSB10280517
TILT PIVOT STUD
Price
N/A
PSB10280518
TILT LOCK BOLT BUSHING
Price
N/A
PSB10280519
HEAD TILT WORM SHAFT
Price
N/A
PSB10280520
LIFTING EYE BOLT 3/4-10
Price
N/A
PSB10280521
RAM
Item is no longer available
Price
N/A
PSB10280522
RAM GIB
Item is no longer available
Price
N/A
PSB10280523
TURRET CLAMP BOLT
Item is no longer available
Price
N/A
PSB10280524
RAM PINION SCREW
Price
N/A
PSB10280525
TURRET
Item is no longer available
Price
N/A
PSB10280526
RAM GIB ADJUSTMENT SCREW
Price
N/A
PSB10280527
Now: PN08
HEX NUT 3/8-16
Price
N/A
PSB10280528
RAM LOCK PLUNGER
Price
N/A
PSB10280529
LOCK LEVER ASSEMBLY
Price
N/A
PSB10280530
LOCK LEVER ASSEMBLY
Price
N/A
PSB10280530A
LOCK LEVER ASSEMBLY
Price
N/A
PSB10280531
LOCK LEVER ASSEMBLY
Price
N/A
PSB10280532
LOCK LEVER ASSEMBLY
Price
N/A
PSB10280533
RAM PINION
Price
N/A
PSB10280534
RAM ROTATION SCALE
Price
N/A
PSB10280535
TURRET BRACKET
Price
N/A
PSB10280601

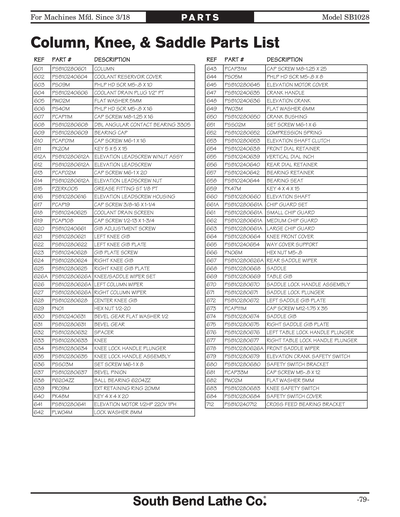

COLUMN
Item is no longer available
Price
N/A
PSB10280602
REAR COLUMN COVER
Price
N/A
PSB10280603
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB10280604
PIPE PLUG 1/2 PT
Price
N/A
PSB10280605
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB10280606
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
PSB10280607
CAP SCREW M8-1.25 X 16
Price
N/A
P
DBL ANGULAR CONTACT BEARING 3305
PSB10280609
BEARING CAP
Item is no longer available
Price
N/A
PSB10280610
CAP SCREW M6-1 X 16
Price
N/A
PSB10280611
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
PSB10280612
ELEVATION LEADSCREW W/NUT ASSY
Price
N/A
P
ELEVATION LEADSCREW W/NUT ASSY
PSB10280613
CAP SCREW M6-1 X 20
Price
N/A
PSB10280614
ELEVATION LEADSCREW W/NUT ASSY
Price
N/A
PSB10280615
GREASE FITTING 1/8" NPT STRAIGHT
Price
N/A
PSB10280616
ELEVATION LEADSCREW HOUSING
Item is no longer available
Price
N/A
PSB10280617
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
PSB10280618
COOLANT SCREEN
Price
N/A
PSB10280619
CAP SCREW 1/2-13 X 1-3/4
Price
N/A
PSB10280620
TABLE GIB SCREW
Price
N/A
PSB10280621

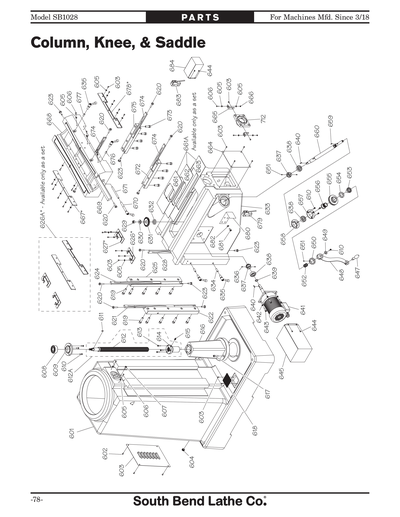

LEFT KNEE GIB
Item is no longer available
Price
N/A
PSB10280622
LEFT KNEE GIB PLATE
Item is no longer available
Price
N/A
PSB10280623
GIB SCREW
Price
N/A
PSB10280624
RIGHT KNEE GIB
Item is no longer available
Price
N/A
PSB10280625
RIGHT KNEE GIB PLATE
Item is no longer available
Price
N/A
PSB10280626
KNEE/SADDLE WIPER SET
Price
N/A
P
KNEE/SADDLE WIPER SET
PSB10280627
KNEE/SADDLE WIPER SET
Price
N/A
PSB10280628
CENTER KNEE GIB
Item is no longer available
Price
N/A
PSB10280629
Now: PN01
HEX NUT 1/2-20
Price
N/A
PSB10280630
BEVEL GEAR FLAT WASHER 1/2
Price
N/A
PSB10280631
BEVEL GEAR
Item is no longer available
Price
N/A
PSB10280632
SPACER
Item is no longer available
Price
N/A
PSB10280633
KNEE
Item is no longer available
Price
N/A
PSB10280634
KNEE LOCK HANDLE PLUNGER
Item is no longer available
Price
N/A
P
KNEE LOCK HANDLE ASSEMBLY
PSB10280636
SET SCREW M6-1 X 8
Price
N/A
PSB10280637
BEVEL PINION
Item is no longer available
Price
N/A
PSB10280638
BALL BEARING 6204ZZ
Price
N/A
PSB10280639
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
PSB10280640
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
P
ELEVATION MOTOR 200W 220V 1PH
PSB10280642
LOCK WASHER 8MM
Price
N/A
PSB10280643
CAP SCREW M8-1.25 X 25
Price
N/A
PSB10280644
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB10280645
ELEVATION MOTOR COVER
Item is no longer available
Price
N/A
PSB10280647
CRANK HANDLE
Price
N/A
PSB10280648
VERTICAL CRANK
Price
N/A
PSB10280649
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10280650
*DISCD*CRANK BUSHING
Item is no longer available
Price
N/A
PSB10280651
SET SCREW M6-1 X 6
Price
N/A
PSB10280652
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
P
ELEVATION SHAFT CLUTCH
PSB10280654
FRONT DIAL RETAINER
Price
N/A
PSB10280655
VERTICAL DIAL INCH
Price
N/A
PSB10280656
REAR DIAL RETAINER
Price
N/A
PSB10280657
BEARING RETAINER
Price
N/A
PSB10280658
BEARING SEAT
Price
N/A
PSB10280659
Now: PK47M
KEY 4 X 4 X 15
Price
N/A
P
ELEVATION SHAFT
PSB10280661
CHIP GUARD SET
Price
N/A
P
CHIP GUARD SET
PSB10280662
CHIP GUARD SET
Price
N/A
PSB10280663
CHIP GUARD SET
Price
N/A
PSB10280664
KNEE FRONT COVER
Item is no longer available
Price
N/A
PSB10280665
WAY COVER SUPPORT
Price
N/A
PSB10280666
Now: PN06M
HEX NUT M5-.8
Price
N/A
PSB10280667
KNEE/SADDLE WIPER SET
Price
N/A
PSB10280668
SADDLE
Item is no longer available
Price
N/A
P
TABLE GIB
PSB10280670
SADDLE LOCK HANDLE ASSEMBLY
Item is no longer available
Price
N/A
PSB10280671
SADDLE LOCK PLUNGER
Item is no longer available
Price
N/A
PSB10280672
LEFT SADDLE GIB PLATE
Item is no longer available
Price
N/A
PSB10280673
CAP SCREW M12-1.75 X 35
Price
N/A
PSB10280674
SADDLE GIB
Item is no longer available
Price
N/A
PSB10280675
RIGHT SADDLE GIB PLATE
Item is no longer available
Price
N/A
PSB10280676
LEFT TABLE LOCK HANDLE PLUNGER
Item is no longer available
Price
N/A
PSB10280677
RIGHT TABLE LOCK HANDLE PLUNGER
Item is no longer available
Price
N/A
PSB10280678
KNEE/SADDLE WIPER SET
Price
N/A
PSB10280679
ELEVATION CRANK SAFETY SWITCH
Item is no longer available
Price
N/A
PSB10280680
SAFETY SWITCH BRACKET
Item is no longer available
Price
N/A
PSB10280681
CAP SCREW M5-.8 X 12
Price
N/A
PSB10280682
Now: PW02M
FLAT WASHER 5MM
Price
N/A
PSB10280683
KNEE SAFETY SWITCH
Item is no longer available
Price
N/A
PSB10280684
SAFETY SWITCH COVER
Item is no longer available
Price
N/A
P
4" RISER BLOCK

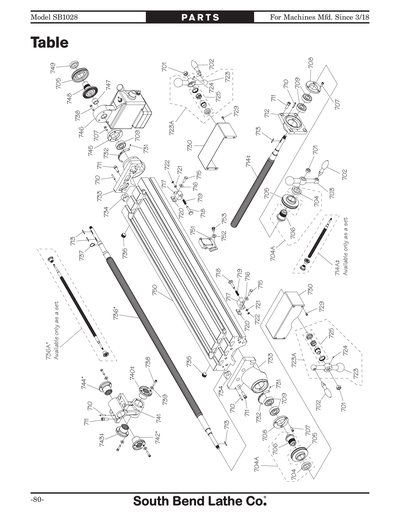

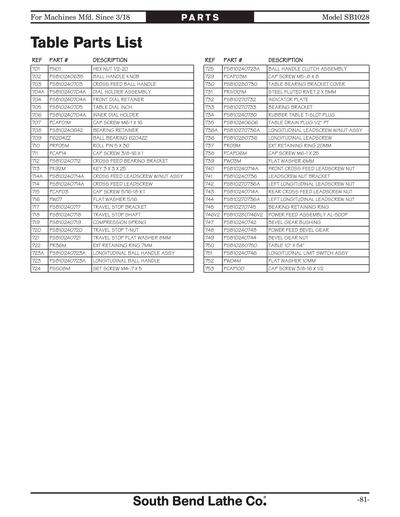

PSB10280701
Now: PN01
HEX NUT 1/2-20
Price
N/A
PSB10280702
CRANK HANDLE
Price
N/A
PSB10280703
CROSS FEED BALL HANDLE
Price
N/A
PSB10280704
DIAL HOLDER ASSEMBLY
Price
N/A
PSB10280704A
DIAL HOLDER ASSEMBLY
Price
N/A
PSB10280705
TABLE DIAL INCH
Price
N/A
PSB10280706
DIAL HOLDER ASSEMBLY
Price
N/A
PSB10280707
CAP SCREW M6-1 X 16
Price
N/A
PSB10280708
BEARING RETAINER
Price
N/A
PSB10280709
BALL BEARING 6204ZZ
Price
N/A
PSB10280710
ROLL PIN 5 X 30
Price
N/A
PSB10280711
CAP SCREW 3/8-16 X 1
Price
N/A
PSB10280712
CROSS FEED BEARING BRACKET
Price
N/A
PSB10280713
Now: PK92M
KEY 3 X 3 X 25
Price
N/A
PSB10280714
CROSS FEED LEADSCREW W/NUTS ASSY
Price
N/A
PSB10280714A
CROSS FEED LEADSCREW W/NUTS ASSY
Price
N/A
PSB10280715
CAP SCREW 5/16-18 X 1
Price
N/A
PSB10280716
Now: PW07
FLAT WASHER 5/16
Price
N/A
PSB10280717
TRAVEL STOP ASSEMBLY
Price
N/A
PSB10280718
TRAVEL STOP ASSEMBLY
Price
N/A
PSB10280719
TRAVEL STOP ASSEMBLY
Price
N/A
PSB10280720
TRAVEL STOP ASSEMBLY
Price
N/A
PSB10280721
TRAVEL STOP ASSEMBLY
Price
N/A
PSB10280722
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
PSB10280723
LONGITUDINAL BALL HANDLE ASSY
Price
N/A
PSB10280723A
LONGITUDINAL BALL HANDLE ASSY
Price
N/A
PSB10280724
SET SCREW M4-.7 X 5
Price
N/A
PSB10280725
LONGITUDINAL BALL HANDLE ASSY
Price
N/A
PSB10280729
CAP SCREW M5-.8 X 8
Price
N/A
P
TABLE BEARING BRACKET COVER
PSB10280731
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
PSB10280732
INDICATOR PLATE
Price
N/A
PSB10280733
BEARING BRACKET
Price
N/A
PSB10280734
RUBBER TABLE T-SLOT PLUG
Price
N/A
PSB10280735
PIPE PLUG 1/2 PT
Price
N/A
PSB10280736
LONGITUDINAL LEADSCREW
Item is no longer available
Price
N/A
PSB10280736A
LONGITUDINAL LEADSCREW W/NUT ASSY
Price
N/A
PSB10280737
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
PSB10280738
CAP SCREW M6-1 X 25
Price
N/A
PSB10280739
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10280740
CROSS FEED LEADSCREW W/NUTS ASSY
Price
N/A
PSB10280741
LEADSCREW NUT BRACKET
Price
N/A
PSB10280742
LONGITUDINAL LEADSCREW W/NUT ASSY
Price
N/A
PSB10280743
CROSS FEED LEADSCREW W/NUTS ASSY
Price
N/A
PSB10280744
LONGITUDINAL LEADSCREW W/NUT ASSY
Price
N/A
PSB10280745
BEARING RETAINING RING
Price
N/A
PSB10280746
POWER FEED ASSEMBLY
Price
N/A
PSB10280746V2
Power Feed AL-500SX
Price
N/A
PSB10280747
BEVEL GEAR BUSHING
Price
N/A
PSB10280748
POWER FEED BEVEL GEAR
Price
N/A
PSB10280749
BEVEL GEAR NUT
Price
N/A
PSB10280750
TABLE 10" X 54"
Item is no longer available
Price
N/A
PSB10280751
LONGITUDINAL LIMIT SWITCH ASSEMBLY
Price
N/A
PSB10280752
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB10280753
CAP SCREW 3/8-16 X 1/2
Price
N/A

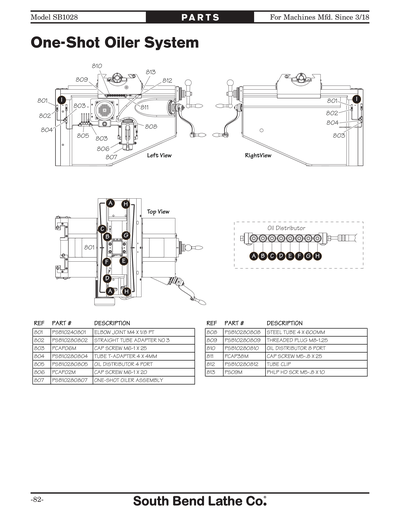

PSB10280801
ELBOW JOINT M4 X 1/8 PT
Price
N/A
P
STRAIGHT TUBE ADAPTER NO 3
PSB10280803
CAP SCREW M6-1 X 25
Price
N/A
PSB10280804
TUBE T-ADAPTER 4 X 4MM
Item is no longer available
Price
N/A
PSB10280805
OIL DISTRIBUTOR 4 PORT
Item is no longer available
Price
N/A
PSB10280806
CAP SCREW M6-1 X 20
Price
N/A
PSB10280807
ONE-SHOT OILER ASSEMBLY
Item is no longer available
Price
N/A
P
STEEL TUBE 4 X 600MM
PSB10280809
THREADED PLUG M8-1.25
Item is no longer available
Price
N/A
PSB10280810
OIL DISTRIBUTOR 8 PORT
Item is no longer available
Price
N/A
PSB10280811
CAP SCREW M5-.8 X 25
Price
N/A
PSB10280812
TUBE CLIP
Item is no longer available
Price
N/A
PSB10280813
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A

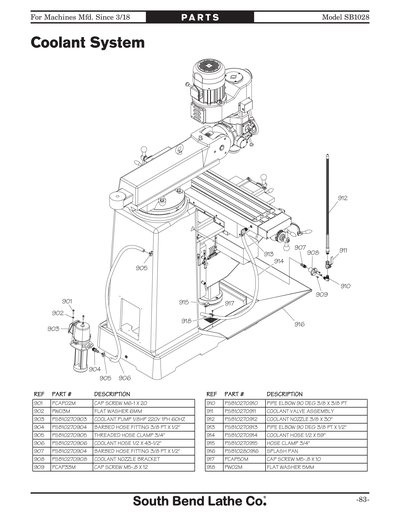

PSB10280901
CAP SCREW M6-1 X 20
Price
N/A
PSB10280902
Now: PW03M
FLAT WASHER 6MM
Price
N/A
PSB10280903
COOLANT PUMP 1/8HP 220V 1PH 60HZ
Price
N/A
PSB10280904
BARBED HOSE FITTING 3/4 PT X 1/2 IN
Price
N/A
PSB10280905
THREADED HOSE CLAMP 3/4 IN
Price
N/A
PSB10280906
COOLANT HOSE 1/2 X 43-1/2 IN
Price
N/A
PSB10280907
BARBED HOSE FITTING 3/4 PT X 1/2 IN
Price
N/A
PSB10280908
STANDPIPE BRACKET
Price
N/A
PSB10280909
CAP SCREW M5-.8 X 12
Price
N/A
PSB10280910
PIPE ELBOW 90 DEG 3/8 X 3/8 PT
Price
N/A
PSB10280911
COOLANT VALVE ASSEMBLY
Price
N/A
PSB10280912
COOLANT NOZZLE 3/8 X 30 IN
Price
N/A
PSB10280913
PIPE ELBOW 90 DEG 3/8 PT X 1/2 IN
Price
N/A
PSB10280914
COOLANT HOSE 1/2 X 59 IN
Price
N/A
PSB10280915
COOLANT HOSE 1/2 X 59 IN
Price
N/A
PSB10280916
SPLASH PAN
Item is no longer available
Price
N/A
PSB10280917
CAP SCREW M5-.8 X 10
Price
N/A
PSB10280918
Now: PW02M
FLAT WASHER 5MM
Price
N/A

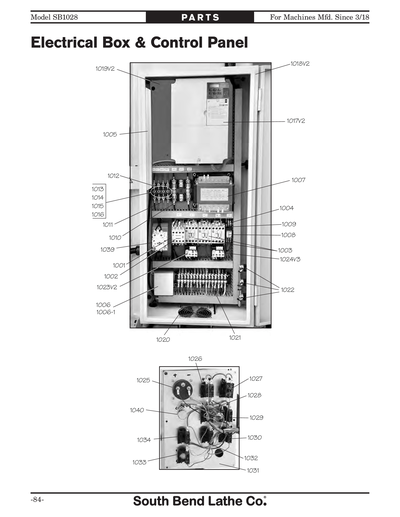

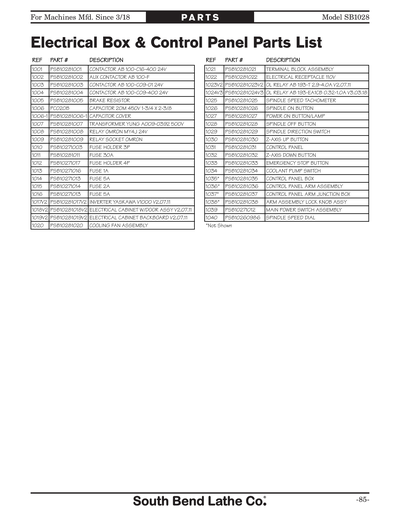

PSB10281001
CONTACTOR AB 100-C16-400 24V
Item is no longer available
Price
N/A
P
AUX CONTACTOR AB 100-A40-F
P
CONTACTOR AB 100-C09-01 24V
P
CONTACTOR AB 100-C09-400 24V
P
BRAKE RESISTOR 500W 30-OHM
PSB10281006
R CAPACITOR 20M 450V 1-3/4 X 3-3/8
Price
N/A
PSB10281006-1
CAPACITOR COVER
Item is no longer available
Price
N/A
P
TRANSFORMER 500VA 220/440V-12/110V
P
RELAY OMRON MY4J 24V
P
RELAY SOCKET OMRON
PSB10281010
FUSE HOLDER 3P
Price
N/A
PSB10281011
FUSE 30A
Price
N/A
PSB10281012
FUSE HOLDER 4P
Price
N/A
PSB10281013
FUSE 1A
Price
N/A
PSB10281014
FUSE 5A
Price
N/A
PSB10281015
FUSE 2A
Price
N/A
PSB10281016
FUSE 5A
Price
N/A
PSB10281017
*DISCD*INVERTER YASKAWA VS-606V7 V1
Item is no longer available
Price
N/A
PSB10281017V2
*DISCD*INVERTER YASKAWA V1000 V2.07.11
Item is no longer available
Price
N/A
PSB10281018
ELECTRICAL CABINET W/DOOR ASSY V1
Item is no longer available
Price
N/A
P
ELECTRICAL CABINET W/DOOR ASSY V2.07.11
PSB10281019
ELECTRICAL CABINET BACKBOARD V1
Item is no longer available
Price
N/A
PSB10281019V2
ELECTRICAL CABINET BACKBOARD V2.07.11
Item is no longer available
Price
N/A
P
COOLING FAN ASSEMBLY
PSB10281021
TERMINAL BLOCK ASSEMBLY
Item is no longer available
Price
N/A
P
ELECTRICAL RECEPTACLE 110V
PSB10281023
OL RELAY AB 193-T1AB40 2.9-4.0 V2.07.11
Price
N/A
P
OL RELAY AB 193-T1AB40 2.9-4.0 V2.07.11
PSB10281024
OL RELAY AB193-T1AB10 0.75-1A
Price
N/A
PSB10281024V2
OL RELAY AB193-T1AB10 0.75-1A
Price
N/A
PSB10281024V3
OL RELAY AB 193-EA1CB0.32-1.0A V3.0318
Item is no longer available
Price
N/A
P
SPINDLE SPEED TACHOMETER
P
SPINDLE ON BUTTON
PSB10281027
POWER INDICATOR LIGHT AB 800FD P7N3 22MM
Price
N/A
P
SPINDLE OFF BUTTON
PSB10281029
SPINDLE DIRECTION SWITCH
Price
N/A
P
Z-AXIS UP BUTTON
P
CONTROL PANEL
PSB10281031A
CONTROL PANEL ASSEMBLY
Item is no longer available
Price
N/A
P
Z-AXIS DOWN BUTTON
PSB10281033
E-STOP BUTTON AB 800FD-MT44X01
Price
N/A
P
COOLANT PUMP SWITCH
P
CONTROL PANEL BOX
PSB10281036
CONTROL PANEL ARM ASSEMBLY
Item is no longer available
Price
N/A
PSB10281037
CONTROL PANEL ARM JUNCTION BOX
Item is no longer available
Price
N/A
PSB10281038
ARM ASSEMBLY LOCK KNOB ASSY
Item is no longer available
Price
N/A
PSB10281039
MAIN POWER SWITCH ASSY AB 194L-A20
Price
N/A
PSB10281040
SPINDLE SPEED DIAL
Price
N/A

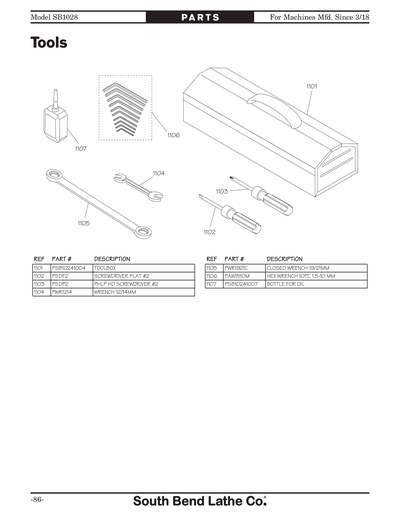

PSB10281101
TOOL BOX
Price
N/A
PSB10281102
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
PSB10281103
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
PSB10281104
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PSB10281105
WRENCH 19 X 21MM CLOSED ENDS
Price
N/A
PSB10281106
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
PSB10281107
OIL BOTTLE
Price
N/A

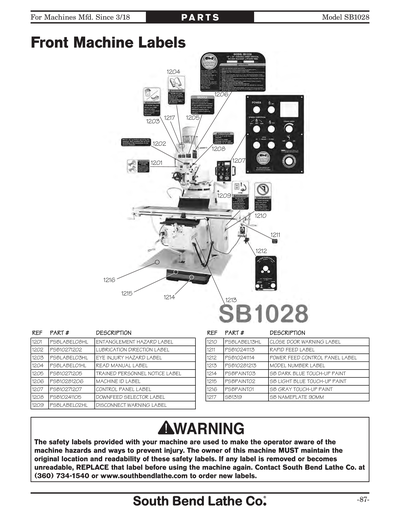

PSB10281201
ENTANGLEMENT LABEL 3.25 X 2
Price
N/A
PSB10281202
LUBRICATION DIRECTION LABEL
Price
N/A
PSB10281203
FACE SHIELD/GLASSES LABEL 3.25 X 2
Price
N/A
PSB10281204
READ MANUAL LABEL 3.25 X 2
Price
N/A
PSB10281205
TRAINED PERSONNEL NOTICE LABEL
Price
N/A
P
MACHINE ID LABEL
PSB10281207
CONTROL PANEL LABEL
Price
N/A
PSB10281208
DOWNFEED WARNING LABEL
Price
N/A
PSB10281209
DISCONNECT POWER LABEL 3.25 X 2
Price
N/A
PSB10281210
KEEP DOOR CLOSED LABEL 3.25 X 2
Price
N/A
PSB10281211
Power Feed AL-500SX
Price
N/A
PSB10281212
Power Feed AL-500SX
Price
N/A
PSB10281213
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
PSB10281214
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB10281215
SB LT BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB10281216
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB10281217
Nameplate 90mm
Price
N/A
PSB10281218
ELECTRICITY LABEL 1.4
Price
N/A
PSB10281219
SPEED RANGE LABEL
Price
N/A
PSB10281220
INVERTER WARNING LABEL
Item is no longer available
Price
N/A
PSB10281221
220V 1PH LABEL
Price
N/A
PSB10281222
BIOHAZARD LABEL 3.25 X 2
Price
N/A
PSB10281223
PLUG RECEPTACLE FIRE HAZARD LABEL
Price
N/A
PSB10281224
PLUG RECEPTACLE FIRE HAZARD LABEL
Price
N/A
PSB10281225V2
Power Feed AL-500SX
Price
N/A
PSB10281226
Power Feed AL-500SX
Price
N/A
PSB10281227
110V 1PH LABEL
Price
N/A
P
MANUAL FOR SB128 04/10
