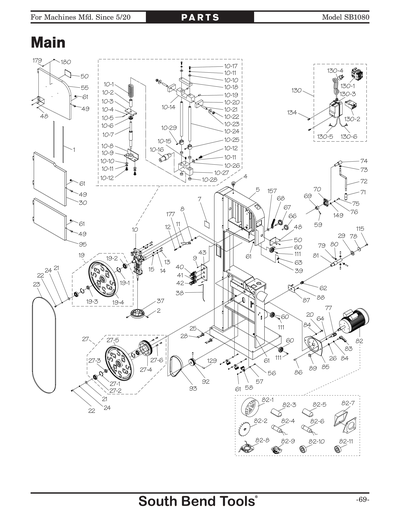

Parts for SB1080 - 16" 3 HP Heavy-Duty Resaw Bandsaw

1/8

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PSB1080001
DOOR SEAL 10 X 760 X 1MM
Price
N/A
PSB1080002
CAP SCREW M6-1 X 25
Price
N/A
PSB1080003
HEX BOLT M5-.8 X 12
Price
N/A
PSB1080004
EYE BOLT M10-1.5
Price
N/A
P
MACHINE BODY
Price
$1,794.00
PSB1080006
LOCK WASHER 5MM
Price
N/A
P
TENSION SCALE
Price
$3.45
PSB1080008
FENDER WASHER 6MM
Price
N/A
PSB1080009
FLANGE SCREW M5-.8 X 8
Price
N/A
P
UPPER WHEEL SLIDING ASSY
Price
$376.35
PSB1080010-1
COMPRESSION SPRING 7 X 34 X 90
Price
N/A
PSB1080010-10
FLAT WASHER 8MM
Price
N/A
PSB1080010-11
LOCK WASHER 8MM
Price
N/A
PSB1080010-12
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
P
BLOCK
Price
$92.90
PSB1080010-15
SET SCREW M8-1.25 X 6
Price
N/A
P
UPPER WHEEL SHAFT
Price
$58.40
PSB1080010-17
BUTTON HD CAP SCR M8-1.25 X 30
Price
N/A
P
BLOCK
Price
$46.60
PSB1080010-19
SET SCREW M6-1 X 10
Price
N/A
PSB1080010-2
BUSHING
Price
N/A
P
LOCATING BLOCK
Price
$52.35
PSB1080010-21
SET SCREW M10-1.5 X 50
Price
N/A
P
HEX NUT M10-1.5 NYLON
Price
$1.49
PSB1080010-23
FLAT WASHER 10MM
Price
N/A
P
SHAFT
Price
$58.40
P
COLLAR
Price
$43.70
PSB1080010-26
FLAT WASHER 8MM
Price
N/A
P
UPPER WHEEL SLIDING BRACKET
Price
$110.40
P
BEARING DU1610
Price
$14.70
PSB1080010-29
HEX BOLT M8-1.25 X 16
Price
N/A
P
ALIGNMENT PLATE
Price
$29.35
PSB1080010-4
HEX NUT M4-.7
Price
N/A
P
SET SCREW M4-.7 X 35
Price
$3.20
PSB1080010-6
THRUST BEARING 51201
Price
N/A
P
BLADE TENSION ADJUSTING ROD
Price
$52.35
P
ADJUSTMENT PLATE
Price
$52.35
P
BUSHING
Price
$32.20
P
POINTER
Price
$32.20
PSB1080012
SHOULDER SCREW M4-.7 X 5, 6 X 3
Price
N/A
PSB1080013
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
PSB1080014
LOCK WASHER 8MM
Price
N/A
PSB1080015
FLAT WASHER 8MM
Price
N/A
PSB1080016
FLAT WASHER 5MM
Price
N/A
P
BLADE GUARD
Price
$60.95
P
TABLE TILT ASSEMBLY
Price
$272.30
P
GUIDE BRACKET
Price
$38.85
PSB1080018-10
FLANGE SCREW M5-.8 X 10
Price
N/A
P
HOUSING COVER
Price
$10.35
P
GEAR COVER
Price
$5.50
P
PINION GEAR BOLT
Price
$9.50
P
RACK EXTENSION
Price
$9.20
P
FLAT HD SCR M4-.6 X 10
Price
$1.49
P
RACK
Price
$19.00
P
GUIDE TUBE
Price
$110.40
PSB1080018-18
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1080018-19
HEX NUT M4-.7
Price
N/A
P
WORM SHAFT
Price
$35.40
P
GEAR
Price
$32.80
P
FIXED PLATE
Price
$1.49
P
FIBER WASHER 6MM
Price
$2.30
P
BEARING BUSHING DU 10 X 12MM
Price
$3.20
PSB1080018-3
HEX NUT M16-1.5
Price
N/A
P
BUSHING
Price
$23.60
P
LOCK COLLAR
Price
$6.05
PSB1080018-6
SET SCREW M5-.8 X 5
Price
N/A
PSB1080018-7
HEX NUT M5-.8
Price
N/A
PSB1080018-8
LOCK WASHER 8MM
Price
N/A
PSB1080018-9
CAP SCREW M8-1.25 X 16
Price
N/A
P
UPPER WHEEL ASSEMBLY
Price
$445.65
PSB1080019-1
INT RETAINING RING 52MM
Price
N/A
PSB1080019-2
BALL BEARING 6205ZZ
Price
N/A
PSB1080019-3
UPPER WHEEL ASSEMBLY
Price
N/A
PSB1080019-4
UPPER WHEEL ASSEMBLY
Price
N/A
PSB1080020
HEX BOLT M10-1.5 X 35
Price
N/A
PSB1080021
FLAT WASHER 8MM
Price
N/A
PSB1080022
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1080023
SAW BLADE 131.5" X 1/2" 6TPI HOOK
Price
N/A
PSB1080024
LOCK WASHER 8MM
Price
N/A
PSB1080025
SPARE BLADE HOLDER
Price
N/A
PSB1080026
FLAT WASHER 10MM
Price
N/A
P
LOWER WHEEL ASSEMBLY
Price
$578.75
PSB1080027-1
INT RETAINING RING 52MM
Price
N/A
PSB1080027-2
BALL BEARING 6205ZZ
Price
N/A
PSB1080027-3
LOWER WHEEL ASSEMBLY
Price
N/A
PSB1080027-4
LOWER WHEEL ASSEMBLY
Price
N/A
PSB1080027-5
LOWER WHEEL ASSEMBLY
Price
N/A
PSB1080027-6
HEX BOLT M8-1.25 X 16
Price
N/A
PSB1080028
PHLP HD SCR M4-.7 X 8
Price
N/A
P
SPACER
Price
$14.70
P
LOWER WHEEL COVER
Price
$144.90
P
FENCE RAIL
Price
$199.25
P
FENCE RAIL MOUNTING PLATE
Price
$19.00
PSB1080033
FENDER WASHER 6MM
Price
N/A
PSB1080034
LOCK WASHER 6MM
Price
N/A
PSB1080035
CAP SCREW M6-1 X 20
Price
N/A
PSB1080036
HEX BOLT M10-1.5 X 90
Price
N/A
P
HANDWHEEL TYPE-33 6D X 10B-S X M8-1.25
Price
$58.40
P
SWITCH CORD 16G 1W 7.9"
Price
$6.05
PSB1080039
FLANGE SCREW M5-.8 X 8
Price
N/A
PSB1080040
KEYED SWITCH YIAN KUANG YS-K1 (SET)
Price
N/A
PSB1080041
ON BUTTON YIAN KUANG YS-F1-G
Price
N/A
PSB1080042
***USE P0514X043***
Price
N/A
P
SWITCH PLATE
Price
$15.85
PSB1080044
FLAT WASHER 8MM
Price
N/A
PSB1080045
LOCK WASHER 8MM
Price
N/A
PSB1080046
CAP SCREW M8-1.25 X 20
Price
N/A
P
SCALE
Price
$17.55
PSB1080048
RIVET 3.2 X 10 BLIND
Price
N/A
PSB1080049
CAP SCREW M6-1 X 10
Price
N/A
PSB1080050
CLEAR WINDOW 90 X 70 X 3MM
Price
N/A
PSB1080051
MAGNET STRIP 7 X 340MM
Price
N/A
PSB1080052
GUARD CLEAR WINDOW
Price
N/A
PSB1080053
SET SCREW M4-.7 X 4
Price
N/A
PSB1080054
HEX NUT M10-1.5
Price
N/A
P
UPPER WHEEL COVER
Price
$173.65
PSB1080056
HEX BOLT M6-1 X 25
Price
N/A
PSB1080057
FLAT WASHER 6MM
Price
N/A
PSB1080058
WHEEL BRUSH 1-3/4"
Price
N/A
PSB1080059
CAP SCREW M6-1 X 25
Price
N/A
P
KNOB M6-1, 10-LOBE, D60
Price
$2.90
P
HEX NUT M6-1 NYLON
Price
$1.49
PSB1080062
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
PSB1080063
GUIDE POST HEIGHT INDICATOR
Price
N/A
PSB1080064
HEX NUT M8-1.25
Price
N/A
PSB1080065
FLAT WASHER 8MM
Price
N/A
PSB1080066
KNOB BOLT 6-LOBE M10-1.5 X 20
Price
N/A
PSB1080067
KNOB BOLT 6-LOBE M10-1.5 X 53
Price
N/A
PSB1080068
LOCK LEVER M10-1.5
Price
N/A
P
CAM
Price
$63.85
PSB1080070
BLADE TENSION PILLOW BLOCK
Price
N/A
PSB1080071
HANDLE M12-1.75, 26 X 85
Price
N/A
P
SHAFT M12-1.75
Price
$58.40
PSB1080073
HEX NUT M12-1.75
Price
N/A
P
LEVER HUB
Price
$58.40
PSB1080075
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
PSB1080076
LOCK WASHER 8MM
Price
N/A
PSB1080077
HANDLE M8-1.25 X 20, 30 X 78L
Price
N/A
PSB1080078
DOCK WASHER 8 X 45 X 5
Price
N/A
PSB1080079
SET SCREW M8-1.25 X 20
Price
N/A
PSB1080080
HEX NUT M8-1.25
Price
N/A
P
LOWER WHEEL SHAFT
Price
$63.85
P
MOTOR 3HP 230V 1-PH
Price
$1,157.50
P
MOTOR FAN COVER
Price
$37.95
PSB1080082-10
BALL BEARING 6205ZZ
Price
N/A
PSB1080082-11
BALL BEARING 6203ZZ
Price
N/A
P
MOTOR FAN
Price
$20.45
P
R CAPACITOR COVER
Price
$15.85
P
R CAPACITOR 60M 300V 3-3/4 X 1-3/4
Price
$44.60
P
S CAPACITOR COVER
Price
$15.85
P
S CAPACITOR 300M 250V 3-3/4 X 1-3/4
Price
$39.10
P
MOTOR JUNCTION BOX
Price
$15.85
P
CENTRIFUGAL SWITCH & CONTACT PLATE
Price
$35.10
PSB1080082-9
CENTRIFUGAL SWITCH & CONTACT PLATE
Price
N/A
PSB1080083
ADJUSTABLE HANDLE M10-1.5 X 35
Price
N/A
PSB1080084
LOCK WASHER 10MM
Price
N/A
PSB1080085
MOTOR MOUNT BRACKET
Price
N/A
PSB1080086
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
PSB1080087
STRAIN RELIEF PLATE
Price
N/A
PSB1080088
TAP SCREW M4 X 8
Price
N/A
PSB1080089
MOTOR MOUNT PILLOW BLOCK
Price
N/A
P
SLIDING PLATE
Price
$58.40
PSB1080092
MOTOR PULLEY
Price
N/A
PSB1080093
POLY-V BELT 290J5
Price
N/A
PSB1080094
SET SCREW M8-1.25 X 6
Price
N/A
P
BLADE STORAGE COVER
Price
$121.90
PSB1080096
LIMIT SWITCH KL7141
Price
N/A
P
HEX NUT M8-1.25 NYLON
Price
$2.30
PSB1080098
CAP SCREW M10-1.5 X 35
Price
N/A
PSB1080099
HEX NUT M4-.7
Price
N/A
PSB1080100
LIMIT SWITCH CORD 18G 2W 63"
Price
N/A
P
FLEXIBLE CONDUIT 1/2"ID X 21-5/8"L
Price
$29.35
PSB1080102
CORD BUSHING
Price
N/A
PSB1080103
LOCK WASHER 10MM
Price
N/A
PSB1080104
FLAT WASHER 10MM
Price
N/A
PSB1080105
FLANGE SCREW M5-.8 X 8
Price
N/A
PSB1080106
CORD CLAMP 5/8" (PLASTIC)
Price
N/A
P
FLANGE SCREW M4-.7 X 30
Price
$1.49
PSB1080108
RUBBER BUMPER 9 X 10
Price
N/A
P
FOOT BRAKE ARM
Price
$168.20
PSB1080110
SET SCREW M7-1 X 10 (NYLON)
Price
N/A
PSB1080111
CAP SCREW M6-1 X 20
Price
N/A
PSB1080112
CAP SCREW M6-1 X 16
Price
N/A
PSB1080113
EXTENSION SPRING 1.6 X 16 X 63
Price
N/A
PSB1080114
HEX NUT M6-1
Price
N/A
PSB1080115
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1080116
FOOT BRAKE PEDAL
Price
N/A
PSB1080117
LOCK WASHER 6MM
Price
N/A
PSB1080118
BUSHING
Price
N/A
PSB1080119
BRAKE SHOE
Price
N/A
PSB1080120
CAP SCREW M6-1 X 25
Price
N/A
P
FENCE ASSEMBLY
Price
$321.15
P
FENCE
Price
$261.05
PSB1080121-10
SET SCREW M7-1 X 10 (NYLON)
Price
N/A
PSB1080121-11
SLIDE (NYLON)
Price
N/A
PSB1080121-12
SET SCREW M8-1.25 X 12
Price
N/A
PSB1080121-13
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1080121-14
HEX NUT M8-1.25
Price
N/A
PSB1080121-15
FENCE GUIDE PLATE
Price
N/A
PSB1080121-16
FLAT WASHER 8MM
Price
N/A
P
ADJUSTABLE HANDLE M8-1.25 X 20, 70L
Price
$13.80
P
POINTER
Price
$13.25
PSB1080121-3
FLANGE SCREW M5-.8 X 8
Price
N/A
PSB1080121-4
SPRING PLATE
Price
N/A
PSB1080121-5
FLANGE SCREW M4-.7 X 8
Price
N/A
PSB1080121-6
LOCK CAM
Price
N/A
PSB1080121-7
HEX NUT M8-1.25
Price
N/A
P
FIXED HANDLE 20 X 99, M8-1.25 X 22
Price
$5.50
P
SHAFT
Price
$17.55
PSB1080122
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1080123
LOCK WASHER 8MM
Price
N/A
PSB1080124
FLAT WASHER 8MM
Price
N/A
PSB1080125
BUSHING
Price
N/A
P
RESAW FENCE ASSEMBLY
Price
$163.05
PSB1080126-1
FENCE
Price
N/A
P
END CAP
Price
$3.45
PSB1080126-3
TAP SCREW M3.5 X 12
Price
N/A
PSB1080129
SET SCREW M6-1 X 12
Price
N/A
P
MAG SWITCH ASSY 230V SDE MPE-18
Price
$204.70
P
CONTACTOR SDE RA-20 230V
Price
$104.40
P
OL RELAY SDE RA-20 12-18A
Price
$63.85
P
SWITCH BOX
Price
$75.65
P
POWER CORD 14G 3W 72" 6-20P
Price
$58.40
P
MOTOR CORD 14G 3W 33.5"
Price
$23.30
P
CONTROL CORD 16G 3W 60"
Price
$29.35
PSB1080131
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
PSB1080132
LOCK WASHER 8MM
Price
N/A
PSB1080133

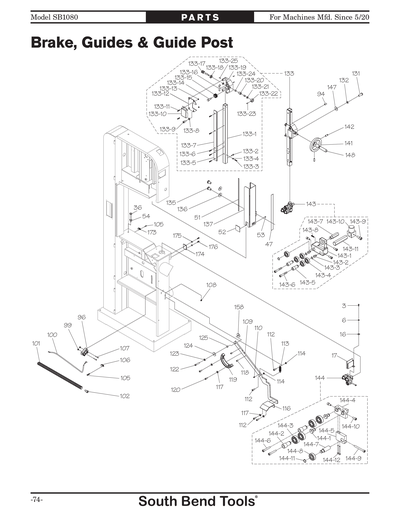

GUIDE POST ASSEMBLY
Price
N/A
P
UPPER GUIDE TUBE
Price
$75.65
PSB1080133-10
HOUSING COVER
Price
N/A
PSB1080133-11
FLANGE SCREW M5-.8 X 10
Price
N/A
PSB1080133-12
GEAR COVER
Price
N/A
PSB1080133-13
HEX NUT M5-.8
Price
N/A
PSB1080133-14
HEX BOLT M10-1.5 X 20
Price
N/A
PSB1080133-15
GEAR
Price
N/A
PSB1080133-16
FIXED PLATE
Price
N/A
PSB1080133-17
WORM SHAFT
Price
N/A
PSB1080133-18
HEX NUT M16-1.5 THIN
Price
N/A
PSB1080133-19
GUIDE BRACKET
Price
N/A
PSB1080133-2
CAP SCREW M6-1 X 10
Price
N/A
P
BUSHING
Price
$25.30
PSB1080133-21
FLAT WASHER 16MM, FIBER
Price
N/A
PSB1080133-22
LOCK COLLAR
Price
N/A
PSB1080133-23
SET SCREW M5-.8 X 5
Price
N/A
PSB1080133-24
BEARING BUSHING DU 10 X 12MM
Price
N/A
PSB1080133-25
SET SCREW M7-1 X 10 (NYLON)
Price
N/A
PSB1080133-3
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1080133-4
HEX NUT M4-.7
Price
N/A
PSB1080133-5
RACK EXTENSION
Price
N/A
PSB1080133-6
FLAT HD SCR M4-.7 X 8
Price
N/A
PSB1080133-7
RACK
Price
N/A
PSB1080133-8
LOCK WASHER 8MM
Price
N/A
PSB1080133-9
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1080134
PHLP HD SCR M5-.8 X 16
Price
N/A
PSB1080135
HEX BOLT M5-.8 X 12
Price
N/A
PSB1080136
FLAT WASHER 5MM
Price
N/A
PSB1080137
BLADE COVER
Price
N/A
PSB1080138
HEX NUT M12-1.75
Price
N/A
P
HANDLE SHAFT M12-1.75 X 140
Price
$8.95
P
KNOB M12-1.75 D26 TAPERED
Price
$4.60
P
HANDWHEEL TYPE-33 5D X 10B-S X M8-1.25
Price
$55.50
PSB1080142
SET SCREW M6-1 X 12
Price
N/A
PSB1080143
UPPER BLADE GUIDE ASSEMBLY
Price
N/A
PSB1080143-1
UPPER BLADE GUIDE MOUNTING BLOCK
Price
N/A
PSB1080143-10
UPPER BLADE GUIDE SUPPORT BLOCK
Price
N/A
PSB1080143-11
UPPER GUIDE ADJUSTMENT SHAFT
Price
N/A
PSB1080143-2
ECCENTRIC SHAFT
Price
N/A
PSB1080143-3
EXT RETAINING RING 15MM
Price
N/A
PSB1080143-4
BALL BEARING 6202ZZ
Price
N/A
PSB1080143-5
BEARING BUSHING
Price
N/A
PSB1080143-6
CAP SCREW M6-1 X 35
Price
N/A
PSB1080143-7
UPPER SUPPORT BEARING ADJ SHAFT
Price
N/A
PSB1080143-8
SET SCREW M6-1 X 10
Price
N/A
PSB1080143-9
CAP SCREW M6-1 X 16
Price
N/A
P
LOWER BLADE GUIDE ASSEMBLY
Price
$142.05
P
ECCENTRIC SHAFT
Price
$7.20
PSB1080144-10
CAP SCREW M6-1 X 12
Price
N/A
PSB1080144-11
EXT RETAINING RING 12MM
Price
N/A
PSB1080144-12
CAP SCREW M5-.8 X 40
Price
N/A
PSB1080144-2
BEARING BUSHING
Price
N/A
PSB1080144-3
BALL BEARING 6202ZZ
Price
N/A
P
LOWER BLADE GUIDE MOUNTING BLOCK
Price
$52.35
P
MOUNTING BLOCK BASE
Price
$58.40
PSB1080144-6
CAP SCREW M6-1 X 35
Price
N/A
P
BEARING BUSHING
Price
$23.30
PSB1080144-8
BALL BEARING 6201ZZ
Price
N/A
PSB1080144-9
CAP SCREW M6-1 X 55
Price
N/A
PSB1080145
MITER GAUGE ASSEMBLY
Price
N/A
P

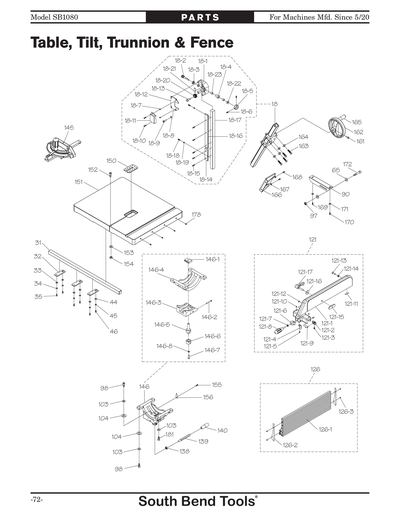

TRUNNION BLOCK ASSEMBLY
Price
$364.85
P
T-SLIDE
Price
$35.40
PSB1080146-2
HEX BOLT M6-1 X 50
Price
N/A
P
TRUNNION SUPPORT BRACKET
Price
$150.65
P
TRUNNION BLOCK
Price
$208.75
P
PRESS SHAFT
Price
$44.60
P
MICRO ADJUSTMENT RING
Price
$27.60
PSB1080146-7
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1080146-8
LOCK WASHER 8MM
Price
N/A
PSB1080147
FLAT WASHER 8MM
Price
N/A
P
FIXED HANDLE 22 X 77, M8-1.25 X 12
Price
$17.55
PSB1080149
FLAT WASHER 8MM
Price
N/A
P
TABLE INSERT
Price
$1.75
P
TABLE
Price
$1,175.05
PSB1080152
CAP SCREW M8-1.25 X 50
Price
N/A
PSB1080153
FENDER WASHER 8MM
Price
N/A
PSB1080154
HEX NUT M8-1.25 NYLON
Price
N/A
P
PHLP HD SCR M4-.7 X 5
Price
$1.49
P
POINTER
Price
$2.60
PSB1080157
FLAT WASHER 10MM
Price
N/A
P
FENDER WASHER 13 X 22 X 0.5MM STEEL
Price
$3.75
PSB1080161
CAP SCREW M6-1 X 25
Price
N/A
P
HANDWHEEL TYPE-33 X 10B- X 3/8-16
Price
$65.55
PSB1080163
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
PSB1080164
LOCK WASHER 8MM
Price
N/A
P
REVOLVING HANDLE 24 X 80, M10-1.5 X 13
Price
$22.15
P
SUPPORT PLATE
Price
$87.15
PSB1080167
FLAT WASHER 8MM
Price
N/A
PSB1080168
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1080169
CAP SCREW M6-1 X 10
Price
N/A
PSB1080170
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
PSB1080171
FLAT WASHER 6MM
Price
N/A
PSB1080172
HEX BOLT M8-1.25 X 55
Price
N/A
P
CORD CLAMP 3/8" PLASTIC
Price
$1.49
P
LIMIT PLATE
Price
$17.55
PSB1080175
FLAT WASHER 5MM
Price
N/A
PSB1080176
CAP SCREW M5-.8 X 10
Price
N/A
PSB1080177
FLAT WASHER 6MM
Price
N/A
P
PLUG
Price
$1.49
PSB1080179
FLANGE SCREW M4-.7 X 10
Price
N/A
PSB1080180
FLANGE NUT M4-.7
Price
N/A
PSB1080181
CAP SCREW M10-1.5 X 25
Price
N/A
PSB1080202

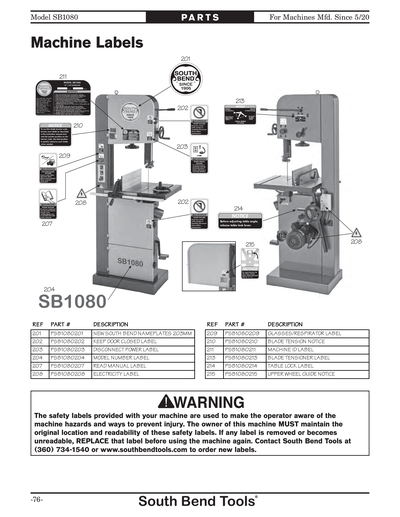

KEEP DOOR CLOSED LABEL 2 X 3.25
Price
N/A
PSB1080203
DISCONNECT POWER LABEL 2 X 3.25
Price
N/A
P
MODEL NUMBER LABEL
Price
$20.25
PSB1080207
READ MANUAL LABEL 2 X 3.25
Price
N/A
PSB1080208
ELECTRICITY LABEL 0.7
Price
N/A
PSB1080209
GLASSES/RESPIRATOR LABEL 2 X 3.25
Price
N/A
P
BLADE TENSION NOTICE
Price
$6.05
P
MACHINE ID LABEL
Price
$9.50
P
SINCE 1906 LABEL
Price
$20.25
P
BLADE TENSIONER LABEL
Price
$8.00
P
TABLE LOCK LABEL
Price
$5.25
P
UPPER WHEEL GUIDE NOTICE
Price
$6.05
P
MANUAL SB1080 MFD-05.20+ V1.10.22
Price
$15.00
