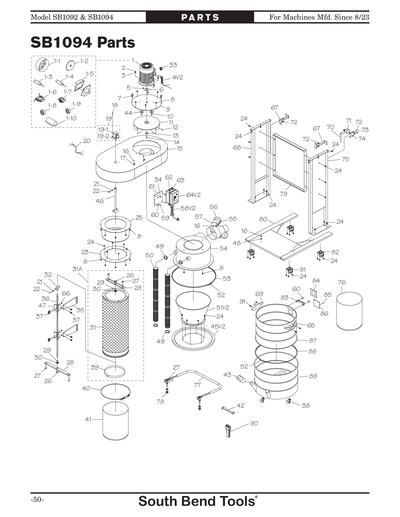

Parts for SB1094 5 HP Cyclone Dust Collector

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

P
MOTOR 5HP 220V 1-PH
P
MOTOR FAN COVER
P
CAPACITOR COVER
P
MOTOR FAN
P
S CAPACITOR 800M 250V
P
R CAPACITOR 100M 250V
P
JUNCTION BOX
P
CENTRIFUGAL SWITCH W/ CONTACT PLATE
PSB1094001-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
P
BALL BEARING 6306Z
P
BALL BEARING 6305Z
PSB1094002
Now: PN08
HEX NUT 3/8-16
Price
N/A
PSB1094003
Now: PLW04
LOCK WASHER 3/8
Price
N/A
P
MOTOR CORD 10G 3W 38" V1
P
MOTOR CORD 8G 3W 38" V2.08.23
PSB1094005
KEY 8 X 8 X 25
Price
N/A
PSB1094006
RUBBER GASKET
Price
N/A
PSB1094007
EYE BOLT 3/4", 5/16-18 X 5/8
Price
N/A
PSB1094008
Now: PFB02
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
P
MOTOR PLATE
PSB1094010
CAP SCREW 3/8-16 X 3/4
Price
N/A
P
IMPELLER 15.6" ALUMINUM
PSB1094012
SET SCREW 3/8-16 X 3/4
Price
N/A
P
IMPELLER WASHER
PSB1094014
CAP SCREW M6-1 X 25
Price
N/A
P
MAIN HOUSING
PSB1094016
TAP SCREW #10 X 3/8
Price
N/A
PSB1094017
WIRE CLIP UC4
Price
N/A
PSB1094018
CAP SCREW M4-.7 X 60
Price
N/A
P
FILTER BRUSH MOTOR ASSEMBLY
P
MOTOR 15W 220V 1-PH
P
GEAR REDUCER LUYANG 3GN90(B1)
P
MOTOR CORD 20G 4W 43"
PSB1094021
Now: PN06M
HEX NUT M5-.8
Price
N/A
PSB1094022
SET SCREW M5-.8 X 12
Price
N/A
P
CANISTER MOUNTING PLATE
PSB1094024
Now: PFB01
FLANGE BOLT 5/16-18 X 1/2
Price
N/A
P
MUFFLER
PSB1094026
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
PSB1094027
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
SELF-ALIGNING SPINDLE MOUNTING PLATE
PSB1094029
BALL BEARING 1206
Price
N/A
PSB1094030
BEARING RETAINER
Price
N/A
P
CANISTER FILTER
PSB1094031A
Replacement Filter for SB1094
Price
N/A
PSB1094032
FILTER BRUSH SPINDLE CAP
Price
N/A
PSB1094033
STRAIN RELIEF TYPE-3 M16-2
Price
N/A
PSB1094034
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
P
SCRAPER
P
FILTER BRUSH SPINDLE
PSB1094037
FLANGE BOLT M5-.8 X 12
Price
N/A
PSB1094038
DRUM CASTER 2"
Price
N/A
P
FOAM TAPE 3/4"
P
BAG CLAMP
PSB1094041
Collection Bag 570 x 600mm
Price
N/A
PSB1094042
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
PSB1094043
QUICK CONNECTOR
Price
N/A
PSB1094044
Now: PWF02
FENDER WASHER 3/8
Price
N/A
P
DRUM LID V1
P
DRUM LID V2.12.21
P
FILTER BRUSH MOTOR SHAFT
PSB1094047
SCRAPER MOUNT
Price
N/A
PSB1094048
EXT TOOTH WASHER 5/16
Price
N/A
PSB1094049
HOSE CLAMP 2"
Price
N/A
PSB1094050
FLEXIBLE HOSE 2"
Price
N/A
P
CYCLONE FUNNEL V1
P
CYCLONE FUNNEL V2.12.21
PSB1094052
Now: PB98
HEX BOLT 1/4-20 X 2-1/2
Price
N/A
P
CONE CLAMP
P
INTAKE HOUSING
PSB1094055
CHAIN
Price
N/A
PSB1094056
INLET CAP 4"
Price
N/A
P
INLET ADAPTER 10" X 4" X 4
P
POWER CORD 10G 3W 125" V1
P
POWER CORD 8G 3W 125" V2.08.23
PSB1094059
Now: PS18
PHLP HD SCR 10-24 X 1/4
Price
N/A
PSB1094060
Now: PFH03
FLAT HD SCR 1/4-20 X 1/2
Price
N/A
PSB1094061
SWITCH BOX MOUNTING PLATE
Price
N/A
P
STRAIN RELIEF TYPE-3 M16-2
P
STRAIN RELIEF TYPE-3 M25-3
P
MAGNETIC SWITCH V1
P
MAGNETIC SWITCH V2.08.23
P
START SWITCH W/BUTTON
P
LEFT DRUM BRACKET
PSB1094066
FLANGE NUT M5-.8
Price
N/A
P
HANDLE BRACKET
P
RIGHT SIDE PANEL
P
RIGHT DRUM BRACKET
P
CLEAR TUBE 6 X 360MM
PSB1094071
VACUUM PRESSURE GAUGE
Price
N/A
PSB1094072
Now: PFB03
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
PSB1094073
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
PSB1094074
VACUUM GAUGE MOUNT
Price
N/A
P
LEFT SIDE PANEL
PSB1094076
Collection Bag 24-1/2" x 47-1/4" for SB1094
Price
N/A
P
DRUM LOCK HANDLE
PSB1094078
LOCK NUT M10-1.5
Price
N/A
P
SUPPORT PANEL
P
BASE
PSB1094081
LOCKING CASTER 3"
Price
N/A
PSB1094082
CASTER 3"
Price
N/A
PSB1094083
DRUM HANDLE
Price
N/A
PSB1094084
WINDOW SEAL
Price
N/A
PSB1094085
RIVET 9 X 3 BLIND
Price
N/A
PSB1094086
DRUM WINDOW
Price
N/A
P
UPPER COLLECTION DRUM
P
DRUM CLAMP
P
LOWER COLLECTION DRUM
PSB1094090
REMOTE CONTROL
Price
N/A
PSB1094091
FLANGE BOLT 5/16-18 X 3/8
Price
N/A
PSB1094101

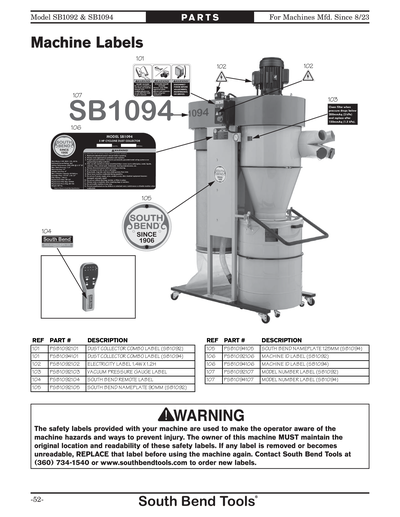

DUST COLLECTOR COMBO LABEL
Price
N/A
PSB1094102
ELECTRICITY LABEL 0.5
Price
N/A
PSB1094103
VACUUM PRESSURE GAUGE LABEL
Price
N/A
PSB1094104
SOUTH BEND REMOTE LABEL
Price
N/A
PSB1094105
New South Bend Nameplates 125mm (5")
Price
N/A
P
MACHINE ID LABEL
P
MODEL NUMBER LABEL
PSB1094MAN
MANUAL SB1092/94 MFD-9.20-11.21 V1.10.20
Price
N/A
PSB1094MANV2
MANUAL SB1092/94 MFD-12.21-7.23 V2.06.22
Price
N/A
