Parts for SB1096 - 37" 15 HP 3-Phase Wide-Belt Sander
If you cannot locate your part below, please contact our tech support
department at
techsupport@grizzly.com
or 570-546-9663.
Please note: All parts ship out of our Springfield, Missouri facility.
P

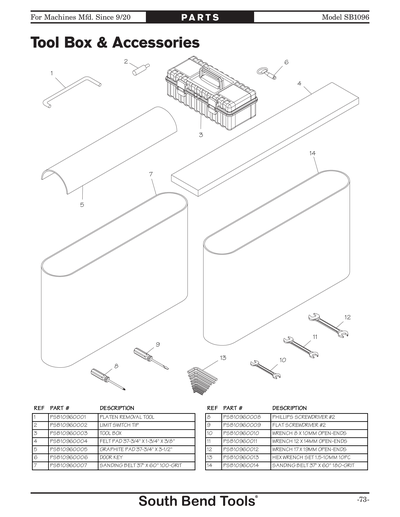

FELT PAD 37-3/4" X 1-3/4" X 3/8"
P
GRAPHITE PAD 37-3/4" X 3-1/2"
P
SANDING BELT 37" X 60" 100-GRIT
PSB10960010
WRENCH 8 X 10MM OPEN-ENDS
PSB10960011
WRENCH 12 X 14MM OPEN-ENDS
PSB10960012
WRENCH 17 X 19MM OPEN-ENDS
P
HEX WRENCH SET 1.5-10MM 10PC
P
SANDING BELT 37" X 60" 180-GRIT
P
MANUAL SB1096 MFD-09.20+ V1.09.20
P
BELT TENSION ADJUSTMENT ROD
P

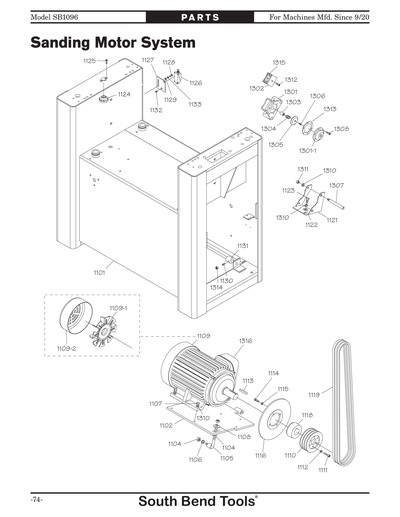

MOTOR 15HP 220V/440V 3-PH
PSB10961111
CAP SCREW 5/16-18 X 1-1/4
P
LIMIT SWITCH MOUJEN ME-8111
P
BRAKE CALIPER FRONT GUARD
P
COMPRESSION SPRING 22 X 25
P

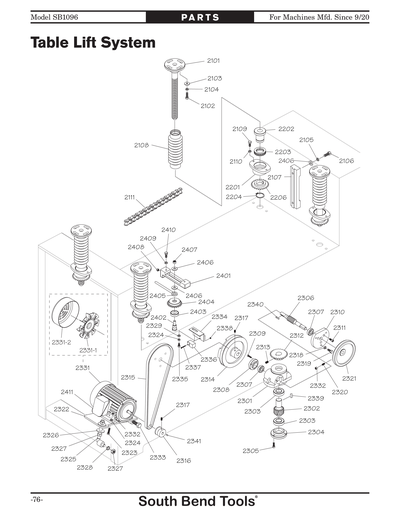

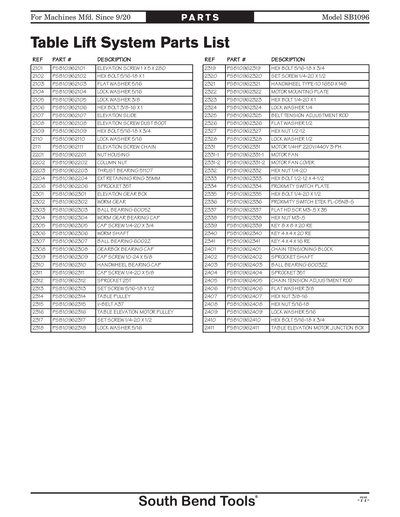

ELEVATION SCREW 1 X 5 X 280
P
ELEVATION SCREW DUST BOOT
P
TABLE ELEVATION MOTOR PULLEY
P
HANDWHEEL TYPE-10 165D X 14B
P
BELT TENSION ADJUSTMENT ROD
P
MOTOR 1/4HP 220V/440V 3-PH
P
PROXIMITY SWITCH ETEK PL-05NB-S
P
CHAIN TENSION ADJUSTMENT ROD
P
TABLE ELEVATION MOTOR JUNCTION BOX
P
PLUG BOLT 3/8-16 X 1-3/16
P
MOTOR 1 HP 220V/440V 3-PH
P
INFEED ROLLER BRACKET (RH)
P
INFEED ROLLER BRACKET (LH)
P

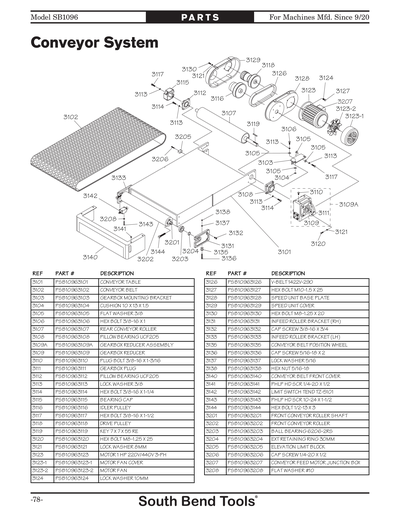

CONVEYOR BELT POSITION WHEEL
P
CONVEYOR BELT FRONT COVER
P
LIMIT SWITCH TEND TZ-5101
PSB10963143
PHLP HD SCR 10-24 X 1-1/2
P
FRONT CONVEYOR ROLLER SHAFT
P
CONVEYOR FEED MOTOR JUNCTION BOX
P
COMPRESSION SPRING 3 X 15.6 X 57
PSB10965106
CAP SCREW 5/16-18 X 1-1/4
P
KEY 5/16 X 5/16 X 1-3/16 RE
P

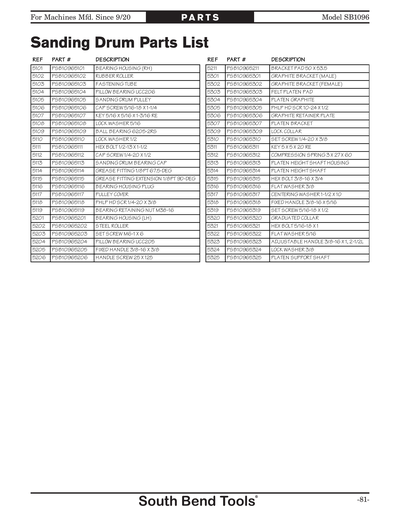

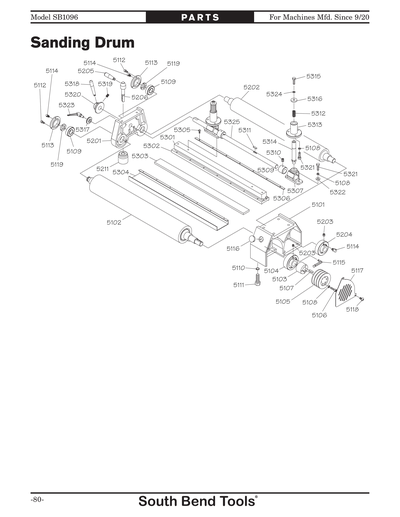

GREASE FITTING 1/8PT 67.5-DEG
P
GREASE FITTING EXTENSION 1/8PT 90-DEG
P
BEARING RETAINING NUT M38-16
P
FIXED HANDLE 3/8-16 X 3/8
P
GRAPHITE BRACKET (FEMALE)
P
COMPRESSION SPRING 3 X 27 X 60
P
PLATEN HEIGHT SHAFT HOUSING
P
CENTERING WASHER 1-1/2 X 10
P
FIXED HANDLE 3/8-16 X 5/16
P
ADJUSTABLE HANDLE 3/8-16 X 1, 2-1/2L
P
SQUARE FRAME SEAL (RIGHT)
P
BELT TENSION AIR CYLINDER
P
LIMIT SWITCH MOUNTING BRACKET
P
LIMIT SWITCH MOUJEN ME-8166
P
LIMIT SWITCH MOUNTING BRACKET
P
LIMIT SWITCH SHUTDOWN BRACKET
P

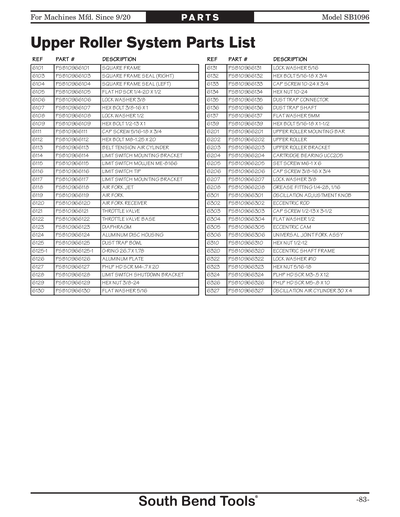

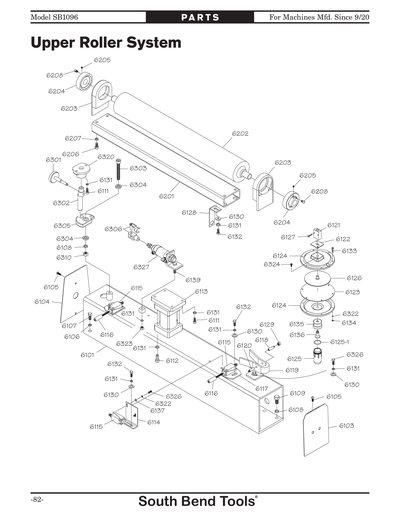

UPPER ROLLER MOUNTING BAR
P
GREASE FITTING 1/4-28, 1/16
P
OSCILLATION ADJUSTMENT KNOB
P
UNIVERSAL JOINT FORK ASSY
P
OSCILLATION AIR CYLINDER 30 X 4
P

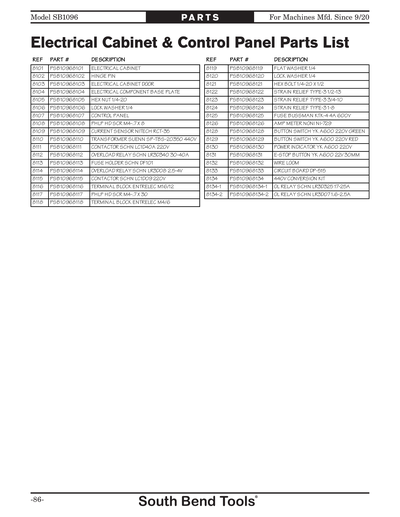

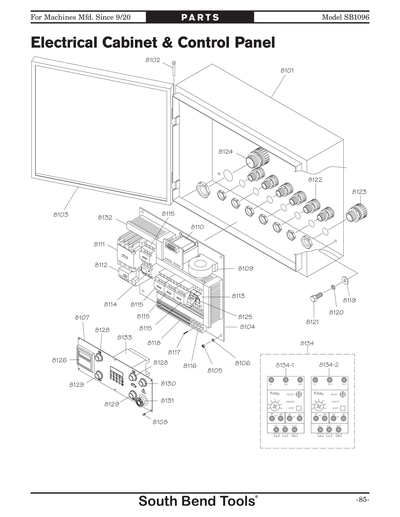

ELECTRICAL COMPONENT BASE PLATE
P
CURRENT SENSOR NITECH RCT-35
P
TRANSFORMER SUENN SP-TBS-20350 440V
P
CONTACTOR SCHN LC1D40A 220V
P
OVERLOAD RELAY SCHN LR3D340 30-40A
P
OVERLOAD RELAY SCHN LR3D08 2.5-4V
P
CONTACTOR SCHN LC1D09 220V
P
TERMINAL BLOCK ENTRELEC M16/12
P
TERMINAL BLOCK ENTRELEC M4/6
P
STRAIN RELIEF TYPE-3 1/2-13
P
STRAIN RELIEF TYPE-3 3/4-10
P
FUSE BUSSMAN KTK-4 4A 600V
P
BUTTON SWITCH YK A600 220V GREEN
P
BUTTON SWITCH YK A600 220V RED
P
POWER INDICATOR YK A600 220V
P
E-STOP BUTTON YK A600 22V 30MM
PSB10968134
440V CONVERSION KIT V2.09.10
PSB10968134-1
OL RELAY SCHN LR3D325 17-25A V2.09.10
PSB10968134-2
OL RELAY SCHN LR3D07 1.6-2.5A
P
STRAIGHT FITTING 5/16N X 1/4T BRONZE
P
ELBOW FITTING 1/4T X 1/4T 90-DEG
P
ELBOW FITTING 5/16N X 1/4T 90-DEG
P

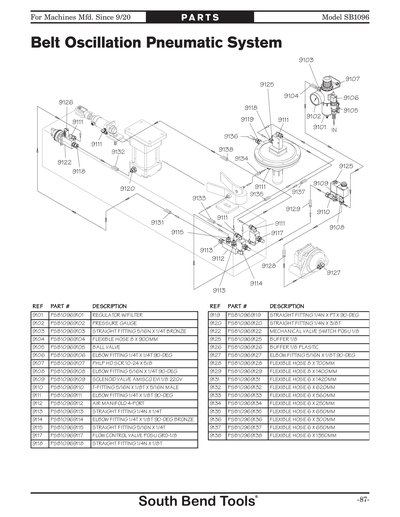

SOLENOID VALVE AMISCO EVI 1/8 220V
P
T-FITTING 5/16N X 1/8T X 5/16N MALE
P
ELBOW FITTING 1/4T X 1/8T 90-DEG
P
STRAIGHT FITTING 1/4N X 1/4T
P
ELBOW FITTING 1/4T X 1/8T 90-DEG BRONZE
P
STRAIGHT FITTING 5/16N X 1/4T
P
FLOW CONTROL VALVE POSU GRO-1/8
P
STRAIGHT FITTING 1/4N X 1/8T
P
STRAIGHT FITTING 1/4N X PT X 90-DEG
P
STRAIGHT FITTING 1/4N X 3/8T
P
MECHANICAL VALVE SWITCH POSU 1/8
P
ELBOW FITTING 5/16N X 1/8T 90-DEG
PSB10969202

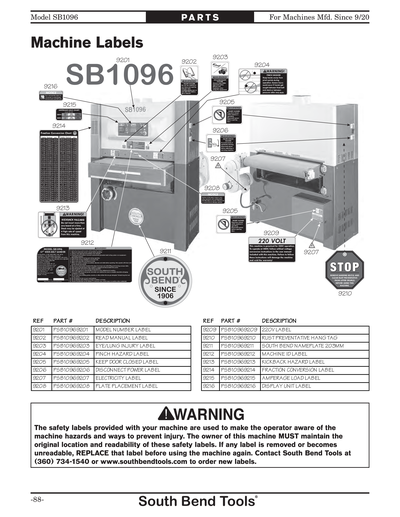

READ MANUAL LABEL 2 X 3.25
PSB10969203
GLASSES/RESP LABEL 2 X 3.25
PSB10969205
KEEP DOOR CLOSED LABEL 3.25 X 2
P
RUST PREVENTATIVE HANG TAG
P
FRACTION CONVERSION LABEL
