Parts for SB1108 - 15" Variable-Speed Planer with Helical Cutterhead

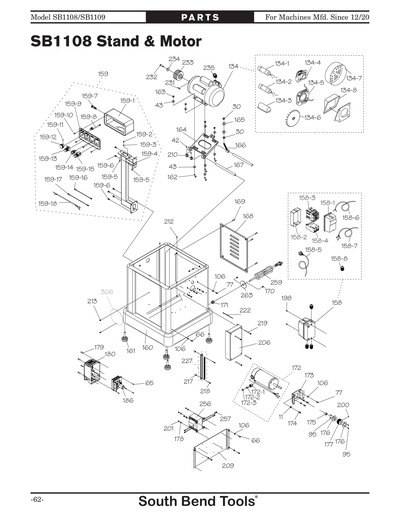

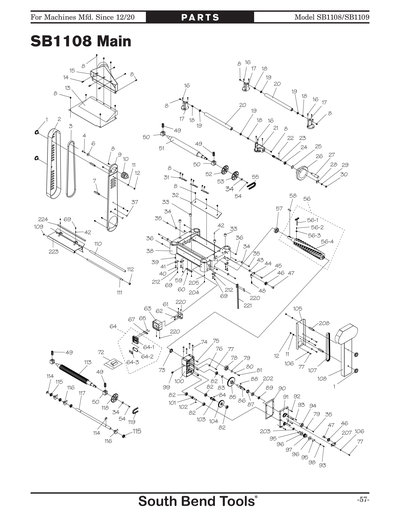

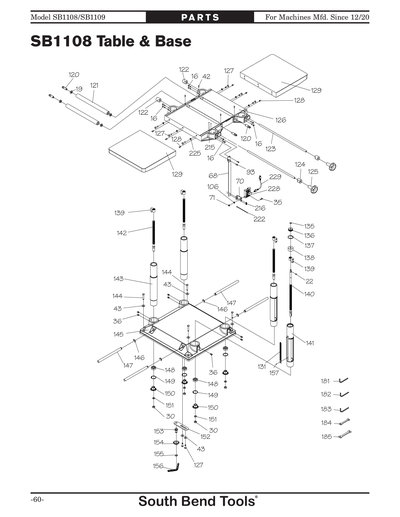

Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108
Part Diagram for SB1108

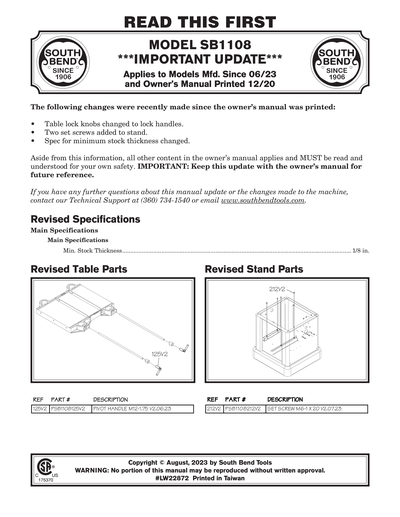

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

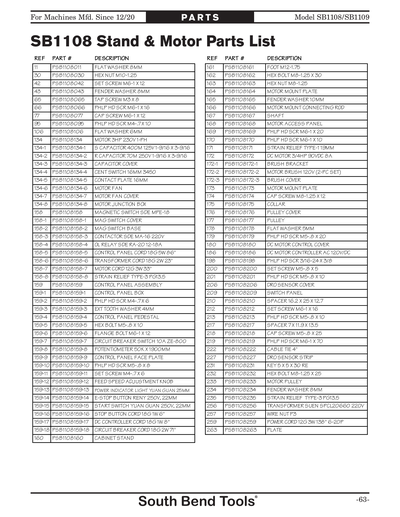

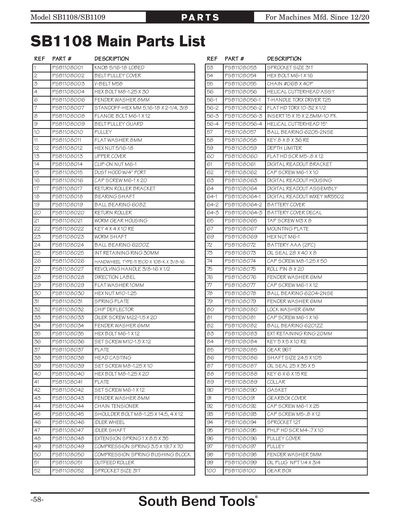

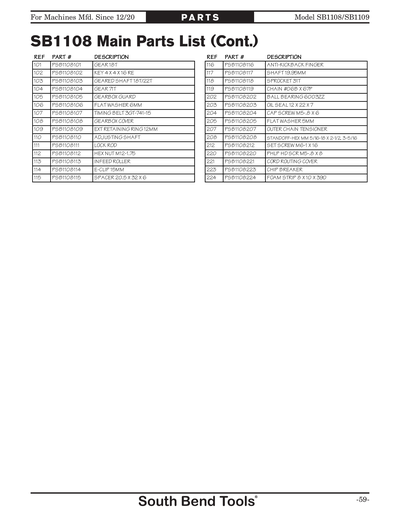

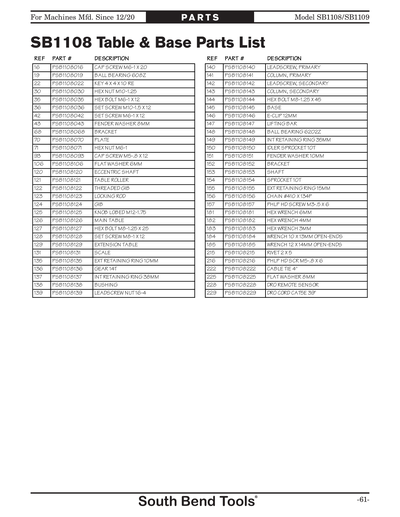

Ref #
Part #
Description
P
THREADED GIB
Price
$4.90
P
KNOB 5/16-18 LOBED
Price
$15.70
P
BELT PULLEY COVER
Price
$67.65
P
V-BELT M58
Price
$18.45
PSB1108004
HEX BOLT M8-1.25 X 30
Price
N/A
PSB1108006
FENDER WASHER 8MM
Price
N/A
P
STANDOFF-HEX MM 5.16-18 X 2-1/4, 3/8
Price
$4.35
PSB1108008
FLANGE BOLT M6-1 X 12
Price
N/A
P
BELT PULLEY GUARD
Price
$60.70
P
PULLEY
Price
$32.95
PSB1108011
FLAT WASHER 8MM
Price
N/A
PSB1108012
HEX NUT 5/16-18
Price
N/A
P
UPPER COVER
Price
$71.60
P
CLIP-ON NUT M6-1
Price
$2.30
P
***USE P0550016***
Price
$27.35
PSB1108016
CAP SCREW M6-1 X 20
Price
N/A
P
RETURN ROLLER BRACKET
Price
$19.10
P
BEARING SHAFT
Price
$3.65
PSB1108019
BALL BEARING 608Z
Price
N/A
P
RETURN ROLLER
Price
$41.40
P
WORM GEAR HOUSING
Price
$67.05
P
KEY 4 X 4 X 10 RE
Price
$2.20
P
WORM SHAFT
Price
$21.20
PSB1108024
BALL BEARING 6200Z
Price
N/A
PSB1108025
INT RETAINING RING 30MM
Price
N/A
P
HANDWHEEL TYPE-11 150D X 10B-K X 3/8-16
Price
$71.25
P
REVOLVING HANDLE 3/8-16 X 1/2
Price
$18.70
P
DIRECTION LABEL
Price
$1.85
PSB1108029
FLAT WASHER 10MM
Price
N/A
PSB1108030
HEX NUT M10-1.25
Price
N/A
P
SPRING PLATE
Price
$3.40
P
CHIP DEFLECTOR
Price
$6.35
P
OILER SCREW M22-1.5 X 20
Price
$5.15
PSB1108034
FENDER WASHER 6MM
Price
N/A
PSB1108035
HEX BOLT M6-1 X 12
Price
N/A
PSB1108036
SET SCREW M10-1.5 X 12
Price
N/A
PSB1108037
PULLEY GUARD PLATE
Price
N/A
P
HEAD CASTING
Price
$744.45
PSB1108039
SET SCREW M8-1.25 X 10
Price
N/A
PSB1108040
HEX BOLT M8-1.25 X 20
Price
N/A
P
PLATE
Price
$3.40
PSB1108042
SET SCREW M6-1 X 12
Price
N/A
PSB1108043
FENDER WASHER 8MM
Price
N/A
P
CHAIN TENSIONER
Price
$3.20
P
SHOULDER BOLT M8-1.25 X 14.5, 4 X 12
Price
$3.45
P
IDLER WHEEL
Price
$4.35
P
IDLER SHAFT
Price
$4.05
P
EXTENSION SPRING 1 X 8.5 X 35
Price
$2.05
P
COMPRESSION SPRING 3.5 X 19.7 X 70
Price
$2.90
P
COMPRESSION SPRING BUSHING BLOCK
Price
$10.30
P
OUTFEED ROLLER
Price
$139.50
P
SPROCKET SIZE 31T
Price
$14.50
P
SPROCKET SIZE 31T
Price
$15.15
PSB1108054
HEX BOLT M6-1 X 16
Price
N/A
P
CHAIN #06B X 40P
Price
$14.50
P
HELICAL CUTTERHEAD ASSY
Price
$1,979.75
PSB1108056-1
T-HANDLE T-25 TORX DRIVER V2.06.11
Price
N/A
PSB1108056-2
FLAT HD TORX SCR #10-32 X 1/2
Price
N/A
P
INSERT 15 X 15 X 2.5MM-10 PK
Price
$190.80
P
HELICAL CUTTERHEAD 15"
Price
$1,263.70
PSB1108057
***USE PSB1109069***
Price
N/A
P
KEY 8 X 8 X 36 RE
Price
$2.45
P
DEPTH LIMITER
Price
$2.30
PSB1108060
FLAT HD SCR M5-.8 X 12
Price
N/A
P
DIGITAL READOUT BRACKET V1
Price
$6.70
P
DIGITAL READOUT BRACKET V2.11.22
Price
$9.70
PSB1108062
CAP SCREW M6-1 X 10
Price
N/A
P
DIGITAL READOUT HOUSING V1
Price
$36.25
P
DIGITAL READOUT HOUSING V2.11.22
Price
$53.80
P
DIGITAL READOUT ASSEMBLY
Price
$71.25
PSB1108064-1
DIGITAL READOUT ASSEMBLY V3.02.19
Price
N/A
PSB1108064-2
BATTERY COVER
Price
N/A
P
BATTERY COVER DECAL
Price
$2.75
PSB1108065
TAP SCREW M3 X 8
Price
N/A
PSB1108066
PHLP HD SCR M6-1 X 16
Price
N/A
P
MOUNTING PLATE
Price
$3.40
P
BRACKET
Price
$13.30
PSB1108069
HEX NUT M6-1
Price
N/A
P
PLATE
Price
$3.40
PSB1108071
HEX NUT M6-1
Price
N/A
P
BATTERY AAA (2PC)
Price
$8.20
P
OIL SEAL 28 X 40 X 8
Price
$4.05
P
CAP SCREW M8-1.25 X 50
Price
$2.20
PSB1108075
ROLL PIN 8 X 20
Price
N/A
PSB1108076
FENDER WASHER 6MM
Price
N/A
PSB1108077
CAP SCREW M6-1 X 12
Price
N/A
PSB1108078
BALL BEARING 6204-2NSE
Price
N/A
PSB1108079
FENDER WASHER 6MM
Price
N/A
PSB1108080
LOCK WASHER 6MM
Price
N/A
PSB1108081
CAP SCREW M6-1 X 16
Price
N/A
PSB1108082
BALL BEARING 6201ZZ
Price
N/A
PSB1108083
EXT RETAINING RING 20MM
Price
N/A
PSB1108084
KEY 5 X 5 X 10 RE
Price
N/A
P
GEAR 96T
Price
$59.20
P
SHAFT SIZE 24.5 X 105
Price
$27.55
P
OIL SEAL 25 X 35 X 5
Price
$3.65
P
KEY 6 X 6 X 15 RE
Price
$2.20
PSB1108089
COLLAR
Price
N/A
P
GASKET
Price
$6.05
P
GEARBOX COVER
Price
$25.05
PSB1108092
CAP SCREW M6-1 X 25
Price
N/A
PSB1108093
CAP SCREW M5-.8 X 12
Price
N/A
P
SPROCKET 12T
Price
$6.35
PSB1108095
PHLP HD SCR M4-.7 X 10
Price
N/A
P
PULLEY COVER
Price
$2.75
P
PULLEY
Price
$28.75
PSB1108098
FENDER WASHER 5MM
Price
N/A
PSB1108099
OIL PLUG V1
Price
N/A
P
GEAR BOX
Price
$65.85
P
GEAR 18T
Price
$26.90
P
KEY 4 X 4 X 16 RE
Price
$2.20
PSB1108103
GEAR 18T/22T 2-SPEED V1
Price
N/A
PSB1108104
GEAR
Price
N/A
P
GEARBOX GUARD
Price
$23.90
PSB1108106
FLAT WASHER 6MM
Price
N/A
P
TIMING BELT 3GT-741-15
Price
$39.60
P
GEARBOX COVER
Price
$98.45
PSB1108109
EXT RETAINING RING 12MM
Price
N/A
P
ADJUSTING SHAFT
Price
$14.50
P
LOCK ROD
Price
$10.90
PSB1108112
HEX NUT M12-1.75
Price
N/A
P
INFEED ROLLER
Price
$159.15
PSB1108114
E-CLIP 15MM
Price
N/A
P
SPACER 20.5 X 32 X 6
Price
$2.05
P
ANTI-KICKBACK FINGER
Price
$2.30
P
SHAFT 19.95MM
Price
$22.40
P
SPROCKET 31T
Price
$15.15
P
CHAIN #06B X 67P
Price
$22.75
P
ECCENTRIC SHAFT
Price
$5.15
P
TABLE ROLLER
Price
$35.35
P
THREADED GIB
Price
$6.40
P
LOCKING ROD
Price
$11.50
P
GIB
Price
$5.50
P
***USE PSB1109140***
Price
$6.35
PSB1108125V2
PIVOT HANDLE M12-1.75
Price
N/A
P
MAIN TABLE
Price
$398.70
PSB1108127
HEX BOLT M8-1.25 X 25
Price
N/A
P
SET SCREW M8-1 X 12
Price
$1.60
P
EXTENSION TABLE
Price
$240.95
P
SCALE
Price
$2.45
P
MOTOR 3HP 230V 1-PH
Price
$1,008.90
PSB1108134-1
S CAPACITOR 400M 125V 1-9/16 X 3-1/2
Price
N/A
PSB1108134-2
R CAP 70M 250V 1-9/16 X 3-1/2 V2.09.18
Price
N/A
PSB1108134-3
CAPACITOR COVER (RUN)
Price
N/A
PSB1108134-4
CENTRIFUGAL SWITCH
Price
N/A
PSB1108134-5
CONTACT PLATE
Price
N/A
PSB1108134-6
MOTOR FAN
Price
N/A
PSB1108134-7
MOTOR FAN COVER
Price
N/A
PSB1108134-8
JUNCTION BOX
Price
N/A
PSB1108135
EXT RETAINING RING 10MM
Price
N/A
P
GEAR 14T
Price
$11.50
PSB1108137
INT RETAINING RING 38MM
Price
N/A
P
BUSHING
Price
$6.35
P
LEADSCREW NUT 16-4
Price
$7.90
P
LEADSCREW, PRIMARY
Price
$24.15
P
COLUMN, PRIMARY
Price
$98.45
P
LEADSCREW, SECONDARY
Price
$16.40
P
COLUMN, SECONDARY
Price
$93.95
PSB1108144
HEX BOLT M8-1.25 X 45
Price
N/A
P
BASE
Price
$402.45
PSB1108146
E-CLIP 12MM
Price
N/A
P
LIFTING BAR
Price
$8.80
PSB1108148
BALL BEARING 6202Z
Price
N/A
PSB1108149
INT RETAINING RING 35MM
Price
N/A
P
IDLER SPROCKET 10T
Price
$4.35
PSB1108151
FENDER WASHER 10MM
Price
N/A
P
BRACKET
Price
$5.75
PSB1108153
SHAFT
Price
N/A
P
SPROCKET 10T
Price
$4.35
PSB1108155
EXT RETAINING RING 15MM
Price
N/A
P
CHAIN #410 X 134P
Price
$22.05
P
PHLP HD SCREW M3-.5 X 6
Price
$1.60
P
MAGNETIC SWITCH SDE MPE-18
Price
$278.05
PSB1108158-1
SWITCH COVER FRONT
Price
N/A
PSB1108158-2
MAG SWITCH BACK COVER
Price
N/A
PSB1108158-3
CONTACTOR SDE MA-18 220V
Price
N/A
PSB1108158-4
OL RELAY SDE RA-20 12-18A
Price
N/A
P
CONTROL PANEL CORD 18G 5W 86"
Price
$45.90
P
TRANSFORMER CORD 18G 2W 23"
Price
$6.40
P
MOTOR CORD 12G 3W 33"
Price
$23.60
PSB1108158-8
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
P
CONTROL PANEL ASSEMBLY
Price
$413.00
P
CONTROL PANEL BOX
Price
$105.40
PSB1108159-10
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB1108159-11
SET SCREW M4-.7 X 6
Price
N/A
P
FEED SPEED ADJUSTMENT KNOB
Price
$15.70
P
POWER INDICATOR LIGHT YUAN GUAN 25MM
Price
$19.30
PSB1108159-14
E-STOP BUTTON NHD NPB22-H
Price
N/A
P
START SWITCH YUAN GUAN 250V, 22MM
Price
$23.90
PSB1108159-16
DRO CORD 18G 1W 6" V2.10.20
Price
N/A
P
DC CONTROLLER CORD 18G 1W 8"
Price
$4.60
P
CIRCUIT BREAKER CORD 18G 2W 71"
Price
$16.65
PSB1108159-2
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1108159-3
EXT TOOTH WASHER 4MM
Price
N/A
P
CONTROL PANEL PEDESTAL
Price
$168.50
PSB1108159-5
HEX BOLT M5-.8 X 10
Price
N/A
PSB1108159-6
FLANGE BOLT M6-1 X 12
Price
N/A
P
CIRCUIT BREAKER SWITCH 10A ZE-800
Price
$9.70
P
POTENTIOMETER 50K X 1900MM
Price
$14.50
P
CONTROL PANEL FACE PLATE
Price
$34.45
P
CABINET STAND
Price
$669.60
P
FOOT M12-1.75
Price
$12.40
PSB1108162
HEX BOLT M8-1.25 X 30
Price
N/A
PSB1108163
HEX NUT M8-1.25
Price
N/A
P
MOTOR MOUNT PLATE
Price
$49.55
PSB1108165
FENDER WASHER 10MM
Price
N/A
P
MOTOR MOUNT CONNECTING ROD
Price
$6.40
P
SHAFT
Price
$9.10
P
MOTOR ACCESS PANEL
Price
$48.30
PSB1108169
PHLP HD SCR M6-1 X 20
Price
N/A
PSB1108170
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1108171
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
P
DC MOTOR 3/4HP 90VDC 8A
Price
$565.75
PSB1108172-1
BRUSH HOLDER
Price
N/A
P
MOTOR BRUSH 120V (2-PC SET)
Price
$15.45
P
BRUSH COVER
Price
$3.95
P
MOTOR MOUNT PLATE
Price
$33.25
PSB1108174
CAP SCREW M8-1.25 X 12
Price
N/A
P
COLLAR
Price
$3.40
P
PULLEY COVER
Price
$6.70
P
PULLEY
Price
$36.55
PSB1108178
FLAT WASHER 5MM
Price
N/A
PSB1108179
PHLP HD SCR M5-.8 X 20
Price
N/A
P
DC MOTOR CONTROL COVER
Price
$13.80
PSB1108181
HEX WRENCH 6MM
Price
N/A
PSB1108182
HEX WRENCH 4MM
Price
N/A
PSB1108183
HEX WRENCH 3MM
Price
N/A
PSB1108184
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
PSB1108185
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
P
DC MOTOR CONTROLLER AC 120V/DC
Price
$118.90
P
PHLP HD SCR 3/16-24 X 3/8
Price
$1.60
PSB1108199
FLAT WASHER 6MM
Price
N/A
PSB1108200
SET SCREW M5-.8 X 5
Price
N/A
PSB1108201
PHLP HD SCR M5-.8 X 10
Price
N/A
P
BALL BEARING 6003ZZ
Price
$5.20
P
OIL SEAL 12 X 22 X 7
Price
$7.90
PSB1108204
CAP SCREW M5-.8 X 6
Price
N/A
PSB1108205
FLAT WASHER 5MM
Price
N/A
P
DRO SENSOR COVER
Price
$39.60
P
OUTER CHAIN TENSIONER
Price
$3.95
P
STANDOFF-HEX MM 5/16-18 X 2-1/2, 3-5/16
Price
$7.25
P
SWITCH PANEL
Price
$67.40
P
SPACER 16.2 X 25 X 12.7
Price
$3.75
PSB1108212
SET SCREW M6-1 X 16
Price
N/A
PSB1108212V2
SET SCREW M6-1 X 20
Price
N/A
PSB1108213
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1108215
RIVET 2 X 5
Price
N/A
PSB1108216
PHLP HD SCR M5-.8 X 6
Price
N/A
P
SPACER 7 X 11.9 X 13.5
Price
$2.20
PSB1108218
CAP SCREW M5-.8 X 25
Price
N/A
PSB1108219
PHLP HD SCR M6-1 X 70
Price
N/A
PSB1108220
PHLP HD SCR M5-.8 X 8
Price
N/A
P
CORD ROUTING COVER
Price
$25.70
P
CABLE TIE 4"
Price
$1.60
P
CHIP BREAKER
Price
$57.40
P
FOAM STRIP 8 X 10 X 390
Price
$2.20
PSB1108225
FLAT WASHER 8MM
Price
N/A
P
DRO SENSOR STRIP
Price
$108.10
P
DRO REMOTE SENSOR
Price
$47.75
P
DRO CORD CAT5E 39"
Price
$17.25
P
KEY 5 X 5 X 30 RE
Price
$2.45
PSB1108232
HEX BOLT M8-1.25 X 25
Price
N/A
P
MOTOR PULLEY
Price
$59.50
PSB1108234
FENDER WASHER 8MM
Price
N/A
P
STRAIN RELIEF TYPE-3 PG13.5
Price
$7.60
P
TRANSFORMER SUEN SPCL20660 220V
Price
$286.85
P
WIRE NUT P3
Price
$2.20
P
POWER CORD 12G 3W 138" 6-20P
Price
$81.85
P
PLATE
Price
$4.90
P

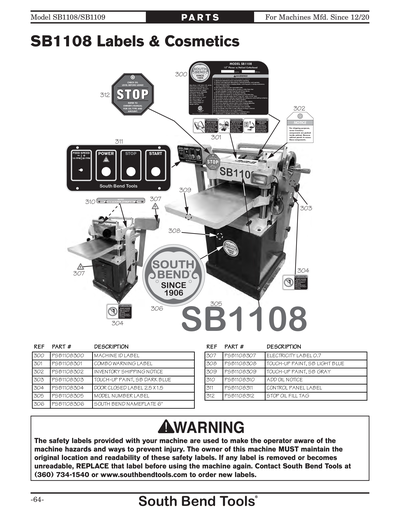

MACHINE ID LABEL
Price
$16.40
PSB1108301
COMBO WARNING LABEL
Price
N/A
PSB1108302
INVENTORY SHIPPING NOTICE
Price
N/A
PSB1108303
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
PSB1108304
KEEP DOOR CLOSED LABEL 2.5 X 1.5
Price
N/A
P
MODEL NUMBER LABEL
Price
$5.55
PSB1108306
New South Bend Nameplates 152mm (6")
Price
N/A
PSB1108307
ELECTRICITY LABEL 0.7
Price
N/A
PSB1108308
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1108309
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
P
ADD OIL NOTICE
Price
$1.49
P
CONTROL PANEL LABEL
Price
$9.20
P
STOP OIL FILL TAG
Price
$3.05
P
MANUAL SB1108/SB1109 MFD-12.20+ V1.12.20
Price
$18.00
