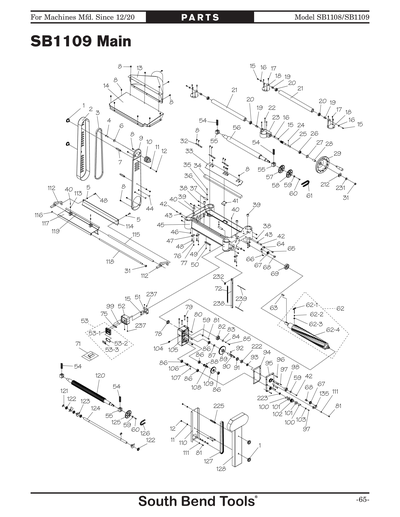

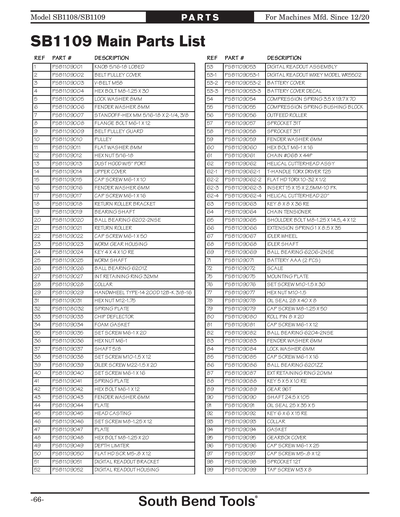

Parts for SB1109 20" Variable-Speed Planer with Helical Cutterhead

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

PSB1109001
KNOB 5/16-18 LOBED
Price
N/A
PSB1109002
BELT PULLEY COVER
Price
N/A
P
V-BELT M58
PSB1109004
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
PSB1109005
LOCK WASHER 8MM
Price
N/A
PSB1109006
FENDER WASHER 8MM
Price
N/A
P
STANDOFF-HEX MM 5/16-18 X 2-1/4, 3/8
PSB1109008
FLANGE BOLT M6-1 X 12
Price
N/A
PSB1109009
BELT PULLEY GUARD
Price
N/A
PSB1109010
PULLEY
Price
N/A
PSB1109011
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1109012
Now: PN02
HEX NUT 5/16-18
Price
N/A
P
DUST HOOD W/5" PORT
P
UPPER COVER
PSB1109015
CAP SCREW M6-1 X 10
Price
N/A
PSB1109016
FENDER WASHER 6MM
Price
N/A
PSB1109017
CAP SCREW M6-1 X 16
Price
N/A
P
RETURN ROLLER BRACKET
P
BEARING SHAFT
P
BALL BEARING 6202-2NSE
P
RETURN ROLLER
PSB1109022
CAP SCREW M6-1 X 50
Price
N/A
P
WORM GEAR HOUSING
PSB1109024
KEY 4 X 4 X 10 RE
Price
N/A
P
WORM SHAFT
PSB1109026
BALL BEARING 6201Z
Price
N/A
PSB1109027
Now: PR29M
INT RETAINING RING 32MM
Price
N/A
PSB1109028
COLLAR
Price
N/A
P
HANDWHEEL TYPE-14 200D 12B-K 3/8-16
PSB1109030
FENDER WASHER 12MM
Price
N/A
PSB1109031
Now: PN09M
HEX NUT M12-1.75
Price
N/A
PSB1109032
SPRING PLATE
Price
N/A
P
CHIP DEFLECTOR
PSB1109034
GASKET
Price
N/A
PSB1109035
SET SCREW M6-1 X 20
Price
N/A
PSB1109036
Now: PN01M
HEX NUT M6-1
Price
N/A
P
SHAFT 5/8
PSB1109038
SET SCREW M10-1.5 X 12
Price
N/A
PSB1109039
OILER SCREW M22-1.5 X 20
Price
N/A
PSB1109040
SET SCREW M6-1 X 16
Price
N/A
P
SPRING PLATE
PSB1109042
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
PSB1109043
FENDER WASHER 6MM
Price
N/A
PSB1109044
PULLEY GUARD PLATE
Price
N/A
P
HEAD CASTING
PSB1109046
SET SCREW M8-1.25 X 12
Price
N/A
PSB1109047
PLATE
Price
N/A
PSB1109048
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PSB1109049
DEPTH LIMITER
Price
N/A
PSB1109050
FLAT HD SCR M5-.8 X 12
Price
N/A
PSB1109051
DIGITAL READOUT BRACKET V1
Price
N/A
PSB1109051V2
DIGITAL READOUT BRACKET V2.11.22
Price
N/A
PSB1109052
DIGITAL READOUT HOUSING V1
Price
N/A
PSB1109052V2
DIGITAL READOUT HOUSING V2.11.22
Price
N/A
PSB1109053
DIGITAL READOUT ASSEMBLY
Price
N/A
PSB1109053-1
DIGITAL READOUT ASSEMBLY V3.02.19
Price
N/A
PSB1109053-2
BATTERY COVER
Price
N/A
PSB1109053-3
BATTERY COVER DECAL
Price
N/A
PSB1109054
COMPRESSION SPRING 3.5 X 19.7 X 70
Price
N/A
PSB1109055
COMPRESSION SPRING BUSHING BLOCK
Price
N/A
P
OUTFEED ROLLER
PSB1109057
SPROCKET SIZE 31T
Price
N/A
PSB1109058
SPROCKET SIZE 31T
Price
N/A
PSB1109059
FENDER WASHER 6MM
Price
N/A
PSB1109060
Now: PB83M
HEX BOLT M6-1 X 16
Price
N/A
P
CHAIN #06B X 44P
P
HELICAL CUTTERHEAD ASSY
PSB1109062-1
***USE P0495X186V2***
Price
N/A
P
FLAT HD TORX 10-32 X 1/2
P
INSERT 15 X 15 X 2.5MM-10 PK
P
HELICAL CUTTERHEAD 20"
PSB1109063
KEY 8 X 8 X 36 RE
Price
N/A
P
CHAIN TENSIONER
PSB1109065
SHOULDER BOLT M8-1.25 X 14.5, 4 X 12
Price
N/A
PSB1109066
EXTENSION SPRING 1 X 8.5 X 35
Price
N/A
PSB1109067
IDLER WHEEL
Price
N/A
PSB1109068
IDLER SHAFT
Price
N/A
P
BALL BEARING 6206-2NSE
PSB1109070
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1109071
BATTERY AAA (2PC)
Price
N/A
P
SCALE
PSB1109073
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
P
BRACKET
PSB1109075
MOUNTING PLATE
Price
N/A
PSB1109076
SET SCREW M10-1.5 X 30
Price
N/A
PSB1109077
Now: PN02M
HEX NUT M10-1.5
Price
N/A
PSB1109078
OIL SEAL 28 X 40 X 8
Price
N/A
PSB1109079
CAP SCREW M8-1.25 X 50
Price
N/A
PSB1109080
ROLL PIN 8 X 20
Price
N/A
PSB1109081
CAP SCREW M6-1 X 12
Price
N/A
PSB1109082
BALL BEARING 6204-2NSE
Price
N/A
PSB1109083
FENDER WASHER 6MM
Price
N/A
PSB1109084
LOCK WASHER 6MM
Price
N/A
PSB1109085
CAP SCREW M6-1 X 16
Price
N/A
PSB1109086
BALL BEARING 6201ZZ
Price
N/A
PSB1109087
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
PSB1109088
KEY 5 X 5 X 10 RE
Price
N/A
PSB1109089
GEAR 96T
Price
N/A
PSB1109090
SHAFT SIZE 24.5 X 105
Price
N/A
PSB1109091
OIL SEAL 25 X 35 X 5
Price
N/A
PSB1109092
KEY 6 X 6 X 15 RE
Price
N/A
P
COLLAR
PSB1109094
GASKET
Price
N/A
PSB1109095
GEARBOX COVER
Price
N/A
PSB1109096
CAP SCREW M6-1 X 25
Price
N/A
PSB1109097
CAP SCREW M5-.8 X 12
Price
N/A
P
SPROCKET 12T
PSB1109099
TAP SCREW M3 X 8
Price
N/A
PSB1109100
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1109101
PULLEY COVER
Price
N/A
PSB1109102
PULLEY
Price
N/A
PSB1109103
FENDER WASHER 5MM
Price
N/A
PSB1109104
OIL PLUG V1
Price
N/A
PSB1109105
GEAR BOX
Price
N/A
PSB1109106
GEAR 18T
Price
N/A
PSB1109107
KEY 4 X 4 X 16 RE
Price
N/A
PSB1109108
GEAR 18T/22T 2-SPEED V1
Price
N/A
PSB1109109
GEAR
Price
N/A
P
GEAR BOX GUARD
PSB1109111
Now: PW03M
FLAT WASHER 6MM
Price
N/A
P
CHIPBREAKER ADJUSTMENT BRACKET
P
LOCK NUT M6-1
P
PRESSURE BAR
P
CHIPBREAKER ADJUSTMENT ROD
PSB1109116
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
P
CHIP BREAKER
P
CHIP BREAKER PIVOT ROD
P
GASKET 3/8 X 1/2 X 20-5/8
P
INFEED ROLLER
PSB1109121
E-CLIP 15MM
Price
N/A
PSB1109122
SPACER 20.5 X 32 X 6
Price
N/A
PSB1109123
ANTI-KICKBACK FINGER
Price
N/A
PSB1109124
SHAFT 19.95 X 680
Price
N/A
PSB1109125
SPROCKET 31T
Price
N/A
P
CHAIN #06B X 67P
P
TIMING BELT 3GT-924-15
P
GEAR BOX COVER
P
ECCENTRIC SHAFT
P
TABLE ROLLER
PSB1109131
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1109132
GIB
Price
N/A
PSB1109133
SET SCREW M6-1 X 12
Price
N/A
P
MAIN TABLE
PSB1109135
OUTER CHAIN TENSIONER
Price
N/A
PSB1109136
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
P
EXTENSION TABLE
P
LOCKING ROD
PSB1109139
THREADED GIB
Price
N/A
P
PIVOT HANDLE M12-1.75
P
SCALE POINTER
PSB1109142
CAP SCREW M5-.8 X 10
Price
N/A
PSB1109143
CAP SCREW M8-1.25 X 30
Price
N/A
P
PLATE
PSB1109145
DUST BOOT FLANGE
Price
N/A
PSB1109146
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
P
GEAR 24T
PSB1109148
Now: PR22M
INT RETAINING RING 38MM
Price
N/A
P
BUSHING
P
LEADSCREW NUT 16-4
P
LEADSCREW, PRIMARY
P
DUST BOOT
P
PHLP HD SCR M5-2.12 X 10
P
COLUMN, PRIMARY
P
LEADSCREW, SECONDARY
P
COLUMN, SECONDARY
P
BASE
PSB1109160
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
PSB1109161
FENDER WASHER 12MM
Price
N/A
P
LIFTING BAR
P
E-CLIP 17MM
PSB1109164
BALL BEARING 6202Z
Price
N/A
PSB1109165
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
P
SPROCKET 10T
PSB1109167
Now: PW04M
FLAT WASHER 10MM
Price
N/A
PSB1109168
Now: PN08M
HEX NUT M10-1.25
Price
N/A
P
BRACKET
PSB1109170
FENDER WASHER 8MM
Price
N/A
PSB1109171
SHAFT
Price
N/A
P
SPROCKET 10T
PSB1109173
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
P
CHAIN #40 X 166P
P
MOTOR 5HP 220-240V 1-PH
P
S CAPACITOR 600M 125V 1-3/4 X 3-5/16
P
R CAPACITOR 60M 350V 1-3/4 X 4-5/16
PSB1109175-3
CAPACITOR BOX
Price
N/A
P
CENT SWITCH 16MM 3450
P
CONTACT PLATE
P
MOTOR FAN
P
FAN COVER
PSB1109175-8
MOTOR JUNCTION BOX
Price
N/A
PSB1109175-9
STRAIN RELIEF TYPE-3 M25-1.5
Price
N/A
P
CONTROL PANEL ASSEMBLY
PSB1109176-1
CONTROL PANEL BOX
Price
N/A
PSB1109176-10
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB1109176-11
SET SCREW M4-.7 X 6
Price
N/A
PSB1109176-12
FEED SPEED ADJUSTMENT KNOB
Price
N/A
PSB1109176-13
POWER INDICATOR LIGHT YUAN GUAN 25MM
Price
N/A
PSB1109176-14
E-STOP BUTTON NHD NPB22-H
Price
N/A
PSB1109176-15
START SWITCH YUAN GUAN 250V, 22MM
Price
N/A
PSB1109176-16
DC CONTROLLER CORD 18G 1W 8"
Price
N/A
PSB1109176-17
DRO CORD 18G 1W 6" V2.10.20
Price
N/A
P
CIRCUIT BREAKER CORD 18G 2W 71"
PSB1109176-2
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1109176-3
EXT TOOTH WASHER 4MM
Price
N/A
P
SWITCH PEDESTAL
PSB1109176-5
Now: PB96M
HEX BOLT M5-.8 X 10
Price
N/A
PSB1109176-6
FLANGE BOLT M6-1 X 12
Price
N/A
PSB1109176-7
CIRCUIT BREAKER SWITCH 10A ZE-800
Price
N/A
P
POTENTIOMETER 50K W/86" CORD
PSB1109176-9
CONTROL PANEL FACE PLATE
Price
N/A
PSB1109177
CABINET STAND V2.08.23
Price
N/A
P
CABINET STAND V2.08.23
PSB1109178
FOOT M12-1.75
Price
N/A
PSB1109179
SET SCREW M8-1.25 X 40
Price
N/A
P
MOTOR ACCESS COVER
PSB1109181
FLAT HD SCR M6-1 X 20
Price
N/A
P
MOTOR MOUNT PLATE
PSB1109183
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
PSB1109184
Now: PN03M
HEX NUT M8-1.25
Price
N/A
P
SHAFT
P
COLLAR
P
MOTOR MOUNT CONNECTING ROD
P
MAG SWITCH 5H SDE
PSB1109188-1
MAG SWITCH FRONT COVER
Price
N/A
PSB1109188-2
MAG SWITCH BACK COVER
Price
N/A
PSB1109188-3
CONTACTOR SDE MA-30 220V
Price
N/A
P
OL RELAY SDE RA-30 22-34A
PSB1109188-5
STRAIN RELIEF TYPE-3 1
Price
N/A
PSB1109188-6
STRAIN RELIEF TYPE-3 1
Price
N/A
P
CONTROL PANEL CORD 18G 5W 98"
PSB1109188-8
TRANSFORMER CORD 18G 2W 23"
Price
N/A
PSB1109188-9
MOTOR CORD 12G 3W 37" V2.04.19
Price
N/A
PSB1109189
PLATE
Price
N/A
PSB1109190
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
PSB1109191
DC MOTOR 3/4HP 90VDC 8A
Price
N/A
PSB1109191-1
BRUSH HOLDER
Price
N/A
PSB1109191-2
MOTOR BRUSH 120V (2-PC SET)
Price
N/A
PSB1109191-3
BRUSH COVER
Price
N/A
PSB1109192
MOTOR MOUNT PLATE
Price
N/A
PSB1109193
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1109194
CAP SCREW M8-1.25 X 12
Price
N/A
P
COLLAR
PSB1109196
PULLEY COVER
Price
N/A
PSB1109197
PULLEY
Price
N/A
PSB1109199
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1109200
Now: PW02M
FLAT WASHER 5MM
Price
N/A
P
DC MOTOR CONTROL COVER
PSB1109202
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
PSB1109203
HEX WRENCH 3MM
Price
N/A
PSB1109204
HEX WRENCH 4MM
Price
N/A
PSB1109205
HEX WRENCH 5MM
Price
N/A
PSB1109206
HEX WRENCH 6MM
Price
N/A
PSB1109207
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PSB1109208
WRENCH 10 X 13MM OPEN-ENDS
Price
N/A
PSB1109209
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PSB1109210
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
PSB1109212
DIRECTION SCALE
Price
N/A
PSB1109220
PLATE
Price
N/A
PSB1109221
SET SCREW M5-.8 X 20
Price
N/A
PSB1109222
BALL BEARING 6003ZZ
Price
N/A
P
OIL SEAL 12 X 22 X 7
PSB1109225
STANDOFF-HEX MM 5/16-18 X 2-1/2, 3-5/16
Price
N/A
PSB1109226
SWITCH PANEL
Price
N/A
PSB1109227
PHLP HD SCR 3/16-24 X 3/8
Price
N/A
PSB1109228
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1109230
Now: PS19M
PHLP HD SCR M5-.8 X 6
Price
N/A
PSB1109231
FENDER WASHER 12MM
Price
N/A
PSB1109232
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
PSB1109233
SPACER 7 X 11.9 X 13.5
Price
N/A
PSB1109234
CAP SCREW M5-.8 X 25
Price
N/A
P
DRO SENSOR COVER
PSB1109236
Now: PS90M
PHLP HD SCR M6-1 X 70
Price
N/A
PSB1109237
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
P
CORD ROUTING COVER
PSB1109239
CABLE TIE 4"
Price
N/A
PSB1109240
Now: PW01M
FLAT WASHER 8MM
Price
N/A
PSB1109241
SET SCREW M6-1 X 16
Price
N/A
P
DRO SENSOR STRIP
PSB1109243
DRO REMOTE SENSOR
Price
N/A
PSB1109244
DRO CORD CAT5E 39"
Price
N/A
PSB1109245
KEY 5 X 5 X 30 RE
Price
N/A
PSB1109246
MOTOR PULLEY
Price
N/A
PSB1109247
FENDER WASHER 8MM
Price
N/A
PSB1109248
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
PSB1109249
REVOLVING HANDLE 3/8-16 X 1/2
Price
N/A
P
POWER CORD 12G 3W 145" L6-30P
PSB1109252
DC MOTOR CONTROLLER AC 120V/DC
Price
N/A
PSB1109253
TRANSFORMER SUEN SPCL20660 220V
Price
N/A
PSB1109254
WIRE NUT P3
Price
N/A
P
BRACKET
PSB1109256
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
PSB1109300
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1109301
KEEP DOOR CLOSED LABEL 2.5 X 1.5
Price
N/A
PSB1109302
INVENTORY SHIPPING NOTICE
Price
N/A
PSB1109303
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1109304
ELECTRICITY LABEL 0.7
Price
N/A
PSB1109305
ADD OIL NOTICE
Price
N/A
P
COMBO WARNING LABEL
PSB1109307
SB GRAY TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1109308
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
P

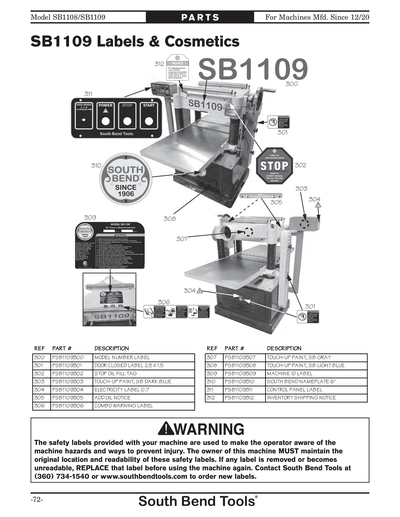

MACHINE ID LABEL
PSB1109310
New South Bend Nameplates 152mm (6")
Price
N/A
P
CONTROL PANEL LABEL
PSB1109312
STOP OIL FILL TAG
Price
N/A
P
MANUAL SB1108/SB1109 MFD-12.20+ V1.12.20
