Parts for SB1110 - 10" 3 HP 220V Table Saw

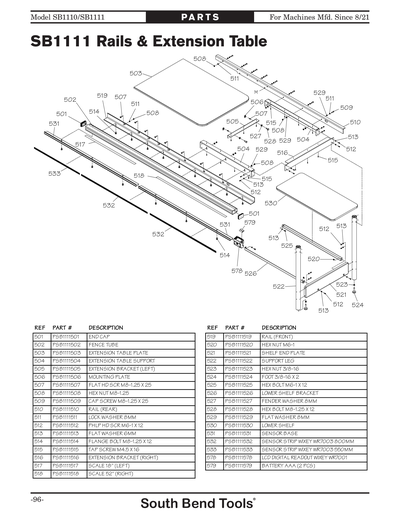

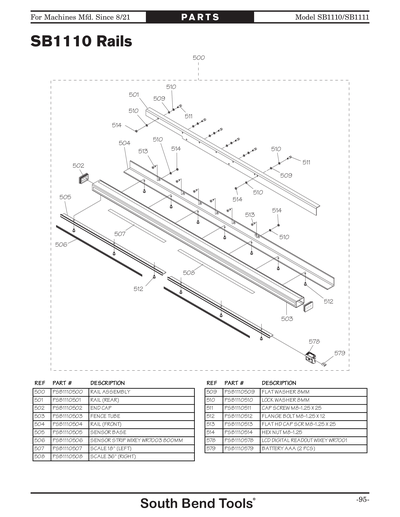

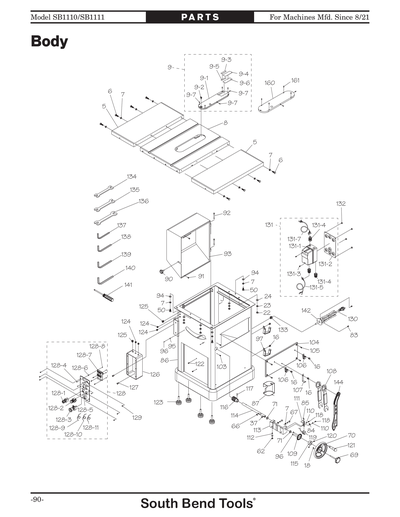

Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110
Part Diagram for SB1110

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
EXTENSION TABLE
Price
$318.80
PSB1110006
HEX BOLT M8-1.25 X 25
Price
N/A
PSB1110007
LOCK WASHER 8MM
Price
N/A
P
TABLE
Price
$417.55
P
TABLE INSERT ASSEMBLY
Price
$47.75
P
TABLE INSERT
Price
$44.70
PSB1110009-2
***USE PSS04M***
Price
N/A
PSB1110009-3
LEFT TAPE 14MM V2.01.10
Price
N/A
P
PLATE W/ TAPE 35 MM (RIGHT)
Price
$5.15
PSB1110009-5
LEFT TAPE 14MM V2.01.10
Price
N/A
PSB1110009-6
PLATE W/ TAPE 35 MM (RIGHT)
Price
N/A
PSB1110009-7
SET SCREW M6-1 X 12
Price
N/A
PSB1110016
FLANGE BOLT M8-1.25 X 12
Price
N/A
PSB1110018
SET SCREW M6-1 X 10
Price
N/A
PSB1110022
HEX NUT M10-1.5
Price
N/A
PSB1110023
LOCK WASHER 10MM
Price
N/A
PSB1110024
FLAT WASHER 10MM
Price
N/A
PSB1110037
KEY 5 X 5 X 18
Price
N/A
PSB1110050
HEX BOLT M8-1.25 X 16
Price
N/A
PSB1110062
HEX NUT M8-1.25
Price
N/A
PSB1110066
WOODRUFF KEY 22 X 5
Price
N/A
PSB1110067
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1110069
HANDWHEEL LOCK KNOB
Price
N/A
P
HANDWHEEL TYPE-3 174D X 13B-K X 3/8-16
Price
$51.70
PSB1110071
PLASTIC BUSHING 19MM ID
Price
N/A
PSB1110083
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1110084
CORD LOOP CLAMP
Price
N/A
PSB1110085
TAP SCREW M3 X 6
Price
N/A
P
CABINET
Price
$780.70
P
DUST COLLECTION CASE
Price
$3.40
PSB1110090
KNOB BOLT M6-1 X 20, 6-LOBE, D40
Price
N/A
PSB1110091
PAD
Price
N/A
PSB1110092
ALIGNMENT PIN
Price
N/A
P
CABINET DOOR
Price
$148.55
PSB1110094
FLAT WASHER 8MM
Price
N/A
PSB1110095
FENDER WASHER 4MM
Price
N/A
PSB1110096
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1110097
FENCE MOUNTING BRACKET
Price
N/A
PSB1110103
TAP SCREW M4 X 12
Price
N/A
P
CABINET PANEL
Price
$55.30
PSB1110105
FLAT HD SCR M6-1 X 20
Price
N/A
P
STORAGE BRACKET
Price
$2.75
PSB1110107
WRENCH MOUNTING BRACKET
Price
N/A
PSB1110108
ARBOR WRENCH
Price
N/A
P
SENSOR PLATE
Price
$10.00
PSB1110110
FLAT WASHER 5MM
Price
N/A
P
TILT SENSOR BRACKET
Price
$1.85
PSB1110112
HEX BOLT M8-1.25 X 30
Price
N/A
PSB1110113
BLADE TILT SHAFT BRACKET
Price
N/A
PSB1110114
BLADE TILT SHAFT
Price
N/A
PSB1110115
LOCK COLLAR
Price
N/A
PSB1110116
WORM GEAR
Price
N/A
PSB1110117
ROLL PIN 5 X 28
Price
N/A
PSB1110118
PHLP HD SCR M5-.8 X 8
Price
N/A
P
BLADE TILT SENSOR ASSEMBLY
Price
$19.95
PSB1110120
SET SCREW M8-1.25 X 10
Price
N/A
PSB1110121
HANDWHEEL HANDLE
Price
N/A
PSB1110122
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1110123
THREADED FOOT M12-1.75 X 50
Price
N/A
PSB1110124
STRAIN RELIEF TYPE-1 1/2
Price
N/A
P
STRAIN RELIEF TYPE-1 5/8
Price
$1.60
P
SWITCH BOX
Price
$50.15
PSB1110127
CAP SCREW M8-1.25 X 10
Price
N/A
P
CONTROL PANEL ASSEMBLY
Price
$139.50
P
KEY SWITCH YK A600 10A 250V
Price
$56.50
P
HEIGHT SENSOR CORD 18G 4W 8"
Price
$3.05
P
TILT SENSOR CORD 18G 4W 8"
Price
$3.65
PSB1110128-2
START SWITCH TE XB4-BA31
Price
N/A
P
E-STOP BUTTON NHD NPB22-H
Price
$20.55
PSB1110128-4
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
P
CONTROL PANEL
Price
$19.10
PSB1110128-6
STANDOFF-HEX MF M3-.5 X 8, M3-.5 PLASTIC
Price
N/A
P
DIGITAL DISPLAY CIRCUIT BOARD 220-460V
Price
$38.65
PSB1110128-8
HEX NUT M3-.5 PLASTIC
Price
N/A
PSB1110128-9
DRO CORD 18G 1W 6" V2.10.20
Price
N/A
PSB1110129
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
PSB1110130
POWER CORD 12G 3W 138" 6-20P
Price
N/A
P
MAG SWITCH ASSEMBLY
Price
$133.15
P
MAG SWITCH SDE MPE-18 3HP 220-240V 1-PH
Price
$104.20
PSB1110131-2
SWITCH PANEL
Price
N/A
PSB1110131-3
PHLP HD SCR M5-.8 X 12
Price
N/A
PSB1110131-4
STRAIN RELIEF TYPE-3 PG13.5
Price
N/A
P
MOTOR CORD 14G 3W 39"
Price
$13.30
P
CONTROL PANEL CORD 18G 4W 59"
Price
$16.35
PSB1110132
FLANGE SCREW M5-.8 X 10
Price
N/A
PSB1110133
STRAIN RELIEF TYPE-1 5/8"
Price
N/A
PSB1110134
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
PSB1110135
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
PSB1110136
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
PSB1110137
HEX WRENCH 3MM
Price
N/A
PSB1110138
HEX WRENCH 4MM
Price
N/A
PSB1110139
HEX WRENCH 5MM
Price
N/A
PSB1110140
HEX WRENCH 6MM
Price
N/A
PSB1110141
SCREWDRIVER PHLP/FLAT HEAD #1
Price
N/A
PSB1110142
BACKING BOARD
Price
N/A
P
PUSH STICK
Price
$4.30
P
DADO INSERT
Price
$57.10
PSB1110161
SET SCREW M6-1 X 12
Price
N/A
PSB1110206
HEX BOLT M8-1.25 X 25
Price
N/A
PSB1110207
LOCK WASHER 8MM
Price
N/A
P
MOUNTING BRACKET PLATE
Price
$7.50
PSB1110211
SET SCREW M6-1 X 8
Price
N/A
PSB1110212
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
P
KNOB M5-.8, 3-LOBE, D45
Price
$2.90
PSB1110214
LOCK WASHER 5MM
Price
N/A
PSB1110215
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
PSB1110217
RIVING KNIFE V2.01.10
Price
N/A
PSB1110218
SET SCREW M6-1 X 10
Price
N/A
P
COMPRESSION SPRING 1 X 9.5 X 16
Price
$1.60
PSB1110220
STRAIN RELIEF PG16 TYPE-6 ST
Price
N/A
P
MOTOR 3HP 220V 1-PH
Price
$592.90
PSB1110221-1
MOTOR FAN COVER
Price
N/A
PSB1110221-10
BALL BEARING 6205ZZ
Price
N/A
PSB1110221-11
BALL BEARING 6203ZZ
Price
N/A
PSB1110221-2
MOTOR FAN
Price
N/A
PSB1110221-3
R CAPACITOR COVER
Price
N/A
P
S CAPACITOR 300M 125V 1-1/2 X 3-1/2
Price
$10.90
PSB1110221-5
JUNCTION BOX
Price
N/A
PSB1110221-6
R CAPACITOR COVER
Price
N/A
P
R CAPACITOR 50M 250V 1-1/2 X 2-1/2
Price
$21.50
PSB1110221-8
CENTRIFUGAL SWITCH
Price
N/A
PSB1110221-9
CONTACT PLATE
Price
N/A
PSB1110222
HEX NUT M10-1.5
Price
N/A
PSB1110223
LOCK WASHER 10MM
Price
N/A
PSB1110224
FLAT WASHER 10MM
Price
N/A
PSB1110225
MOTOR BOLT
Price
N/A
PSB1110226
KEY 5 X 5 X 30 RE
Price
N/A
P
V-BELT 180J-9
Price
$26.90
PSB1110228
SET SCREW M6-1 X 8
Price
N/A
P
BLADE PULLEY
Price
$22.95
P
BALL BEARING 6004-2NSE
Price
$6.75
PSB1110231
MOUNTING BRACKET BASE V2.01.10
Price
N/A
PSB1110232
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1110233
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1110234
LOCKING BOLT V2.01.10
Price
N/A
P
GAS STRUT
Price
$38.65
PSB1110236
BUSHING
Price
N/A
P
KEY 5 X 5 X 18 RE
Price
$1.60
P
ARBOR SHAFT
Price
$39.85
P
SAW BLADE 10" X 40T
Price
$68.25
P
ARBOR FLANGE
Price
$2.30
PSB1110241
HEX NUT 5/8-11
Price
N/A
PSB1110242
CAP SCREW M10-1.5 X 30
Price
N/A
PSB1110243
TRUNNION SLIDE
Price
N/A
P
MAIN TRUNNION
Price
$217.10
PSB1110245
SUPPORT R
Price
N/A
PSB1110246
DUST CHUTE
Price
N/A
PSB1110247
PHLP HD SCR M5-.8 X 20
Price
N/A
P
MOTOR PULLEY
Price
$23.90
P
LEVEL BRACKET
Price
$138.90
PSB1110250
HEX BOLT M8-1.25 X 16
Price
N/A
P
FENDER WASHER 8 X 30 X 3MM
Price
$1.60
PSB1110252
LEADSCREW
Price
N/A
PSB1110253
BUSHING
Price
N/A
PSB1110254
GASKET
Price
N/A
PSB1110255
THRUST BEARING 51102
Price
N/A
PSB1110256
LEADSCREW BRACKET
Price
N/A
PSB1110257
SET SCREW M5-.8 X 5
Price
N/A
PSB1110258
LEFT BEVEL GEAR
Price
N/A
PSB1110259
FLAT WASHER 10MM
Price
N/A
PSB1110260
LOCK NUT M10-1.25
Price
N/A
PSB1110261
SUPPORT L
Price
N/A
PSB1110262
HEX NUT M8-1.25
Price
N/A
PSB1110263
PHLP HD SCR M6-1 X 12
Price
N/A
P
ANGLE POINTER
Price
$2.20
PSB1110265
EXT TOOTH WASHER 6MM
Price
N/A
PSB1110266
WOODRUFF KEY 22 X 5
Price
N/A
PSB1110267
CAP SCREW M8-1.25 X 25
Price
N/A
P
TILT GEAR BLOCK
Price
$93.95
PSB1110269
HANDWHEEL LOCK KNOB
Price
N/A
PSB1110270
HANDWHEEL TYPE-3 174D X 13B-K X 3/8-16
Price
N/A
PSB1110271
PLASTIC BUSHING 19MM ID
Price
N/A
PSB1110272
BLADE HEIGHT HANDWHEEL SHAFT
Price
N/A
PSB1110273
ALIGNMENT PIN
Price
N/A
PSB1110274
CAP SCREW M8-1.25 X 35
Price
N/A
PSB1110275
WAVY WASHER 10MM
Price
N/A
PSB1110276
CAP SCREW M6-1 X 25
Price
N/A
PSB1110277
LOCK WASHER 6MM
Price
N/A
P
BLADE HEIGHT SENSOR ASSEMBLY
Price
$19.10
P
HEIGHT SENSOR BRACKET
Price
$1.85
PSB1110283
PHLP HD SCR M6-1 X 10
Price
N/A
PSB1110284
CORD LOOP CLAMP
Price
N/A
PSB1110285
TAP SCREW M3 X 6
Price
N/A
PSB1110288
FLANGE SCREW M5-.8 X 10
Price
N/A
PSB1110289
BRUSH
Price
N/A
PSB1110296
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1110298
STRUT SCREW
Price
N/A
PSB1110299
WAVY WASHER 10MM
Price
N/A
PSB1110300
FLAT WASHER 10MM
Price
N/A
PSB1110301
HOSE CLAMP 60-80MM
Price
N/A
PSB1110302
DUST CHUTE HOSE 63 X 1000MM
Price
N/A
P
SENSOR PLATE
Price
$10.00
PSB1110315
LOCK COLLAR
Price
N/A
PSB1110320
SET SCREW M8-1.25 X 10
Price
N/A
PSB1110321
HANDWHEEL HANDLE
Price
N/A
P
CORD CLIP
Price
$1.60
P
FENCE ASSEMBLY
Price
$327.00
PSB1110401
PHLP HD SCR M6-1 X 12
Price
N/A
PSB1110402
FLAT WASHER 6MM
Price
N/A
P
INDICATOR PLATE
Price
$2.60
P
SET SCREW M12-1.75 X 13 PLASTIC
Price
$1.49
PSB1110405
HEX BOLT M10-1.5 X 50
Price
N/A
PSB1110406
HEX NUT M6-1
Price
N/A
P
RAIL FOOT (REAR)
Price
$2.75
P
PLATE (FRONT)
Price
$1.75
P
CLAMPING BRACKET
Price
$1.75
PSB1110410
HEX NUT M8-1.25
Price
N/A
PSB1110411
LOCK NUT M6-1
Price
N/A
P
FENCE HANDLE CAM
Price
$11.80
PSB1110413
FLAT HD SCR M6-1 X 8
Price
N/A
PSB1110414
LOCK NUT M10-1.5
Price
N/A
P
PLASTIC PAD
Price
$1.75
P
RAIL CLAMPING BRACKET
Price
$6.70
PSB1110417
SET SCREW M8-1.25 X 8
Price
N/A
PSB1110418
PLATE CAP
Price
N/A
PSB1110419
FENCE PLATE
Price
N/A
PSB1110420

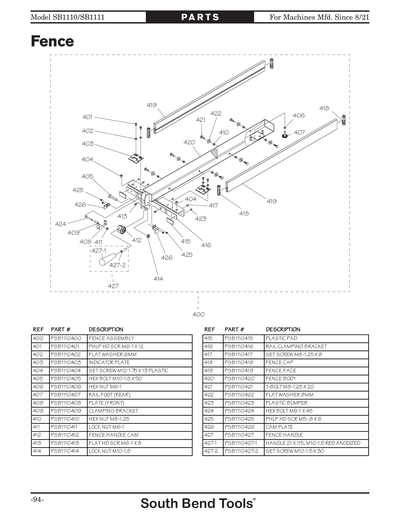

FENCE
Price
N/A
P
T-BOLT M8-1.25 X 20
Price
$1.60
PSB1110422
FLAT WASHER 8MM
Price
N/A
PSB1110423
BUMPER PLASTIC
Price
N/A
PSB1110424
HEX BOLT M6-1 X 45
Price
N/A
PSB1110425
PHLP HD SCR M5-.8 X 6
Price
N/A
P
CAM PLATE
Price
$2.20
P
FENCE HANDLE
Price
$21.75
P
HANDLE 21 X 115, M10-1.5 RED ANODIZED
Price
$21.20
PSB1110427-2
SET SCREW M10-1.5 X 30
Price
N/A
P
RAIL ASSEMBLY
Price
$545.25
P
RAIL (REAR)
Price
$112.05
P
END CAP
Price
$1.85
P
FENCE TUBE
Price
$221.95
P
RAIL (FRONT)
Price
$229.45
P
SENSOR BASE
Price
$14.25
P
SENSOR STRIP WIXEY WR7003 800MM
Price
$19.65
PSB1110507
LEFT SCALE 18"
Price
N/A
PSB1110508
RIGHT SCALE 36"
Price
N/A
PSB1110509
FLAT WASHER 8MM
Price
N/A
PSB1110510
LOCK WASHER 8MM
Price
N/A
PSB1110511
CAP SCREW M8-1.25 X 25
Price
N/A
PSB1110512
FLANGE BOLT M8-1.25 X 12
Price
N/A
PSB1110513
FLAT HD CAP SCR M8-1.25 X 25
Price
N/A
PSB1110514
HEX NUT M8-1.25
Price
N/A
P
LCD DIGITAL READOUT WIXEY WR7001
Price
$71.60
PSB1110579
BATTERY AAA (2PC)
Price
N/A
P
MITER GAUGE ASSEMBLY W/O FENCE V1
Price
$85.55
P
MITER GAUGE ASSEMBLY V2.10.21
Price
$133.00
P
MITER GAUGE HANDLE
Price
$21.75
P
HANDLE 21 X 115, M8-1.25 RED ANODIZED
Price
$21.20
PSB1110601-2
SET SCREW M8-1.25 X 45
Price
N/A
PSB1110602
FENDER WASHER 8MM
Price
N/A
P
MITER GAUGE FENCE ASSEMBLY V1
Price
$35.65
P
MITER GAUGE FENCE V2.10.21
Price
$35.50
P
HEX BOLT 1/4-20 X 3/4 V1
Price
$1.60
P
HEX BOLT 1/4-20 X 1 V2.10.21
Price
$1.60
P
MITER GAUGE BODY
Price
$23.90
P
ADJUSTABLE HANDLE 1/4-20, 1-7/8L
Price
$4.60
PSB1110607
ALIGNMENT PIN
Price
N/A
PSB1110608
SET SCREW M8-1.25 X 6
Price
N/A
P
MITER BAR
Price
$36.25
PSB1110610
T-SLOT WASHER 7.8 X 22.5 X 3MM
Price
N/A
PSB1110611
FLAT HD SCR M6-1 X 8
Price
N/A
PSB1110612
PHLP HD SCR M5-.8 X 8
Price
N/A
PSB1110613
FLAT WASHER 5MM
Price
N/A
P
POINTER
Price
$1.60
P
SHAFT
Price
$2.75
P
COMPRESSION SPRING 6.5 X 8.6 X 10.2
Price
$1.60
P
BLOCK
Price
$6.05
PSB1110618
SET SCREW M4-.7 X 4
Price
N/A
P
POINTER KNOB
Price
$2.75
PSB1110620
CAP SCREW M5-.8 X 8
Price
N/A
P
SCALE
Price
$2.75
PSB1110622
RIVET 2 X 5
Price
N/A
PSB1110700

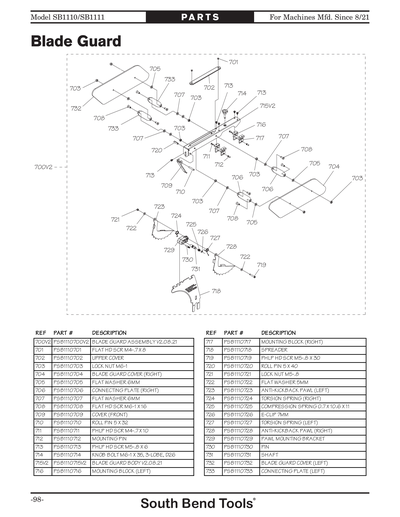

BLADE GUARD ASSEMBLY V2.08.21
Price
N/A
P
BLADE GUARD ASSEMBLY V2.08.21
Price
$113.25
PSB1110701
FLAT HD SCR M4-.7 X 8
Price
N/A
PSB1110702
UPPER COVER
Price
N/A
PSB1110703
LOCK NUT M6-1
Price
N/A
PSB1110704
BLADE GUARD COVER (RIGHT)
Price
N/A
PSB1110705
FLAT WASHER 6MM
Price
N/A
PSB1110706
CONNECTING PLATE (RIGHT)
Price
N/A
PSB1110707
FLAT WASHER 6MM
Price
N/A
PSB1110708
FLAT HD SCR M6-1 X 16
Price
N/A
PSB1110709
REAR COVER
Price
N/A
PSB1110710
ROLL PIN 5 X 32
Price
N/A
PSB1110711
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1110712
MOUNTING PIN V2.01.10
Price
N/A
PSB1110713
PHLP HD SCR M5-.8 X 6
Price
N/A
PSB1110714
KNOB BOLT V2.01.10
Price
N/A
P
BLADE GUARD BODY V1
Price
$9.40
P
BLADE GUARD BODY V2.08.21
Price
$10.90
P
MOUNTING BLOCK (LEFT)
Price
$2.05
P
MOUNTING BLOCK (RIGHT)
Price
$2.20
P
SPREADER
Price
$30.85
PSB1110719
PHLP HD SCR M5-.8 X 30
Price
N/A
PSB1110720
ROLL PIN 5 X 40
Price
N/A
PSB1110721
LOCK NUT M5-.8
Price
N/A
PSB1110722
FLAT WASHER 5MM
Price
N/A
PSB1110723
LEFT PAWL V2.01.10
Price
N/A
PSB1110724
RIGHT TORSN SPRING V2.01.10
Price
N/A
PSB1110725
SHAFT SPRING V2.01.10
Price
N/A
PSB1110726
E-CLIP 7MM
Price
N/A
PSB1110727
LEFT TORSION SPRING V2.01.10
Price
N/A
PSB1110728
RIGHT PAWL V2.01.10
Price
N/A
PSB1110729
PAWL MOUNTING BRACKET
Price
N/A
PSB1110730
LOCATING PIN 5.25 X 10, 5 X 16
Price
N/A
PSB1110731
ANTI-KICKBACK PAWL RELEASE PIN
Price
N/A
PSB1110732
BLADE GUARD COVER (LEFT)
Price
N/A
PSB1110733
CONNECTING PLATE (LEFT)
Price
N/A
P

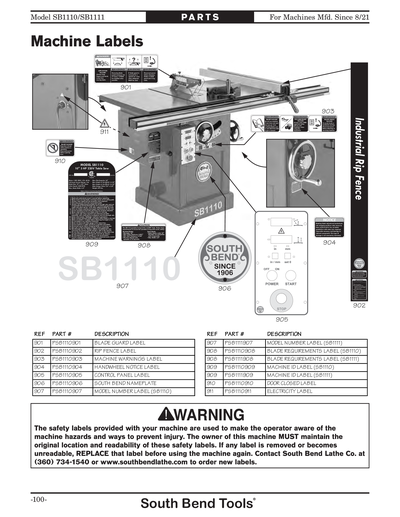

BLADE GUARD LABEL
Price
$2.40
P
RIP FENCE LABEL
Price
$3.95
P
MACHINE WARNINGS LABEL
Price
$2.10
P
HANDWHEEL NOTICE LABEL
Price
$1.85
P
CONTROL PANEL LABEL
Price
$3.95
PSB1110906
New South Bend Nameplates 152mm (6")
Price
N/A
P
MODEL NUMBER LABEL
Price
$3.15
PSB1110908
BLADE REQUIREMENTS LABEL
Price
N/A
P
MACHINE ID LABEL
Price
$2.90
PSB1110910
KEEP DOOR CLOSED LABEL 2.5 X 1.5
Price
N/A
PSB1110911
ELECTRICITY LABEL 0.7
Price
N/A
P
MANUAL SB1110/SB1111 MFD-12.20-07.21 V1.
Price
$25.50
P
MANUAL SB1110/SB1111 MFD-08.21+ V2.08.21
Price
$32.75
