Parts for SB1119 - 3 HP Single-Phase Variable-Speed Spindle Shaper

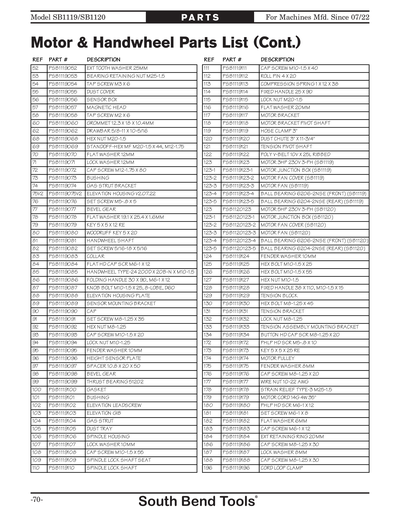

Part Diagram for SB1119

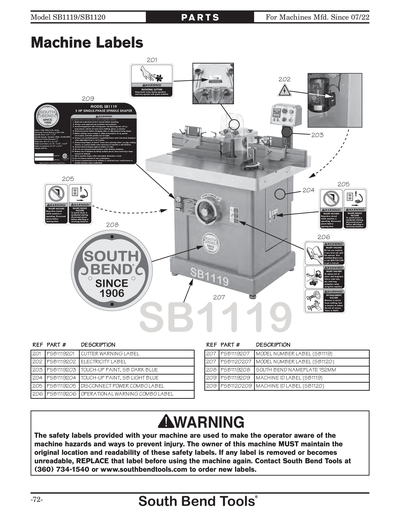

Part Diagram for SB1119

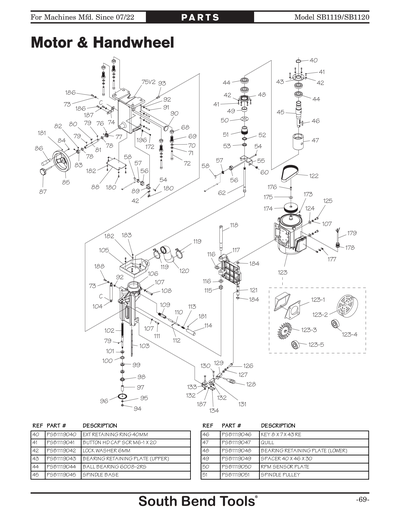

Part Diagram for SB1119

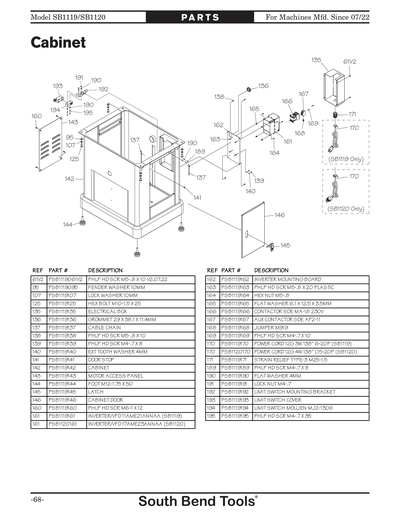

Part Diagram for SB1119

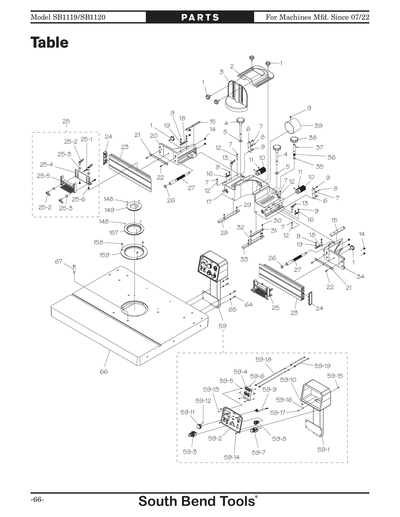

Part Diagram for SB1119

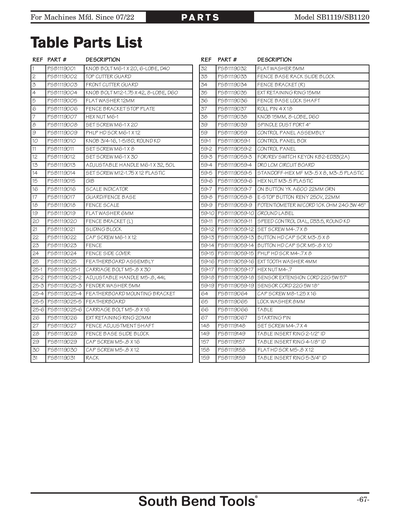

Part Diagram for SB1119

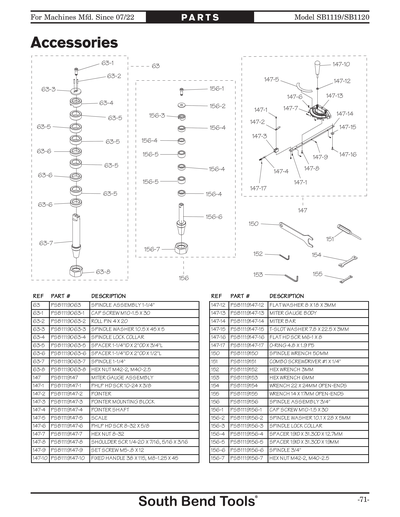

Part Diagram for SB1119
Part Diagram for SB1119
Part Diagram for SB1119
Part Diagram for SB1119
Part Diagram for SB1119
Part Diagram for SB1119
Part Diagram for SB1119
Part Diagram for SB1119

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
PSB1119001
KNOB BOLT M6-1 X 20, 6-LOBE, D40
Price
N/A
PSB1119002
TOP CUTTER GUARD
Price
N/A
PSB1119003
FRONT CUTTER GUARD
Price
N/A
PSB1119004
KNOB BOLT M12-1.75 X 42, 9-LOBE, D80
Price
N/A
PSB1119005
FLAT WASHER 12MM
Price
N/A
PSB1119006
FENCE BRACKET STOP PLATE
Price
N/A
PSB1119007
HEX NUT M6-1
Price
N/A
PSB1119008
SET SCREW M6-1 X 20
Price
N/A
PSB1119009
PHLP HD SCR M6-1 X 12
Price
N/A
PSB1119010
KNOB 3/4-16, 1-5/8D, ROUND KD
Price
N/A
PSB1119011
SET SCREW M6-1 X 8
Price
N/A
PSB1119012
SET SCREW M6-1 X 30
Price
N/A
PSB1119013
ADJUSTABLE HANDLE M6-1 X 32, 50L
Price
N/A
PSB1119014
SET SCREW M12-1.75 X 12
Price
N/A
PSB1119015
GIB
Price
N/A
PSB1119016
SCALE INDICATOR
Price
N/A
P
GUARD/FENCE BASE
Price
$712.75
PSB1119018
FENCE SCALE
Price
N/A
PSB1119019
FLAT WASHER 6MM
Price
N/A
P
FENCE BRACKET (L)
Price
$192.00
PSB1119021
SLIDING BLOCK
Price
N/A
PSB1119022
CAP SCREW M6-1 X 12
Price
N/A
P
FENCE
Price
$111.45
PSB1119024
FENCE SIDE COVER
Price
N/A
P
FEATHERBOARD ASSEMBLY
Price
$41.40
PSB1119025-1
CARRIAGE BOLT M5-.8 X 30
Price
N/A
PSB1119025-2
ADJUSTABLE HANDLE M5-.8, 44L
Price
N/A
PSB1119025-3
FENDER WASHER 5MM
Price
N/A
PSB1119025-4
FEATHERBOARD MOUNTING BRACKET
Price
N/A
PSB1119025-5
FEATHERBOARD
Price
N/A
PSB1119025-6
CARRIAGE BOLT M5-.8 X 16
Price
N/A
PSB1119026
EXT RETAINING RING 20MM
Price
N/A
PSB1119027
FENCE ADJUSTMENT SHAFT
Price
N/A
PSB1119028
FENCE BASE SLIDE BLOCK
Price
N/A
PSB1119029
CAP SCREW M5-.8 X 16
Price
N/A
PSB1119030
CAP SCREW M5-.8 X 12
Price
N/A
PSB1119031
RACK
Price
N/A
PSB1119032
FLAT WASHER 5MM
Price
N/A
PSB1119033
FENCE BASE RACK SLIDE BLOCK
Price
N/A
P
FENCE BRACKET (R)
Price
$192.95
PSB1119035
EXT RETAINING RING 15MM
Price
N/A
PSB1119036
SHAFT
Price
N/A
PSB1119037
ROLL PIN 4 X 18
Price
N/A
P
***USE P0900008V2***
Price
$27.90
PSB1119039
SPINDLE DUST PORT 4"
Price
N/A
PSB1119040
EXT RETAINING RING 40MM
Price
N/A
PSB1119041
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
PSB1119042
LOCK WASHER 6MM
Price
N/A
PSB1119043
BEARING RETAINING PLATE (UPPER)
Price
N/A
PSB1119044
BALL BEARING 6008-2RS
Price
N/A
PSB1119045
SPINDLE BASE
Price
N/A
PSB1119046
KEY 8 X 7 X 43 RE
Price
N/A
PSB1119047
QUILL
Price
N/A
PSB1119048
BEARING RETAINING PLATE (LOWER)
Price
N/A
P
SPACER 40 X 46 X 30
Price
$15.45
P
RPM SENSOR PLATE
Price
$6.05
P
SPINDLE PULLEY
Price
$51.05
PSB1119052
EXT TOOTH WASHER 25MM BLACK
Price
N/A
PSB1119053
BEARING RETAINING NUT M25-1.5
Price
N/A
PSB1119054
TAP SCREW M3 X 6
Price
N/A
P
DUST COVER
Price
$15.45
PSB1119056
SENSOR BOX
Price
N/A
PSB1119057
MAGNETIC HEAD V2.03.20
Price
N/A
PSB1119058
TAP SCREW M2 X 6 V2.03.20
Price
N/A
P
CONTROL PANEL ASSEMBLY
Price
$792.75
P
CONTROL PANEL BOX
Price
$150.05
PSB1119059-10
GROUND LABEL
Price
N/A
PSB1119059-11
FEED SPEED ADJUSTMENT KNOB
Price
N/A
PSB1119059-12
SET SCREW M4-.7 X 8
Price
N/A
PSB1119059-13
BUTTON HD CAP SCR M3-.5 X 8
Price
N/A
PSB1119059-14
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
PSB1119059-15
PHLP HD SCR M4-.7 X 8
Price
N/A
PSB1119059-16
EXT TOOTH WASHER 4MM
Price
N/A
PSB1119059-17
HEX NUT M4-.7
Price
N/A
PSB1119059-18
SENSOR EXTENSION CORD 22G 5W 57"
Price
N/A
PSB1119059-19
SENSOR CORD 22G 5W 18" V2.03.20
Price
N/A
P
CONTROL PANEL
Price
$30.55
P
FOR/REV SWITCH KEYON KB2-ED33(2A)
Price
$39.85
P
DRO LCM CIRCUIT BOARD
Price
$192.95
PSB1119059-5
STANDOFF-HEX MF M3-.5 X 8, M3-.5 PLASTIC
Price
N/A
PSB1119059-6
HEX NUT M3-.5 PLASTIC
Price
N/A
PSB1119059-7
MAIN MOTOR BUTTON
Price
N/A
PSB1119059-8
E-STOP BUTTON NHD NPB22-H
Price
N/A
P
POTENTIOMETER W/CORD 10K OHM 24G 3W 45"
Price
$15.70
P
GROMMET 12.3 X 18 X 10.4MM
Price
$2.20
PSB1119061
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
PSB1119061V2
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1119062
DRAWBAR 5/8-11 X 10-5/16
Price
N/A
PSB1119063
SPINDLE ASSEMBLY 1-1/4"
Price
N/A
PSB1119063-1
CAP SCREW M10-1.5 X 30
Price
N/A
PSB1119063-2
ROLL PIN 4 X 20
Price
N/A
PSB1119063-3
SPINDLE WASHER 10.5 X 45 X 5
Price
N/A
PSB1119063-4
SPINDLE LOCK COLLAR
Price
N/A
PSB1119063-5
SPACER 1-1/4"ID X 2"OD X 3/4"L
Price
N/A
PSB1119063-6
SPACER 1-1/4"ID X 2"OD X 1/2"L
Price
N/A
PSB1119063-7
SPINDLE 1-1/4"
Price
N/A
PSB1119063-8
HEX NUT M36-4
Price
N/A
PSB1119064
CAP SCREW M8-1.25 X 16
Price
N/A
PSB1119065
LOCK WASHER 8MM
Price
N/A
P
TABLE
Price
$1,881.60
PSB1119067
STARTING PIN
Price
N/A
PSB1119068
HEX NUT M20-1.5
Price
N/A
PSB1119069
STANDOFF-HEX MF M20-1.5 X 44, M12-1.75
Price
N/A
PSB1119070
FLAT WASHER 12MM
Price
N/A
PSB1119071
LOCK WASHER 12MM
Price
N/A
PSB1119072
CAP SCREW M12-1.75 X 80
Price
N/A
PSB1119073
BUSHING
Price
N/A
PSB1119074
GAS STRUT BRACKET
Price
N/A
PSB1119075
ELEVATION HOUSING
Price
N/A
PSB1119075V2
ELEVATION HOUSING
Price
N/A
PSB1119076
SET SCREW M5-.8 X 5
Price
N/A
PSB1119077
BEVEL GEAR
Price
N/A
PSB1119078
PLASTIC BUSHING 19MM ID
Price
N/A
PSB1119079
KEY 5 X 5 X 12 RE
Price
N/A
PSB1119080
WOODRUFF KEY 22 X 5
Price
N/A
PSB1119081
HANDWHEEL SHAFT
Price
N/A
PSB1119082
SET SCREW 5/16-18 X 5/16
Price
N/A
PSB1119083
COLLAR
Price
N/A
PSB1119084
FLAT HD CAP SCR M6-1 X 12
Price
N/A
PSB1119085
HANDWHEEL TYPE-24 200D X 20B-N X M10-1.5
Price
N/A
PSB1119086
FOLDING HANDLE 30 X 90, M6-1 X 12
Price
N/A
PSB1119087
KNOB BOLT M10-1.5 X 25, 8-LOBE, D60
Price
N/A
PSB1119088
ELEVATION HOUSING PLATE
Price
N/A
PSB1119089
BRACKET V2.03.20
Price
N/A
PSB1119090
CAP
Price
N/A
PSB1119091
SET SCREW M8-1.25 X 35
Price
N/A
PSB1119092
HEX NUT M8-1.25
Price
N/A
PSB1119093
CAP SCREW M10-1.5 X 20
Price
N/A
PSB1119094
LOCK NUT M10-1.25
Price
N/A
PSB1119095
FENDER WASHER 10MM
Price
N/A
PSB1119096
SENSOR PLATE
Price
N/A
PSB1119097
SPACER 10.8 X 20 X 50
Price
N/A
PSB1119098
LEFT BEVEL GEAR
Price
N/A
PSB1119099
THRUST BEARING 51202
Price
N/A
PSB1119100
GASKET
Price
N/A
PSB1119101
BUSHING
Price
N/A
PSB1119102
ELEVATION LEADSCREW
Price
N/A
PSB1119103
GIB
Price
N/A
PSB1119104
GAS STRUT
Price
N/A
PSB1119105
DUST TRAY
Price
N/A
PSB1119106
SPINDLE HOUSING
Price
N/A
PSB1119107
LOCK WASHER 10MM
Price
N/A
PSB1119108
CAP SCREW M10-1.5 X 55
Price
N/A
PSB1119109
SPINDLE LOCK SHAFT SEAT
Price
N/A
PSB1119110
SPINDLE LOCK SHAFT
Price
N/A
PSB1119111
CAP SCREW M10-1.5 X 40
Price
N/A
PSB1119112
ROLL PIN 4 X 20
Price
N/A
PSB1119113
COMPRESSION SPRING 1 X 12 X 38
Price
N/A
PSB1119114
FIXED HANDLE 25 X 90
Price
N/A
PSB1119115
LOCK NUT M20-1.5
Price
N/A
PSB1119116
FLAT WASHER 20MM
Price
N/A
PSB1119117
MOTOR BRACKET
Price
N/A
PSB1119118
MOTOR BRACKET PIVOT SHAFT
Price
N/A
PSB1119119
HOSE CLAMP 3"
Price
N/A
PSB1119120
DUST CHUTE 3" X 11-3/4"
Price
N/A
PSB1119121
SHAFT
Price
N/A
PSB1119122
POLY V-BELT 9V X 25L
Price
N/A
P
MOTOR 3HP 230V 3-PH
Price
$1,140.20
PSB1119123-1
MOTOR JUNCTION BOX
Price
N/A
P
MOTOR FAN COVER
Price
$38.10
PSB1119123-3
MOTOR FAN
Price
N/A
PSB1119123-4
BALL BEARING 6206-2NSE
Price
N/A
PSB1119123-5
BALL BEARING 6204-2NSE
Price
N/A
PSB1119124
FENDER WASHER 10MM
Price
N/A
PSB1119125
HEX BOLT M10-1.5 X 25
Price
N/A
PSB1119126
HEX BOLT M10-1.5 X 55
Price
N/A
PSB1119127
HEX NUT M10-1.5
Price
N/A
PSB1119128
FIXED HANDLE 38 X 110, M10-1.5 X 15
Price
N/A
PSB1119129
TENSION BLOCK
Price
N/A
PSB1119130
HEX BOLT M8-1.25 X 45
Price
N/A
PSB1119131
TENSION BRACKET
Price
N/A
PSB1119132
LOCK NUT M8-1.25
Price
N/A
PSB1119133
BRACKET
Price
N/A
PSB1119134
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
P
ELECTRICAL BOX
Price
$77.60
PSB1119136
GROMMET 38MM
Price
N/A
PSB1119137
CHAIN
Price
N/A
PSB1119138
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1119139
PHLP HD SCR M4-.7 X 8
Price
N/A
PSB1119140
EXT TOOTH WASHER 4MM
Price
N/A
PSB1119141
PAD
Price
N/A
P
CABINET
Price
$1,107.60
P
MOTOR ACCESS PANEL
Price
$90.60
PSB1119144
THREADED FOOT M12-1.75 X 50
Price
N/A
PSB1119145
LATCH
Price
N/A
P
CABINET DOOR
Price
$120.20
P
MITER GAUGE ASSEMBLY
Price
$75.20
PSB1119147-1
PHLP HD SCR 10-24 X 3/8
Price
N/A
P
FIXED HANDLE 38 X 115, M8-1.25 X 45
Price
$13.05
PSB1119147-11
SET SCREW M8-1.25 X 45
Price
N/A
P
FLAT WASHER 8 X 18 X 3MM
Price
$1.60
PSB1119147-13
MITER GAUGE BODY
Price
N/A
PSB1119147-14
MITER BAR
Price
N/A
PSB1119147-15
T-SLOT WASHER 7.8 X 22.5 X 3MM
Price
N/A
PSB1119147-16
FLAT HD SCR M6-1 X 8
Price
N/A
PSB1119147-17
O-RING 4.8 X 1.9 P5
Price
N/A
PSB1119147-2
POINTER
Price
N/A
PSB1119147-3
BLOCK
Price
N/A
PSB1119147-4
SHAFT
Price
N/A
PSB1119147-5
MITER GAUGE SCALE
Price
N/A
PSB1119147-6
PHLP HD SCR 8-32 X 5/8
Price
N/A
PSB1119147-7
HEX NUT 8-32
Price
N/A
PSB1119147-8
*DISCD*SHOULDER SCR 1/4-20 X 7/16, 5/16
Price
N/A
PSB1119147-9
SET SCREW M5-.8 X 12
Price
N/A
PSB1119148
SET SCREW M4-.7 X 4
Price
N/A
PSB1119149
TABLE INSERT RING 2-1/2" ID
Price
N/A
PSB1119150
SPINDLE WRENCH 50MM
Price
N/A
PSB1119151
SCREWDRIVER PHLP/FLAT HEAD #1
Price
N/A
PSB1119152
HEX WRENCH 3MM
Price
N/A
PSB1119153
HEX WRENCH 6MM
Price
N/A
PSB1119154
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
PSB1119155
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
PSB1119156
SPINDLE ASSEMBLY 3/4"
Price
N/A
PSB1119156-1
CAP SCREW M10-1.5 X 30
Price
N/A
PSB1119156-2
SPINDLE WASHER 10.1 X 28 X 5MM
Price
N/A
PSB1119156-3
SPINDLE LOCK COLLAR
Price
N/A
PSB1119156-4
SPACER 3/4"ID X 1-1/4"OD X 1/2"
Price
N/A
PSB1119156-5
SPACER 3/4"ID X 1-1/4"OD X 3/4"
Price
N/A
PSB1119156-6
SPINDLE 3/4"
Price
N/A
PSB1119156-7
*DISCD*HEX NUT M42-2, M40-2.5
Price
N/A
PSB1119157
TABLE INSERT RING 4-1/8" ID
Price
N/A
PSB1119158
FLAT HD SCR M5-.8 X 12
Price
N/A
PSB1119159
TABLE INSERT RING 5-3/4" ID
Price
N/A
PSB1119160
PHLP HD SCR M6-1 X 12
Price
N/A
P
INVERTER/VFD 11AME21ANNAA
Price
$1,184.90
P
INVERTER MOUNTING BOARD
Price
$27.80
P
PHLP HD SCR M5-.8 X 20 PLASTIC
Price
$1.60
PSB1119164
HEX NUT M5-.8
Price
N/A
P
FLAT WASHER 6.1 X 12.5 X 3.5MM
Price
$1.60
PSB1119166
CONTACTOR SDE MA-18 220V
Price
N/A
P
AUX CONTACTOR SDE AP2-11
Price
$20.55
P
JUMPER M919
Price
$2.45
PSB1119169
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1119170
POWER CORD 12G 3W 138" 6-20P
Price
N/A
PSB1119171
STRAIN RELIEF TYPE-3 M25-1.5
Price
N/A
PSB1119172
PHLP HD SCR M5-.8 X 10
Price
N/A
P
KEY 5 X 5 X 25 RE
Price
$2.20
P
MOTOR PULLEY
Price
$59.50
PSB1119175
FENDER WASHER 8MM
Price
N/A
PSB1119176
CAP SCREW M8-1.25 X 20
Price
N/A
PSB1119177
WIRE NUT SW-P6H
Price
N/A
P
STRAIN RELIEF TYPE-3 M25-1.5
Price
$10.00
P
MOTOR CORD 14G 4W 35"
Price
$29.95
PSB1119180
PHLP HD SCR M6-1 X 12
Price
N/A
PSB1119181
SET SCREW M6-1 X 8
Price
N/A
PSB1119182
FLAT WASHER 6MM
Price
N/A
PSB1119183
CAP SCREW M6-1 X 12
Price
N/A
PSB1119184
EXT RETAINING RING 20MM
Price
N/A
PSB1119185
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
PSB1119186
CAP SCREW M8-1.25 X 30
Price
N/A
PSB1119187
LOCK WASHER 8MM
Price
N/A
PSB1119188
CAP SCREW M8-1.25 X 30
Price
N/A
PSB1119189
PHLP HD SCR M4-.7 X 8
Price
N/A
PSB1119190
FLAT WASHER 4MM
Price
N/A
PSB1119191
LOCK NUT M4-.7
Price
N/A
PSB1119192
LIMIT SWITCH MOUNTING BRACKET
Price
N/A
PSB1119193
LIMIT SWITCH HOUSING
Price
N/A
PSB1119194
LIMIT SWITCH MOUJEN MJ2-1306
Price
N/A
PSB1119195
PHLP HD SCR M4-.7 X 35
Price
N/A
P
CORD LOOP CLAMP
Price
$1.60
P
CUTTER WARNING LABEL
Price
$1.85
PSB1119202
ELECTRICITY LABEL 0.7
Price
N/A
PSB1119203
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1119204
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
P
DISCONNECT POWER COMBO LABEL
Price
$2.10
P
OPERATIONAL WARNING COMBO LABEL
Price
$2.10
P
MODEL NUMBER LABEL
Price
$16.40
PSB1119208
New South Bend Nameplates 152mm (6")
Price
N/A
P
MACHINE ID LABEL
Price
$16.40
P
MANUAL SB1119/20 MFD-3.21-6.22 V1.05.21
Price
$21.95
P
MANUAL SB1119/20 MFD-7.22-3.24 V2.06.22
Price
$14.65
P
MANUAL SB1119/20 MFD-04.24+ V3.06.24
Price
$22.80
