Parts for SB1125 - 19-1/2" Variable Speed Drill Press

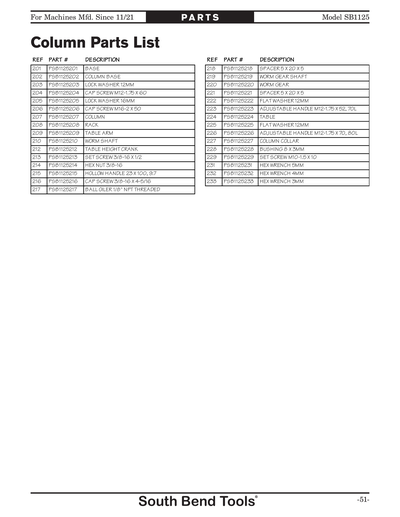

Part Diagram for SB1125

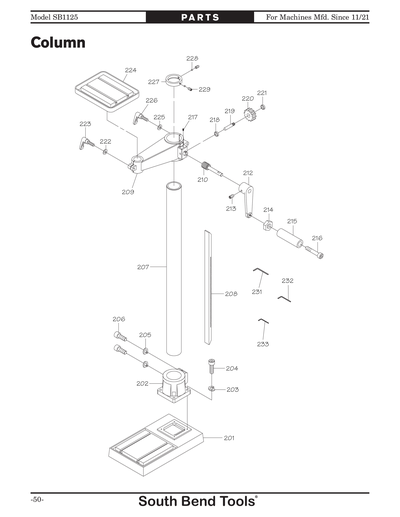

Part Diagram for SB1125

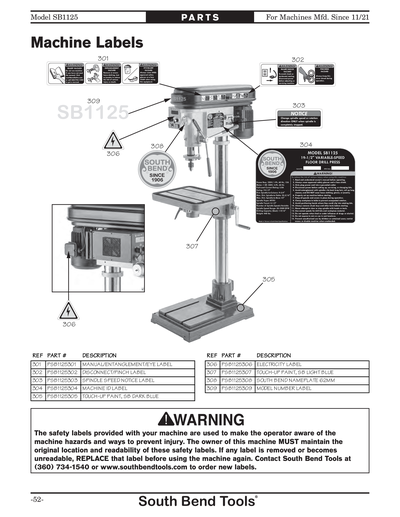

Part Diagram for SB1125

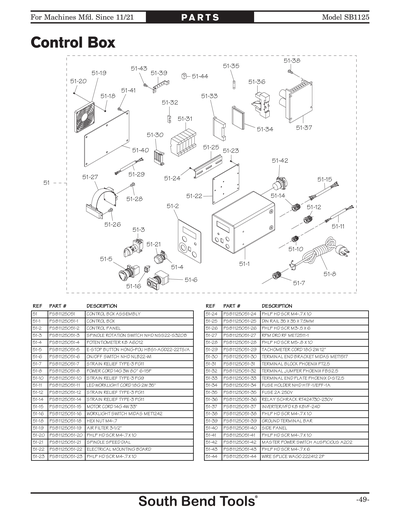

Part Diagram for SB1125

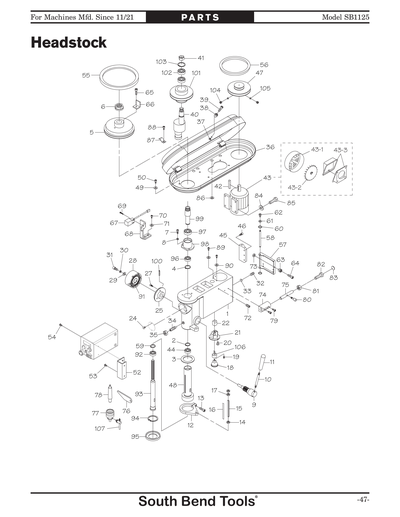

Part Diagram for SB1125

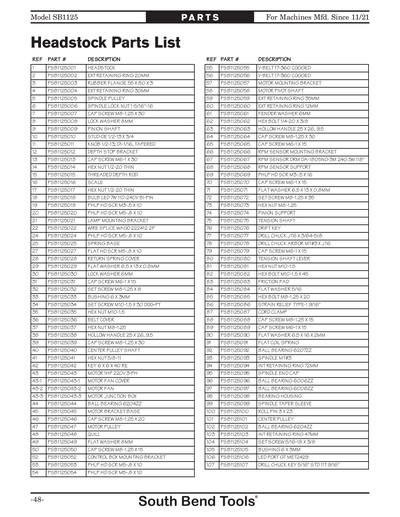

Part Diagram for SB1125
Part Diagram for SB1125
Part Diagram for SB1125
Part Diagram for SB1125
Part Diagram for SB1125
Part Diagram for SB1125
Part Diagram for SB1125

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
P
HEADSTOCK
Price
$626.70
PSB1125002
EXT RETAINING RING 20MM
Price
N/A
P
RUBBER FLANGE 55 X 80 X 3
Price
$3.65
PSB1125004
EXT RETAINING RING 30MM
Price
N/A
P
SPINDLE PULLEY
Price
$233.70
P
SPINDLE LOCK NUT 1-5/16"-16
Price
$12.75
PSB1125007
CAP SCREW M8-1.25 X 30
Price
N/A
PSB1125008
LOCK WASHER 8MM
Price
N/A
P
PINION SHAFT
Price
$532.55
P
STUD-DE 1/2-13 X 3/4
Price
$21.75
P
KNOB 1/2-13, D1-1/16, TAPERED
Price
$36.25
P
DEPTH STOP BRACKET
Price
$47.10
PSB1125013
CAP SCREW M6-1 X 30
Price
N/A
PSB1125014
HEX NUT 1/2-20 THIN
Price
N/A
P
THREADED DEPTH ROD
Price
$206.50
P
SCALE
Price
$48.95
PSB1125017
HEX NUT 1/2-20 THIN
Price
N/A
P
BULB LED 7W 110-240V BI-PIN
Price
$74.30
PSB1125019
PHLP HD SCR M3-.5 X 10
Price
N/A
PSB1125020
PHLP HD SCR M5-.8 X 10
Price
N/A
P
LAMP MOUNTING BRACKET
Price
$9.10
P
WIRE SPLICE WAGO 222412 2P
Price
$9.10
PSB1125024
PHLP HD SCR M5-.8 X 10
Price
N/A
P
SPRING BASE
Price
$32.65
PSB1125027
FLAT HD SCR M5-.8 X 10
Price
N/A
P
FLAT COIL SPRING W/COVER
Price
$76.10
P
FLAT WASHER 6.5 X 13 X 0.8MM
Price
$1.85
PSB1125030
LOCK WASHER 6MM
Price
N/A
PSB1125031
CAP SCREW M6-1 X 15
Price
N/A
PSB1125032
SET SCREW M8-1.25 X 8
Price
N/A
P
BUSHING 6 X 3MM
Price
$7.25
P
SET SCREW M10-1.5 X 30 DOG-PT
Price
$3.65
PSB1125035
HEX NUT M10-1.5
Price
N/A
P
BELT COVER
Price
$411.20
PSB1125037
HEX NUT M8-1.25
Price
N/A
P
HOLLOW HANDLE 25 X 26, 9.5
Price
$1.85
PSB1125039
CAP SCREW M8-1.25 X 30
Price
N/A
P
CENTER PULLEY SHAFT
Price
$102.40
PSB1125041
HEX NUT 5/8-11
Price
N/A
P
KEY 6 X 6 X 40 RE
Price
$5.50
P
MOTOR 1HP 220V 3-PH
Price
$869.40
P
MOTOR FAN COVER
Price
$40.20
P
MOTOR FAN
Price
$38.10
P
MOTOR JUNCTION BOX
Price
$38.10
PSB1125044
BALL BEARING 6204ZZ
Price
N/A
P
MOTOR BRACKET BASE
Price
$77.95
PSB1125046
CAP SCREW M8-1.25 X 20
Price
N/A
P
MOTOR PULLEY
Price
$190.25
P
QUILL
Price
$235.50
PSB1125049
FLAT WASHER 8MM
Price
N/A
PSB1125050
CAP SCREW M8-1.25 X 15
Price
N/A
P
CONTROL BOX ASSEMBLY
Price
$1,753.30
P
CONTROL BOX
Price
$302.55
P
STRAIN RELIEF TYPE-3 PG9
Price
$5.50
P
LED WORKLIGHT CORD 18G 2W 35"
Price
$21.75
P
STRAIN RELIEF TYPE-3 PG11
Price
$18.15
PSB1125051-14
STRAIN RELIEF TYPE-3 PG11
Price
N/A
P
MOTOR CORD 14G 4W 33"
Price
$45.35
P
WORKLIGHT SWITCH MIDAS MET1242
Price
$18.15
PSB1125051-18
HEX NUT M4-.7
Price
N/A
P
AIR FILTER 3-1/2"
Price
$32.65
P
CONTROL PANEL
Price
$273.55
PSB1125051-20
PHLP HD SCR M4-.7 X 10
Price
N/A
P
SPINDLE SPEED DIAL
Price
$14.50
P
ELECTRICAL MOUNTING BOARD
Price
$52.60
PSB1125051-23
PHLP HD SCR M4-.7 X 10
Price
N/A
PSB1125051-24
PHLP HD SCR M4-.7 X 10
Price
N/A
P
DIN RAIL 35 X 35 X 7.5MM
Price
$29.00
PSB1125051-26
PHLP HD SCR M3-.5 X 6
Price
N/A
P
RPM DRO RF MET2511-1
Price
$315.20
PSB1125051-28
PHLP HD SCR M5-.8 X 10
Price
N/A
P
TACHOMETER CORD 18G 2W 12"
Price
$23.60
P
SPINDLE ROTATION SWITCH NHD NSS22-S320B
Price
$43.50
P
TERMINAL END BRACKET MIDAS MET1517
Price
$5.50
P
TERMINAL BLOCK PHOENIX PT2.5
Price
$9.10
P
TERMINAL JUMPER PHOENIX FBS2.5
Price
$9.10
P
TERMINAL END PLATE PHOENIX D-ST2.5
Price
$9.10
P
FUSE HOLDER NHD HTF-1/EPF-1A
Price
$30.85
P
FUSE 2A 250V
Price
$1.60
P
RELAY SCHRACK RT424730-230V
Price
$105.10
P
INVERTER/VFD KB KBVF-24D W/POTENTIOMETER
Price
$1,137.50
PSB1125051-38
PHLP HD SCR M4-.7 X 10
Price
N/A
P
GROUND TERMINAL BAR
Price
$27.20
PSB1125051-4
INVERTER/VFD KB KBVF-24D W/POTENTIOMETER
Price
N/A
P
SIDE PANEL
Price
$77.95
PSB1125051-41
PHLP HD SCR M4-.7 X 10
Price
N/A
P
MASTER POWER SWITCH AUSPICIOUS A202
Price
$86.95
PSB1125051-43
PHLP HD SCR M4-.7 X 6
Price
N/A
PSB1125051-44
WIRE SPLICE WAGO 222412 2P
Price
N/A
P
E-STOP BUTTON HONG-POU HBS1-AGD22-22TS/A
Price
$110.55
P
ON/OFF SWITCH NHD NLB22-WI
Price
$72.45
P
STRAIN RELIEF TYPE-3 PG11
Price
$7.25
P
POWER CORD 14G 3W 80" 6-15P
Price
$90.60
P
CONTROL BOX MOUNTING BRACKET
Price
$47.10
PSB1125053
PHLP HD SCR M5-.8 X 10
Price
N/A
PSB1125054
PHLP HD SCR M5-.8 X 10
Price
N/A
P
V-BELT 17-360 COGGED
Price
$58.00
PSB1125056
V-BELT 17-360 COGGED
Price
N/A
P
MOTOR MOUNTING BRACKET
Price
$108.70
P
MOTOR PIVOT SHAFT
Price
$19.95
PSB1125059
EXT RETAINING RING 35MM
Price
N/A
PSB1125060
EXT RETAINING RING 12MM
Price
N/A
PSB1125061
FENDER WASHER 6MM
Price
N/A
PSB1125062
HEX BOLT 1/4-20 X 3/8
Price
N/A
P
HOLLOW HANDLE 25 X 26, 9.5
Price
$36.25
PSB1125064
CAP SCREW M8-1.25 X 30
Price
N/A
PSB1125065
CAP SCREW M6-1 X 15
Price
N/A
P
RPM SENSOR MOUNTING BRACKET
Price
$30.85
P
RPM SENSOR DRM DA-1805NO-3M 24G 3W 118"
Price
$61.60
P
RPM SENSOR SUPPORT
Price
$434.70
PSB1125069
PHLP HD SCR M3-.5 X 16
Price
N/A
PSB1125070
CAP SCREW M6-1 X 15
Price
N/A
PSB1125071
FLAT WASHER 6.5 X 13 X 0.8MM
Price
N/A
PSB1125072
SET SCREW M8-1.25 X 35
Price
N/A
PSB1125073
HEX NUT M8-1.25
Price
N/A
P
PINION SUPPORT
Price
$47.10
P
TENSION SHAFT
Price
$25.40
P
DRIFT KEY
Price
$10.90
P
DRILL CHUCK JT6 X 3/64-5/8
Price
$115.95
P
DRILL CHUCK ARBOR MT#3 X JT6
Price
$76.10
PSB1125079
CAP SCREW M6-1 X 15
Price
N/A
P
TENSION SHAFT LEVER
Price
$3.65
PSB1125081
HEX NUT M10-1.5
Price
N/A
PSB1125082
HEX BOLT M10-1.5 X 45
Price
N/A
P
FRICTION PAD
Price
$3.65
PSB1125084
FLAT WASHER 5/16
Price
N/A
PSB1125085
HEX BOLT M8-1.25 X 20
Price
N/A
P
STRAIN RELIEF TYPE-1 9/16"
Price
$3.65
P
CORD CLAMP
Price
$3.65
PSB1125088
CAP SCREW M8-1.25 X 15
Price
N/A
PSB1125089
CAP SCREW M6-1 X 15
Price
N/A
P
FLAT WASHER 6.5 X 16 X 2MM
Price
$1.85
PSB1125091
FLAT COIL SPRING W/COVER
Price
N/A
PSB1125092
BALL BEARING 6207ZZ
Price
N/A
P
SPINDLE MT#3
Price
$286.20
PSB1125094
INT RETAINING RING 72MM
Price
N/A
P
SPINDLE END CAP
Price
$7.25
PSB1125096
BALL BEARING 6006ZZ
Price
N/A
PSB1125097
BALL BEARING 6006ZZ
Price
N/A
P
BEARING HOUSING
Price
$48.95
P
SPINDLE TAPER SLEEVE
Price
$148.55
P
ROLL PIN 3 X 23
Price
$1.85
P
CENTER PULLEY
Price
$197.50
PSB1125102
BALL BEARING 6204ZZ
Price
N/A
PSB1125103
INT RETAINING RING 47MM
Price
N/A
PSB1125104
SET SCREW 5/16-18 X 3/8
Price
N/A
P
BUSHING 6 X 3MM
Price
$3.65
P
LED PORT GT MET2429
Price
$18.15
P
DRILL CHUCK KEY 5/16" STD 11T 9/16"
Price
$34.45
P
BASE
Price
$467.35
P
COLUMN BASE
Price
$364.10
PSB1125203
LOCK WASHER 12MM
Price
N/A
PSB1125204
CAP SCREW M12-1.75 X 60
Price
N/A
PSB1125205
LOCK WASHER 16MM
Price
N/A
PSB1125206
CAP SCREW M16-2 X 50
Price
N/A
P
COLUMN
Price
$264.45
P
RACK
Price
$175.75
P
TABLE ARM
Price
$204.70
P
WORM SHAFT
Price
$45.35
P
SPACER 17.2 X 25.4 X 5
Price
$10.90
P
TABLE HEIGHT CRANK
Price
$159.40
PSB1125213
SET SCREW 3/8-16 X 1/2
Price
N/A
PSB1125214
HEX NUT 5/8-18
Price
N/A
P
HOLLOW HANDLE 23 X 100, 9.7
Price
$5.50
P
CAP SCREW 3/8-16 X 4-5/16
Price
$10.90
P
BALL OILER 1/8" NPT THREADED
Price
$7.25
P
SPACER 5 X 20 X 5
Price
$10.90
P
WORM GEAR SHAFT
Price
$14.50
P
WORM GEAR
Price
$48.95
P
SPACER 5 X 20 X 5
Price
$10.90
PSB1125222
FLAT WASHER 12MM
Price
N/A
P
ADJUSTABLE HANDLE M12-1.75 X 52, 70L
Price
$65.25
P
TABLE
Price
$804.20
PSB1125225
FLAT WASHER 12MM
Price
N/A
P
ADJUSTABLE HANDLE M12-1.75 X 70, 80L
Price
$77.95
P
COLUMN COLLAR
Price
$90.60
P
BUSHING 8 X 3MM
Price
$3.65
PSB1125229
SET SCREW M10-1.5 X 10
Price
N/A
PSB1125230
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
PSB1125231
HEX WRENCH 5MM
Price
N/A
PSB1125232
HEX WRENCH 4MM
Price
N/A
PSB1125233
HEX WRENCH 3MM
Price
N/A
P
MANUAL/ENTANGLEMENT/EYE LABEL
Price
$22.05
P
DISCONNECT/PINCH LABEL
Price
$22.05
P
SPINDLE SPEED NOTICE LABEL
Price
$22.05
P
MACHINE ID LABEL
Price
$15.00
PSB1125305
SB DK BLUE TOUCH-UP AEROSOL 5oz
Price
N/A
PSB1125306
ELECTRICITY LABEL 1.4
Price
N/A
PSB1125307
SB LT BL FOR SB1003 TOUCH-UP PAINT
Price
N/A
PSB1125308
South Bend Nameplate 62mm (2-1/2")
Price
N/A
P
MODEL NUMBER LABEL
Price
$15.00
P
MANUAL SB1125 MFD-11.21+ V1.12.21
Price
$21.00
