Item: T21853 | Model: W1725

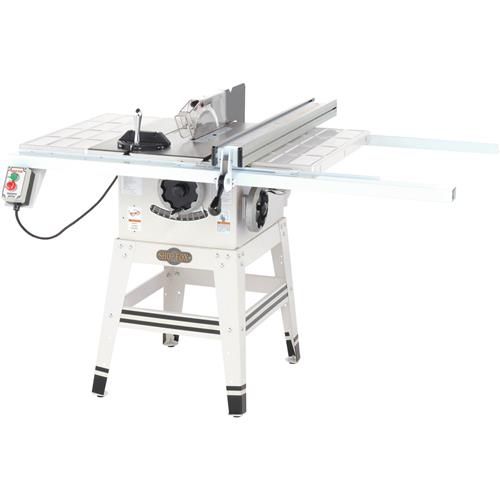

Image for Shop Fox T21853 - 1-1/2 HP 10" Left Tilt Contractor Table Saw
  • Motor: 1-1/2 HP, 18A/9A, 110/220V, Single-phase
  • Max.Width of Cut (right of blade): 28-1/2"
  • Max.Width of Dado Cut: 13/16"
  • Maximum Depth of Cut @ 0°: 3-1/8"
  • Max. Depth of Cut @ 45°: 2-1/8"
  • Table Size: 27" D x 20-1/4" W
  • Table Height: 35"
  • Arbor Size: 5/8" shaft 2-1/2" flange
  • Arbor Speed: 4,250 RPM
  • Blade Size: 10"
  • Base Dimension: 21" W x 24-1/2" D
  • Weight W1725 (saw + fence): 266 lbs.



    PUSH STICK H3308 INCLUDED
Overview
Manual Buy Parts
Overview
  • Motor: 1-1/2 HP, 18A/9A, 110/220V, Single-phase
  • Max.Width of Cut (right of blade): 28-1/2"
  • Max.Width of Dado Cut: 13/16"
  • Maximum Depth of Cut @ 0°: 3-1/8"
  • Max. Depth of Cut @ 45°: 2-1/8"
  • Table Size: 27" D x 20-1/4" W
  • Table Height: 35"
  • Arbor Size: 5/8" shaft 2-1/2" flange
  • Arbor Speed: 4,250 RPM
  • Blade Size: 10"
  • Base Dimension: 21" W x 24-1/2" D
  • Weight W1725 (saw + fence): 266 lbs.



    PUSH STICK H3308 INCLUDED
