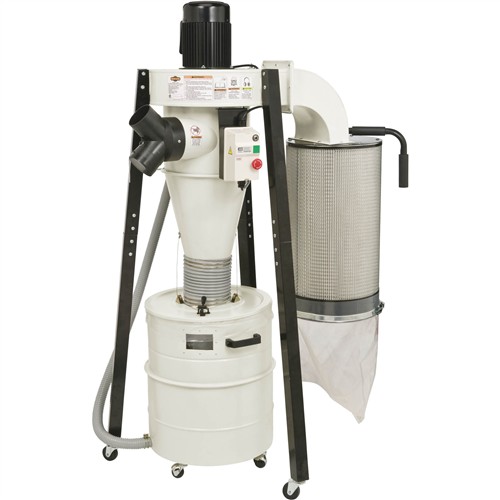

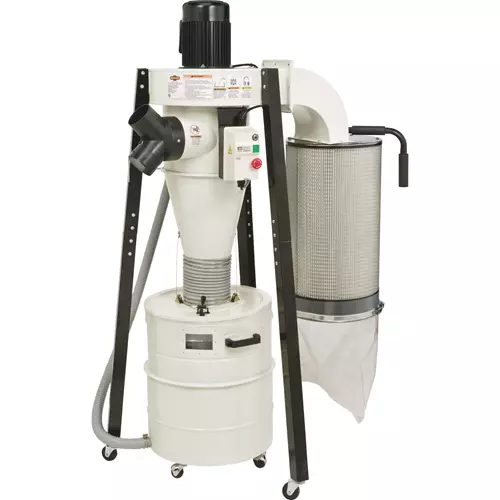

Shop Fox W1823 1-1/2 HP Portable Cyclone

Conquer dust and unleash your creativity with a portable cyclone dust collector.

Breathe easy and focus on your craft with the Shop Fox W1823 Portable Cyclone. This powerhouse dust collector removes 806 CFM of dust particles, keeping your workspace clean and healthy. The 2-micron pleated filter with internal cleaning paddle ensures efficient dust capture for projects big and small. This cyclone is designed to collect dust from one large machine or two small machines at a time.

Effortless Dust Disposal:

• The 20-gallon drum with casters makes maneuvering and emptying a breeze.
• A viewing window signals when it's time to empty, and the lever-operated lid simplifies the process.
• Durable plastic bag liners keep dust contained during disposal (sold separately).

The W1823 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collection system.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 1-1/2 HP, 120V/240V (pre-wired 120V), single-phase, 15A/7.5A
• Approved dust types: Wood
• Intake hole size: 6"
• Impeller: 12-3/4" aluminum
• Airflow capacity: 806 CFM
• Max static pressure: 10.4"
• Filter type: Pleated cartridge
• Filtration: 0.2–2-micron
• Collection capacity: 20 gallons
• Sound rating: 82 dB
• Overall dimensions: 37" W x 32" D x 70-1/2" H
• Approximate shipping weight: 166 lbs.

FEATURES:

• Two-year warranty!!
• Class "E" motor
• Casters mounted on drum and stand legs allow for easy mobility
• Clear disposable plastic collection bags
• Top-mounted lever for removing built up dust from canister filter
• Steel drum with easy-to-open lid
