Item: T20834 | Model: M1103

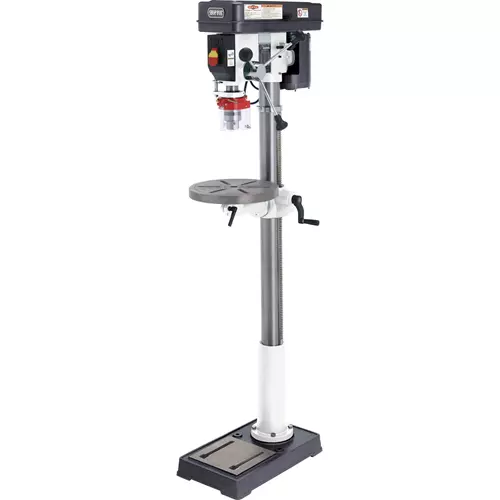

Image for Shop Fox T20834 - 13" Floor Model Drill Press
  • Motor size: 1/2 HP, 110V
  • Swing: 13"
  • Drill chuck: 5/8"
  • Arbor: JT-3
  • Spindle travel: 3-3/16"
  • Number of speeds: 16
  • Range of speeds: 230 - 3,270 RPM
  • Table size: 11-3/8" dia.
  • Table tilts 45 degrees left and right
  • Quick access chuck guard
  • Overall height: 62"
  • Approximate shipping weight: 127 lbs.
Overview
Manual Buy Parts
Overview
  • Motor size: 1/2 HP, 110V
  • Swing: 13"
  • Drill chuck: 5/8"
  • Arbor: JT-3
  • Spindle travel: 3-3/16"
  • Number of speeds: 16
  • Range of speeds: 230 - 3,270 RPM
  • Table size: 11-3/8" dia.
  • Table tilts 45 degrees left and right
  • Quick access chuck guard
  • Overall height: 62"
  • Approximate shipping weight: 127 lbs.
