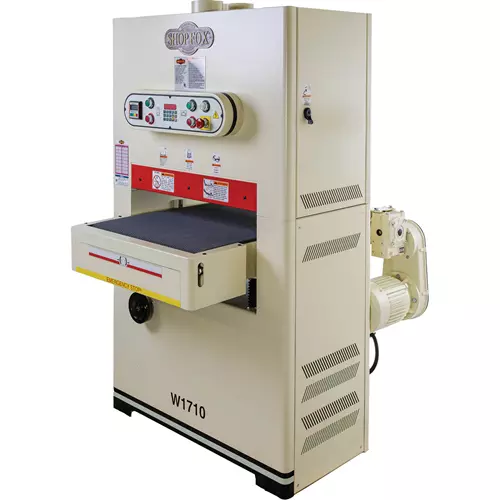

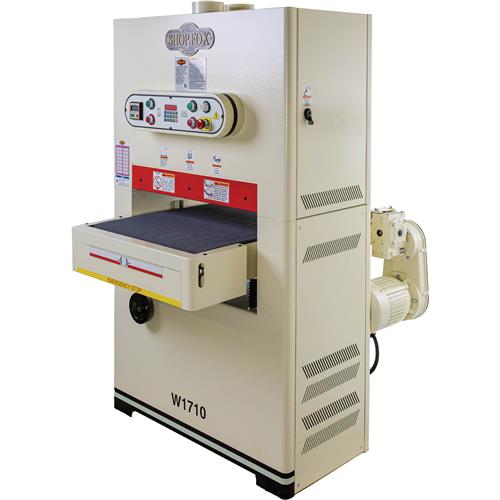

Shop Fox W1710 24" 10 HP Wide-Belt Sander
A sander with the ease-of-use required by professional woodworking shops.
The W1710 24" 10 HP Wide-Belt Sander uses numeric control pad and digital readout to provide the ultimate in precision.Combined with a powerful 10 HP motor, variable-speed feed rate, and 24" wide capacity, this wide-belt sander utilizes single-phase power for shops where 3-phase power is unavailable.
The automatic belt tracking system ensures your sanding belt stays perfectly centered, reducing imperfections and wasted time spent manually adjusting.
Effortlessly adjust the table height with the touch of a button, allowing for faster setup and easier transitions between sanding different material thicknesses.
Achieve a more consistent and swirl-free finish with the help of an adjustable air-controlled belt oscillation system, which helps distribute sanding marks for a superior aesthetic.
A digital load meter provides real-time feedback on the pressure being applied to the sanding belt. This valuable information allows you to optimize sanding performance and avoid applying too much pressure which can damage the belt or workpiece.
The W1710 has a quick-change belt system with automatic belt tensioning. For a full range of replacement belts for this wide-belt sander, shop here.
The W1710 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
- Sanding motor: 10 HP, 220V, single-phase, 50A
- Feed motor: 1 HP, 7A
- Elevation motor: 1/3 HP, 3A
- Maximum stock width: 24"
- Maximum stock thickness: 6"
- Minimum stock length: 10"
- Minimum stock thickness: 1/8"
- Feed rate: variable, 15–49 FPM
- Sanding belt size: 25" x 60"
- Sanding belt oscillations: 5/8"–3/4"
- Drum speed: 3500 FPM
- Required air pressure: 75 PSI @ 7 CFM
- Dust port: (2) 4"
- Footprint: 39-1/4" W x 19-1/4" D
- Approximate shipping weight: 1450 lbs.
FEATURES:
- Two-year warranty!!
- Dual rubber infeed and outfeed pressure rollers
- Variable-speed conveyor
- Pneumatic belt tensioning
- Digital Readout
- Emergency stop bar with brake
- Manual and motorized table elevation control
- Sanding load meter
- Digital readout and controls
