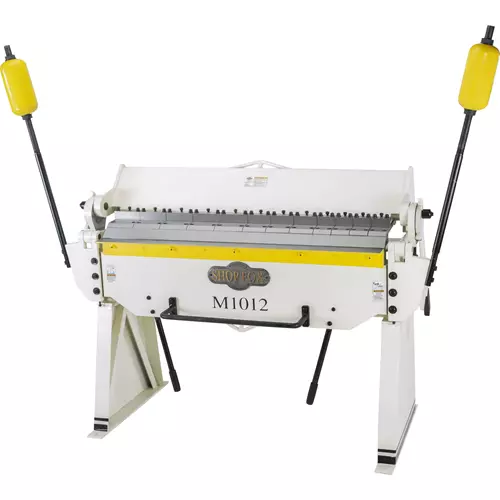

Shop fox M1012 48" Box and Pan Brake

The M1012 Pan and Box Brake from Shop Fox is great for forming extra-wide or long pieces of sheet metal.

When bolted to a concrete floor, the M1012 bends boxes or pans up to 6" deep, materials up to 48" wide, and 12-gauge thick mild steels, from 0 to 135 degrees!

Removable and adjustable 3", 4", and 25" fingers can accommodate a variety of metal widths

Like all Shop Fox pan and box brakes, the M1012 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The M1012 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your pan and box brake.

The Shop Fox Customer Service and Technical Support Teams are also U.S.-based.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Maximum workpiece width: 48"
• Bending capacity at full width: 14-gauge mild steel
• Bending capacity at half width: 12-gauge mild steel
• Brake angle: 0-135°
• Box fingers: 3" (x6) , 4" (x2), 25" (x1)
• Maximum box depth: 6"
• Minimum reverse bend: 1/2"
• Footprint: 56-1/2" x 29"
• Approximate shipping weight: 1236 lbs.

FEATURES:

• Two-year warranty!!
• Precision fingers that are evenly hardened to ensure maximum life and durability
