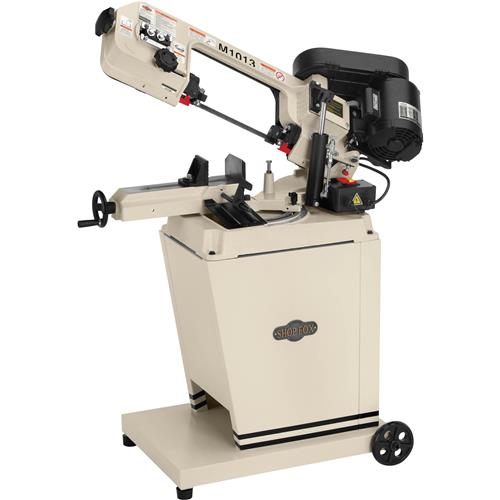

M1013 Shop Fox 5" x 6" 1/2 HP Metal-Cutting Bandsaw

A metal-cutting bandsaw is a must for any metal shop.

The M1013 has three speeds, an automatic shut-off, ball-bearing blade guides, and many more important performance features.

As an added bonus, it has a swiveling headstock, so there is no fussing with establishing the cut angle at the vise!

Just set the workpiece length, swivel the headstock to an angle between -45° to +60°, and make the cut.

The M1013 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your metal-cutting bandsaw.

Parts for the bandsaw may be available online and shipped from the parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Motor: 1/2 HP, 110V/220V (prewired 110V), single-phase, 9.4A/4.5A
• Blade size: 64-1/2" x 1/2"
• Blade speeds: 80, 120, 200 FPM
• Cutting capacities:
• 90° Round: 5"
• 90° Rectangular: 5" x 6"
• 30° Round: 5"
• 30° Rectangular: 5" x 5"
• 45° Round: 3-3/4"
• 45° Rectangular: 2-15/16" x 3-3/4"
• 60° Round: 1-3/4"
• 60° Rectangular: 1-3/4" x 2-3/16"
• Vise jaw height: 2-1/2"
• Vise depth: 4-3/8"
• Table Size: 4-1/2" x 12"
• Floor to table height: 29"
• Footprint: 26-1/2" x 20-1/2"
• Overall dimensions: 39" W x 23-3/8" D x 54-3/4" H
• Approximate shipping weight: 176 lbs.

FEATURES:

• Two-year warranty!!
• Centralized control panel on top of saw bow
• Heavy-duty all steel, one piece base
• Adjustable hydraulic downfeed
• Worm gearbox has hardened and ground gears
• Quick-release vise for fast job changes
• Miter cutting ability
• Blade wheels have heavy-duty ball bearings
• Magnetic safety switch
