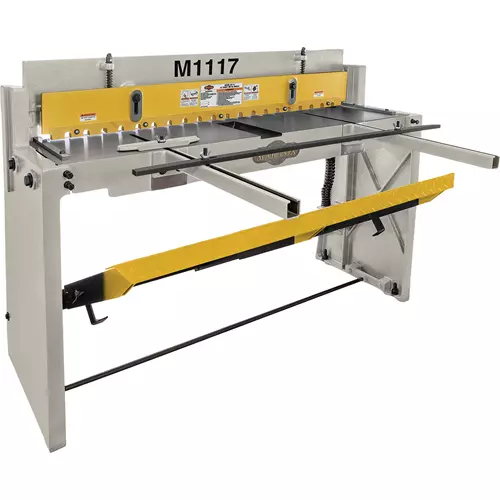

M1117 52" Sheet Metal Shear
Cut your work down to size with this heavy-duty shear.
The Shop Fox M1117 Sheet Metal Shear cuts up to 52" wide with all the stability and precision you would expect from a machine this size.
The front stop and angle guide are quickly adjusted by wing nuts on the top of the stops.
The rear extension arms have micro-adjusting stops that allow you to fine tune your cut length.
For those really large sheet metal jobs, this shear includes table gauges and front extension arms.
Additional features include a heavy cast-iron body with foot control, precision ground blade, spring activated hold down, and a safety guard.
Like all Shop Fox shears, the M1117 comes with a 2-year warranty covering parts and assuring the unit is free from factory defects
The M1117 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your pan and box brake.
The Shop Fox Customer Service and Technical Support Teams are also U.S.-based.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Maximum capacity: 52"
- Mild steel capacity full width: 18-gauge
- Mild steel capacity half width: 16-gauge
- Front stop scale range: 0"–12-1/2"
- Back stop scale range: 0"–33"
- Footprint: 60" x 21"
- Overall dimensions: 62" W x 74" D x 42" H
- Approximate shipping weight: 1120 lbs.
FEATURES:
- Adjustable front stops and micro-adjustable rear stops
- Reversable upper blade with two cutting edges
- Adjustable bevel gauge
- Steel foot pedal that extends full width of machine
- Blade guard doubles as a hold-down
- Infeed and outfeed scales
- Adjustable blade bow
