Item: W1755H | Model: W1755H
1 Product Photos

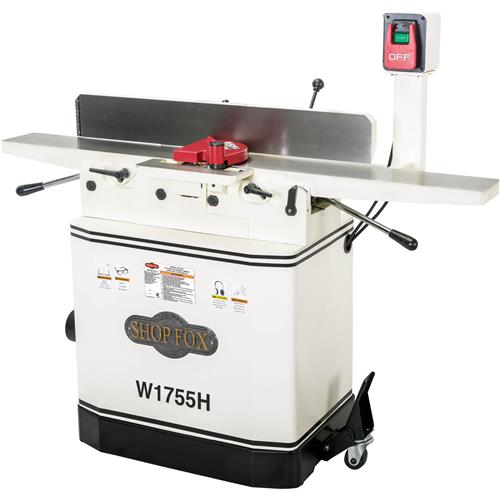

This Shop Fox® 6" Parallelogram Jointer is built like a tank and loaded with red-hot features like parallelogram tables, a 4-row helical cutterhead with indexable carbide inserts, and a built-in mobile base. The 120V, 1-1/2 HP motor makes this a real workhorse with a small footprint.
Features:
Built-in mobile base Built-in 4" dust port Parellogram table design allows for full adjustability and calibration Easy-to-reach pedestal mounted control panel Certified to CSA and UL standards
Specifications:
Motor: 1-1/2 HP, 120V/240V, pre-wired 120V, single-phase, TEFC, 3450 RPM Amps: 15A/ 7.5A Precision ground cast iron table size: 55-1/2" L x 6" W Floor to table height: 32-1/2" Maximum depth of cut (per pass): 1/8" Maximum width of cut: 6" Rabbeting capacity: 1/2" Cutterhead type: Spiral with German-made indexable carbide inserts Cutterhead diameter: 3" Cutterhead speed: 4850 RPM Cuts per minute (effective): 19,400 Power transfer: V-belt drive Switch: standard push-button type switch with large off paddle for safety Fence system: positive stops @ ±45° & 90° Approximate shipping weight: 360 lbs.
View More Details
Features:
Specifications:
Accessories
Overview
This Shop Fox® 6" Parallelogram Jointer is built like a tank and loaded with red-hot features like parallelogram tables, a 4-row helical cutterhead with indexable carbide inserts, and a built-in mobile base. The 120V, 1-1/2 HP motor makes this a real workhorse with a small footprint.
Features:
Built-in mobile base Built-in 4" dust port Parellogram table design allows for full adjustability and calibration Easy-to-reach pedestal mounted control panel Certified to CSA and UL standards
Specifications:
Motor: 1-1/2 HP, 120V/240V, pre-wired 120V, single-phase, TEFC, 3450 RPM Amps: 15A/ 7.5A Precision ground cast iron table size: 55-1/2" L x 6" W Floor to table height: 32-1/2" Maximum depth of cut (per pass): 1/8" Maximum width of cut: 6" Rabbeting capacity: 1/2" Cutterhead type: Spiral with German-made indexable carbide inserts Cutterhead diameter: 3" Cutterhead speed: 4850 RPM Cuts per minute (effective): 19,400 Power transfer: V-belt drive Switch: standard push-button type switch with large off paddle for safety Fence system: positive stops @ ±45° & 90° Approximate shipping weight: 360 lbs.
