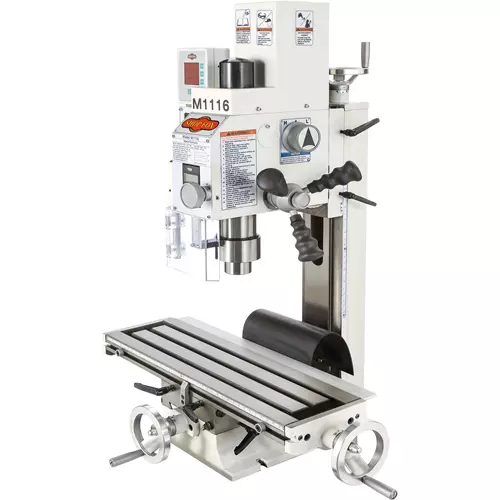

M1116 Shop Fox 6" x 20" Variable-Speed Mill/Drill with DRO
An appropriately powered mill for those new to machining or as a dedicated machine in a shop.
The M1116 6" x 20" Variable-Speed Mill/Drill sports some of the same features found on much larger mill/drills.
The magnetically mounted DRO measures X-axis (table), Y-axis (saddle), and Z-axis (column) travel in hundredths of a millimeter or thousandths of an inch.
Selecting whether the machine operates in high or low is as easy as turning the spindle-speed range knob. The variable spindle speed dial controls the spindle speed between 50—1000 RPM in low range, and 100—2000 RPM in high range.
The 5-3/4" x 19-3/4" table can be moved in two axes. Each axis is independently controlled by a handwheel. Both handwheels have graduated dials for precise movement in 0.002" increments.
The 3/4 HP motor powers drilling operations up to 1/2" in steel and 5/8" in cast-iron.
The optional D4780 Stand for the ultimate mill/drill package is available.
Like all Shop Fox mills, the M1116 comes with a 2-year limited warranty.
The M1116 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your mill.
The Shop Fox Customer Service and Technical Support Teams are also U.S.-based. Parts for the mill may be available online and shipped from the parts warehouse in Springfield, MO.
Made in an ISO 9001 Factory
SPECIFICATIONS:
- Motor: 3/4 HP, 110V, single-phase, 10A
- Drilling capacity: 1/2" steel, 5/8" cast-iron
- Spindle speed: Variable, 50–2000 RPM
- Spindle taper: R8
- Spindle travel: 2"
- Head travel: 8-1/4"
- Head tilt: 45° L/R
- Max. distance spindle to table: 8-3/4"
- Table travel (longitudinal): 13-1/8"
- Table travel (cross): 4-1/2"
- Table size: 5-3/4" x 19-3/4"
- T-slots: 3 @ 1-1/2" centers, 3/8" wide
- Floor-to-table height: 37-1/2"
- Footprint: 11" x 9"
- Overall dimensions: 25-1/2" W x 19-1/2" D x 32-1/2" H
- Approximate shipping weight: 204 lbs.
FEATURES:
- Two-year warranty!!
- Variable-speed spindle with DRO
- Spindle elevation DRO
- 3-Axis precision handwheel control
- Coarse and fine spindle downfeed
- 2-Speed gearbox
- Zero-setting dials on handwheels feature 0.002" graduation
- Dovetail head column and table ways
INCLUDES:
- Drill Chuck 3-16mm w/B16 Taper
- Drill Chuck Arbor B16 x R8
- Open-Ended Wrenches 8/10, 12/14, 17/19mm
- Hex Wrenches 2.5, 3, 4, 5, 6mm
- Toolbox
