Item: W1741H | Model: W1741H
Image for W1741H

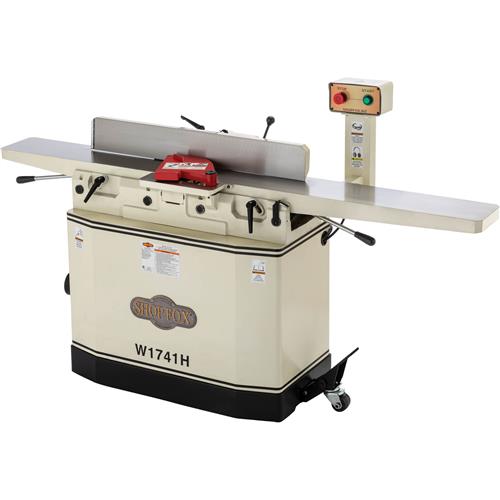

Shop Fox W1741H - 8" Jointer with Adjustable Beds and Helical Cutterhead

W1741H 8" Jointer with Adjustable Beds and Helical Cutterhead

If you set out to design a full-featured 8" Jointer, you couldn't do any better than this.

The with a 3 HP motor and added a precision parallelogram table adjustment mechanism, extra-long infeed table, large cast-iron center-mounted fence, pedestal-mounted switch and a built-in locking mobile base. Check out the other features and you'll agree!

CSA certified
Features:
  • Shielded and lubricated bearings
  • Precision-ground cast-iron table
  • Parallelogram table design allows for full adjustability and calibration
  • Built-in dust chute with 4" port
  • Powder-coated finish
    Specifications:
  • Motor: 3 HP, 240V, single-phase, 15A
  • Switch: magnetic with thermal-overload protection
  • Deluxe cast iron fence size: 36" L x 1-1/4" W x 5" T
  • Table size: 76-3/8" L x 8" W x 1-1/2" T
  • Cutterhead diameter: 3-3/16"
  • Cutterhead type: Spiral with German-made indexable carbide inserts
  • Cutterhead speed: 5350 RPM
  • Max. depth of cut: 1/8"
  • Max. rabbeting depth: 5/8"
  • Max. width of cut: 8"
  • Approximate shipping weight: 600 lbs.

    Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.
