Item# W1741 Model# W1741

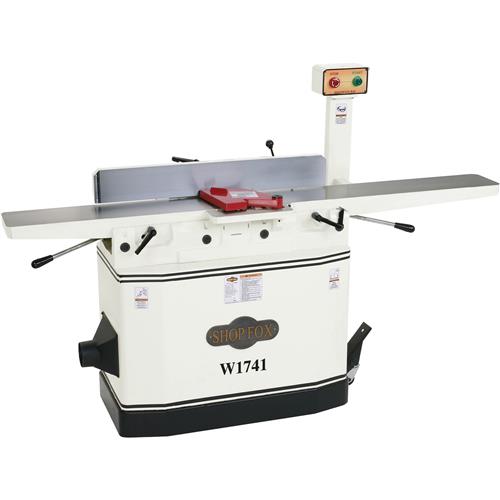

Shop Fox W1741 - 8" Jointer with Adjustable Beds

W1741 Shop Fox 8" Jointer with Adjustable Beds

If you set out to design a full featured 8" Jointer, you couldn't do any better than this.

We started with a 3 HP motor and a 4 knife cutterhead and added a precision parallelogram table adjustment mechanism, extra long infeed table, large cast iron center mounted fence, pedestal mounted switch and a built-in locking mobile base.

Check out the other features and you'll agree!

CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards!

Specifications:

  • Motor: 2 HP, 240V, single phase, 15A
  • Maximum width of cut: 8"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 5/8"
  • Cutterhead diameter: 3-3/16"
  • Cutterhead type: 4-knife
  • Knife size and type: 8" x 3/4" x 1/8", HSS, single-sided
  • Cutterhead speed: 4,800 RPM
  • Table size: 8" x 76-3/8"
  • Fence size: 5" x 36"
  • Minimum stock length: 10"
  • Minimum stock thickness: 1/2"
  • Dust port size: 4"
  • Footprint: 16-1/2" x 44-1/2"
  • Overall dimensions: 76-1/2" W x 23-1/2" D x 33" H
  • Approximate shipping weight: 545 lbs.

Features:

  • Two-year warranty!!
  • Extra-long infeed table
  • Pedestal mounted controls
  • Heavy-duty cast-iron center-mounted fence with angle gauge
  • Precision-ground cast-iron tables
  • Quick-action table adjustment levers
  • Built-in mobile base
  • Internal magnetic switch with thermal overload protection
View More Details

Accessories

Recommended For You

Overview

W1741 Shop Fox 8" Jointer with Adjustable Beds

If you set out to design a full featured 8" Jointer, you couldn't do any better than this.

We started with a 3 HP motor and a 4 knife cutterhead and added a precision parallelogram table adjustment mechanism, extra long infeed table, large cast iron center mounted fence, pedestal mounted switch and a built-in locking mobile base.

Check out the other features and you'll agree!

CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7th standards!

Specifications:

  • Motor: 2 HP, 240V, single phase, 15A
  • Maximum width of cut: 8"
  • Maximum depth of cut: 1/8"
  • Maximum rabbeting depth: 5/8"
  • Cutterhead diameter: 3-3/16"
  • Cutterhead type: 4-knife
  • Knife size and type: 8" x 3/4" x 1/8", HSS, single-sided
  • Cutterhead speed: 4,800 RPM
  • Table size: 8" x 76-3/8"
  • Fence size: 5" x 36"
  • Minimum stock length: 10"
  • Minimum stock thickness: 1/2"
  • Dust port size: 4"
  • Footprint: 16-1/2" x 44-1/2"
  • Overall dimensions: 76-1/2" W x 23-1/2" D x 33" H
  • Approximate shipping weight: 545 lbs.

Features:

  • Two-year warranty!!
  • Extra-long infeed table
  • Pedestal mounted controls
  • Heavy-duty cast-iron center-mounted fence with angle gauge
  • Precision-ground cast-iron tables
  • Quick-action table adjustment levers
  • Built-in mobile base
  • Internal magnetic switch with thermal overload protection
