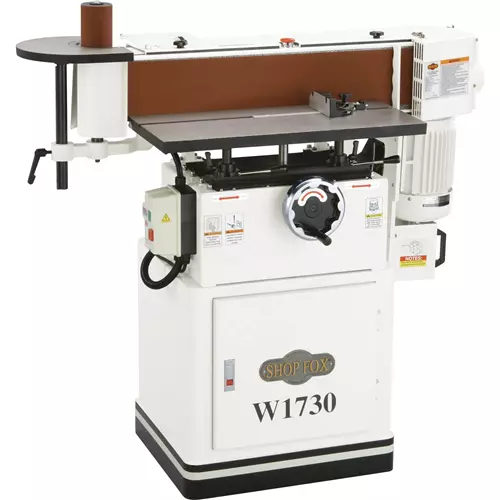

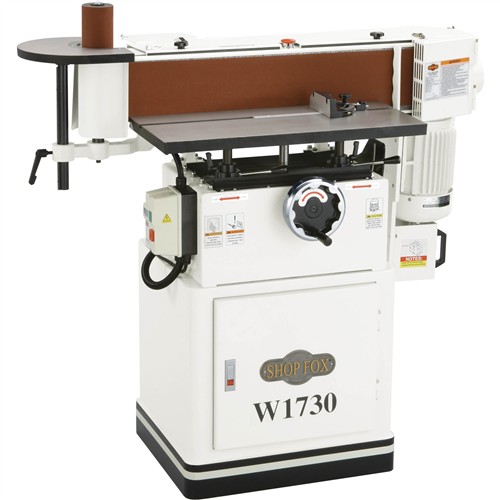

Shop Fox W1730 Oscillating Edge Sander
Professional-grade edge sanding.
The W1730 Oscillating Edge Sander has a vertically and horizontally adjustable table and a 0°–90° tilting platen for a full range of adjustment for custom applications.
This edge sander has a 2 HP motor, and vertically oscillates the 6" x 89" belt three-quarters of an inch fifty-two times per minute.
The cast-iron auxiliary table provides space for edge sanding as well as spindle sanding with the spindle sanding attachment.
Complementing features to best utilize the adjustment range of the W1730 are a T-slot cast-iron table, a 180° adjustable miter gauge, and a removable fence.
Three non-oscillating spindle sanding drums, measuring 1-1/2", 2", and 3" in diameter are included for sanding smaller contoured surfaces.
Other features include a 180° adjustable miter gauge, two 4" dust ports, powder-coated finish, and a removable fence.
A full range of replacement belts are available.
The W1730 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.
CSA and UL certified
SPECIFICATIONS:
- Motor: 2 HP, 240V, single-phase, 9A
- Sanding belt size: 6" x 89"
- Sanding belt speed: 3150 FPM
- Sanding belt tilt: 0–90°
- Sanding belt oscillation stroke: 1/4"
- Table size: 12" x 26-7/8"
- Table travel: 3-3/4"
- End table size: 10" x 11-1/2"
- End table travel: 10"
- Drive drum diameter: 7"
- Idler roller diameter: 3-7/8"
- Platen with graphite pad: 6-3/4" x 30-1/4"
- Platen tilt: 0°–90° (5° scale)
- Footprint: 22-1/2" W x 19-1/2" D
- Overall size: 50-1/2" W x 23" D x 49" H
- Approximate shipping weight: 443 lbs.
FEATURES:
- Two-year warranty!!
- Sanding surface tilts vertical to horizontal
- 3 spindle drums: 1-1/2", 2", 3" x 4-1/2" high
- Precision-ground cast-iron tables
- T-Slot table and miter gauge
- Two 4" dust ports
- Quick-release belt tension lever
- Graphite-coated platen
- Oscillating sanding belt
- Shielded and permanently lubricated ball bearings
