Item# W1833 Model# W1833

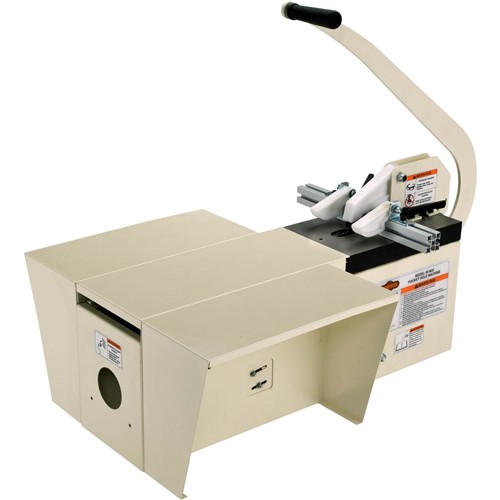

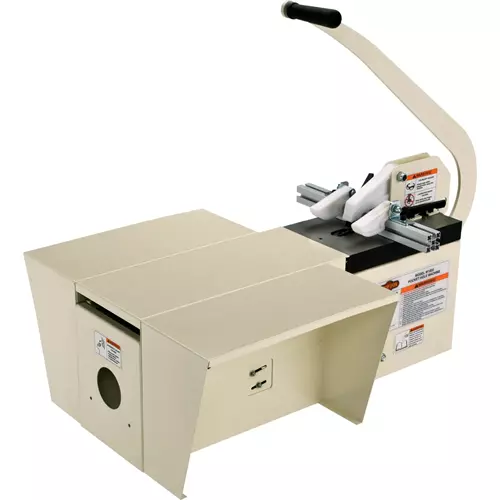

Shop Fox W1833 - Pocket Hole Machine

$659.99
+$0.00  Shipping
+$0.00  Oversize

Shop Fox W1833 - Pocket Hole Machine

Sick of fussing with your pocket hole machine’s hold-down clamp?

The Shop Fox W1833 Pocket Hole Machine has a unique “NO ADJUST” hold-down, making this the fastest, easiest-to-use pocket hole machine available!

Just place any thickness material from 1/2" to 1-1/2" thick against the fence and stops, and simply pull the handle down.

No more wasting time adjusting for material thickness!

You can go from making face frames, casework, drawers etc. without stopping between operations.

This allows two or more people to share the same machine without losing time between setups—great for busy shops with multiple workers using the same machine!

The W1833 is also great for hobbyists who want little or NO machine changeover between different woodworking operations.

What's more, you can connect multiple machines together if you want to really ramp up your production speed!

Just set the stops on one machine for wide face frame parts and set the stops on the other for narrow ones and you'll be amazed at how much time you can shave off your production runs and projects.

Features:

  • Two flip stops for drilling consistency
  • Auto start/stop motor actuation with pull of handle
  • Auto-adjust clamping foot mechanism for workpiece thickness between 1/2" to 1-1/2"
  • Cuts both diameter holes for pocket screws at the same time
  • Ideal for face framing
  • Special construction design allows two or more machines to be connected side by side to maximize production efficiency
  • Specifications:

  • Motor: 1/2 HP, 120V, single-phase, 3A, 17,500 RPM
  • Spindle speed: 2500 RPM
  • Material thickness range: 1/2"—1-1/2"
  • Drilling angle: 15°
  • Fence: 12"
  • Overall dimensions: 29"L x 18"W x 27"H
  • Approximate shipping weight: 62 lbs.
  • View More Details
    Add to Cart
    Available to Ship

    Accessories

    Recommended For You

    Videos
    Overview

    Shop Fox W1833 - Pocket Hole Machine

    Sick of fussing with your pocket hole machine’s hold-down clamp?

    The Shop Fox W1833 Pocket Hole Machine has a unique “NO ADJUST” hold-down, making this the fastest, easiest-to-use pocket hole machine available!

    Just place any thickness material from 1/2" to 1-1/2" thick against the fence and stops, and simply pull the handle down.

    No more wasting time adjusting for material thickness!

    You can go from making face frames, casework, drawers etc. without stopping between operations.

    This allows two or more people to share the same machine without losing time between setups—great for busy shops with multiple workers using the same machine!

    The W1833 is also great for hobbyists who want little or NO machine changeover between different woodworking operations.

    What's more, you can connect multiple machines together if you want to really ramp up your production speed!

    Just set the stops on one machine for wide face frame parts and set the stops on the other for narrow ones and you'll be amazed at how much time you can shave off your production runs and projects.

    Features:

  • Two flip stops for drilling consistency
  • Auto start/stop motor actuation with pull of handle
  • Auto-adjust clamping foot mechanism for workpiece thickness between 1/2" to 1-1/2"
  • Cuts both diameter holes for pocket screws at the same time
  • Ideal for face framing
  • Special construction design allows two or more machines to be connected side by side to maximize production efficiency
  • Specifications:

  • Motor: 1/2 HP, 120V, single-phase, 3A, 17,500 RPM
  • Spindle speed: 2500 RPM
  • Material thickness range: 1/2"—1-1/2"
  • Drilling angle: 15°
  • Fence: 12"
  • Overall dimensions: 29"L x 18"W x 27"H
  • Approximate shipping weight: 62 lbs.
  • Reviews
