Item# G5163 Model# G5163

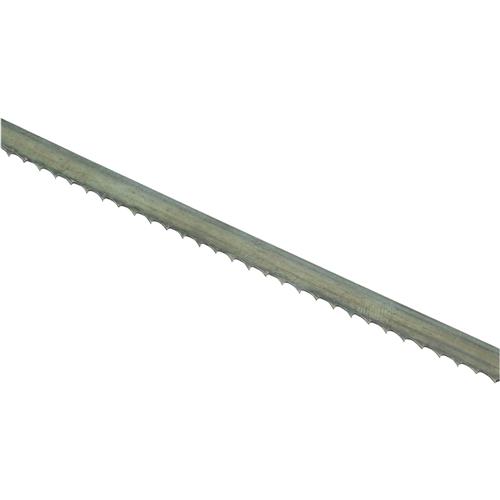

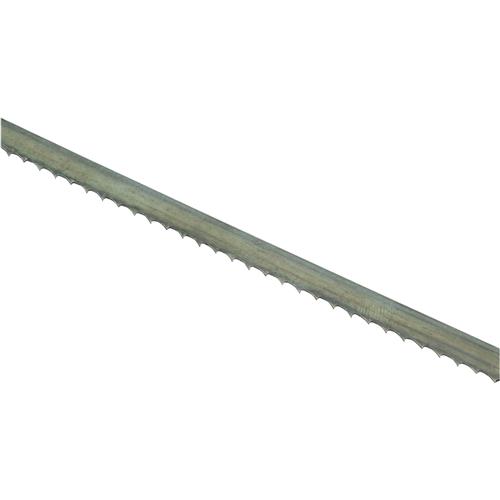

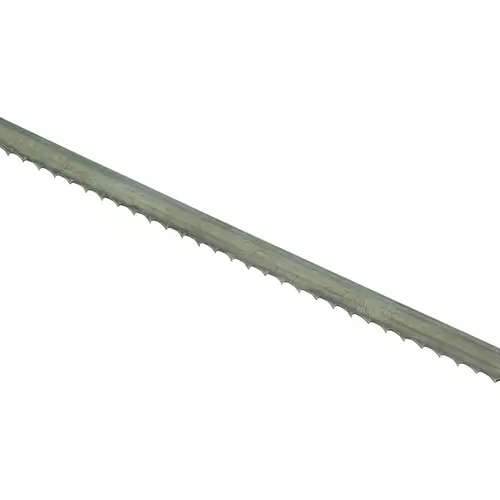

Supercut G5163 - 93-1/2" x 3/8" x .025" x 6 TPI Hook Bandsaw Blade

$21.25
+$0.00  Shipping
+$0.00  Oversize

G5163 93-1/2" x 3/8" x .025" x 6 TPI Hook Bandsaw Blade

An economical 93-1/2" carbon steel hook blade for ripping boards to size.

Hooked blades are most common for long cuts in thicker workpieces. The hooked tooth geometry is aggressive with the hook angled down towards the surface of the workpiece. This helps increase the feed rate through the material, but leaves tearout on the bottom of the workpiece.

Width is an important factor when considering a new blade. The typical range is as small as 1/8" wide to 3/4" wide. This 3/8" wide blade is good for contour sawing with a minimum radius of 1-1/2". For resaw cutting, you will want to fit the widest blade available for your machine.

Typically, there are more teeth per inch for narrower blades compared to wider blades. We sell hook blades in 3, 4, and 6 TPI versions. This means the 6 TPI cut more slowly than a 3 TPI or 4 TPI blade.

The flex back blade helps with absorbing the stresses of cutting curves. It is heat-treated at the teeth, leaving the back with more flexibility for movement through the material.

The 93-1/2" length blade fits 14" bandsaws that do not have a riser block installed. If you do have a riser installed, use 105" bandsaw blades instead.

Choosing the correct blade for your 14" bandsaw can seem like a helpless task. Using the incorrect blade can dramatically affect your bandsaw’s operation. With this explanation, the factors you would select the 93-1/2" G5163 Bandsaw Blade should make total sense for your needs.

Here is a useful bandsaw blade chart to help visualize general blade configurations and capabilities.

The Grizzly Customer Service and Technical Support teams are based in the U.S.A.

SPECIFICATIONS:

  • Length: 93-1/2"
  • Width: 3/8"
  • Gauge: 0.025"
  • TPI: 6 Hook
  • Type: Carbon tool steel

FITS:

  • Grizzly G0555, G0555LA35, G0555LANV, G0555LX, G0555P, G0555X, G0580, G1019
  • Shop Fox W1706
  • Steelex ST1000
  • Bridgewood 14"
  • Central Machinery 60564, 00580-OBME
  • Craftsman 14"
  • Delta 14" 28-203, 28-243, 28-245, 28-283, 28-303
  • General 13-5/8" 90-125
  • Jet JWBS-14CS, JWBS-14DX, JWBS-140S, JWBS-14MW
  • Makita 14"
  • Milwaukee 14"
  • Porter Cable 14"
  • Powermatic 14" 14CS
  • Rigid 14" Riser 105
  • Rikon 12" Deluxe 10-325, 14" 10-336

For other 93-1/2" blades, click here.
