Parts for T10010 - 10" Wet Grinder Kit

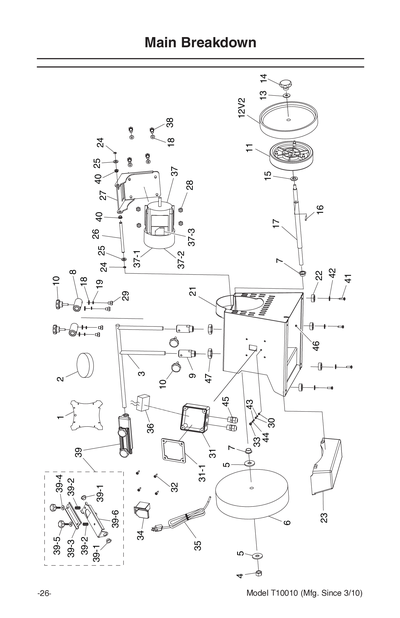

Part Diagram for T10010
Part Diagram for T10010
Part Diagram for T10010
Part Diagram for T10010
Part Diagram for T10010
Part Diagram for T10010

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

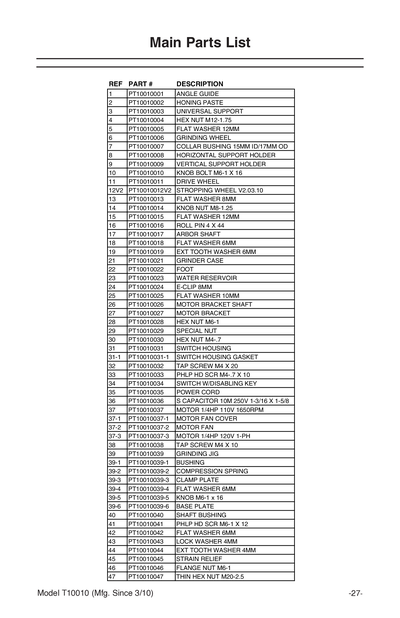

Ref #
Part #
Description
1
Price
$1.90
2
Price
$13.40
3
Price
$13.70
4
HEX NUT M12-1.75 LH
Price
N/A
4V2
HEX NUT M12-1.75 LH
Price
N/A
5
Price
$1.90
6
Price
$53.60
7
*DISCD*FLANGE BUSHING 15MM ID 17MM OD
Item is no longer available
Price
N/A
8
*DISCD*HORIZONTAL SUPPORT HOLDER
Price
$11.80
9
*DISCD*VERTICAL SUPPORT HOLDER
Price
$10.65
10
*DISCD*KNOB BOLT M6-1 X 21 V1
Item is no longer available
Price
N/A
10V2
*DISCD*KNOB BOLT M6-1 X 23 V3.07.14
Price
N/A
10V3
*DISCD*KNOB BOLT M6-1 X 23 V3.07.14
Price
$2.90
11
*DISCD*DRIVE WHEEL V1
Item is no longer available
Price
N/A
11V2
DRIVE WHEEL W/PEGS V2.04.10
Price
$24.85
12
Replacement Stropping Wheel for T10010, T10097
Price
N/A
12V2
*DISCD*STROPPING WHEEL
Item is no longer available
Price
N/A
13
FLAT WASHER 8MM
Price
N/A
14
Price
$1.90
15
FLAT WASHER 12MM
Price
N/A
16
ROLL PIN 4 X 44
Price
N/A
16V2
DOWEL PIN 5MM DIA 21.89MML V2.04.
Price
$1.90
17
ARBOR SHAFT LH THREAD V2.04.10
Price
N/A
17V2
ARBOR SHAFT LH THREAD V2.04.10
Price
$11.65
18
FLAT WASHER 6MM
Price
N/A
19
EXT TOOTH WASHER 6MM
Price
N/A
20
HEX BOLT M6-1 X 10
Price
N/A
21
*DISCD*GRINDER CASE
Item is no longer available
Price
N/A
22
Price
$1.90
23
Price
$6.90
24
E-CLIP 8MM
Price
N/A
25
FLAT WASHER 10MM
Price
N/A
26
*DISCD*MOTOR BRACKET SHAFT
Item is no longer available
Price
N/A
27
*DISCD*MOTOR BRACKET
Item is no longer available
Price
N/A
28
HEX NUT M6-1
Price
N/A
29
*DISCD*SHOULDER HEX NUT M6-1
Price
$1.49
30
HEX NUT M4-.7
Price
N/A
31
*DISCD*SWITCH HOUSING
Item is no longer available
Price
N/A
31-1
*DISCD*SWITCH HOUSING GASKET
Item is no longer available
Price
N/A
32
TAP SCREW M4 X 20
Price
N/A
33
PHLP HD SCR M4-.7 X 10
Price
N/A
34
Safety Paddle Switch
Price
N/A
35
*DISCD*POWER CORD 18G 3W 5-15 PLUG
Item is no longer available
Price
N/A
36
S CAPACITOR 10M 250V 1-3/16 X 1-5
Price
$6.15
37
MOTOR 1/4HP 120V 1-PH W/SWITCH AN
Price
N/A
37-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
37-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
37-3
MOTOR 1/4HP 120V 1-PH W/SWITCH AN
Price
N/A
37-4
*DISCD*MOTOR TENSION SPRING
Item is no longer available
Price
N/A
37-5
*DISCD*MOTOR TENSION BOLT
Item is no longer available
Price
N/A
37-6
*DISCD*MOTOR TENSION WASHER
Item is no longer available
Price
N/A
37A
MOTOR 1/4HP 120V 1-PH W/SWITCH AN
Price
$106.75
38
HEX BOLT M6-1 X 16
Price
N/A
39
Straight Edge Jig
Price
N/A
39-1
Straight Edge Jig
Price
N/A
39-2
Straight Edge Jig
Price
N/A
39-3
Straight Edge Jig
Price
N/A
39-4
FLAT WASHER 6MM
Price
N/A
39-5
Straight Edge Jig
Price
N/A
39-6
Straight Edge Jig
Price
N/A
40
Price
$1.90
41
PHLP HD SCR M6-1 X 12
Price
N/A
42
FLAT WASHER 6MM
Price
N/A
43
LOCK WASHER 4MM
Price
N/A
44
EXT TOOTH WASHER 4MM
Price
N/A
45
Price
$2.30
46
FLANGE NUT M6-1
Price
N/A
47
*DISCD*THIN HEX NUT M20-2.5
Price
$1.49

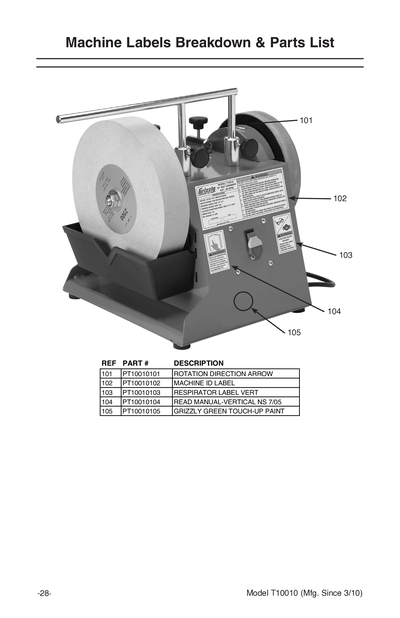

101
*DISCD*ROTATION DIRECTION ARROW
Item is no longer available
Price
N/A
102
MACHINE ID LABEL
Item is no longer available
Price
N/A
103
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
READ MANUAL 1.5W X 2.5H
Price
N/A
105
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL FOR T10010 03/08
Price
$14.65
