Parts for T10064 - 6" High Precision Milling Vise

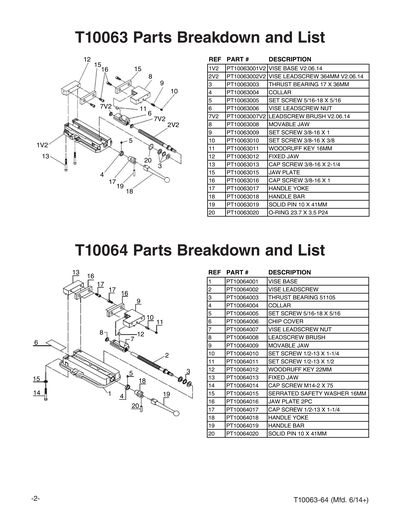

Part Diagram for T10064
Part Diagram for T10064

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
2
Price
$146.65
2A
VISE LEADSCREW W/COLLAR
Item is no longer available
Price
N/A
3
THRUST BEARING 51105
Price
N/A
4
VISE LEADSCREW W/COLLAR
Price
N/A
5
SET SCREW 5/16-18 X 5/16
Price
N/A
6
CHIP COVER
Item is no longer available
Price
N/A
7
VISE LEADSCREW NUT W/BRUSH
Price
N/A
7A
VISE LEADSCREW NUT W/BRUSH
Item is no longer available
Price
N/A
8
VISE LEADSCREW NUT W/BRUSH
Price
N/A
9
MOVABLE JAW
Item is no longer available
Price
N/A
10
SET SCREW 1/2-13 X 1-1/4
Price
N/A
11
SET SCREW 1/2-13 X 1/2
Price
N/A
12
WOODRUFF KEY 22MM
Item is no longer available
Price
N/A
13
FIXED JAW
Item is no longer available
Price
N/A
14
CAP SCREW M14-2 X 75
Price
N/A
15
SERRATED SAFETY WASHER 16MM
Item is no longer available
Price
N/A
16
Price
$169.40
17
CAP SCREW 1/2-13 X 1-1/4
Price
N/A
18
HANDLE ASSEMBLY
Price
N/A
18A
Price
$74.75
19
HANDLE ASSEMBLY
Price
N/A
20
HANDLE ASSEMBLY
Price
N/A
