Parts for T10157 - Heavy-Duty Oak Workbench with Steel Legs

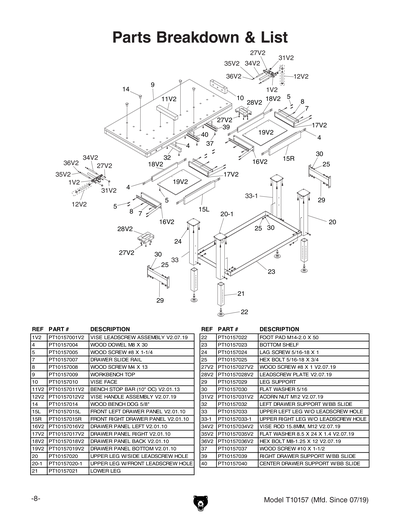

Part Diagram for T10157
Part Diagram for T10157

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
VISE LEADSCREW ASSEMBLY V1
Price
$182.60
1V2
VISE LEADSCREW ASSEMBLY V2.07.19
Price
$220.70
2
VISE LEADSCREW ASSEMBLY V1
Price
N/A
3
WOOD SCREW M4 X 15
Price
$1.90
4
WOOD DOWEL M8 X 30
Price
$2.60
5
WOOD SCREW #8 X 1-1/4
Price
N/A
6
*DISCD*GLUE TUBE
Item is no longer available
Price
N/A
7
DRAWER SLIDE RAIL
Price
$10.45
8
WOOD SCREW M4 X 13
Price
$1.90
9
WORKBENCH TOP
Price
$934.40
10
VISE FACE
Price
$73.85
11
BENCH STOP BAR (9-1/2" OC) V1
Price
$22.35
11V2
BENCH STOP BAR (10" OC) V2.01.13
Price
$33.95
12
*DISCD*VISE HANDLE ASSEMBLY V1
Item is no longer available
Price
N/A
12V2
VISE HANDLE ASSEMBLY V2.07.19
Price
$7.95
13
*DISCD*VISE HANDLE ASSEMBLY V1
Price
N/A
14
WOOD BENCH DOG 5/8"
Price
$4.00
15
*DISCD*DRAWER PANEL FRONT V1
Item is no longer available
Price
N/A
15L
FRONT LEFT DRAWER PANEL V2.01.10
Price
$46.75
15R
FRONT RIGHT DRAWER PANEL V2.01.10
Price
$41.70
16
*DISCD*DRAWER PANEL LEFT V1
Item is no longer available
Price
N/A
16V2
DRAWER PANEL LEFT V2.01.10
Price
$38.85
17
*DISCD*DRAWER PANEL RIGHT V1
Item is no longer available
Price
N/A
17V2
DRAWER PANEL RIGHT V2.01.10
Price
$38.85
18
*DISCD*DRAWER PANEL BACK V1
Item is no longer available
Price
N/A
18V2
DRAWER PANEL BACK V2.01.10
Price
$44.60
19
*DISCD*DRAWER PANEL BOTTOM V1
Item is no longer available
Price
N/A
19V2
DRAWER PANEL BOTTOM V2.01.10
Price
$51.75
20
UPPER LEG W/SIDE LEADSCREW HOLE
Price
$78.75
20-1
UPPER LEG W/FRONT LEADSCREW HOLE
Price
$78.75
21
LOWER LEG
Price
$70.00
22
FOOT PAD M14-2 X 50
Price
$6.15
23
BOTTOM SHELF
Price
$260.60
24
LAG SCREW 5/16-18 X 1"
Price
$1.90
25
HEX BOLT 5/16-18 X 3/4
Price
N/A
26
FLANGE BOLT 5/16-18 X 3/4
Price
N/A
27
WOOD SCREW #8 X 1
Price
N/A
27V2
WOOD SCREW #8 X 1 V2.07.19
Price
$1.90
28
LEADSCREW PLATE V1
Price
$96.70
28V2
LEADSCREW PLATE V2.07.19
Price
$96.70
29
LEG SUPPORT
Price
$33.45
30
FLAT WASHER 5/16
Price
N/A
31
ACORN NUT 5/16-18
Price
N/A
31V2
ACORN NUT M12 V2.07.19
Price
$1.90
32
LEFT DRAWER SUPPORT W/BB SLIDE
Price
$67.95
33
UPPER LEFT LEG W/O LEADSCREW HOLE
Price
$118.10
33-1
UPPER RIGHT LEG W/O LEADSCREW HOLE
Price
$74.10
34
VISE ROD 18MM, 5/16-18 V1
Price
$27.70
34V2
VISE ROD 15.8MM, M12 V2.07.19
Price
$27.00
35
FLAT WASHER 8.5 X 24 X 1.7 V1
Price
$4.70
35V2
FLAT WASHER 8.5 X 24 X 1.4 V2.07.19
Price
$4.70
36
VISE BOLT M8-1.25 X 16 V1
Price
$3.65
36V2
HEX BOLT M8-1.25 X 12
Price
N/A
37
WOOD SCREW #10 X 1-1/2
Price
N/A
38
FLAT WASHER 14MM
Price
N/A
39
RIGHT DRAWER SUPPORT W/BB SLIDE
Price
$56.85
40
CENTER DRAWER SUPPORT W/BB SLIDE
Price
$56.85
41
WORKBENCH TOP
Price
N/A
BOX2
LEG SUPPORTS AND SHELF BOX 2
Price
$327.45
MAN
MANUAL T10157 MFD-10.08-07.09 V1.08.09
Price
$21.95
MANV2
MANUAL T10157 MFD-08.09-12.09 V2.10.09
Price
$14.65
MANV3
MANUAL T10157 MFD-01.10-06.19 V3.08.11
Price
$14.65
MANV4
MANUAL T10157 MFD-07.19+ V4.06.22
Price
$14.65
PKG1
BOX 1 FOR T10157
Price
$46.75
PKG2
BOX 2 FOR T10157
Price
$19.45
