Parts for T10432 - Router Table with Stand

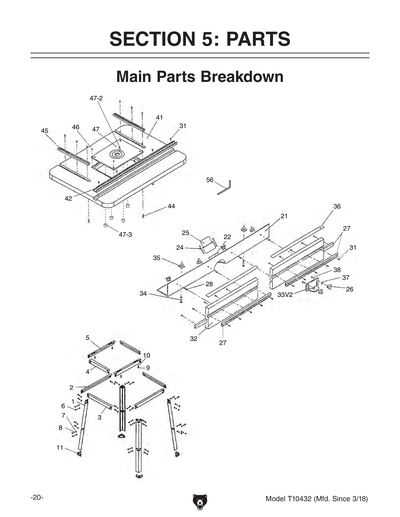

Part Diagram for T10432
Part Diagram for T10432
Part Diagram for T10432
Part Diagram for T10432
Part Diagram for T10432
Part Diagram for T10432

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

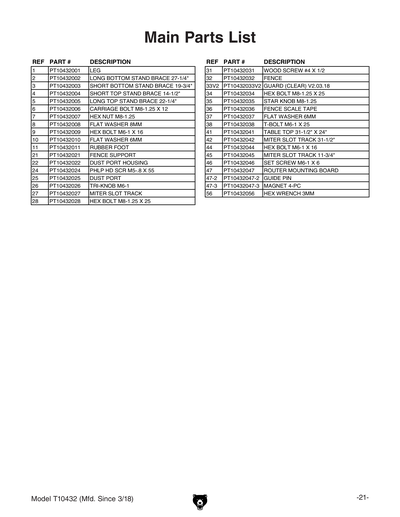

Ref #
Part #
Description
1
*DISCD*LEG
Item is no longer available
Price
N/A
2
*DISCD*LONG BOTTOM STAND BRACE 27-1/4"
Price
$5.20
3
*DISCD*SHORT BOTTOM STAND BRACE 19-3/4"
Price
$4.05
4
*DISCD*SHORT TOP STAND BRACE 14-1/2"
Price
$3.20
5
*DISCD*LONG TOP STAND BRACE 22-1/4"
Price
$4.35
6
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
7
HEX NUT M8-1.25
Price
N/A
8
FLAT WASHER 8MM
Price
N/A
9
HEX BOLT M6-1 X 16
Price
N/A
10
FLAT WASHER 6MM
Price
N/A
11
*DISCD*RUBBER FOOT
Item is no longer available
Price
N/A
21
*DISCD*FENCE SUPPORT
Item is no longer available
Price
N/A
22
*DISCD*DUST PORT HOUSING
Price
$3.45
24
PHLP HD SCR M5-.8 X 55
Price
N/A
25
Price
$3.20
26
*DISCD*TRI-KNOB M6-1
Item is no longer available
Price
N/A
27
*DISCD*MITER SLOT TRACK
Price
$6.65
28
HEX BOLT M8-1.25 X 25
Price
N/A
31
WOOD SCREW #4 X 1/2
Price
N/A
32
*DISCD*FENCE
Item is no longer available
Price
N/A
32-1
Price
$6.65
33
Price
$1.75
33V2
*DISCD*GUARD (CLEAR) V2.03.18
Price
$2.90
34
HEX BOLT M8-1.25 X 25
Price
N/A
35
*DISCD*STAR KNOB M8-1.25
Price
$1.49
36
*DISCD*FENCE SCALE TAPE
Price
$2.05
37
FLAT WASHER 6MM
Price
N/A
38
*DISCD*T-BOLT M6-1 X 25
Item is no longer available
Price
N/A
41
*DISCD*TABLE TOP 31-1/2" X 24"
Price
$87.40
42
*DISCD*MITER SLOT TRACK 31-1/2"
Price
$17.00
43
WOOD SCREW #4 X 1/2
Price
N/A
44
HEX BOLT M6-1 X 16
Price
N/A
45
*DISCD*MITER SLOT TRACK 11-3/4"
Price
$4.35
46
SET SCREW M6-1 X 6
Price
N/A
47
*DISCD*ROUTER MOUNTING BOARD
Item is no longer available
Price
N/A
47-1
*DISCD*INSERT WITH NO GUIDE PIN
Item is no longer available
Price
N/A
47-2
*DISCD*GUIDE PIN
Item is no longer available
Price
N/A
47-3
Price
$5.50
51

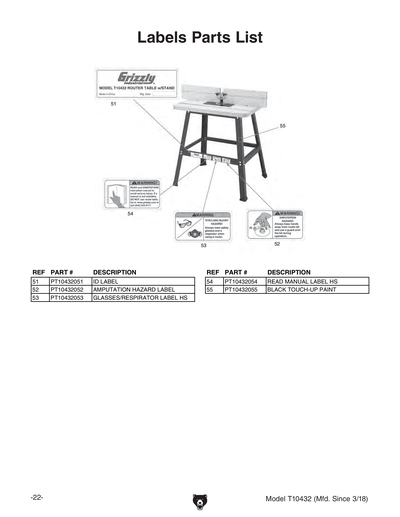

*DISCD*ID LABEL
Item is no longer available
Price
N/A
52
*DISCD*AMPUTATION HAZARD LABEL
Item is no longer available
Price
N/A
53
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
54
READ MANUAL 2.8W X 1.5H
Price
N/A
55
GLOSSY BLACK
Price
N/A
56
HEX WRENCH 3MM
Price
N/A
MAN
MANUAL T10432 MFG 11/10 V2.11.12
Price
N/A
MANV2
MANUAL T10432 MFG 11/10 V2.11.12
Price
$11.00
