Parts for T10464 - 24" Panel Shaping Jig

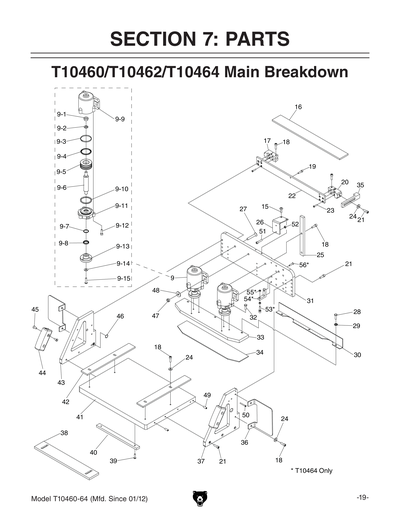

Part Diagram for T10464
Part Diagram for T10464
Part Diagram for T10464
Part Diagram for T10464
Part Diagram for T10464
Part Diagram for T10464
Part Diagram for T10464
Part Diagram for T10464

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

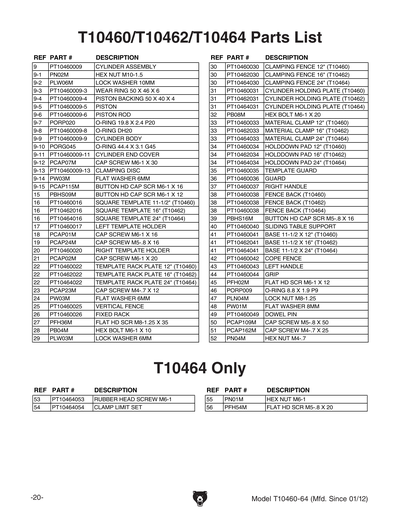

Ref #
Part #
Description
9
CYLINDER ASSEMBLY
Price
N/A
9-1
HEX NUT M10-1.5
Price
N/A
9-10
O-RING 44.4 X 3.1 G45
Price
N/A
9-11
CYLINDER END COVER
Price
N/A
9-12
CAP SCREW M6-1 X 30
Price
N/A
9-13
CLAMPING DISC
Price
N/A
9-14
FLAT WASHER 6MM
Price
N/A
9-15
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
9-2
LOCK WASHER 10MM
Price
N/A
9-3
WEAR RING 50 X 46 X 6
Price
N/A
9-4
PISTON BACKING 50 X 40 X 4
Price
N/A
9-5
PISTON
Price
N/A
9-6
PISTON ROD
Price
N/A
9-7
O-RING 19.8 X 2.4 P20
Price
N/A
9-8
O-RING DH20
Price
N/A
9-9
CYLINDER BODY
Price
N/A
15
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
16
SQUARE TEMPLATE 24"
Price
$18.15
17
LEFT TEMPLATE HOLDER
Price
N/A
18
CAP SCREW M6-1 X 16
Price
N/A
19
CAP SCREW M5-.8 X 16
Price
N/A
20
RIGHT TEMPLATE HOLDER
Price
N/A
21
CAP SCREW M6-1 X 20
Price
N/A
22
TEMPLATE RACK PLATE 24"
Price
$72.45
23
CAP SCREW M4-.7 X 12
Price
N/A
24
FLAT WASHER 6MM
Price
N/A
25
VERTICAL FENCE
Price
N/A
26
FIXED RACK
Price
N/A
27
FLAT HD SCR M8-1.25 X 35
Price
N/A
28
HEX BOLT M6-1 X 10
Price
N/A
29
LOCK WASHER 6MM
Price
N/A
30
CLAMPING FENCE 24"
Price
$23.60
31
CYLINDER HOLDING PLATE 24"
Price
$307.95
32
HEX BOLT M6-1 X 20
Price
N/A
33
MATERIAL CLAMP 24"
Price
$217.35
34
HOLDDOWN PAD 24"
Price
$10.90
35
TEMPLATE GUARD
Price
N/A
36
GUARD
Price
N/A
37
RIGHT HANDLE
Price
N/A
38
FENCE BACK
Price
$50.75
39
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
40
SLIDING TABLE SUPPORT
Price
N/A
41
BASE 11-1/2 X 24"
Price
$1,756.95
42
COPE FENCE
Price
N/A
43
LEFT HANDLE
Price
N/A
44
GRIP
Price
N/A
45
FLAT HD SCR M6-1 X 12
Price
N/A
46
O-RING 8.8 X 1.9 P9
Price
N/A
47
LOCK NUT M8-1.25
Price
N/A
48
FLAT WASHER 8MM
Price
N/A
49
DOWEL PIN
Price
N/A
50
CAP SCREW M5-.8 X 50
Price
N/A
51
CAP SCREW M4-.7 X 25
Price
N/A
52
HEX NUT M4-.7
Price
N/A
53
RUBBER HEAD SCREW M6-1
Price
$3.65
54
CLAMP LIMIT SET
Price
$27.20
55
HEX NUT M6-1
Price
N/A
56
FLAT HD SCR M5-.8 X 20
Price
N/A

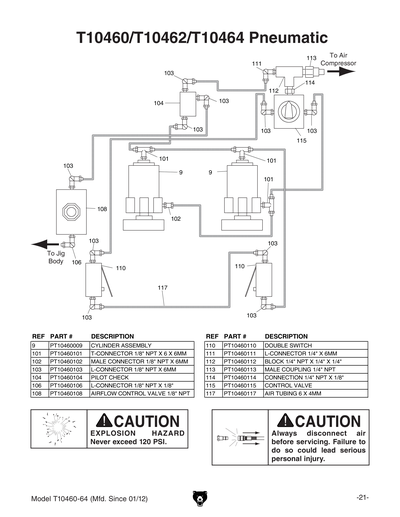

101
T-CONNECTOR 1/8" NPT X 6 X 6MM
Price
N/A
102
MALE CONNECTOR 1/8" NPT X 6MM
Price
N/A
103
L-CONNECTOR 1/8" NPT X 6MM
Price
N/A
104
PILOT CHECK
Price
N/A
106
L-CONNECTOR 1/8" NPT X 1/8"
Price
N/A
108
AIRFLOW CONTROL VALVE 1/8" NPT
Price
N/A
110
DOUBLE SWITCH
Price
N/A
111
L-CONNECTOR 1/4" X 6MM
Price
N/A
112
BLOCK 1/4" NPT X 1/4" X 1/4"
Price
N/A
113
MALE COUPLING 1/4" NPT
Price
N/A
114
CONNECTION 1/4" NPT X 1/8"
Price
N/A
115
*DISCD*CONTROL VALVE V1
Price
N/A
115V2
CONTROL VALVE V2.07.15
Price
N/A
117
AIR TUBING 6 X 4MM
Price
N/A

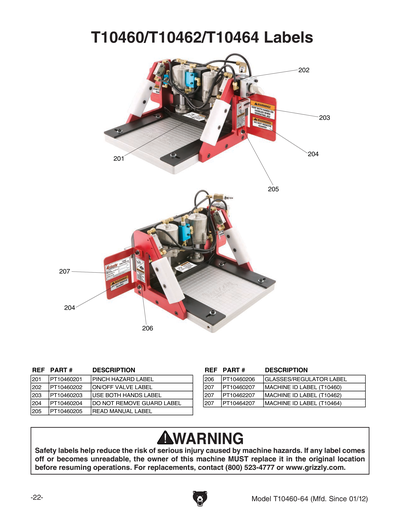

201
PINCH HAZARD LABEL
Price
N/A
202
ON/OFF VALVE LABEL
Price
N/A
203
USE BOTH HANDS LABEL
Price
N/A
204
DO NOT REMOVE GUARD LABEL
Price
N/A
205
READ MANUAL LABEL
Price
N/A
206
GLASSES/REGULATOR LABEL
Price
N/A
207
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL T10460, 62, 64 MFG 01.12 V1.06.12
Price
N/A
