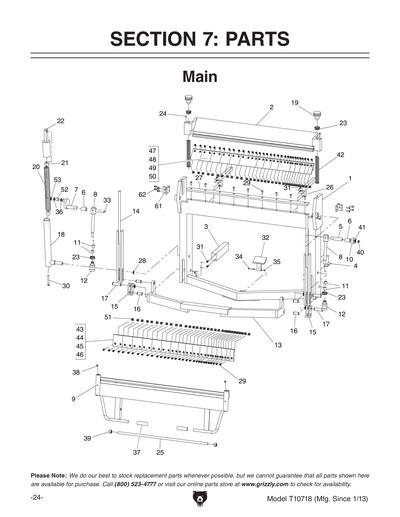

Parts for T10718 - 50" Deluxe Pan and Box Brake

1/3

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

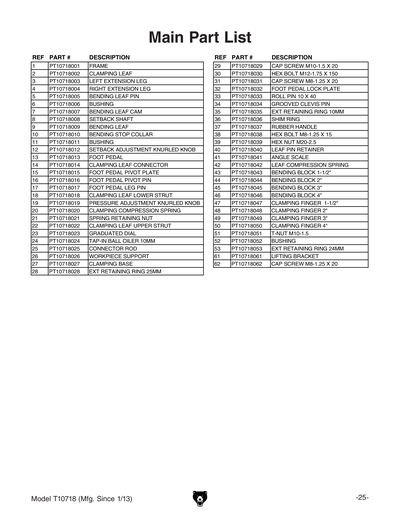

Ref #
Part #
Description
1
FRAME
Price
$1,983.75
2
CLAMPING LEAF
Price
$819.95
3
LEFT EXTENSION LEG
Price
$25.90
4
RIGHT EXTENSION LEG
Price
$25.90
5
BENDING LEAF PIN
Price
$8.65
6
BUSHING
Price
$5.20
7
BENDING LEAF CAM
Price
$25.90
8
SETBACK SHAFT
Price
$43.15
9
BENDING LEAF
Price
$517.50
10
BENDING STOP COLLAR
Price
$22.45
11
BUSHING
Price
$5.20
12
SETBACK ADJUSTMENT KNURLED KNOB
Price
$34.50
13
FOOT PEDAL
Price
$172.50
14
CLAMPING LEAF CONNECTOR
Price
$106.95
15
FOOT PEDAL PIVOT PLATE
Price
$8.65
16
FOOT PEDAL PIVOT PIN
Price
$5.20
17
FOOT PEDAL LEG PIN
Price
$6.90
18
CLAMPING LEAF LOWER STRUT
Price
$51.75
19
PRESSURE ADJUSTMENT KNURLED KNOB
Price
$53.50
20
CLAMPING COMPRESSION SPRING
Price
$25.90
21
SPRING RETAINING NUT
Price
$8.65
22
CLAMPING LEAF UPPER STRUT
Price
$43.15
23
GRADUATED DIAL
Price
$17.25
24
BALL OILER 10MM PRESS-IN
Price
N/A
25
CONNECTOR ROD
Price
$25.90
26
WORKPIECE SUPPORT
Price
$25.90
27
CLAMPING BASE
Price
$241.50
28
EXT RETAINING RING 25MM
Price
N/A
29
CAP SCREW M10-1.5 X 20
Price
N/A
30
HEX BOLT M12-1.75 X 150
Price
N/A
31
CAP SCREW M8-1.25 X 20
Price
N/A
32
FOOT PEDAL LOCK PLATE
Price
$22.45
32-1
FOOT PEDAL SPRING
Price
$6.90
33
ROLL PIN 10 X 40
Price
N/A
34
GROOVED CLEVIS PIN
Price
$1.49
35
EXT RETAINING RING 10MM
Price
N/A
36
SHIM RING
Price
$2.90
37
RUBBER HANDLE
Price
$2.90
38
HEX BOLT M8-1.25 X 15
Price
N/A
39
HEX NUT M20-2.5
Price
N/A
40
LEAF PIN RETAINER
Price
$5.20
41
ANGLE SCALE
Price
$1.75
42
LEAF COMPRESSION SPRING
Price
$13.80
43
BENDING BLOCK 1-1/2"
Price
$17.25
44
BENDING BLOCK 2"
Price
$22.45
45
BENDING BLOCK 3"
Price
$30.20
46
BENDING BLOCK 4"
Price
$25.90
47
CLAMPING FINGER 1-1/2"
Price
$25.90
48
CLAMPING FINGER 2"
Price
$31.05
49
CLAMPING FINGER 3"
Price
$32.80
50
CLAMPING FINGER 4"
Price
$34.50
51
T-NUT M10-1.5
Price
$2.90
52
BUSHING
Price
$5.20
53
EXT RETAINING RING 24MM
Price
N/A
54

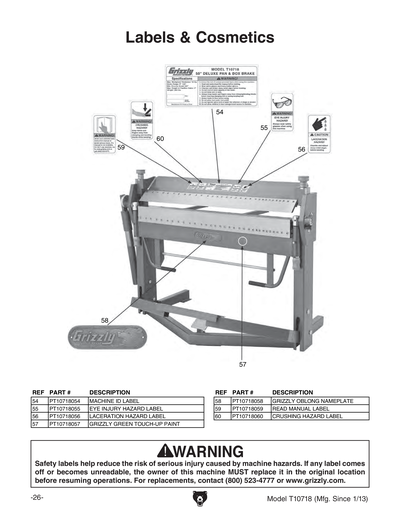

MACHINE ID LABEL
Price
$16.40
55
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
56
LACERATION HAZARD LABEL
Price
N/A
57
N/S GRIZZLY GREEN G1023S
Price
N/A
58
Oblong Nameplate-Small
Price
N/A
59
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
60
CRUSHING HAZARD LABEL
Price
$3.00
61
LIFTING BRACKET
Price
$22.45
62
CAP SCREW M8-1.25 X 20
Price
N/A
MAN
MANUAL T10718 MFG 1/13 V1.02.13
Price
$4.50
