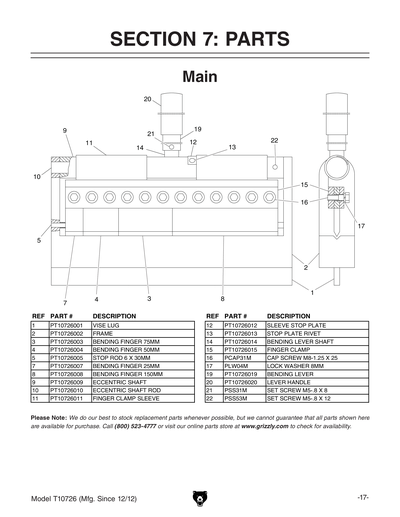

Parts for T10726 12" 18-Gauge Mini Pan and Box Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
VISE LUG
2
FRAME
3
BENDING FINGER 75MM
4
BENDING FINGER 50MM
5
STOP ROD 6 X 30MM
7
BENDING FINGER 25MM
8
BENDING FINGER 150MM
9
ECCENTRIC SHAFT
10
ECCENTRIC SHAFT ROD
11
FINGER CLAMP SLEEVE
12
SLEEVE STOP PLATE
13
STOP PLATE RIVET
14
BENDING LEVER SHAFT
15
FINGER CLAMP
16
CAP SCREW M8-1.25 X 25
Price
N/A
17
LOCK WASHER 8MM
Price
N/A
19
BENDING LEVER
20
LEVER HANDLE
21
SET SCREW M5-.8 X 8
Price
N/A
22
SET SCREW M5-.8 X 12
Price
N/A

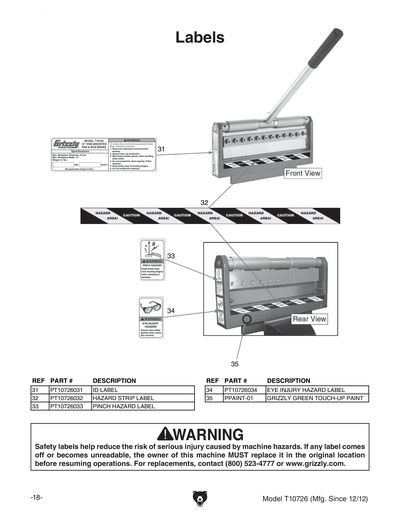

31
ID LABEL
32
HAZARD STRIP LABEL
33
PINCH HAZARD LABEL
34
EYE INJURY HAZARD LABEL
35
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL T10726 MFG 12/12 V1.01.13
