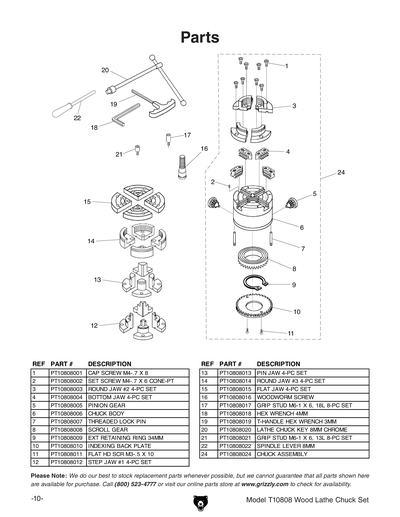

Parts for T10808 2-3/4" Wood Lathe Chuck Set

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1
CAP SCREW M4-.7 X 8
Price
N/A
2
SET SCREW M4-.7 X 6 CONE-PT
Price
N/A
3
ROUND JAW #2 4-PC SET
4
BOTTOM JAW 4-PC SET
5
PINION GEAR
6
CHUCK BODY
7
THREADED LOCK PIN
8
SCROLL GEAR
9
Now: PR84M
EXT RETAINING RING 34MM
Price
N/A
10
INDEXING BACK PLATE
11
FLAT HD SCR M3-.5 X 10
Price
N/A
12
STEP JAW #1 4-PC SET
13
PIN JAW 4-PC SET
14
ROUND JAW #3 4-PC SET
15
FLAT JAW 4-PC SET
16
WOODWORM SCREW
17
GRIP STUD M6-1 X 6, 18L 8-PC SET
18
HEX WRENCH 4MM
Price
N/A
19
T-HANDLE HEX WRENCH 3MM
20
LATHE CHUCK KEY 8MM CHROME
21
GRIP STUD M6-1 X 6, 13L 8-PC SET
22
SPINDLE LEVER 8MM
23
CASE FOR T10808
24
CHUCK ASSEMBLY
MAN
MANUAL T10808 MFD-11.13 V1.12.13
