Parts for T10809 - 3-3/4" Wood Lathe Chuck Set

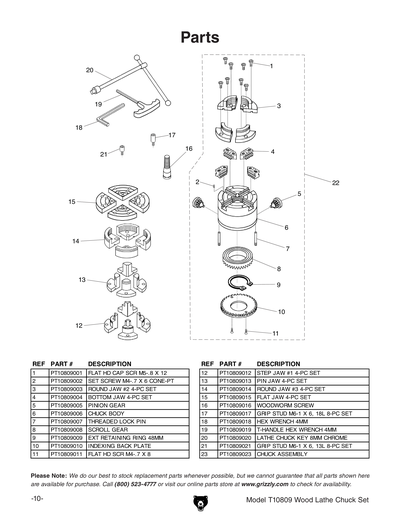

Part Diagram for T10809
Part Diagram for T10809

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
FLAT HD CAP SCR M5-.8 X 12
Price
$5.10
2
SET SCREW M4-.7 X 6 CONE-PT
Price
N/A
3
Price
$50.20
4
Price
$45.35
5
Price
$24.70
6
Price
$121.65
7
Price
$1.90
8
Price
$48.00
9
EXT RETAINING RING 48MM
Price
N/A
10
INDEXING BACK PLATE
Price
N/A
11
FLAT HD SCR M4-.7 X 8
Price
N/A
12
Price
$47.45
13
Price
$44.95
14
Price
$49.65
15
Price
$50.35
16
Price
$11.20
17
GRIP STUD M6-1 X 6, 18L 8-PC SET
Price
N/A
18
HEX WRENCH 4MM
Price
N/A
19
T-HANDLE HEX WRENCH 4MM
Price
$3.65
20
LATHE CHUCK KEY 8MM CHROME
Price
N/A
21
GRIP STUD M6-1 X 6, 13L 8-PC SET
Price
N/A
22
Price
$45.50
23
Price
$244.10
MAN
MANUAL T10809 MFD-11.13 V1.12.13
Price
$14.65
